Continuous Voltage Rating - ◖8 V to 35 V
Continuous.
Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before
dropout and supply recovers to 5 V. This is achieved without the need for
internal batteries. LEDs and backlight will not be maintained during cranking.
Maximum Operating Current - ◖85 mA at 12 V, 96
mA at 24 V
Maximum Standby Current - ◖51 mA at 12 V, 47 mA at 24 V
Maximum Sleep Current - ◖35 mA at 12 V, 32 mA at 24 V
Maximum Deep Sleep Current- ◖<10 μA at 12 V, <10 μA at 24 V
Chargefail / Excitation Range - ◖0 V to 35 V
Inputs - ◖Digital Inputs A to D : Negative
switching ◖Analogue Input A To C : Configurable as: Negative switching
digital input Resistive
Outputs - ◖Output A (Fuel) : 10 A short term,
5 A continuous, at supply voltaje ◖Output B (Start) : 10 A short term, 5 A
continuous, at supply voltaje ◖Auxiliary Outputs C, D, E & F : 2 A DC
at supply voltaje
Pulse Pick Up - ◖Voltage Range : +/- 0.5 V to 70
V ◖Frequency Range : 5 Hz to 10,000 Hz
Dimensions - ◖Overall 140 mm x 113 mm x 43 mm 5.5’’ x
4.4” x 1.7” ◖Panel Cut-Out : 118 mm x 92 mm 4.6’’ x 3.6” ◖Maximum Panel
Thickness : 8 mm 0.3”
Storage Temperature Range- ◖-40 °C to +85 °C (-40 °F to +185 °F)
Operating Temperature Range- ◖-30 °C to +70 °C (-22 °F to +158 °F)

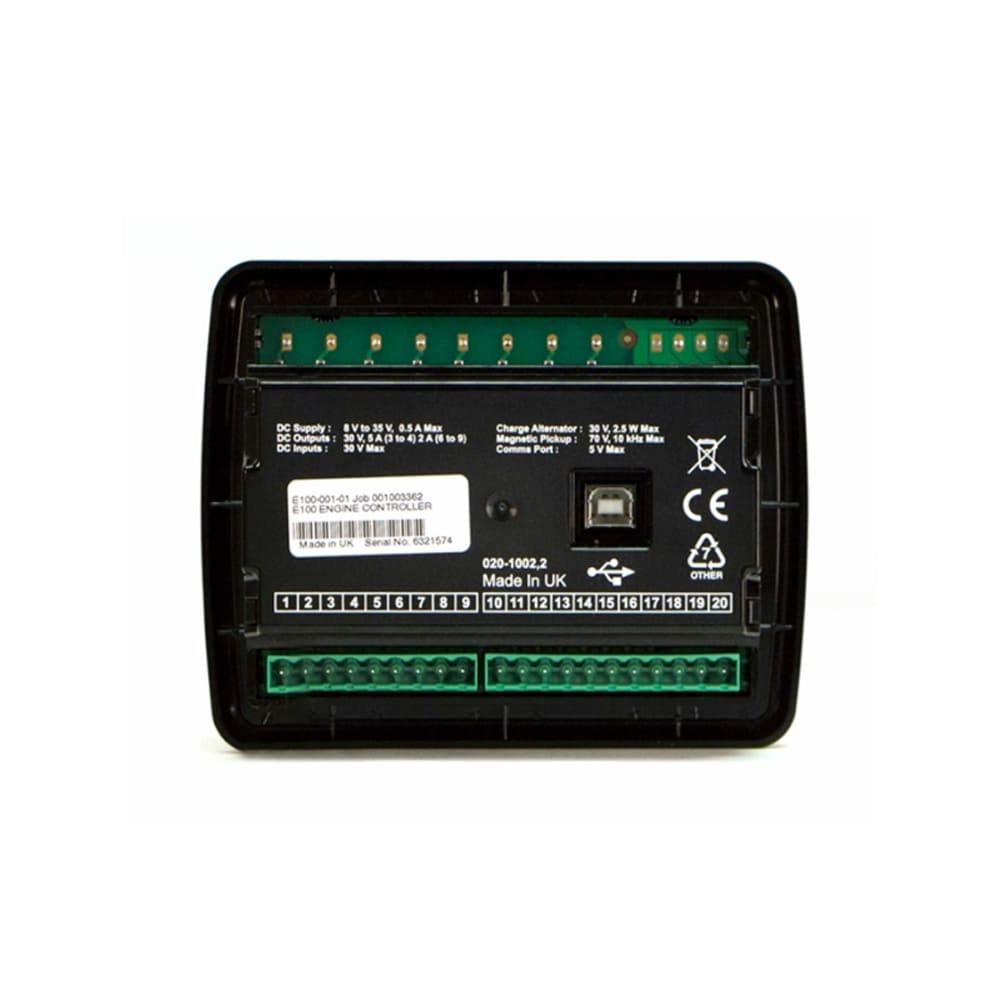

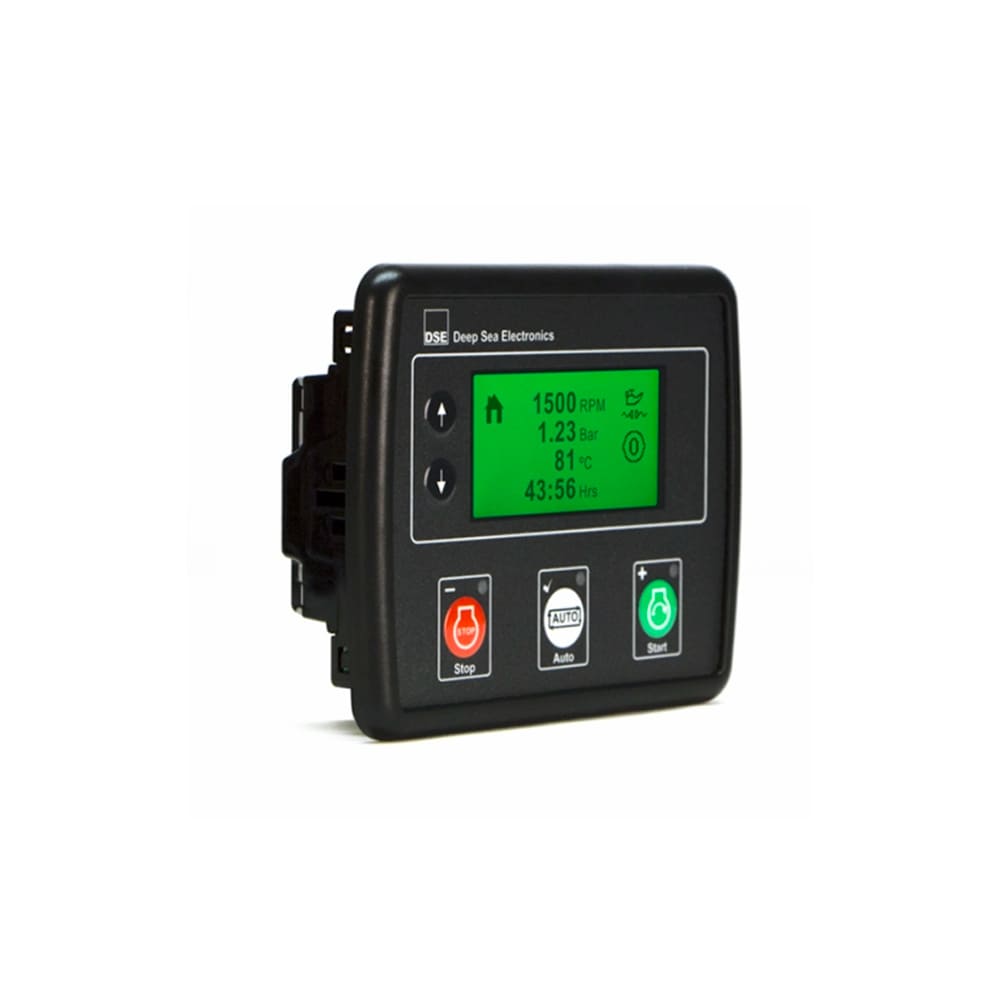

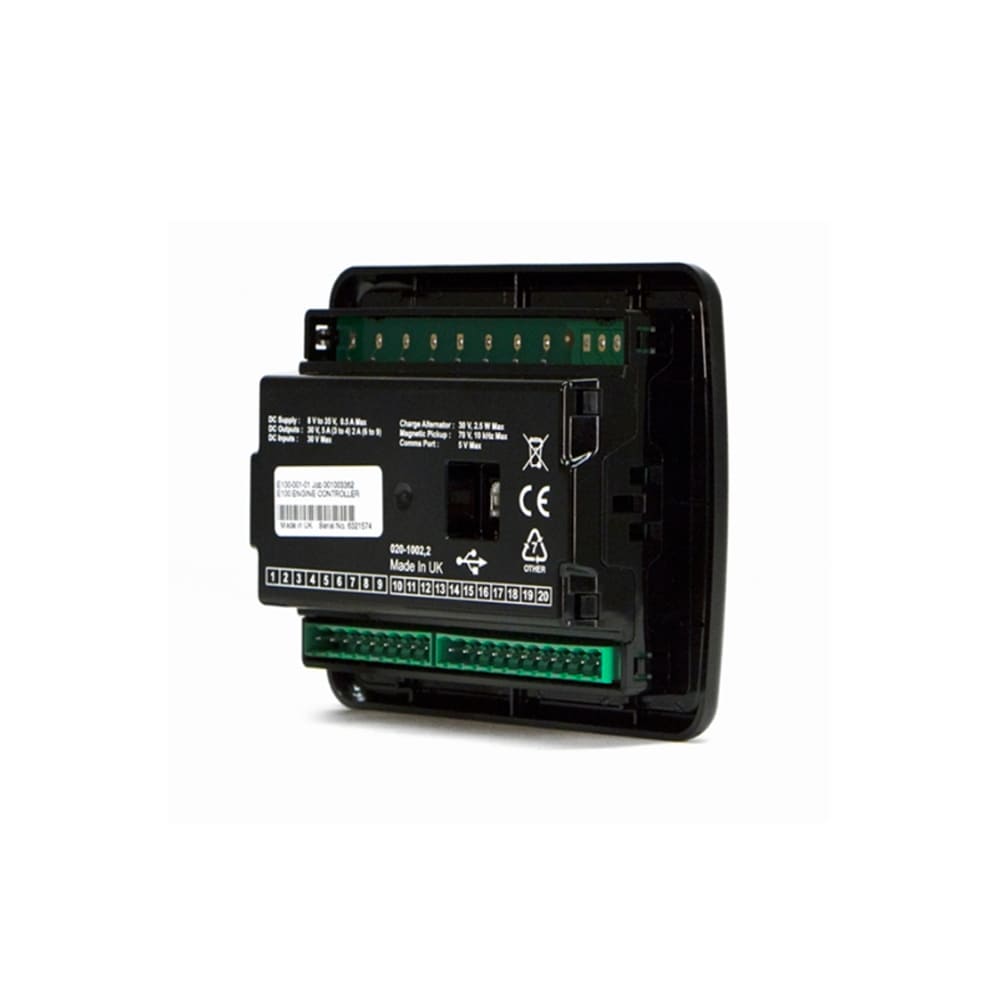

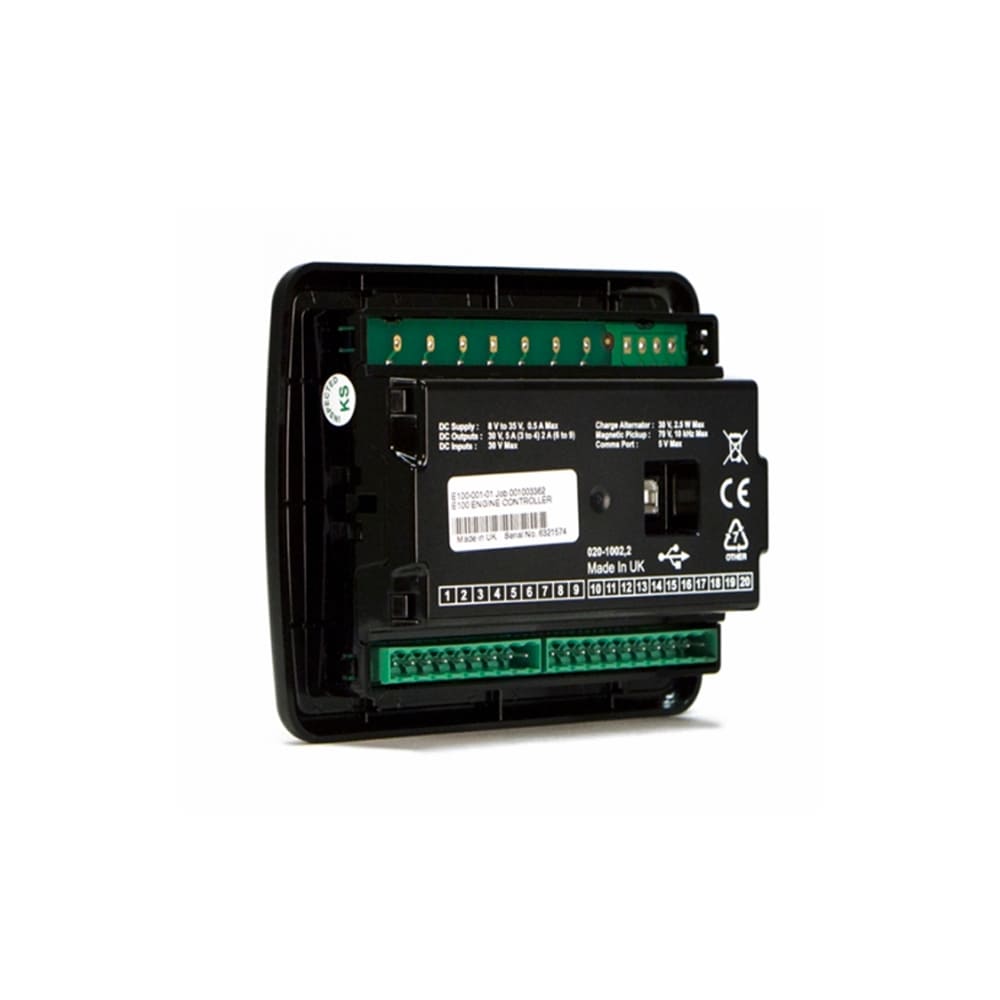

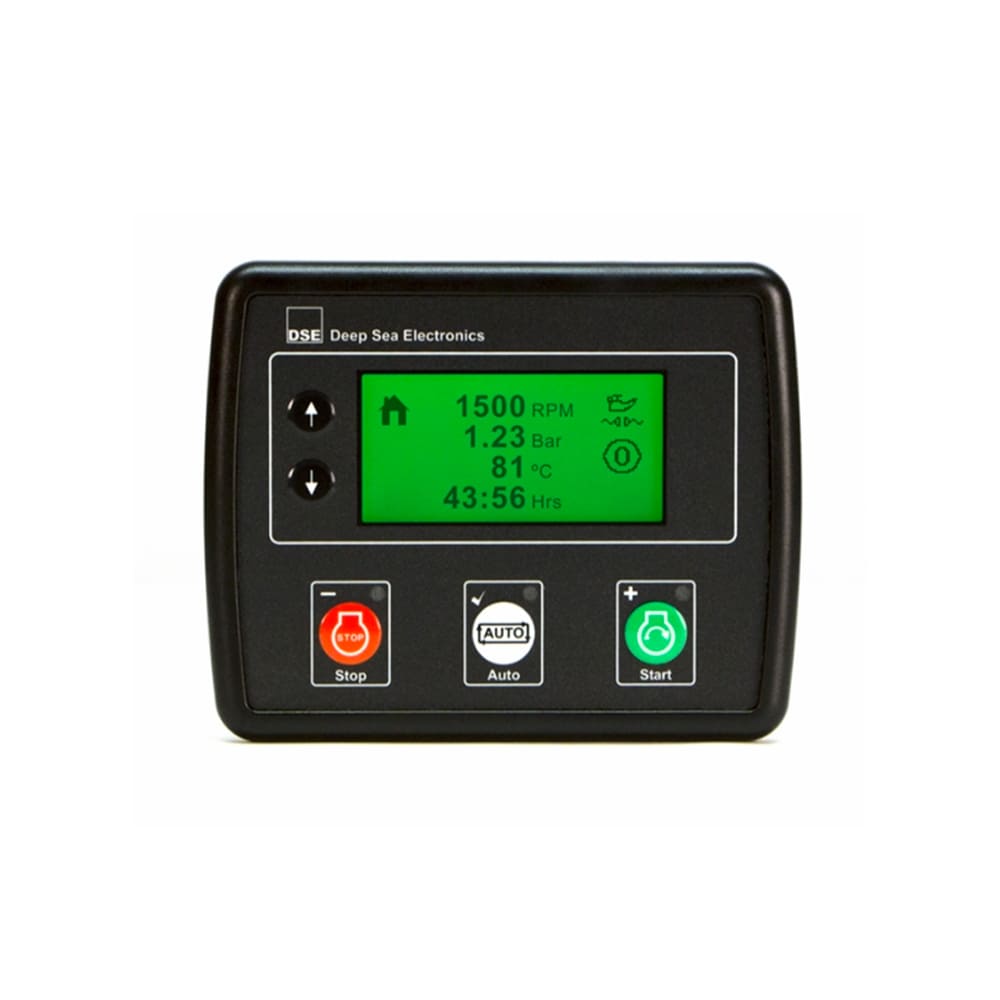

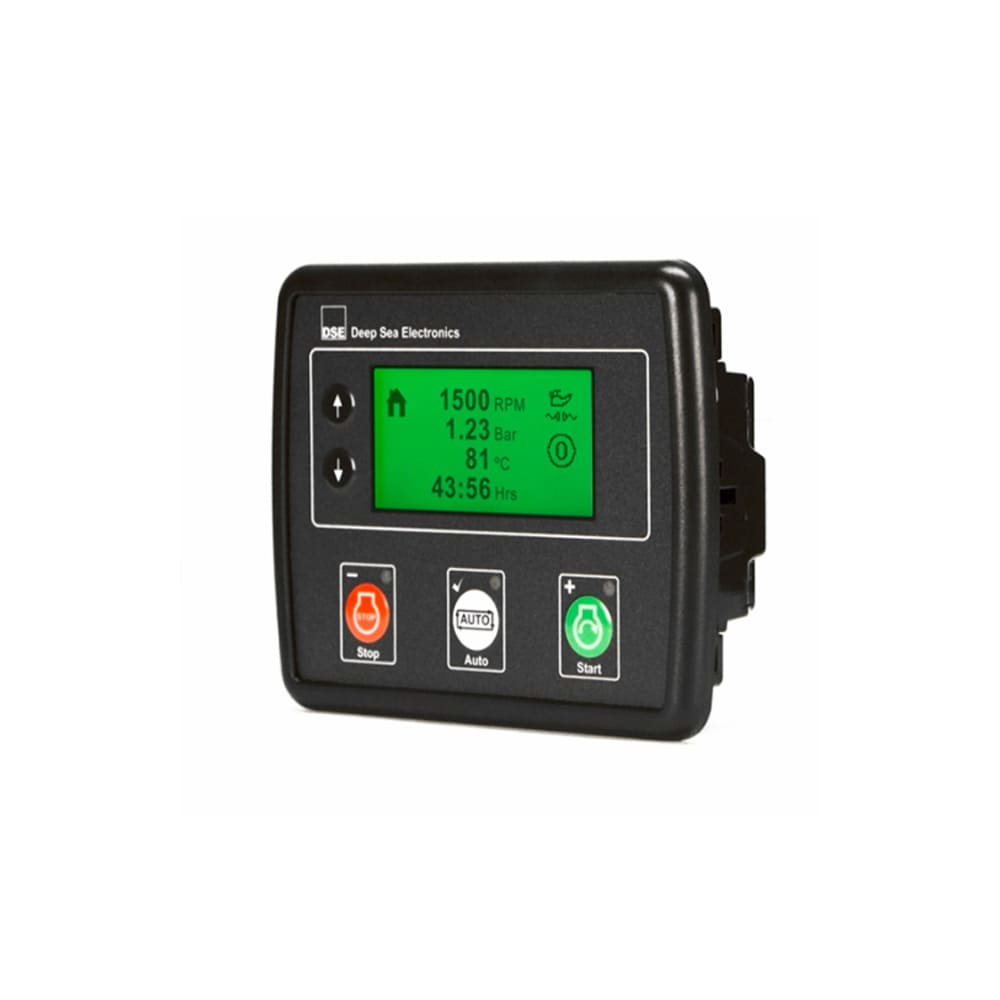

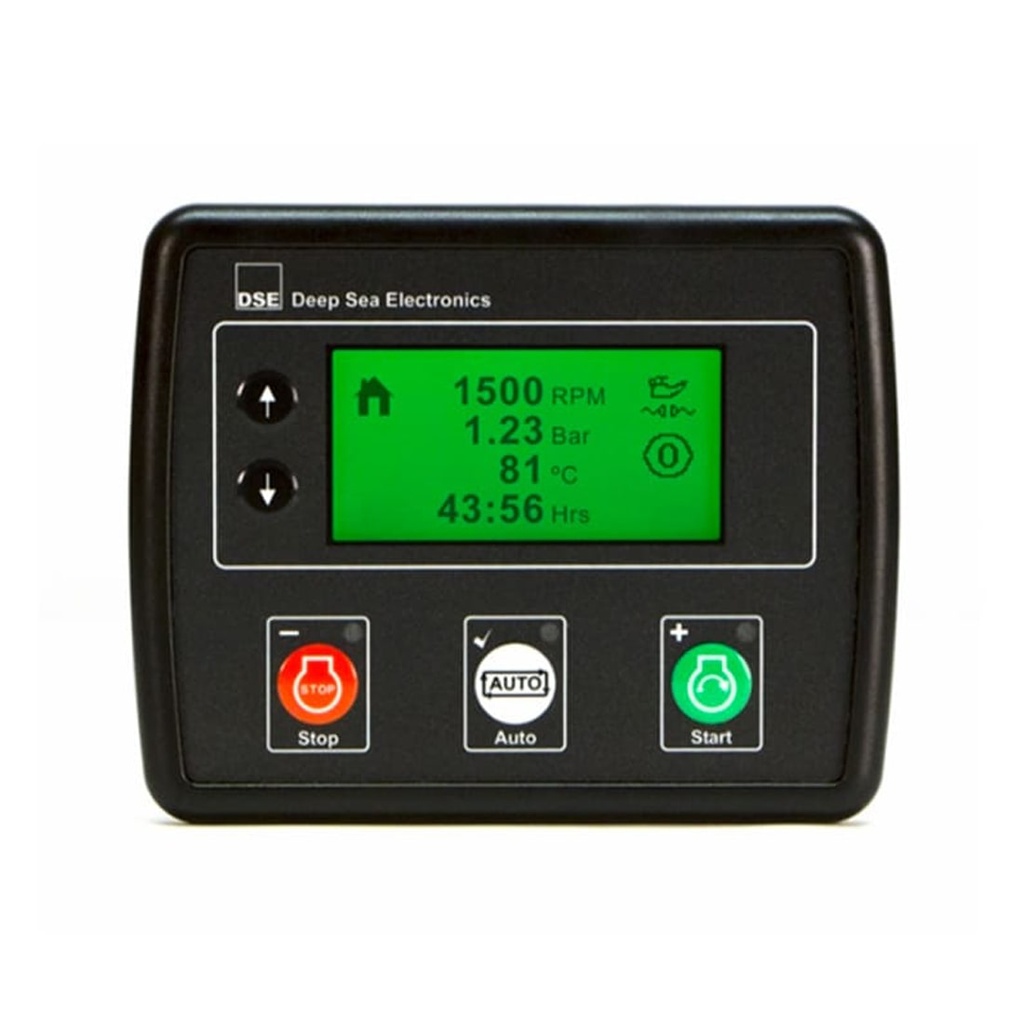

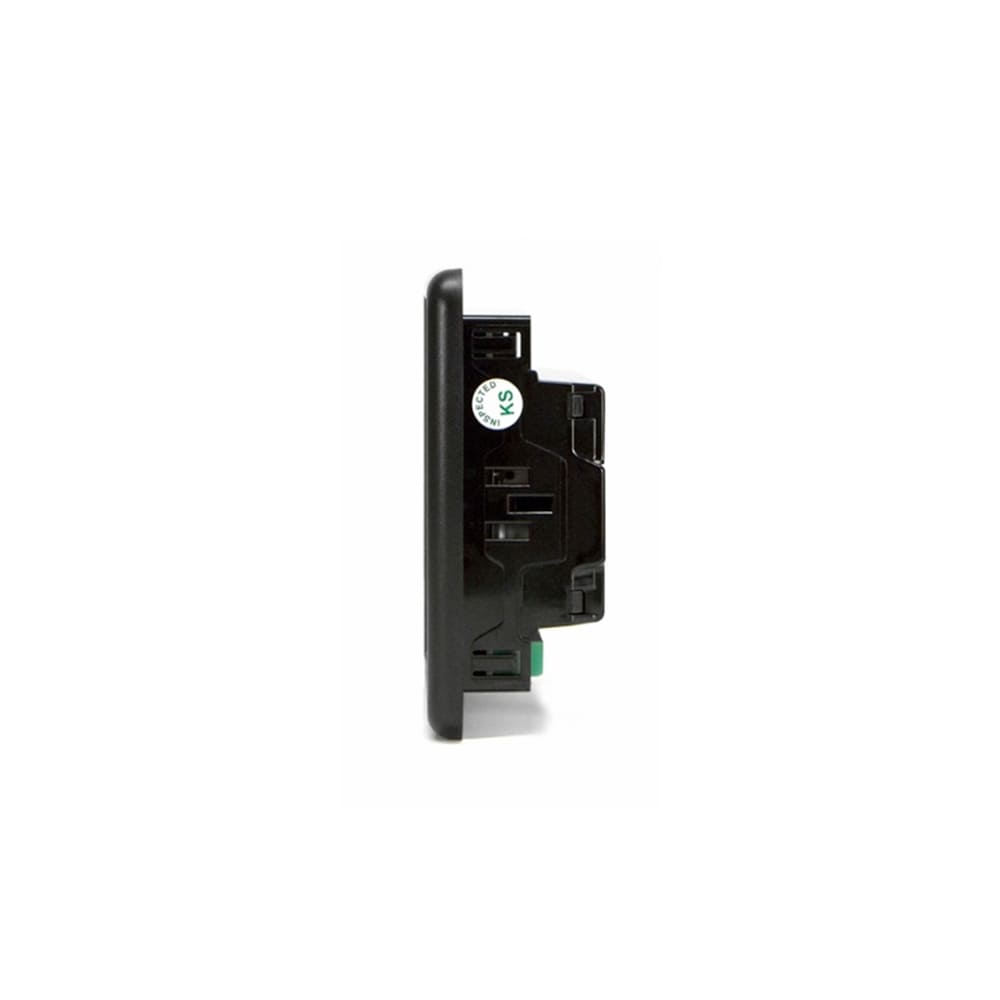

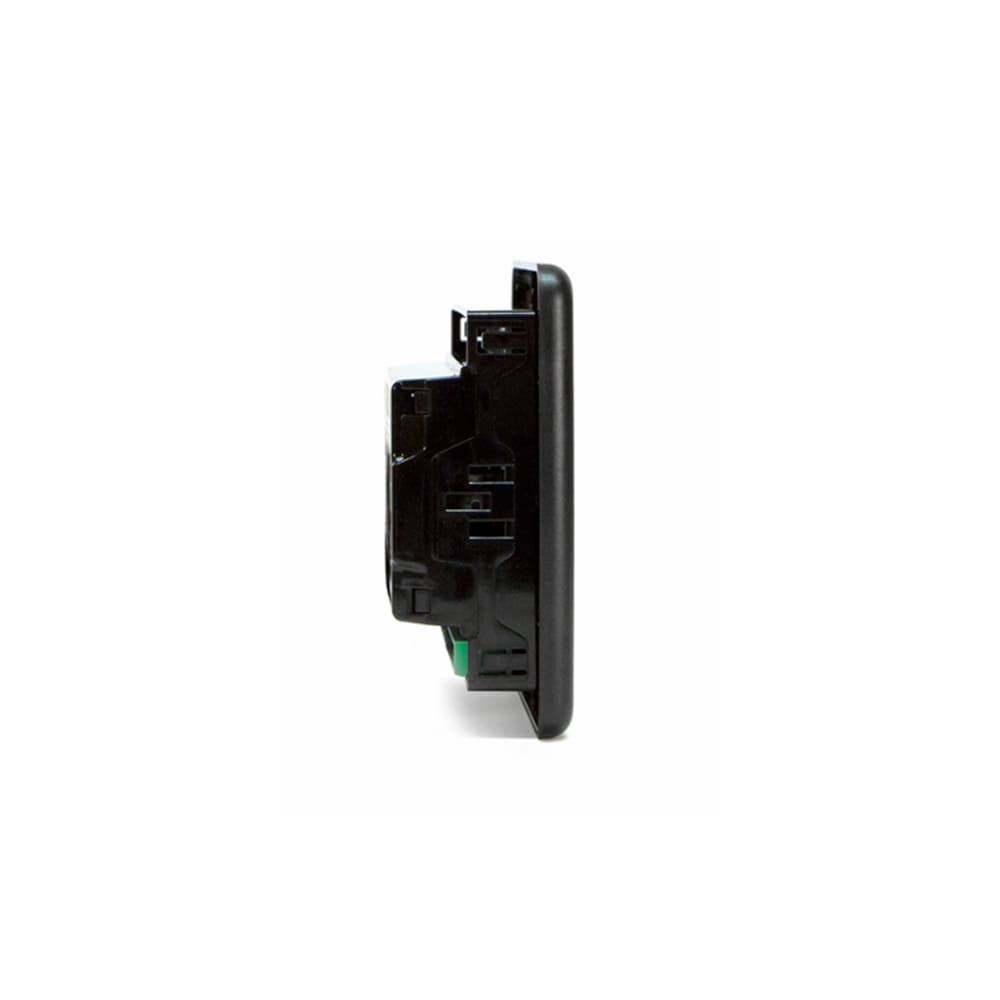

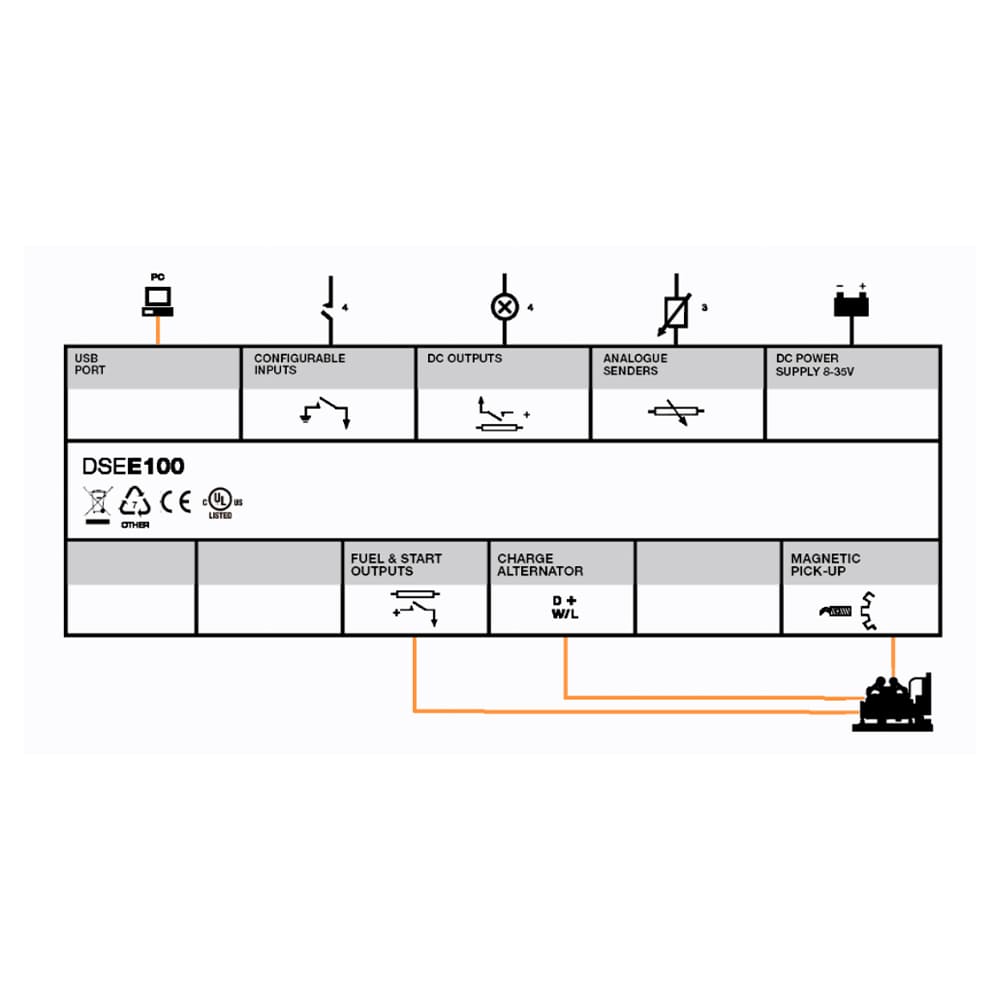

The E100 is an Engine Only Control Module designed to provide flexible engine control with built-in monitoring and protection. The module is fully configurable for a wide range of applications including engine driven pumps and compressors.
Control functions include manual and automatic engine start and load control and built-in run-time scheduler. The DSEE100 also features an event log to help make fault diagnosis extremely simple. The module is configured using the DSE Configuration Suite software.
DC SUPPLY
CONTINUOUS VOTLAGE RATING
8 V to 35 V continuous
CRANKING DROPUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.
