Provides flexibility for operation with various battery type technologies.
Voltage Range-◖90 V to 305 V (L-N)
Frequency Range-◖45 Hz to 65 Hz
DC Output- ◖5 A DC 12 V DC ◖Ripple And Noise : <3% Vo ◖Effciency : >80%
Regulation-◖Line : <1% ◖Load :<4% Vo
Protections-◖Short Circuit Reverse Polarity
Dimensions -◖Horizontal (W x H x D) : 5.1” x 5.45” x 2.0” ◖Vertical DIN Mounted (W x H x D) : 2.0” x 5.1” x 5.45” ◖Vertical Clip Mounted (W x H x D) : 2.0” x 5.55” x 5.45”
Operating Temperature Range-◖-25 °C to +80 °C (with de-rating) (-13 °F to +176 °F)
Storage Temperature Range-◖-40 ºC to +85 ºC (-40 °F to +185 °F)

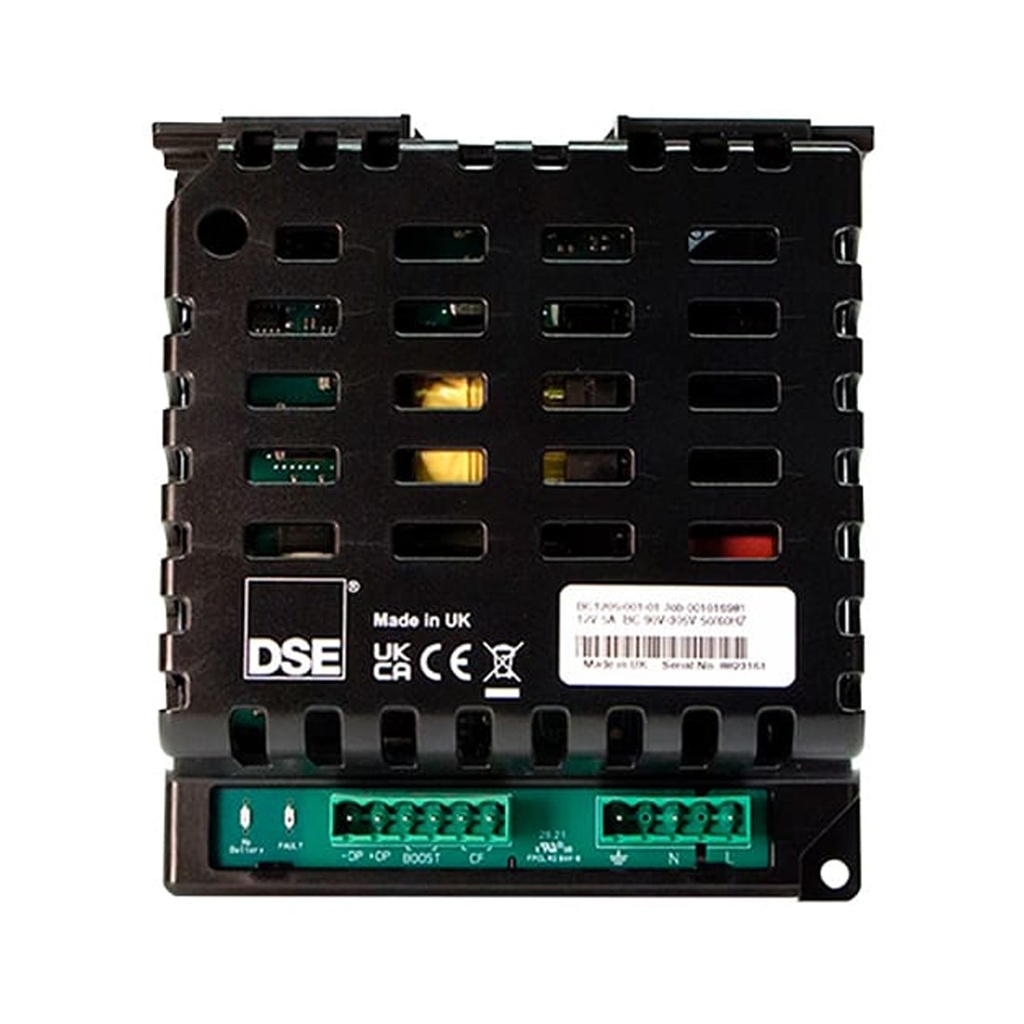

The DSEBC1205 is designed to be permanently connected to a battery, to ensure it maintains a full charge. The charger includes LED indicators on the front that show when there is no battery connected and if a fault condition is present.
The chargers continue to operate during cranking & running and have been designed to accept multiple AC voltage connections. The robust design makes the charger ideally suited to a wide range of markets including heavy and light industrial environments.
Adds increased flexibility to the product.
Increases the current output available.
Ensures the battery maintains enough power at all times.
Helps to improve battery life and operating performance.
Ensures the charger resumes operation without needing to be manually reset.
Prevents damage to the charger and battery, to provide secure and reliable operation.
Safe charging of both sealed and vented battery types.
Provides flexibility for operation with various battery type technologies
