DSE 9476-01 Intelligent Battery Charger Original

DSE9476 24V 20A battery charger 90-305V 50-60hz

This combination does not exist.

DSE Battery Charger DSEPower DSE9476

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

9476-01 - 24 V 20 A Intelligent Battery Charger

-40 °F to +185 °F

Two, three & four stage charging profiles.

Output current can be adjusted to suit alternative battery sizes and prevent overcharging.

Provides charger status notification.

Voltage Range - ◖95 V to 305 V (L-N).
Frecuency Range - ◖47 Hz to 63 Hz (L-N).
DC Output - ◖DSE9476 ◖Output : 20 A DC at 24 V DC ◖Ripple And Noise : 1% ◖Efficiency (At Full Load) : >92%
Regulation - ◖Line : <0.5% ◖Load : 1%
Temperature Sensor Input - ◖PT1000

Protections - ◖Short Circuit DC Under & Over Voltage DC Over Current Reverse Polarity Over Temperature AC Under & Over Voltage
Charge Failure Relay - ◖3 A 30 V DC volt free relay
Operating Temperature Range - ◖-30 ºC to +80 ºC -22 °F to +176 °F
Storage Temperature Range - ◖-40 ºC to +85 ºC -40 °F to +185 °F

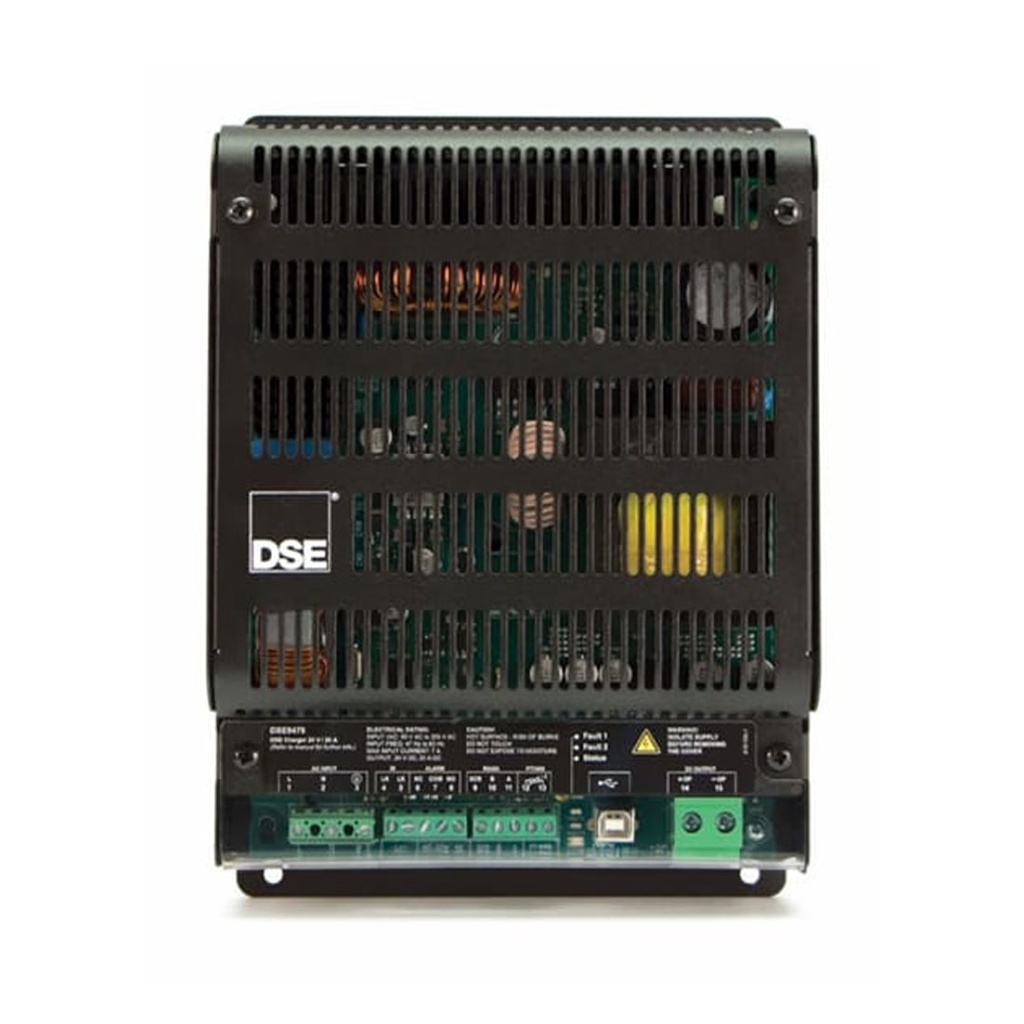

The DSE9476 is an intelligent 24-volt, 20 amp switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery life.
