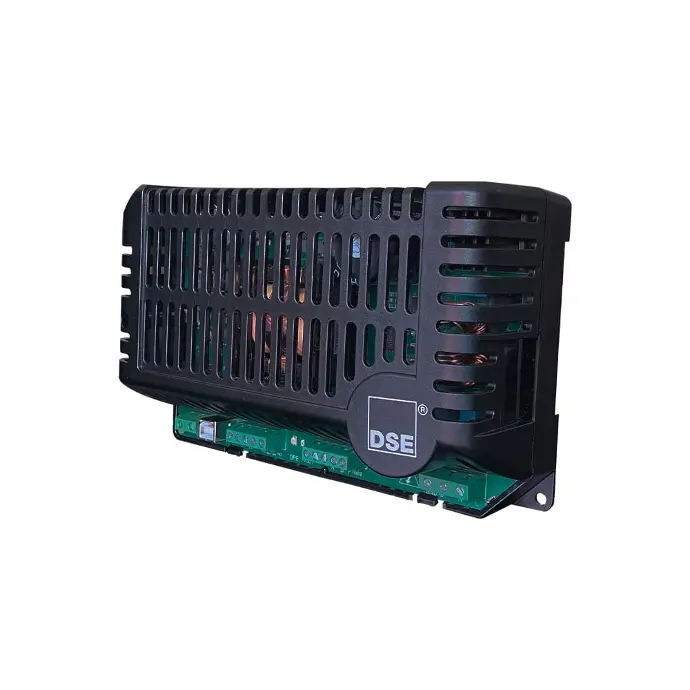

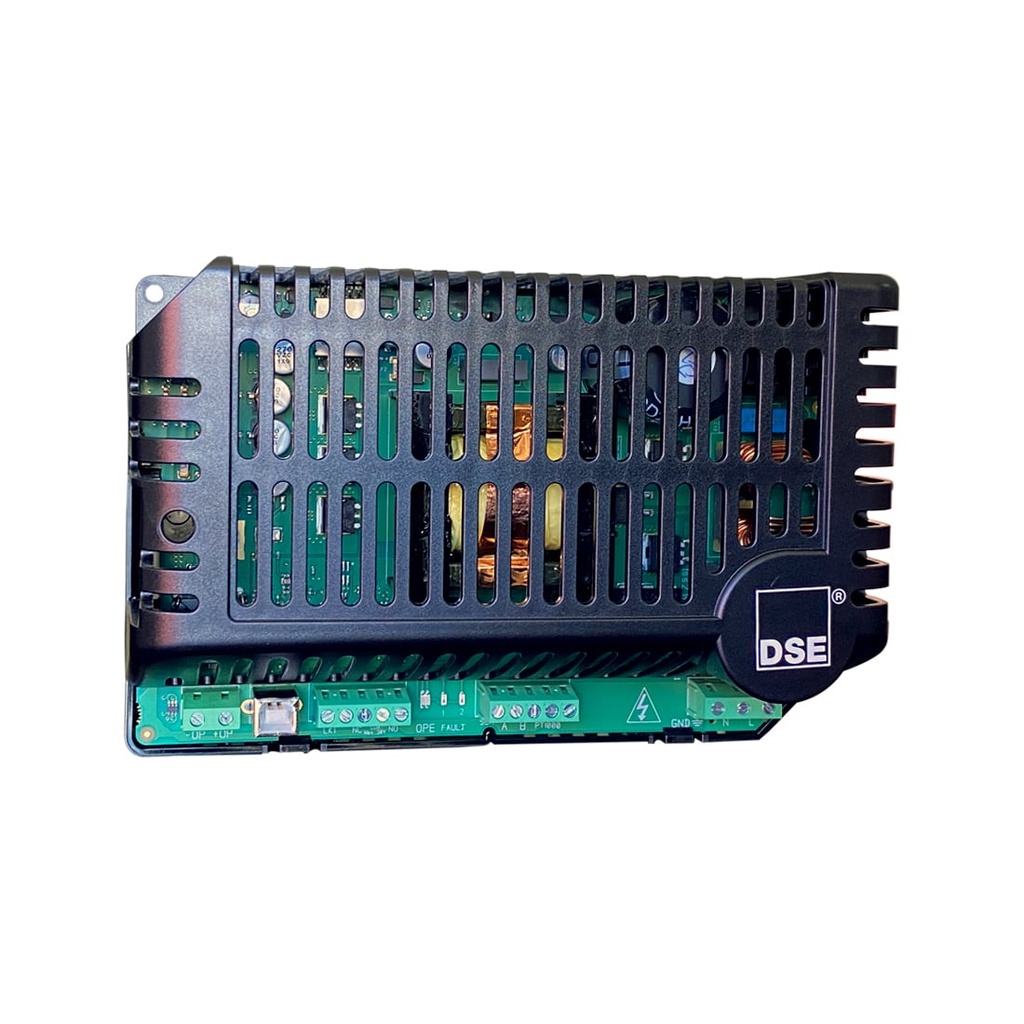

DSE 9470-01 Intelligent Battery Charger Original Original

https://powermaster.odoo.com/web/image/product.template/9631/image_1920?unique=dfb530e

DSE9470 | 24 V 10 A Intelligent Battery Charger (USA - UL - 110 V - 250 V)

$ 324.69 324.69 USD $ 324.69

$ 324.69

Not Available For Sale

This combination does not exist.

Contact Us
DSE Battery Charger DSEPower DSE9470

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

VOLTAGE RANGE

  90 V to 305 V (L to N)



PRODUCT VARIANTS
  9470-01 – 24 V 10 A Intelligent Battery Charger



WEIGHT
 1.7 POUNDS
SIZE
2 x 7 x 5 Inches​

OPERATING
TEMPERATURE RANGE

-22 ºF to +158 ºF



BATTERY CHARGING TEMPERATURE COMPENSATION
Delivers added protection.



PASSWORD PROTECTION

Protects against other users changing existing charging profiles.

DEEP SLEEP MODE

Becomes active when the charger is connected to a battery and no mains (utility) supply is available.

  • Voltage Range - ◖90 V to 305 V (L to N)
  • Frequency Range - ◖48 Hz to 64 Hz (L to N)
  • DC Output - ◖10 A DC at 24 V DC (Configurable)
  • Ripple And Noise - ◖<1%
  • Efficiency - ◖>86%
  • Regulation - ◖Line : <0.5% ◖Load : 2% .
  • Temperature Sensor Input - ◖PT1000
  • Protections - ◖Short circuit DC over voltage DC over current Reverse polarity Over temperature AC under & over voltage



  • Charge Failure Relay - ◖3 A at 30 V DC volt free relay
  • Operating Temperature Range - ◖-30 ºC to +70 ºC (-22 ºF to +158 ºF)
  • Storage Temperature Range - ◖-30 ºC to +70 ºC (-22 ºF to +158 ºF)
  • UL Voltage Approval Ratings  - ◖USA Only: (9470-01) 110 V - 250 V ◖USA & Canada (9470-A4) : 110 V - 150 V


The DSE9470 MKII is a UL recognised intelligent switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery life. The charger is programmed using the DSE Configuration Suite Software. The charger can be DIN rail or chassis mounted and has three built-in LEDs to indicate current charging status and fault conditions. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.  ​



  • Provides flexibility for operation with various battery type technologies.
  • Prevents damage to the charger and battery, to provide secure and reliable operation.
  • Provides an efficient, economical and cool running battery charger.
  • Provides a quicker charging cycle for discharged batteries.
  • Reduces the power usage within system batteries.
  • Aids effective configuration.
  • A slider within the pc software makes the over temperature alarm settings configurable.



Details

AC SUPPLY

VOLTAGE RANGE

90 V to 305 V (L-N)

FREQUENCY RANGE

48 Hz to 64 Hz (L-N)

DC OUTPUT

DSE9470 OUTPUT

10 A DC at 24 V DC

RIPPLE AND NOISE

<1%

EFFICIENCY

>86%



REGULATION

LINE

<0.5%

LOAD

2%

TEMPERATURE SENSOR INPUT

PT1000

PROTECTIONS

Short Circuit

DC Over Voltage

DC Over Current

Reverse Polarity

Over Temperature

AC Under & Over Voltage



CHARGE FAILURE RELAY

3 A at 30 V DC volt free relay
