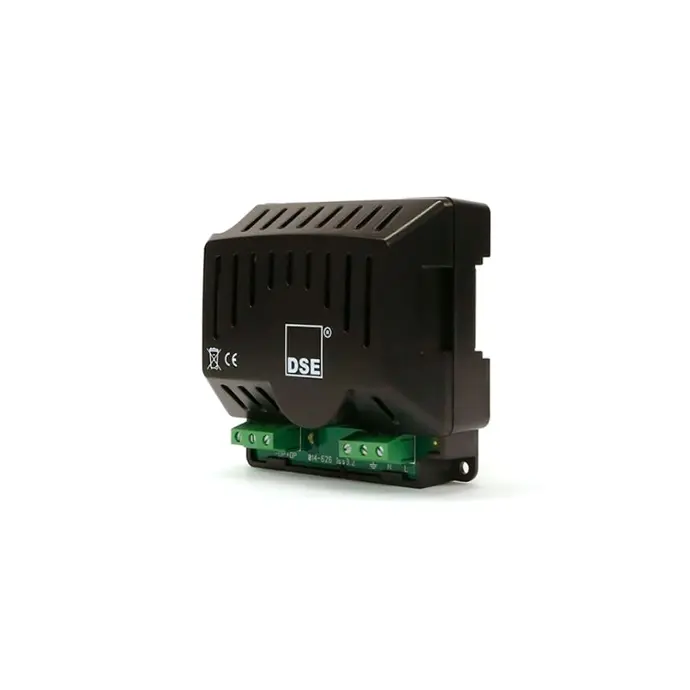

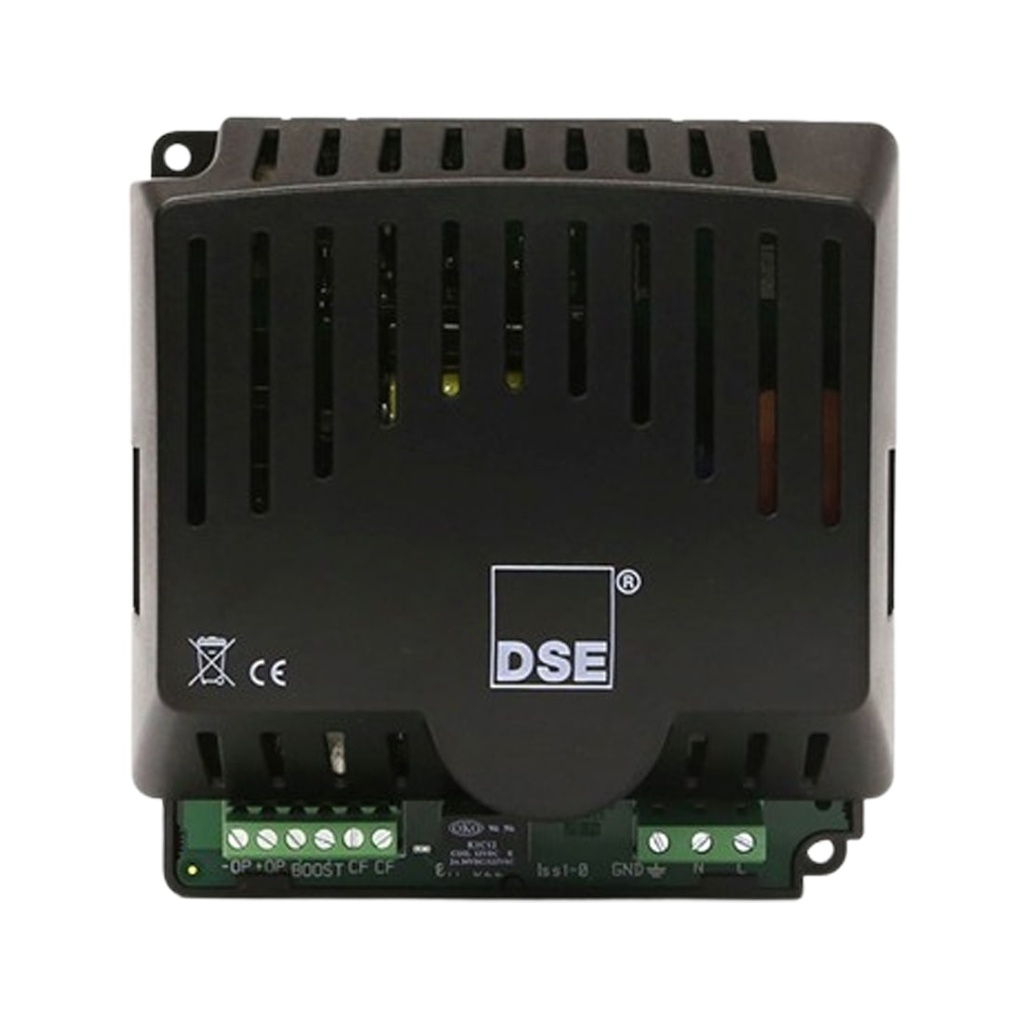

DSE 9150-00 Compact Battery Charger (90v-265v 50/60Hz) Original

https://powermaster.odoo.com/web/image/product.template/9630/image_1920?unique=79334f4

DSE9150 | 12 volt 3 amp Compact Battery Charger (90v-265v 50/60Hz)

$ 87.39 87.39 USD $ 87.39

$ 87.39

Not Available For Sale

This combination does not exist.

Contact Us
DSE 12V Battery Charger DSEPower DSE9150

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

VOLTAGE
RANGE

  90 V to 265 V (L-N)

PRODUCT VARIANTS

9150-00 - 12 volt 3 amp Compact Battery Charger ​(90v-265v 50/60Hz)

WEIGHT
 0.5 POUNDS
SIZE
5 x 4 x 2 Inches
OPERATING TEMPERATURE RANGE
-22 °F to +122 °F
NO MOVING PARTS
Ensures longer battery charger life.
80% OPERATING EFFICIENCY

Provides an efficient, economical and cool running battery charger.

LOW OUTPUT RIPPLE

Safe charging of both sealed and vented battery types.

  • Voltage Range - ◖90 V to 265 V (L-N)
  • Frequency Range - ◖48 Hz to 64 Hz
  • DC Output - ◖ 3 A DC 12 V DC at 13.7 V DC
  • Protections  - ◖Short Circuit Over Voltage Over Current Reverse Polarity


  • Ripple And Noise - ◖<1%
  • Efficiency - ◖>80%
  • Regulation - ◖Line : <0.001% Vo ◖Load : 1% Vo
  • Operating Temperature Range - ◖-30 °C to +55 °C (-22 °F to +122 °F)
  • Storage Temperature Range - ◖-40 °C to +85 °C (-40 °F to +185 °F)


The DSE9150 12 volt 3 amp Switch-Mode Battery Charger keeps batteries charged to their maximum capacity at all times. It is designed for permanent battery connection and can be DIN rail or chassis mounted. The charger includes a normal or overload condition LED indicator on the front to assist with status identification, operates during cranking and running and accepts multiple AC voltage connections.


  • Provides flexibility for operation with various battery type technologies.
  • Prevents overcharging battery damage.
  • Safe charging of both sealed and vented battery types.
  • Prevents damage to the charger and battery, to provide secure and reliable operation.
  • Ensures the charger resumes operation without needing to be manually reset.
  • Helps to improve battery life and operating performance.
  • Ensures the battery maintains enough power at all times.






AC SUPPLY

VOLTAGE RANGE

90 V to 250 V (L-N)

DC OUTPUT

5 A DC 12 V DC at 13.7 V DC

RIPPLE AND NOISE

<1%

EFFICIENCY

>80%

REGULATION

LINE

<0.001% Vo

 LOAD

1% Vo



PROTECTIONS

Short Circuit

Over Voltage

Over Current

Reverse Polarity
