  3. DSE 8660-02 Auto Transfer Switch & Mains (Utility) Control Module Original

DSE 8660-02 Auto Transfer Switch & Mains (Utility) Control Module Original

https://powermaster.odoo.com/web/image/product.template/9978/image_1920?unique=9d17065

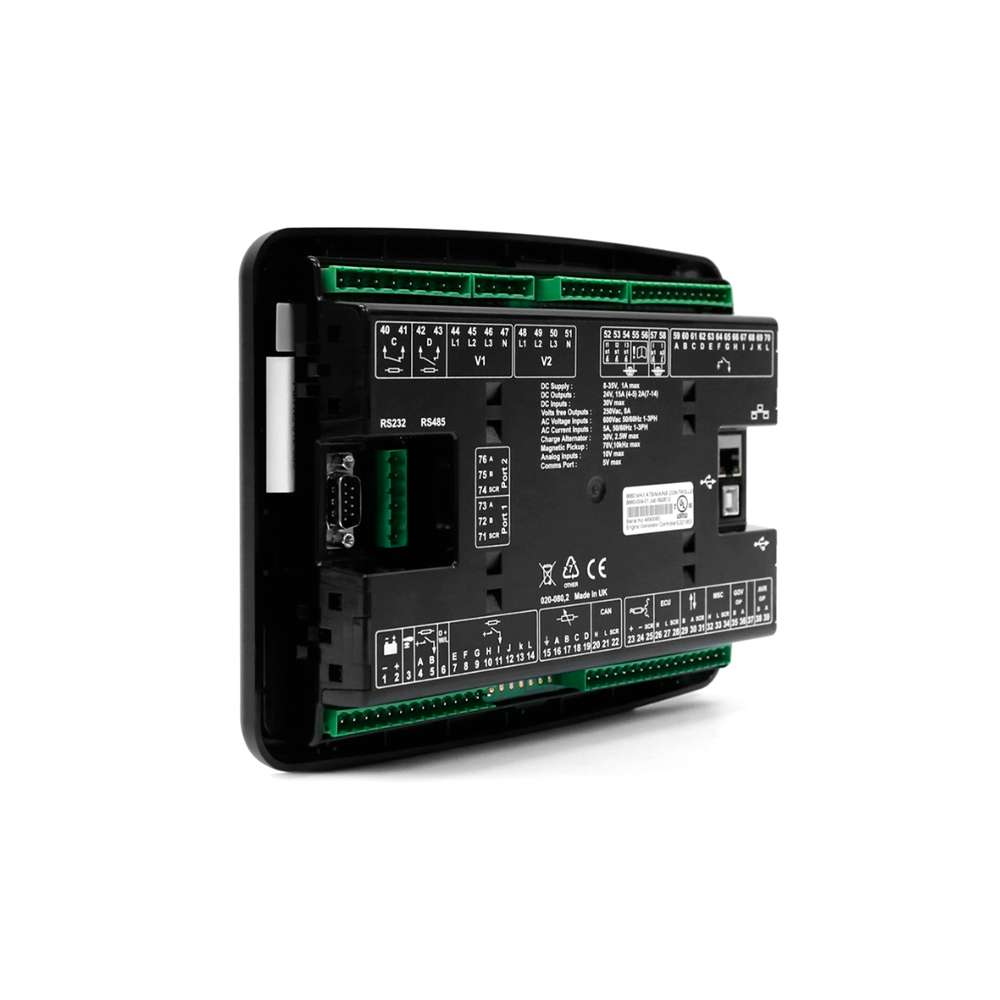

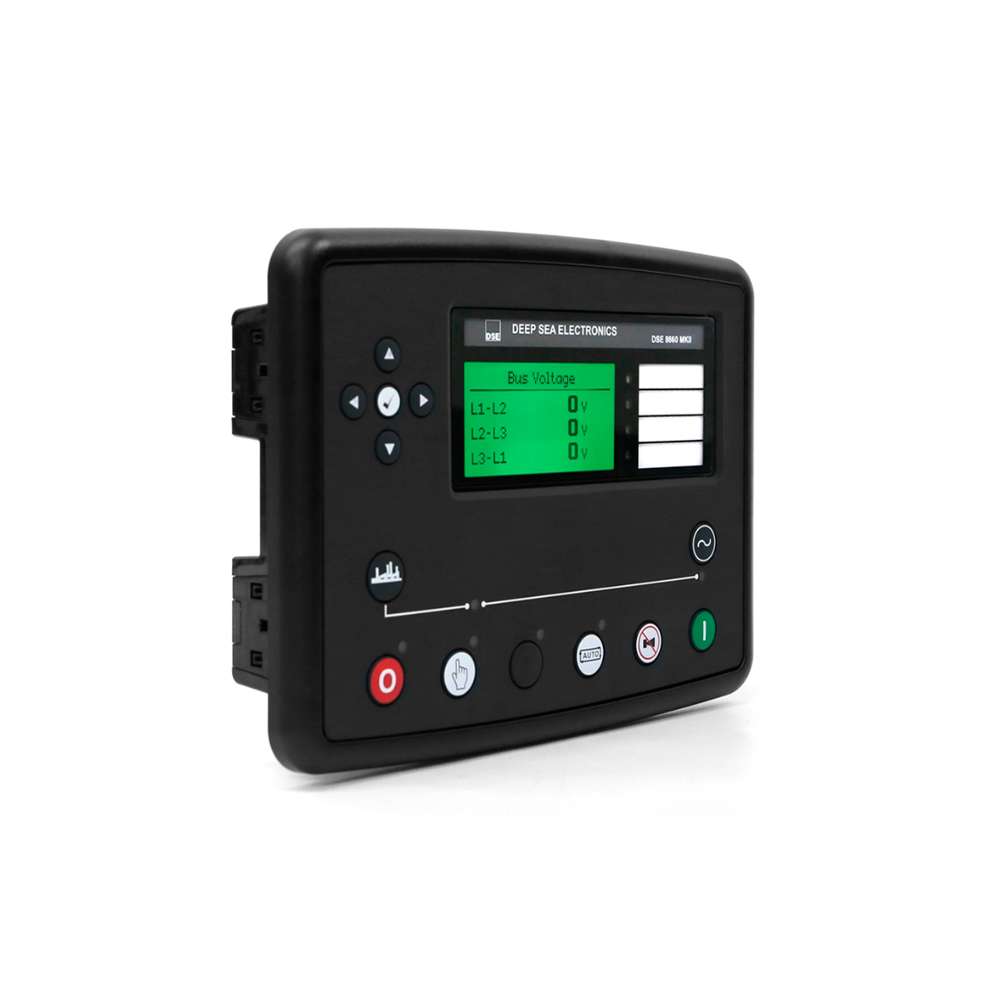

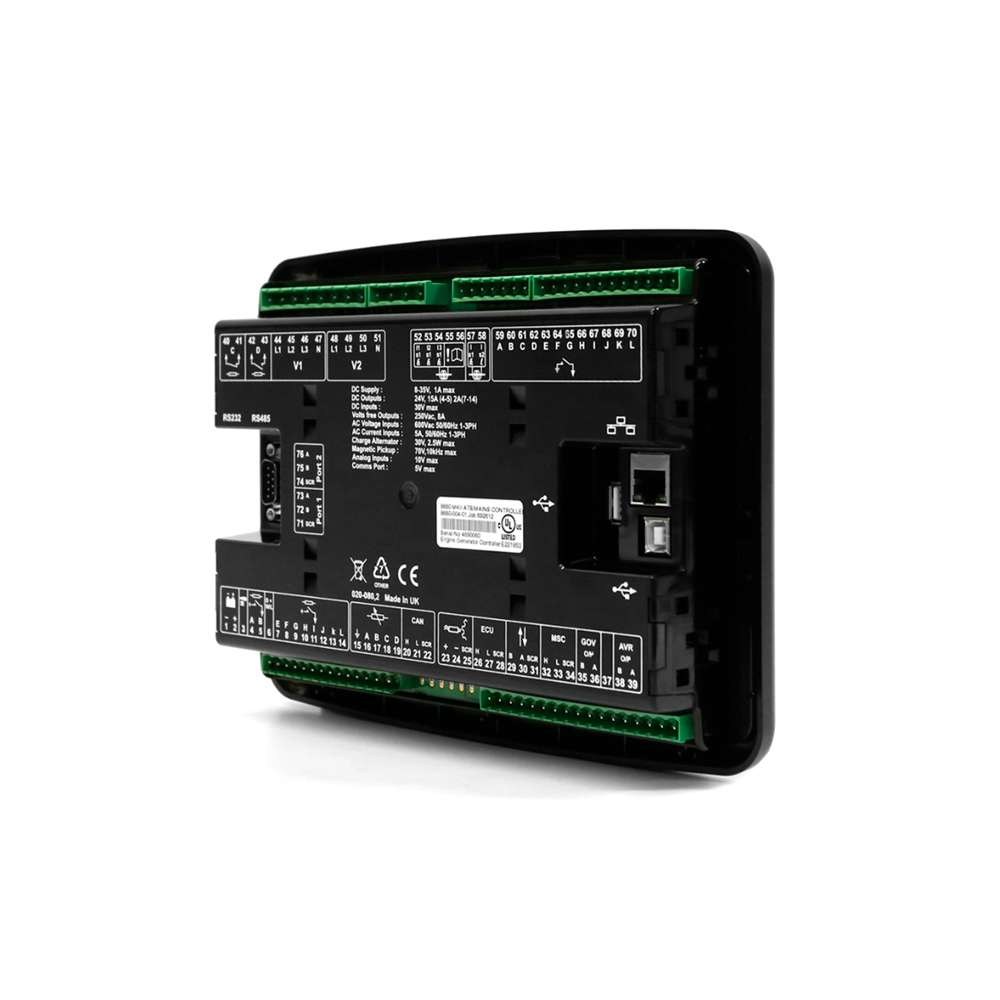

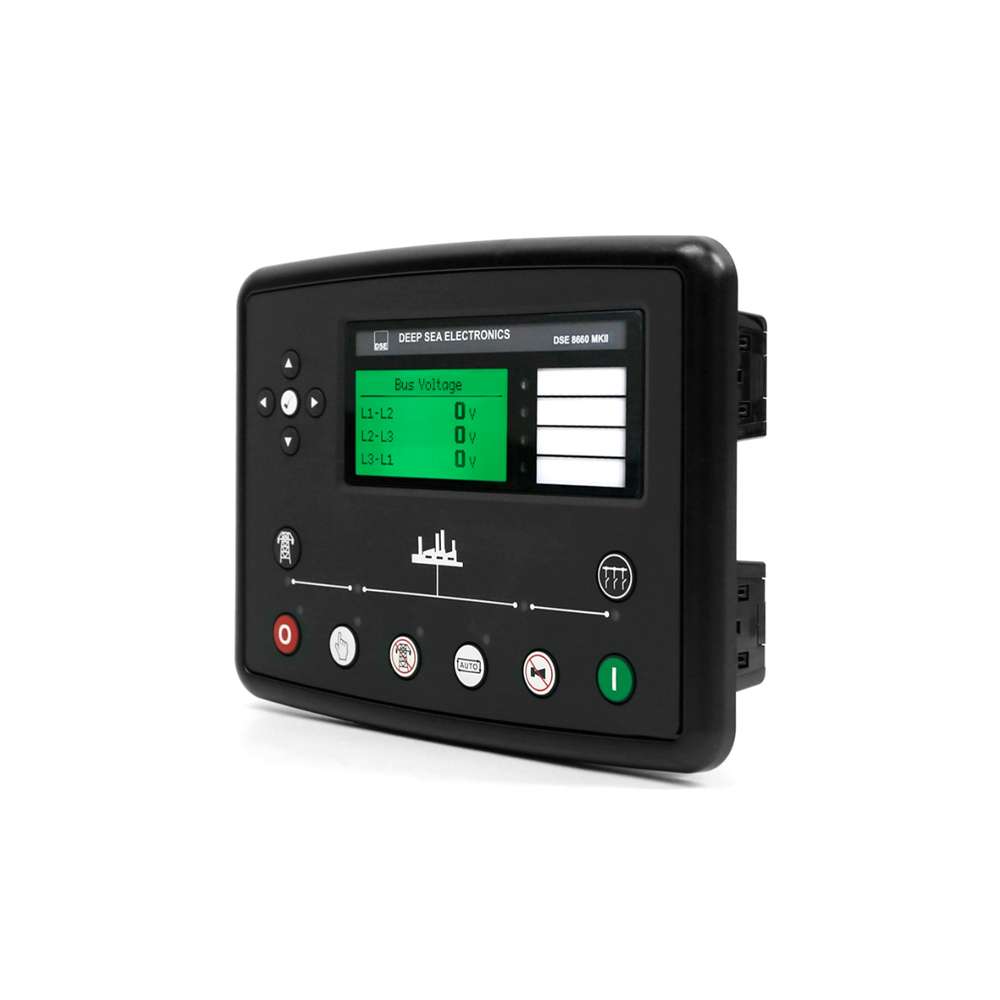

DSE8660 MKII Mains Controller

$ 1,635.39 1635.39 USD $ 1,635.39

$ 1,635.39

Not Available For Sale

This combination does not exist.

Contact Us
DSE Auto Transfer Switch & Mains (Utility) Control Module DSE8660

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


DC SUPPLY
VOLTAGE RATING
5 V to 35 V Continuous



PRODUCT VARIANTS

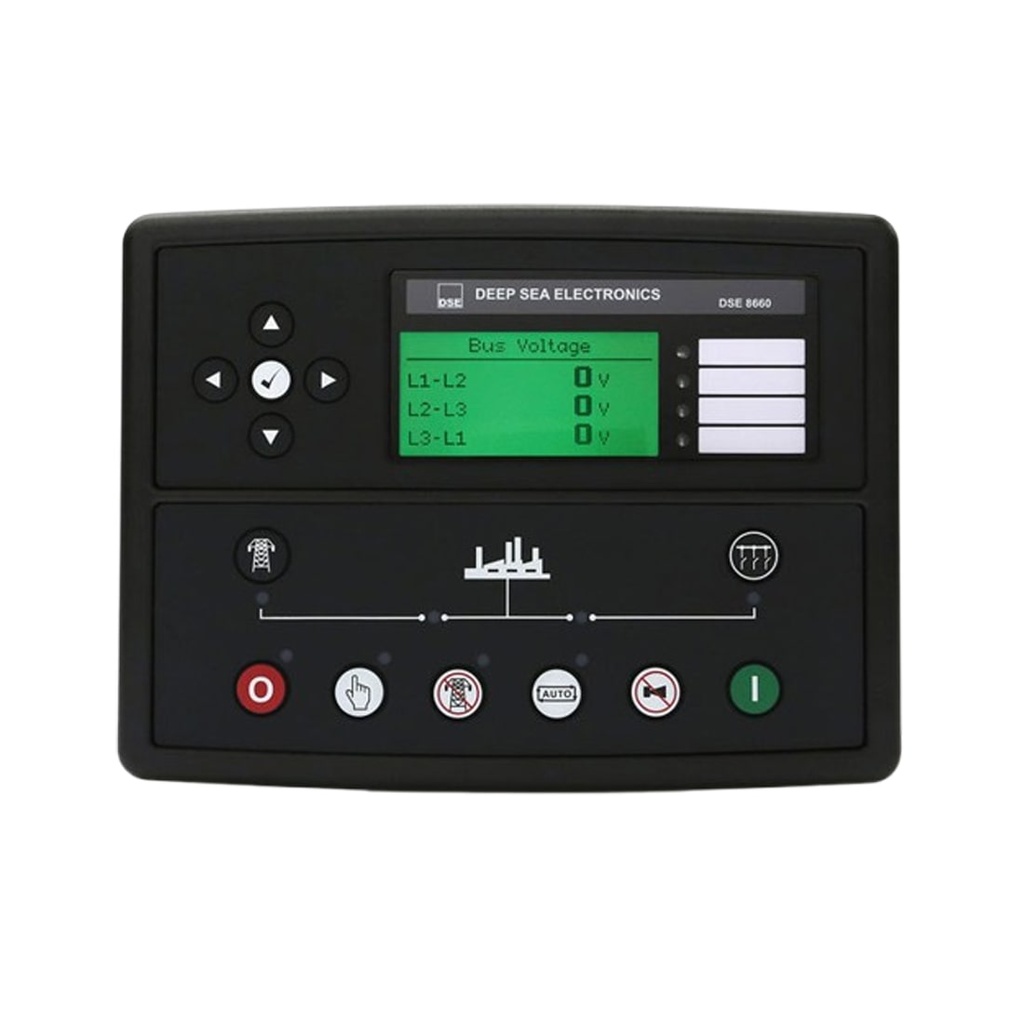

8660-02 - 8660 MKII Auto Transfer Switch & Mains (Utility) Control Module (Ct, Rtc)In


WEIGHT
1.9 POUNDS
SIZE
9 x 7 x 2 Inches



FREQUENCY RANGE

3.5 Hz to 75 Hz

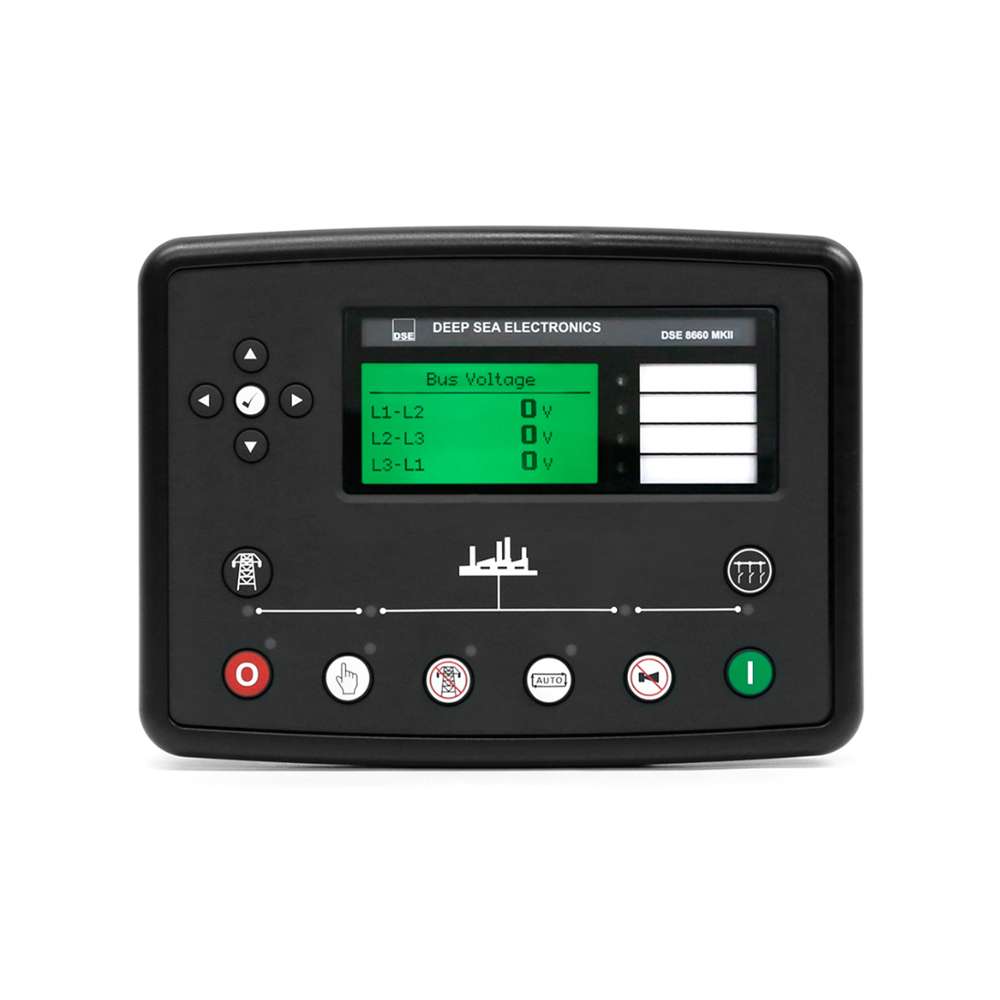

The DSE8660 MKII is the latest and most advanced Auto Transfer Switch & Mains (Utility) Control Module within the DSE synchronising and load sharing control module range. Developed alongside the DSE8610 MKII this control module provides industry-leading features and benefits for the most complex grid type generator installations.

PRODUCT VARIANTS

8660-02 - 8660 MKII Auto Transfer Switch & Mains (Utility) Control Module (Ct, Rtc)

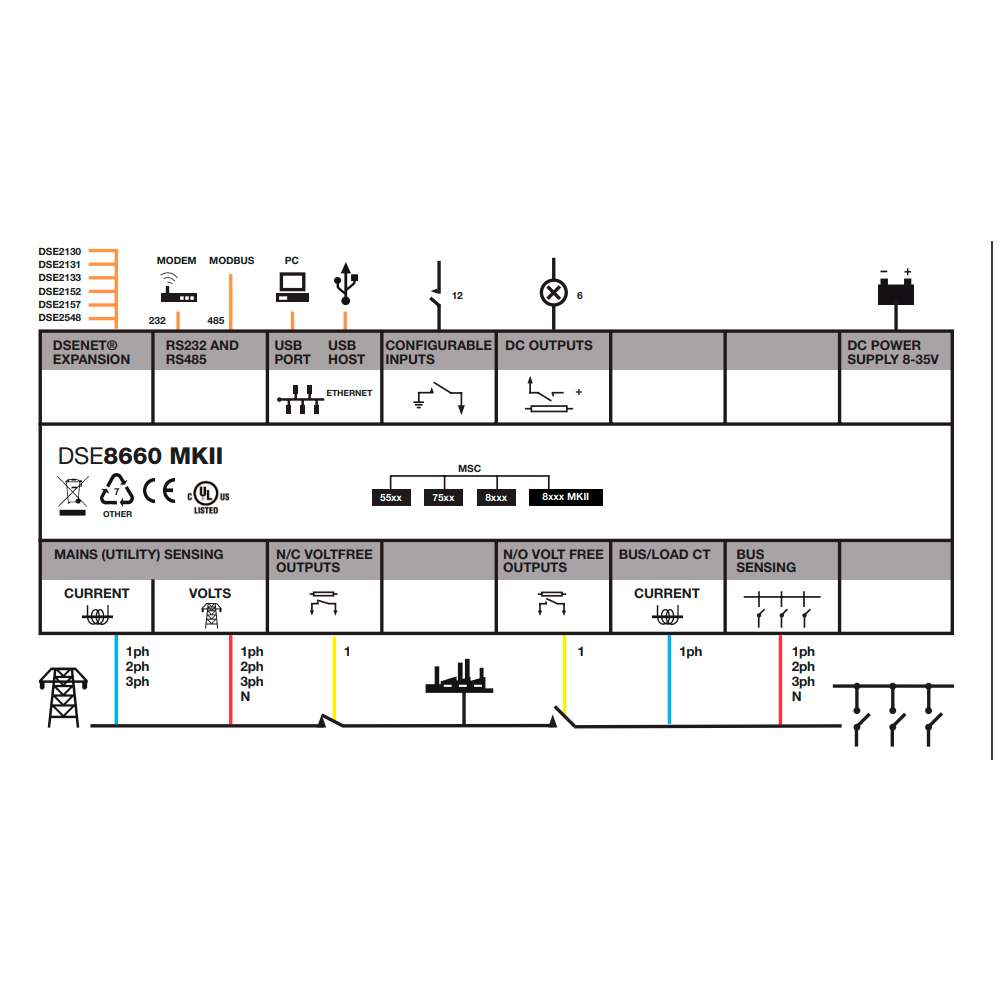

CONFIGURABLE INPUTS/OUTPUTS (12/8)
Provides multiple installation options.
DSE CONFIGURATION SUITE PC SOFTWARE
Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring. ​
TIER 4 CAN ENGINE SUPPORT
Ensures the control module can be used with the latest in modern electronic engine technology.​


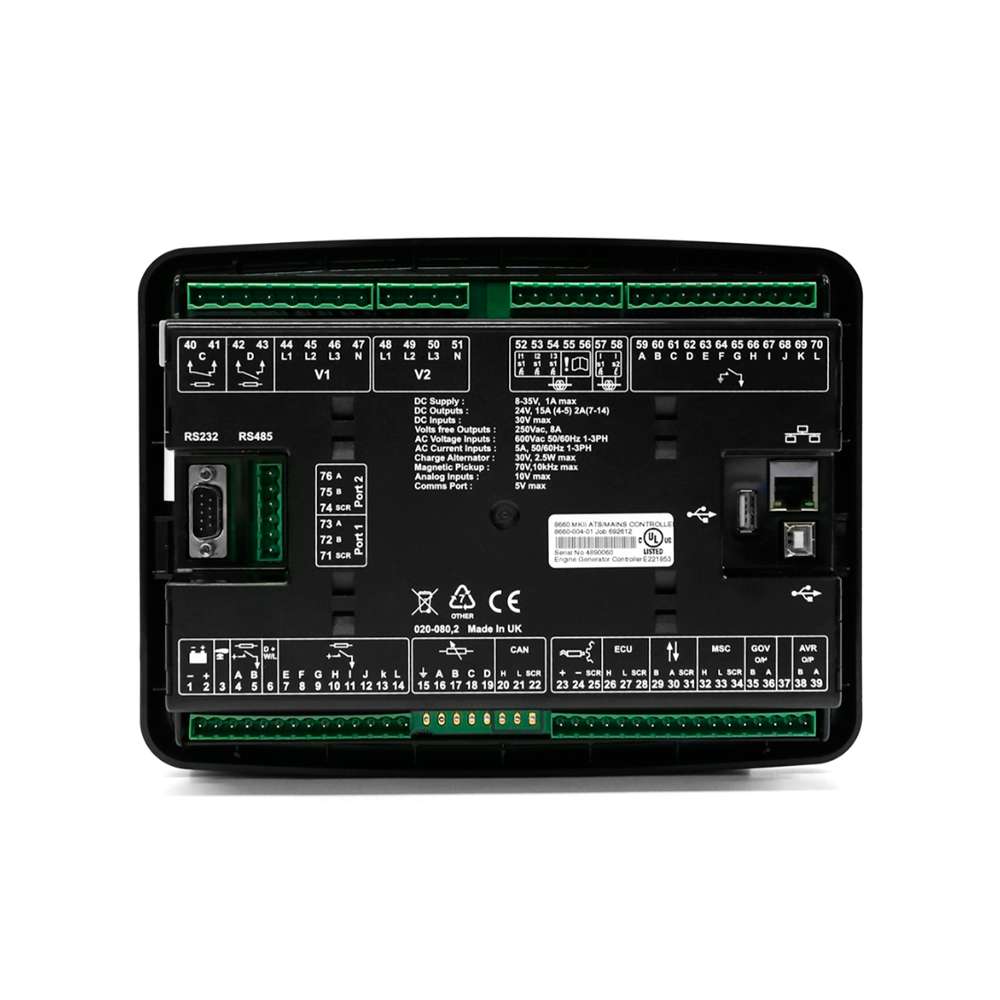

  • Continuous Voltage Rating - ◖5 V to 35 V Continuous
  • Cranking Dropouts - ◖Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
  • Maximum Operating Current - ◖530 mA at 12 V, 280 mA at 24 V
  • Maximum Standby Current - ◖320 mA at 12 V, 160 mA at 24 V
  • Mains (Utility) & Bus - ◖Voltage Range : 15 V to 415 V AC (Ph to N) 25 V to 719 V AC (Ph to Ph) ◖Frequency Range : 3.5 Hz to 75 Hz



  • Inputs - ◖Digital Inputs A To L : Negative switching
  • Outputs - ◖Outputs C & D : 8 A at 250 V AC (Volt free) ◖Auxiliary Outputs E To J : 2 A DC at supply voltaje
  • Dimensions - ◖Overall : 245 mm x 184 mm x 51 mm 9.6” x 7.2” x 2.0” ◖Panel Cut-Out : 220 mm x 160 mm 8.7” x 6.3” ◖Maximum Panel Thickness : 8 mm 0.3”
  • Operating Temperature Range - ◖-30°C to +70°C (-40°F to +185°F)
  • Storage Temperature Range - ◖-40°C to +85°C (-40°F to +185°F)



The DSE8660 MKII is the latest and most advanced Auto Transfer Switch & Mains (Utility) Control Module within the DSE synchronising and load sharing control module range. Developed alongside the DSE8610 MKII this control module provides industry-leading features and benefits for the most complex grid type generator installations.


DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V continuous

CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

MAXIMUM OPERATING CURRENT

460 mA at 12 V, 245 mA at 24 V

MAXIMUM STANDBY CURRENT

375 mA at 12 V, 200 mA at 24 V

CHARGE FAIL/EXCITATION RANGE

0 V to 35 V

OUTPUTS

OUTPUT A (FUEL)

15 A DC at supply voltage

OUTPUT B (START)

15 A DC at supply voltage

OUTPUTS C & D

8 A AC at 250 V AC (Volt free)

AUXILIARY OUTPUTS E,F,G,H,I & J

2 A DC at supply voltage


GENERATOR & BUS

VOLTAGE RANGE

15 V to 333 V AC (L-N)

FREQUENCY RANGE

3.5 Hz to 75 Hz

MAGNETIC PICK-UP

VOLTAGE RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE

10,000 Hz (max)




MINIMUM LOAD IMPEDANCE

1000Ω

Fully isolated

GAIN VOLTAGE

0 V to 10 V DC

Fully isolated

OFFSET VOLTAGE

+/- 10 V DC

Fully isolated

BUILT-IN AVR CONTROL

MINIMUM LOAD IMPEDANCE

1000Ω

Fully isolated

GAIN VOLTAGE

0 V to 10 V DC

Fully isolated

OFFSET VOLTAGE

+/- 10 V DC
