  2. DSE 8620-02 MKII Control Module Original

DSE 8620-02 MKII Control Module Original

https://powermaster.odoo.com/web/image/product.template/9979/image_1920?unique=0c1802d

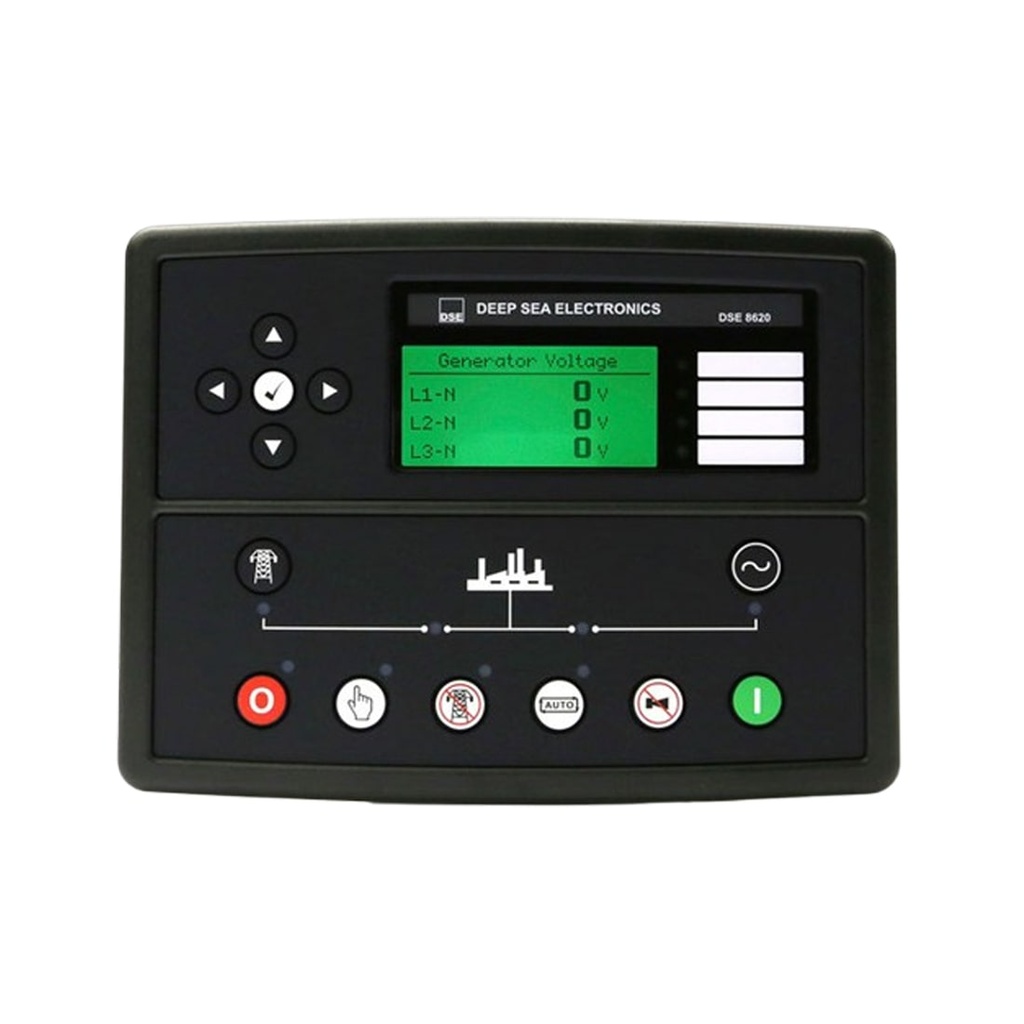

DSE862 -02 MKII Synchronising Auto Mains (Utility) Failure Load Share Control Module Original

$ 2,484.09 2484.09 USD $ 2,484.09

$ 2,484.09

Not Available For Sale

This combination does not exist.

Contact Us
DSE DSE8620

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE RATING
  5 V to 35 V Continuous

PRODUCT VARIANTS

 8620-02 - 8620 MKII Synchronising Auto Mains (Utility) Failure Load Sharing Control Module




WEIGHT
 1.9 POUNDS
SIZE
12 x 8 x 3 Inches




FREQUENCY RANGE

3.5 Hz to 75 Hz


The DSE8620 MKII represents the latest in complex load sharing & synchronising control technology. Designed to synchronise a single genset with a mains (utility) supply, the DSE8620 MKII control module is packed with multiple features and benefits that are unrivalled across the generator control industry.

The controller also has the option to be configured for use as a DSE8610 MKII Auto Start Load Sharing & Synchronising Control Module. When converted for use as a DSE8610 MKII the unit provides generator to generator load share functionality.

PRODUCT VARIANTS

8620-02 - 8620 MKII Synchronising Auto Mains (Utility) Failure Load Sharing Control Module


THREE CAN PORTS.
Ultimate CAN flexibility. Connect to DSENet devices, communicate with electronic engines and maintain a redundant MSC link.
32-SET SYNCHRONISATION
Offers optimum flexibility for system expansion.
SOPHISTICATED DATA
LOGGING
Provides detailed site data for detailed analysis.
  • Continuous Voltage Rating - ◖5 V to 35 V Continuous.
  • Cranking Dropouts - ◖Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.LEDs and backlight will not be maintained during cranking.
  • Maximum Operating Current - ◖530 mA at 12 V, 280 mA at 24 V
  • Maximum Standby Current - ◖320 mA at 12 V, 160 mA at 24 V
  • Charge Fail/Excitation Range - ◖0 V to 35 V
  • Generator & Mains (Utility) - ◖Voltage Range : 15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph) ◖Frequency Range : 3.5 Hz to 75 Hz
  • Magnetic Pickup - ◖Voltage Range : +/- 0.5 V to 70 V ◖Frequency Range : 10,000 Hz (max)
  • Inputs - ◖Digital Inputs A To L : Negative switching ◖Analogue Inputs A TO D : Configurable as: Negative switching digital input 0 V to 10 V sensor 4 mA to 20 mA sensor 0 Ω to 480 Ω sensor


  • Outputs - ◖Output A & B (Fuel & Start) : 15 A DC at supply voltage ◖Outputs C & D : 8 A AC at 250 V AC (Volt-free) ◖Auxiliary Outputs E to L : 2 A DC at supply voltage
  • Built In Avr Governor Control - ◖Minimum Load Impedance : 500 Ω Fully isolated ◖Gain Voltage : 0 V to 10 V DC Fully isolated ◖Offset Voltage : 0 V to 10 V DC Fully isolated
  • Dimensions - ◖Overall : 245 mm x 184 mm x 51 mm 9.6” x 7.2” x 2.0” ◖Panel Cut-Out : 220 mm x 160 mm 8.7” x 6.3” ◖Maximum Panel Thickness : 8 mm 0.3”
  • Storage Temperature Range - ◖-40 °C to +85 °C (-40 °F to +185 °F)
  • Operating Temperature Range - ◖-30 °C to +70 °C (-40 °F to +185 °F) ◖Heated Display Variant : -40 °C to +70 °C -40 °F to +158 °F







The DSE8620 MKII represents the latest in complex load sharing & synchronising control technology. Designed to synchronise a single genset with a mains (utility) supply, the DSE8620 MKII control module is packed with multiple features and benefits that are unrivalled across the generator control industry.

The controller also has the option to be configured for use as a DSE8610 MKII Auto Start Load Sharing & Synchronising Control Module. When converted for use as a DSE8610 MKII the unit provides generator to generator load share functionality.


DC SUPPLY

CONTINUOUS VOLTAGE RATING

5 V to 35 V continuous

CRANKING DROPOUTS

Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

MAXIMUM OPERATING CURRENT

530 mA at 12 V, 280 mA at 24 V

MAXIMUM STANDBY CURRENT

320 mA at 12 V, 160 mA at 24 V

CHARGE FAIL/EXCITATION RANGE

0 V to 35 V

OUTPUTS

OUTPUT A (FUEL)

15 A DC at supply voltage

OUTPUT B (START)

15 A DC at supply voltage

OUTPUTS C & D

8 A AC at 250 V AC (Volt free)

AUXILIARY OUTPUTS E to L

2 A DC at supply voltage



GENERATOR & BUS

VOLTAGE RANGE

15 V to 415 V AC (Ph to N)

26 V to 719 V AC (Ph to Ph)

FREQUENCY RANGE

3.5 Hz to 75 Hz

MAGNETIC PICK-UP

VOLTAGE RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE

10,000 Hz (max)



BUILT-IN GOVERNOR CONTROL

MINIMUM LOAD IMPEDANCE

500Ω

Fully isolated

GAIN VOLTAGE

0 V to 10 V DC

Fully isolated

OFFSET VOLTAGE

BUILT-IN AVR CONTROL

MINIMUM LOAD IMPEDANCE

500Ω

Fully isolated

GAIN VOLTAGE

0 V to 10 V DC

Fully isolated

OFFSET VOLTAGE

+/- 10 V DC

Fully isolated
