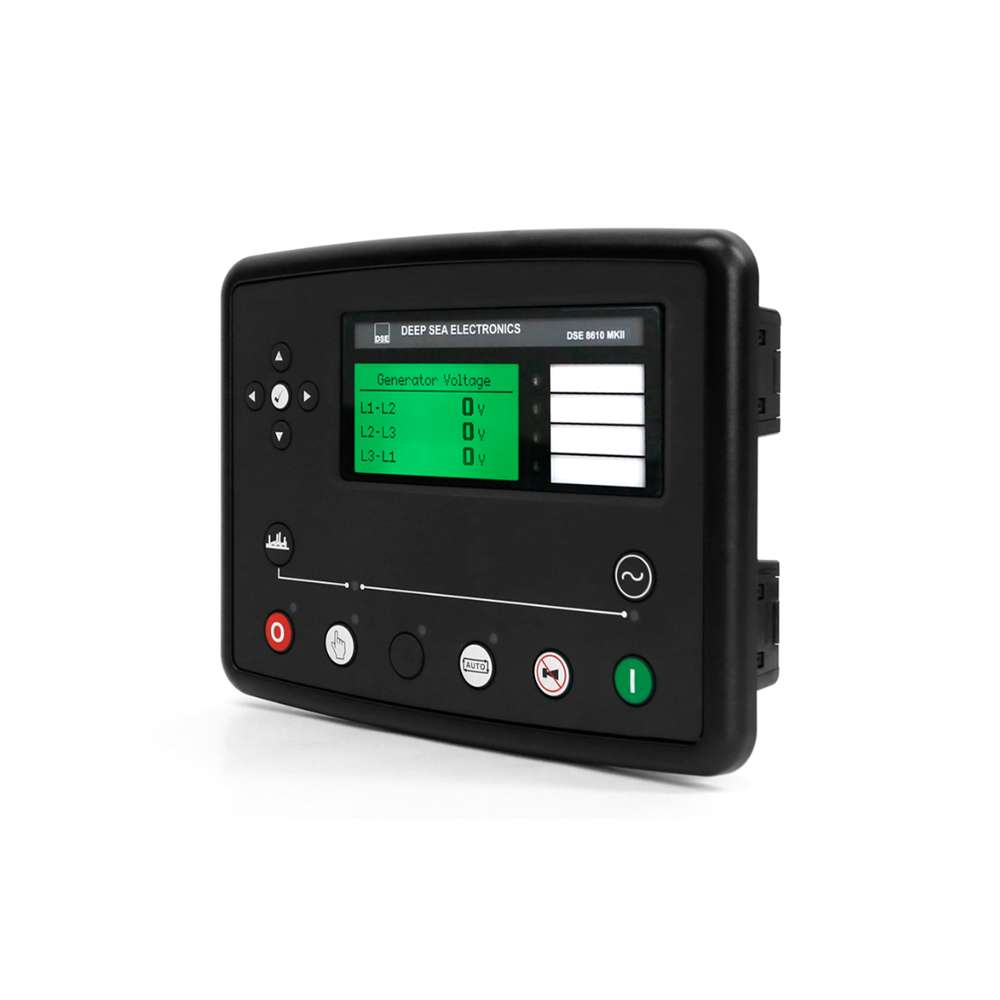

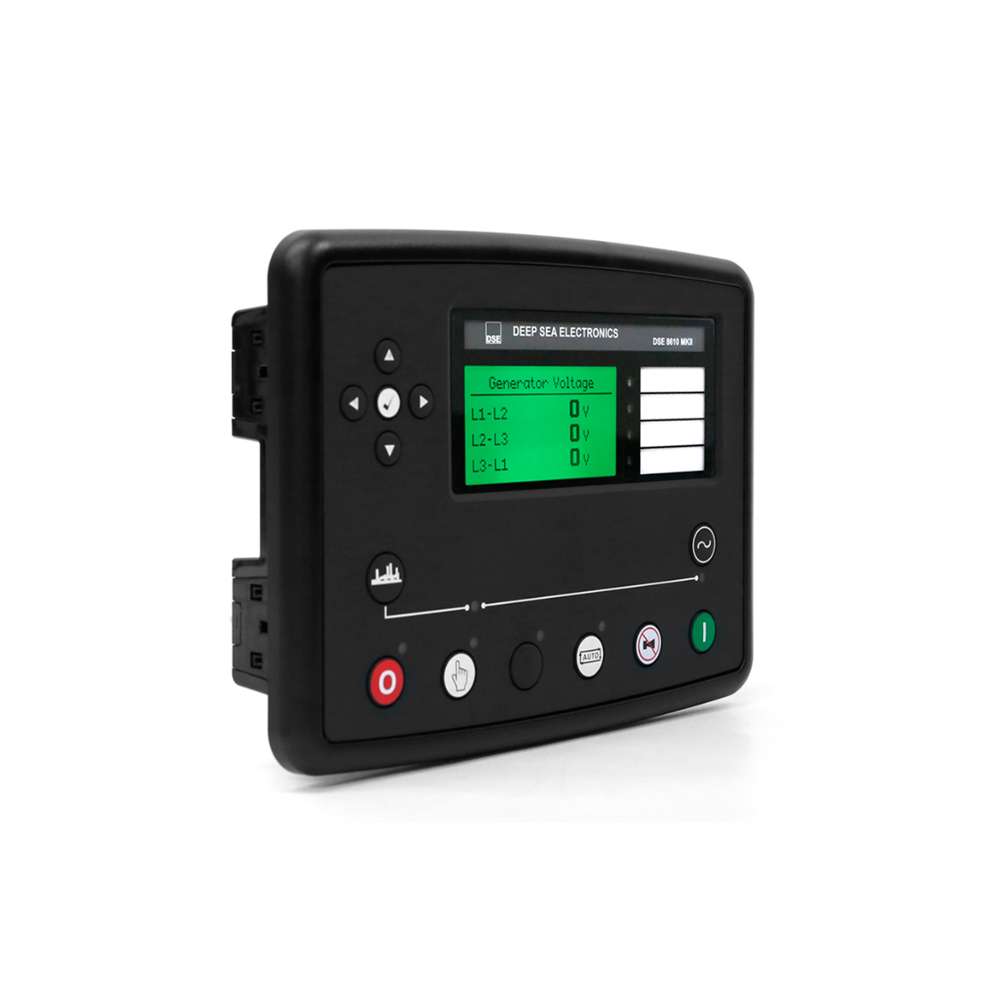

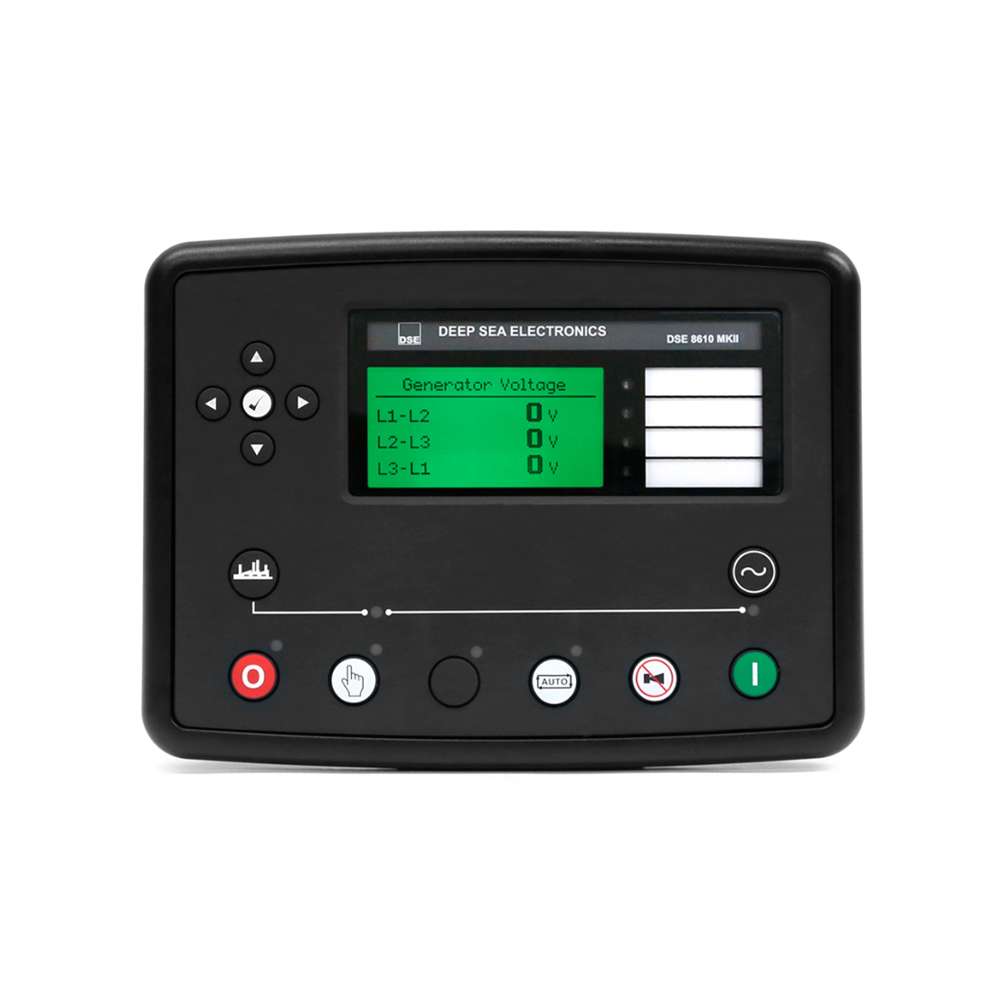

  3. DSE 8610-02 MKII Synchronising & Load Sharing Auto Start Control Module Original

DSE 8610-02 MKII Synchronising & Load Sharing Auto Start Control Module Original

https://powermaster.odoo.com/web/image/product.template/9621/image_1920?unique=26ddd74

DSE8610 MKII Synchronising & Load Sharing Control Module (Ct, Rtc)

$ 2,484.09 2484.09 USD $ 2,484.09

$ 2,484.09

Not Available For Sale

This combination does not exist.

Contact Us
DSE DSE8610 Auto Start

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE RATING
8 V to 35 V continuous
PRODUCT VARIANTS

8610-02 - 8610 MKII Synchronising & Load Sharing Control Module (Ct, Rtc)

WEIGHT

1.9 POUNDS
SIZE
9 x 7 x 2 Inches

FREQUENCY RANGE

3.5 Hz to 75 Hz


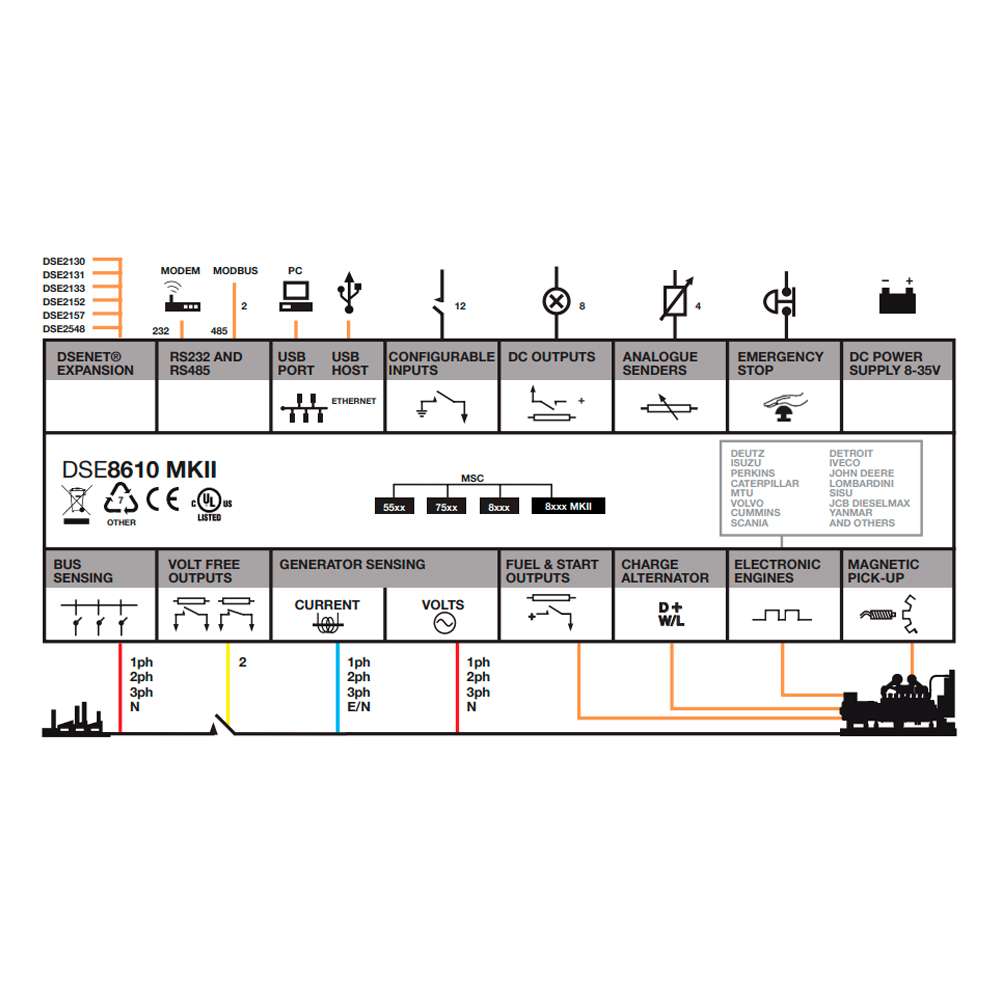

The DSE8610 MKII represents the latest in complex load sharing & synchronising control technology. Designed to handle the most complex grid type generator applications the DSE8610 MKII control module is packed with multiple features and benefits that are unrivalled across the generator control industry.

PRODUCT VARIANTS

8610-02 - 8610 MKII Synchronising & Load Sharing Control Module (Ct, Rtc)


CONFIGURABLE ENGINE ICONS

The DTC related icon screen is user configurable. The user has the option to define the icons and conditions.

REDUNDANT MSC

Allows two MSC links to be connected between multiple DSE86xx MKII control modules

DATA LOGGING (USB MEMORY STICK)

Provides current and historical status information.

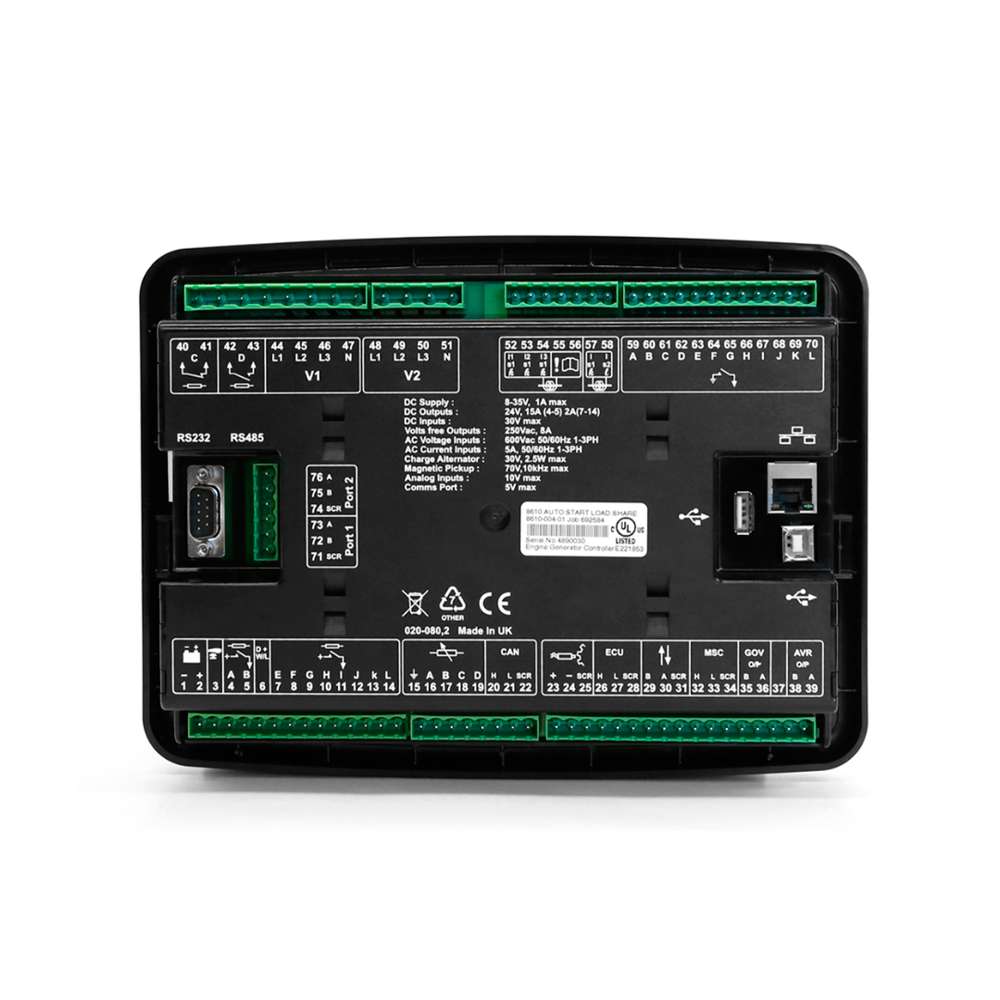

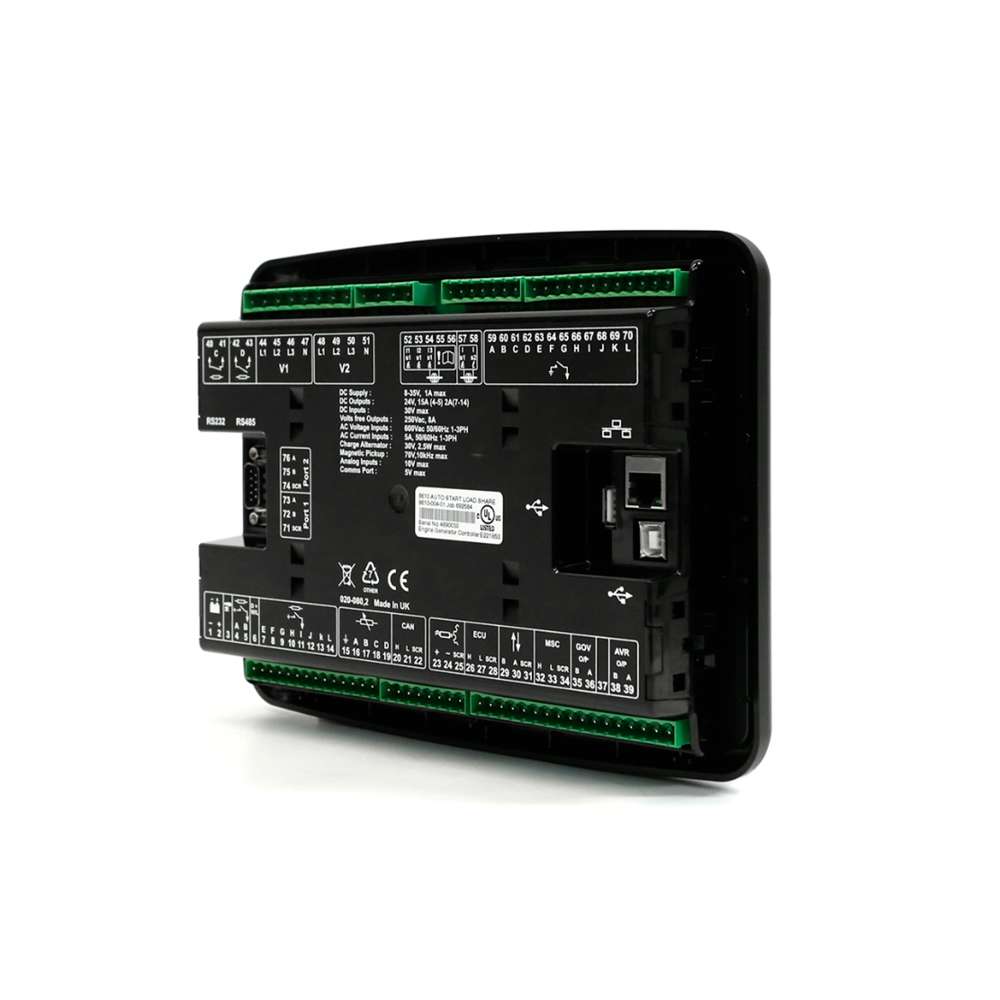

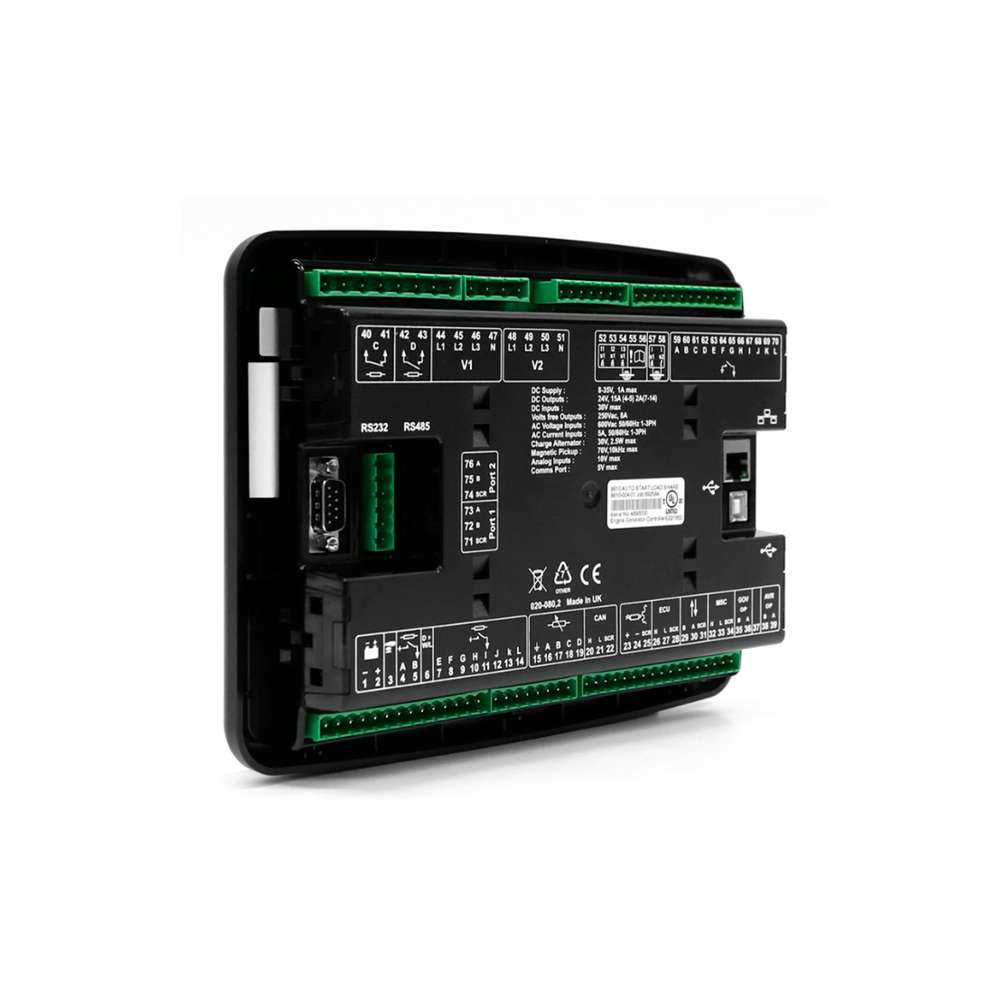

  • Continuous Voltage Rating - ◖8 V to 35 V continuous
  • Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
  • Maximum Operating Current - ◖460 mA at 12 V, 245 mA at 24 V
  • Maximum Standby Current - ◖375 mA at 12 V, 200 mA at 24 V
  • Charge Fail/Excitation Range - ◖0 V to 35 V
  • Outputs - ◖Output A (Fuel) : 15 A DC at supply voltage ◖Output B (Start) : 15 A DC at supply voltage ◖Outputs C & D : 8 A AC at 250 V AC (Volt free) ◖Auxiliary Outputs E, F, G, H, I & J : 2 A DC at supply voltage
  • Generator & Bus - ◖Voltage Range : 15 V to 415 V AC (Ph to N) 25 V to 719 V AC (Ph to Ph) ◖Frequency Range : 3.5 Hz to 75 Hz
  • Magnetic Pick-Up - ◖Voltage Range : +/- 0.5 V to 70 V ◖Frequency Range : 10,000 Hz (max)
  • Built-In Governor Control - ◖Minimum Load Impedance : 1000Ω Fully isolated ◖Gain Voltage : 0 V to 10 V DC Fully isolated ◖Offset Voltage : +/- 10 V DC Fully isolated
  • Built-In Avr Control - ◖Minimum Load Impedance :1000Ω Fully isolated ◖Gain Voltage : 0 V to 10 V DC Fully isolated ◖Offset Voltage : +/- 10 V DC Fully isolated

The DSE8610 MKII represents the latest in complex load sharing & synchronising control technology. Designed to handle the most complex grid type generator applications the DSE8610 MKII control module is packed with multiple features and benefits that are unrivalled across the generator control industry


DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V continuous

CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

MAXIMUM OPERATING CURRENT

460 mA at 12 V, 245 mA at 24 V

MAXIMUM STANDBY CURRENT

375 mA at 12 V, 200 mA at 24 V

CHARGE FAIL/EXCITATION RANGE

0 V to 35 V

OUTPUTS

OUTPUT A (FUEL)

15 A DC at supply voltage

OUTPUT B (START)

15 A DC at supply voltage

OUTPUTS C & D

8 A AC at 250 V AC (Volt free)

AUXILIARY OUTPUTS E,F,G,H,I & J

2 A DC at supply voltage


GENERATOR & BUS

VOLTAGE RANGE

15 V to 415 V AC (Ph to N)

25 V to 719 V AC (Ph to Ph)

FREQUENCY RANGE

3.5 Hz to 75 Hz

MAGNETIC PICK-UP

VOLTAGE RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE

10,000 Hz (max)


BUILT-IN GOVERNOR CONTROL

MINIMUM LOAD IMPEDANCE

1000Ω

Fully isolated

GAIN VOLTAGE

0 V to 10 V DC

Fully isolated

OFFSET VOLTAGE

+/- 10 V DC

Fully isolated

BUILT-IN AVR CONTROL

MINIMUM LOAD IMPEDANCE

1000Ω

Fully isolated

GAIN VOLTAGE

0 V to 10 V DC

Fully isolated

OFFSET VOLTAGE

+/- 10 V DC

Fully isolated
