  3. DSE 8003-02 7" Graphical Colour Multi-Set Remote Overview Display Original

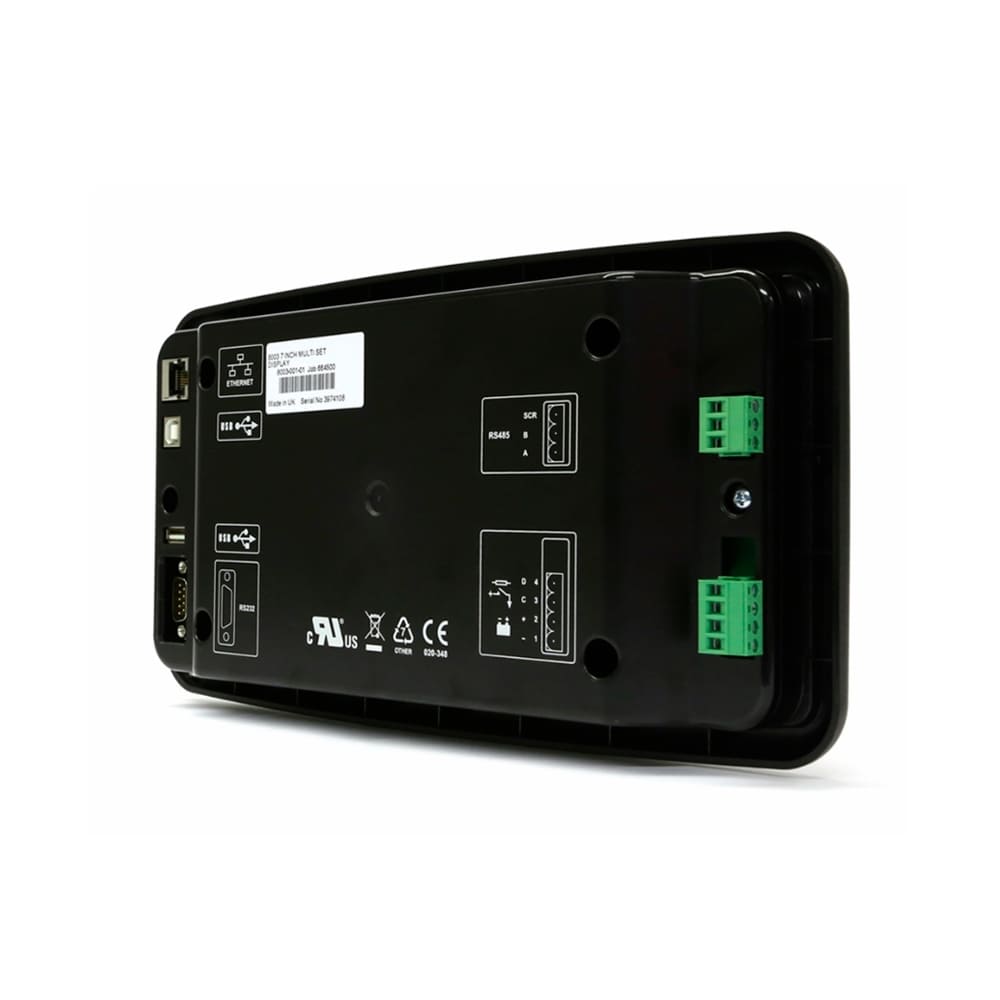

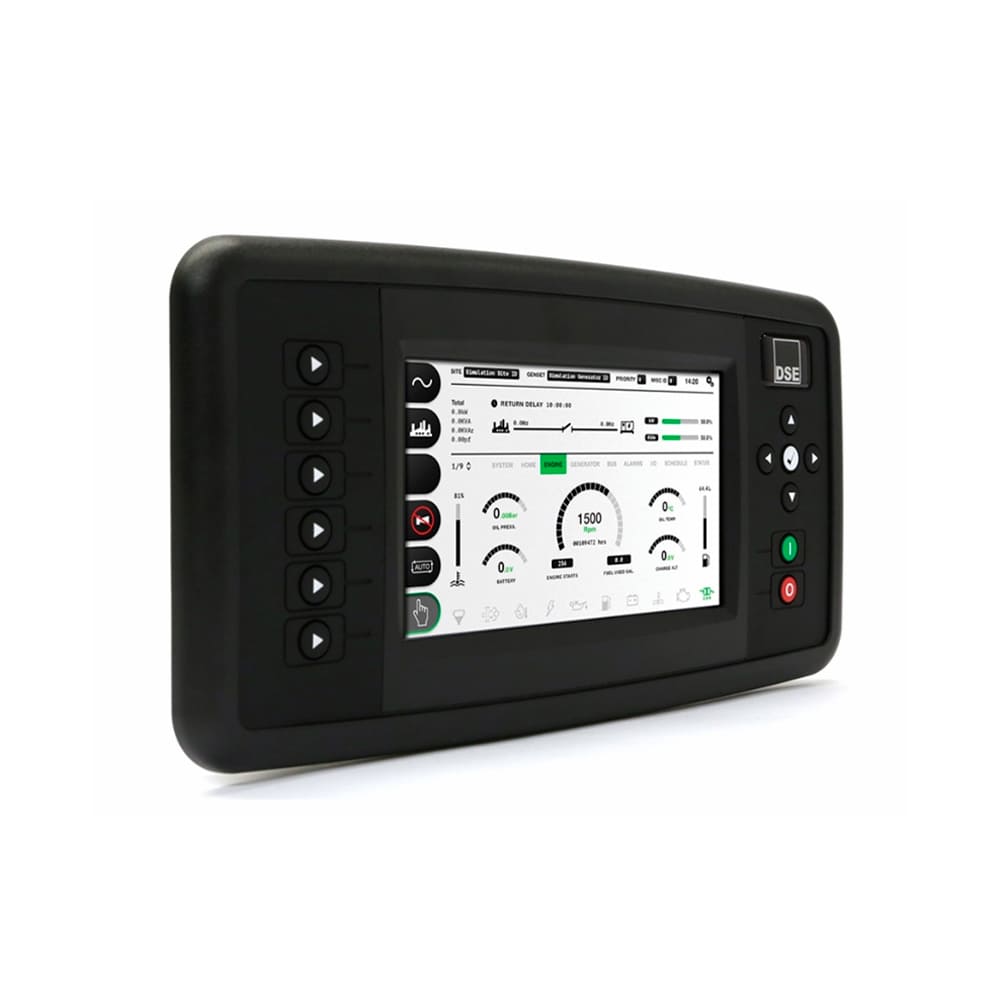

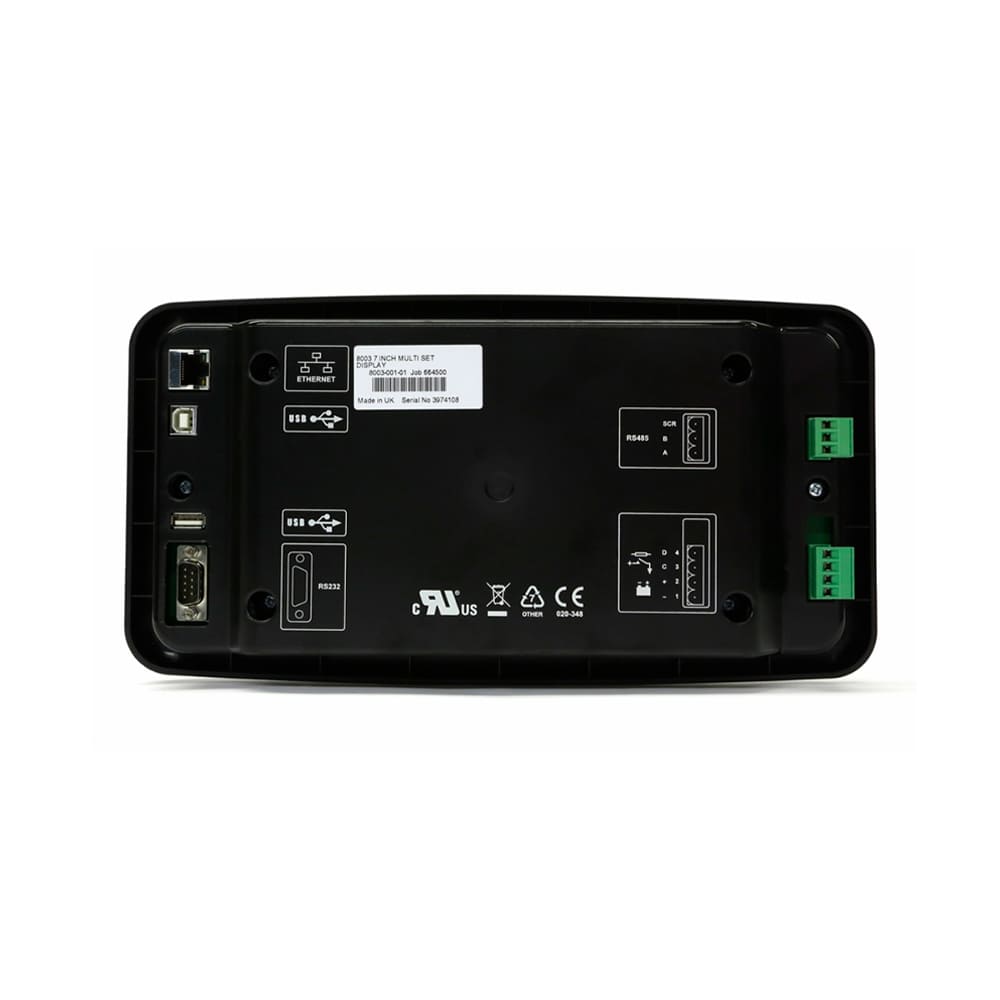

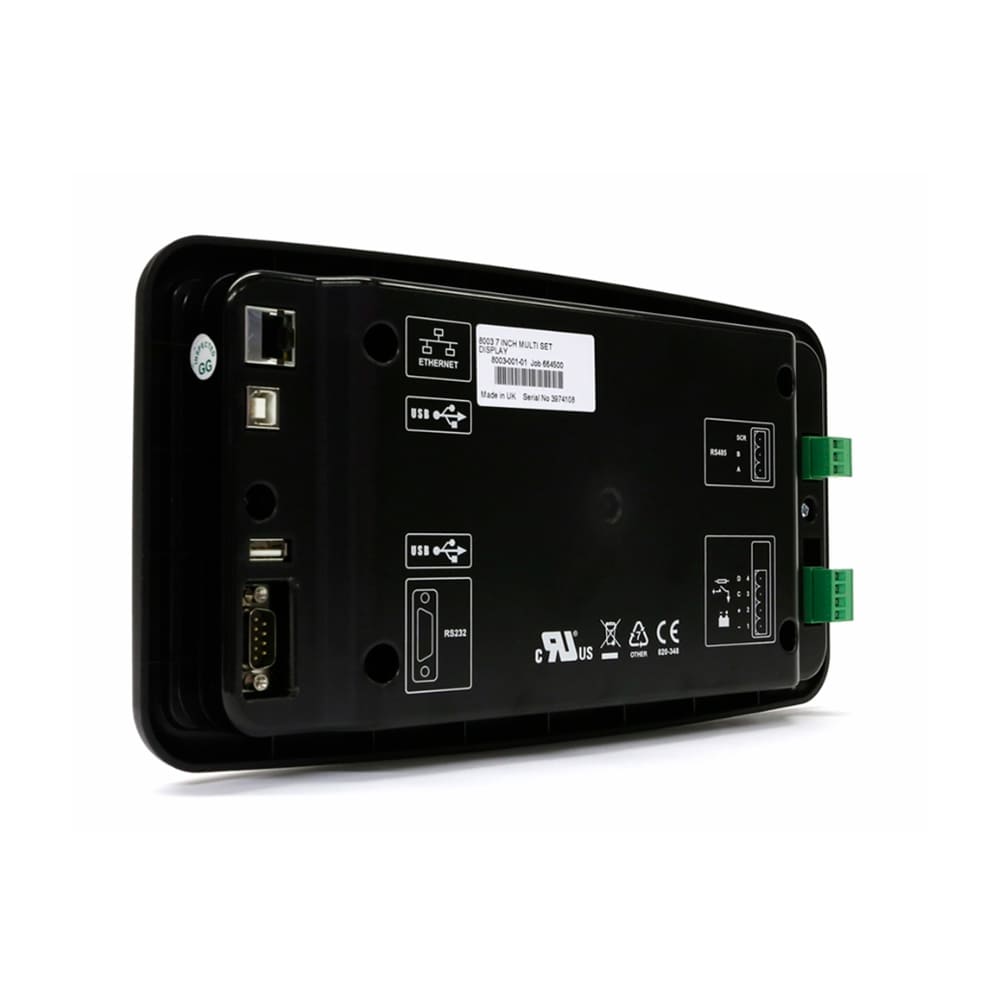

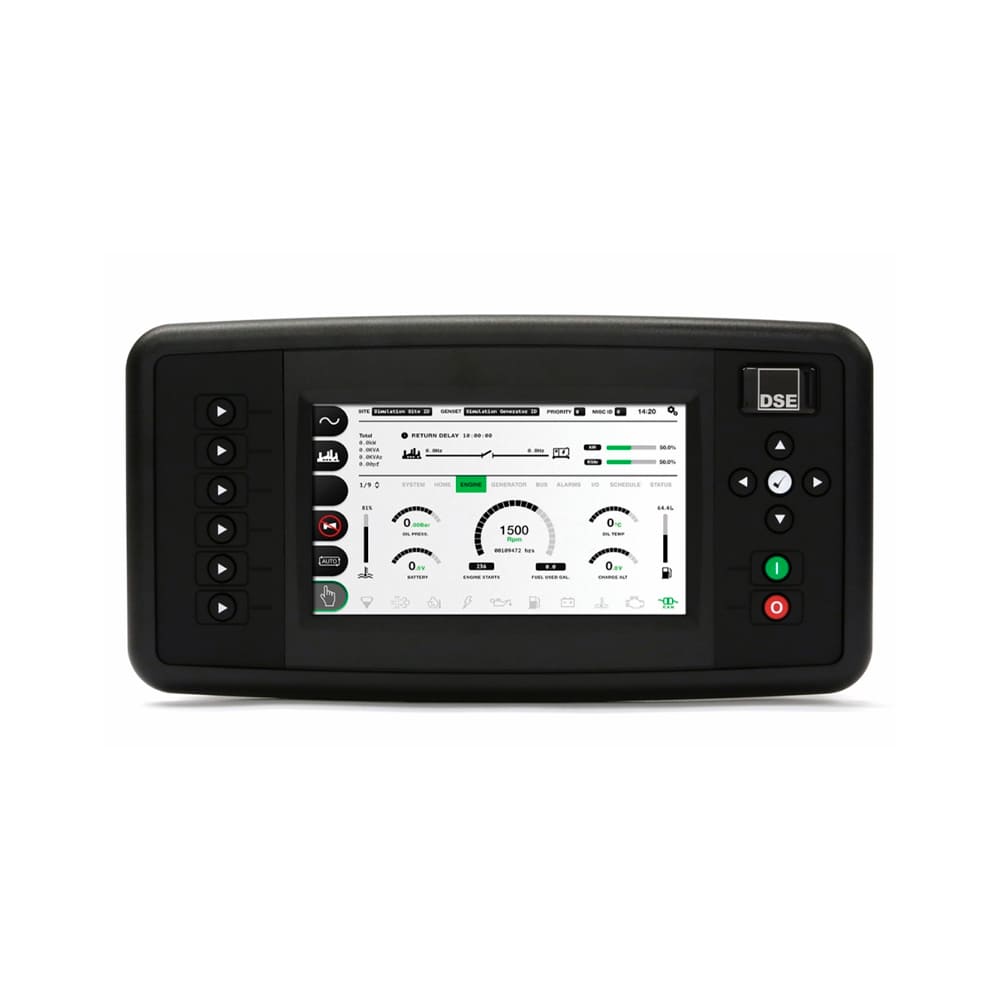

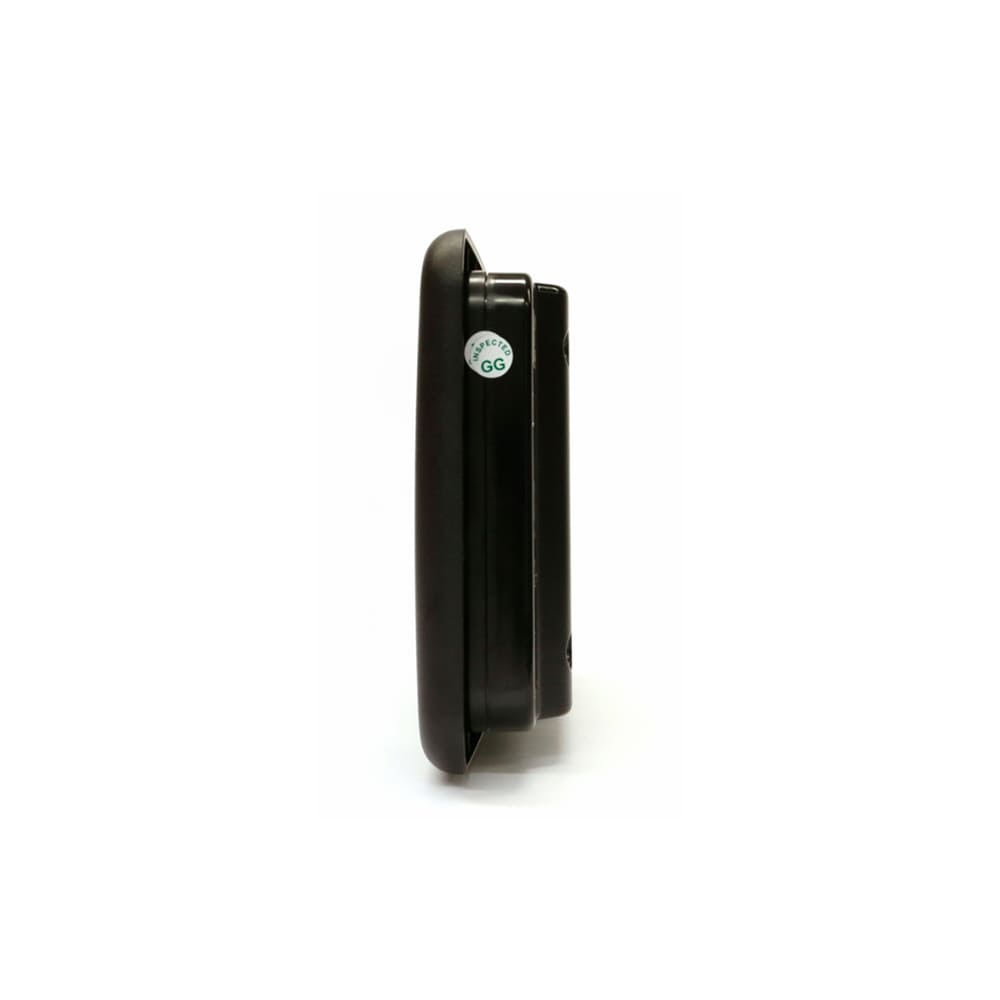

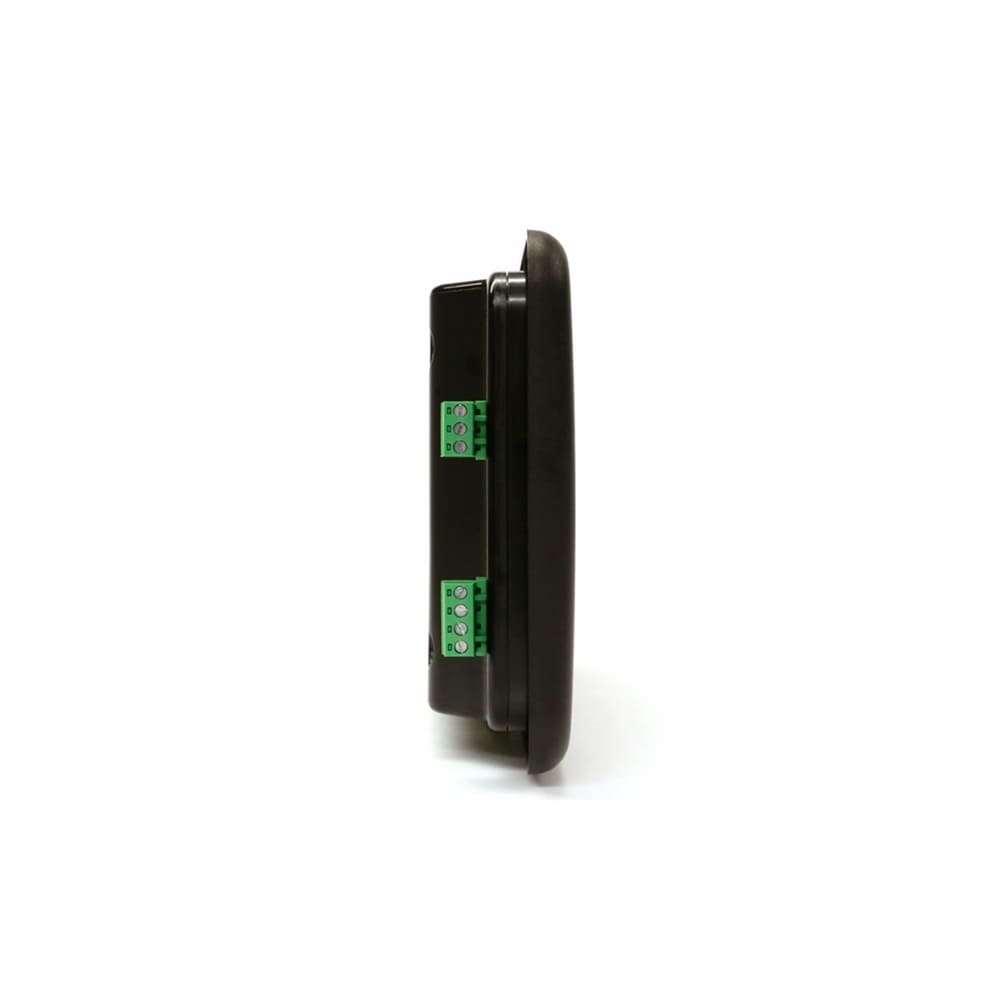

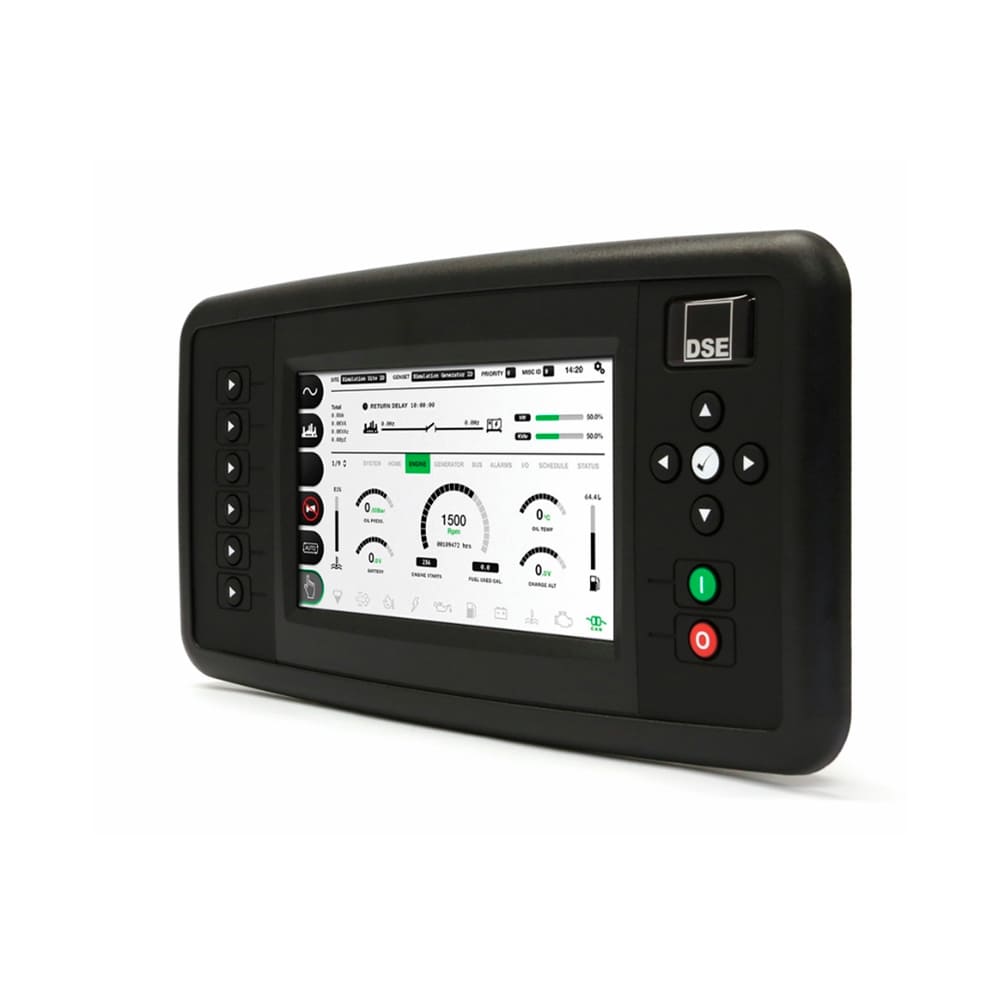

DSE 8003-02 7" Graphical Colour Multi-Set Remote Overview Display Original

https://powermaster.odoo.com/web/image/product.template/9980/image_1920?unique=75bc8c8

DSE8003 MKII 7" Multiset Display

$ 1,702.39 1702.39 USD $ 1,702.39

$ 1,702.39

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE RATING
8 V to 35 V continuous
PRODUCT VARIANTS
8003-02 - 8003 7" Graphical Colour Multi-Set Remote Overview Display
WEIGHT
2.2 POUNDS
SIZE
12 x 6 x 1 Inches
OPERATING TEMPERATURE RANGE

-22 ºF to +158 ºF



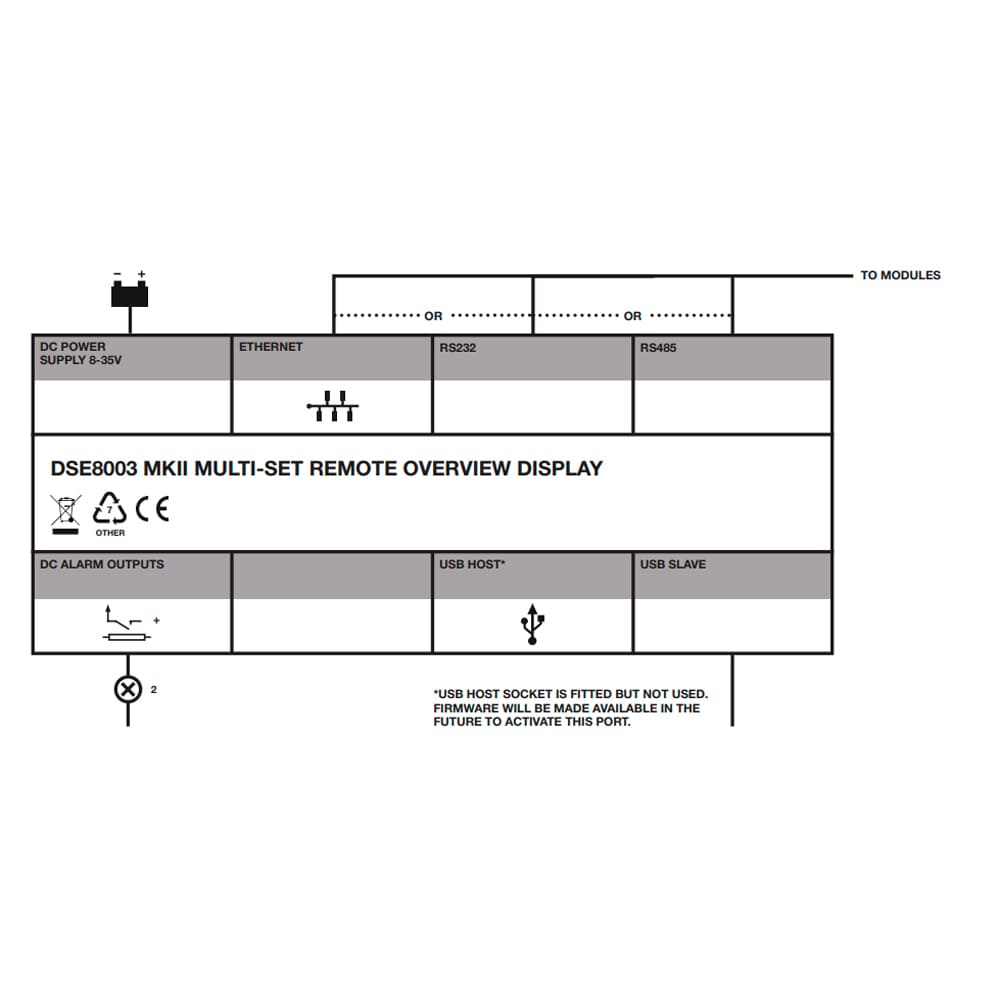

The DSE8003 is a full colour 7” graphical remote overview display. It has been designed to seamlessly integrate with 86xx MKII load share control modules.

The MKII version offers an improved graphical user interface and faster operating response times compared to its MKI predecessor.


Using a RS485 link a single overview display can be connected to multiple control modules over a maximum distance of 1.2km.     ​


PRODUCT VARIANTS

8003-02 - 8003 7" Graphical Colour Multi-Set Remote Overview Display

REMOTE MONITORING
Enables fault conditions to be resolved quickly and provides instant system information to aid preventative maintenance.
TOUCH SCREEN ENABLED

Simplifies system navigation.

FRONT PANEL MOUNTING
Gives options to reduce wiring at the front of a panel when space is limited.
  • Continuous Voltage Rating - ◖8 V to 35 V continuous.
  • Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries.
  • Maximum Operating Current - ◖300 mA at 12V, 150 mA at 24V
  • Outputs - ◖Alarm Outputs : C & D 2 A DC at supply voltage

  • Dimensions - ◖Overall : 310 mm x 160 mm x 40 mm 12.2” x 6.3” x 1.5” Panel Cutout : 282 mm x 136 mm 11.1” x 5.3”
  • Operating Temperature Range - ◖-30 ºC to +70 ºC (-22 ºF to +158 ºF)
  • Storage Temperature Range - ◖-40 ºC to +85 ºC (-40 ºF to +185 ºF)



The DSE8003 is a full colour 7” graphical remote overview display. It has been designed to seamlessly integrate with 86xx MKII load share control modules.

The MKII version offers an improved graphical user interface and faster operating response times compared to its MKI predecessor. Using a RS485 link a single overview display can be connected to multiple control modules over a maximum distance of 1.2km


DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V continuous

CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

MAXIMUM OPERATING CURRENT

300 mA at 12V, 150 mA at 24V




OUTPUTS

AUXILLARY OUTPUTS C & D

2 A DC at supply voltage



 ​​
