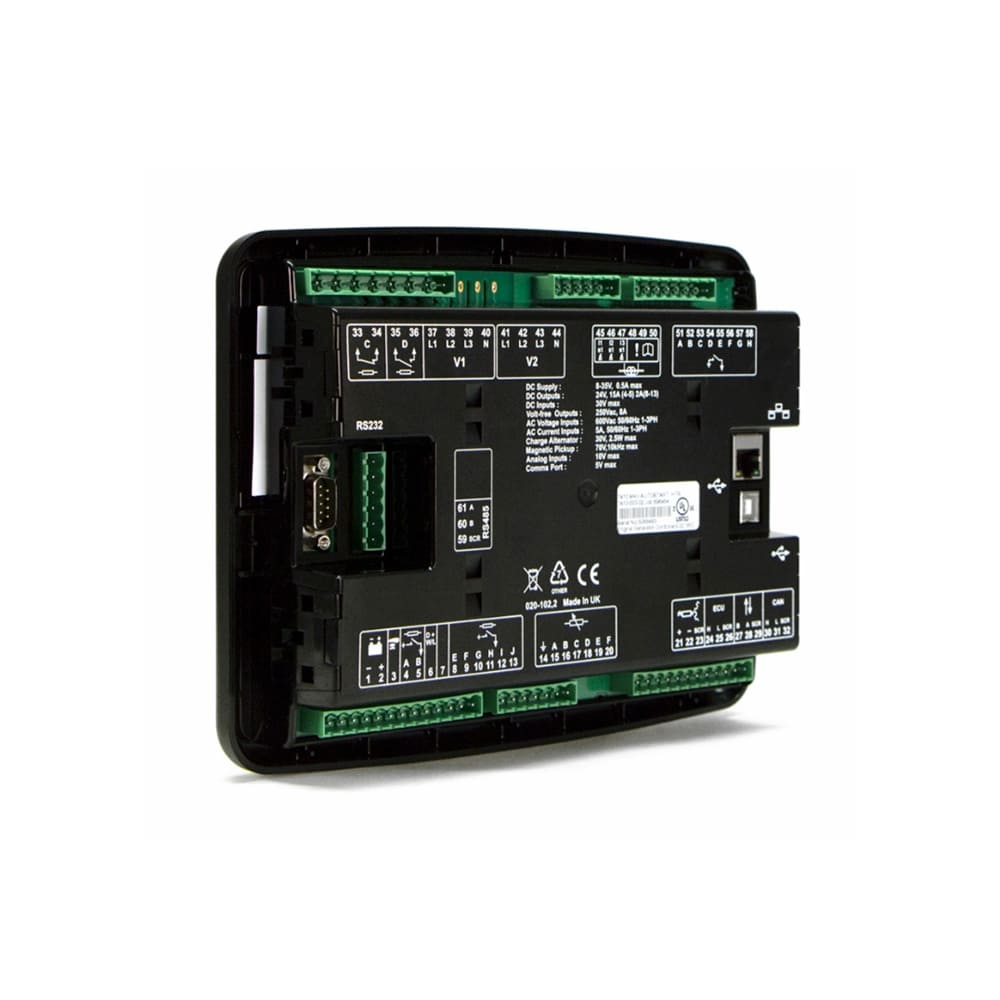

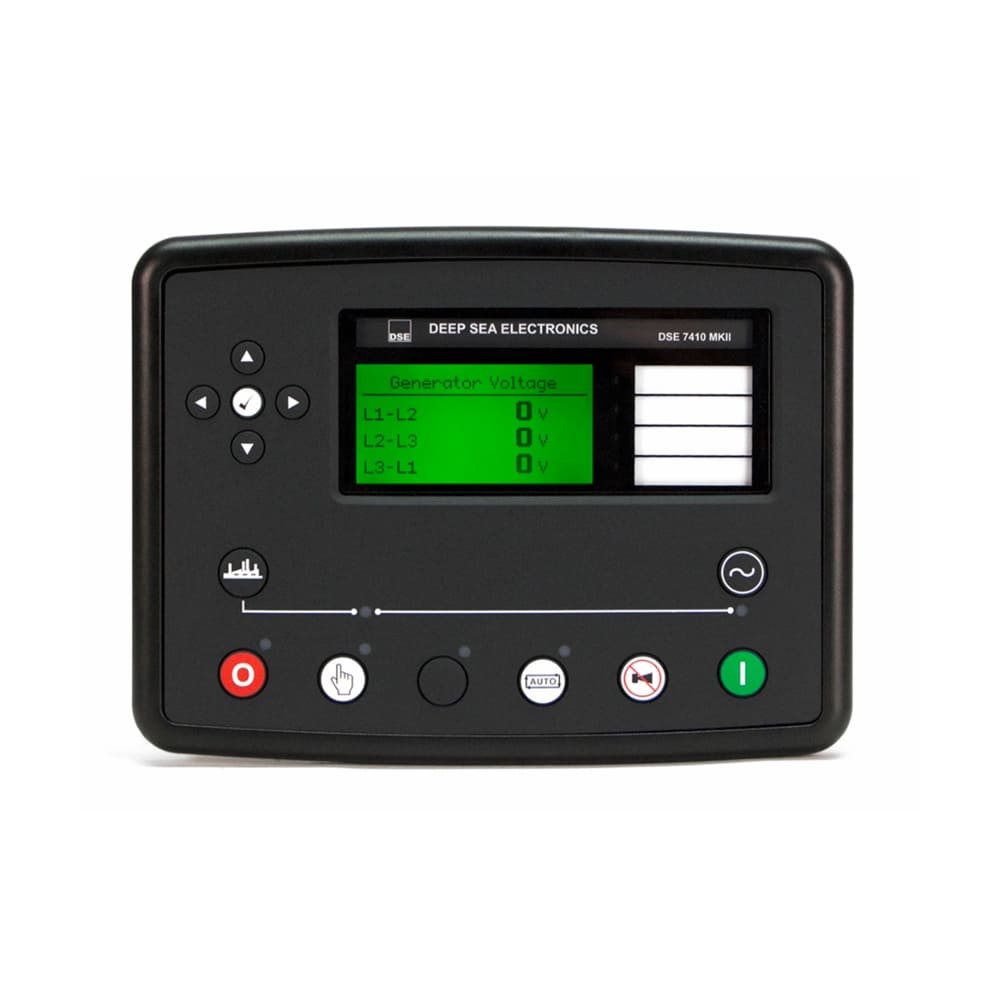

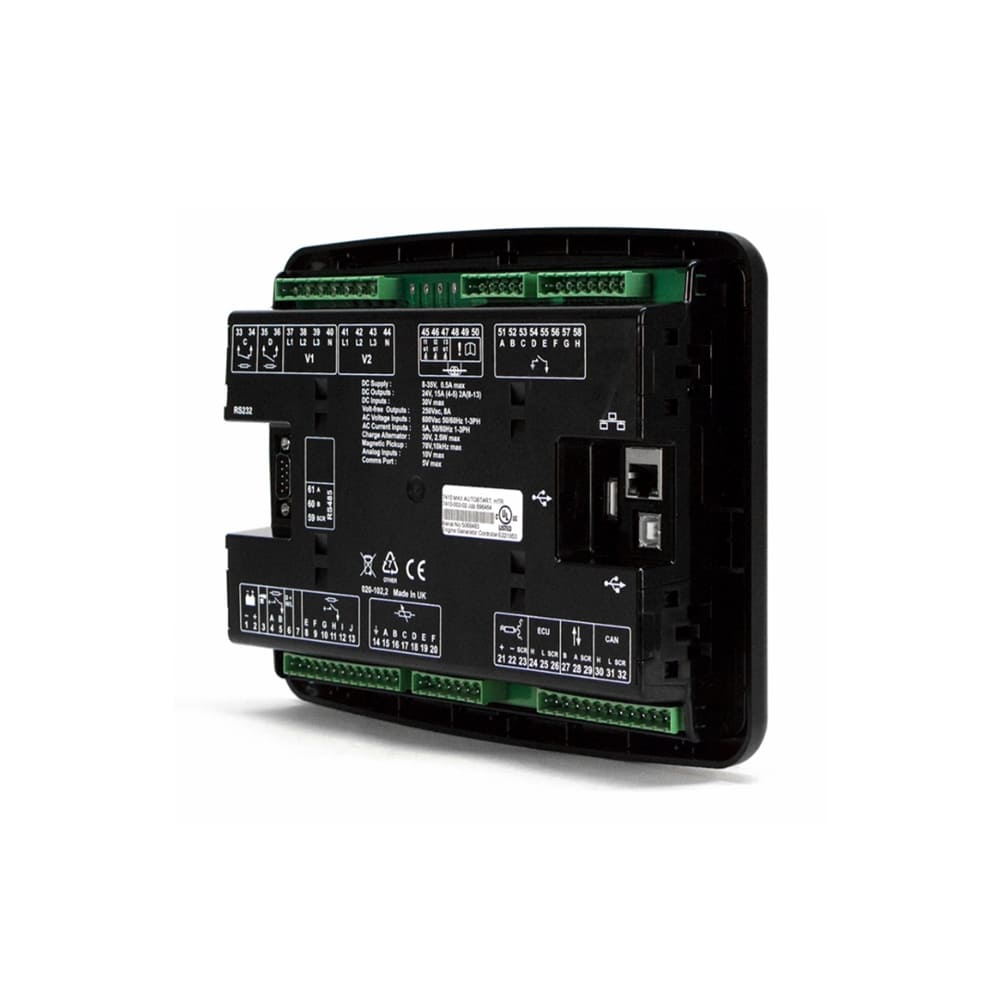

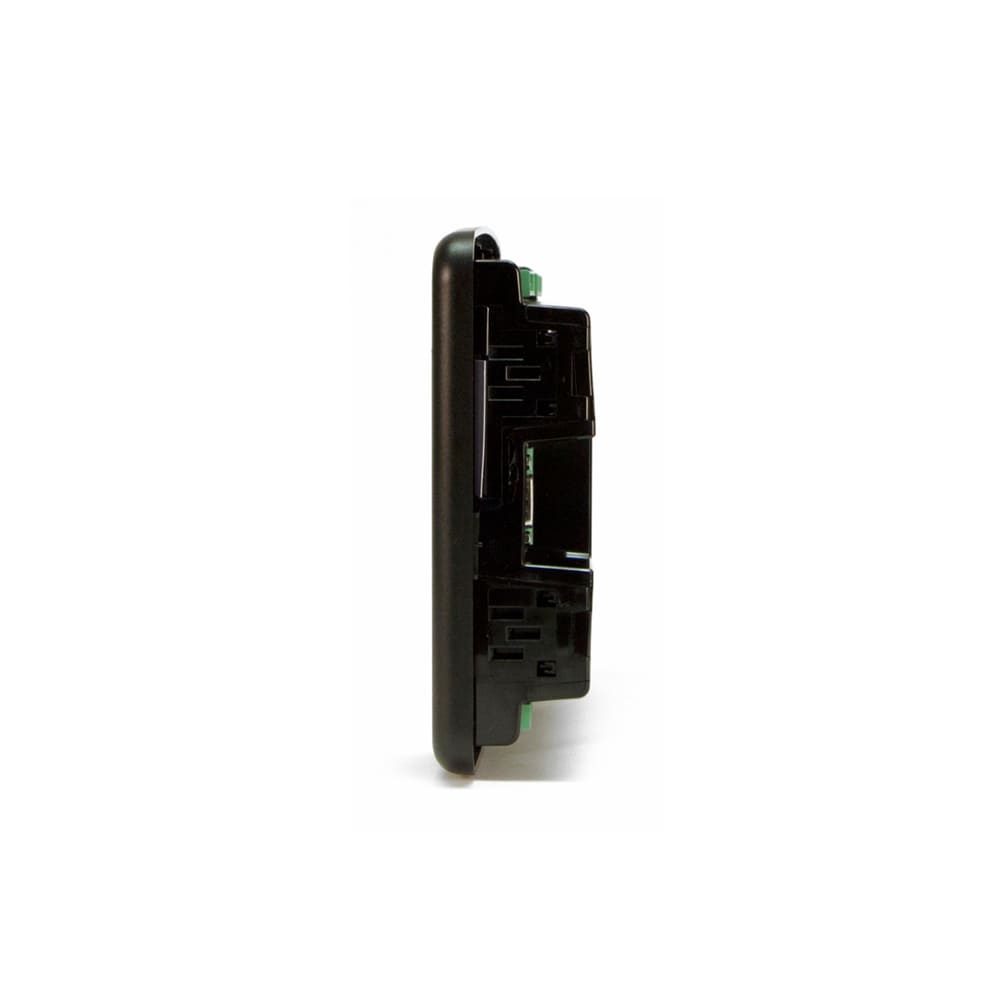

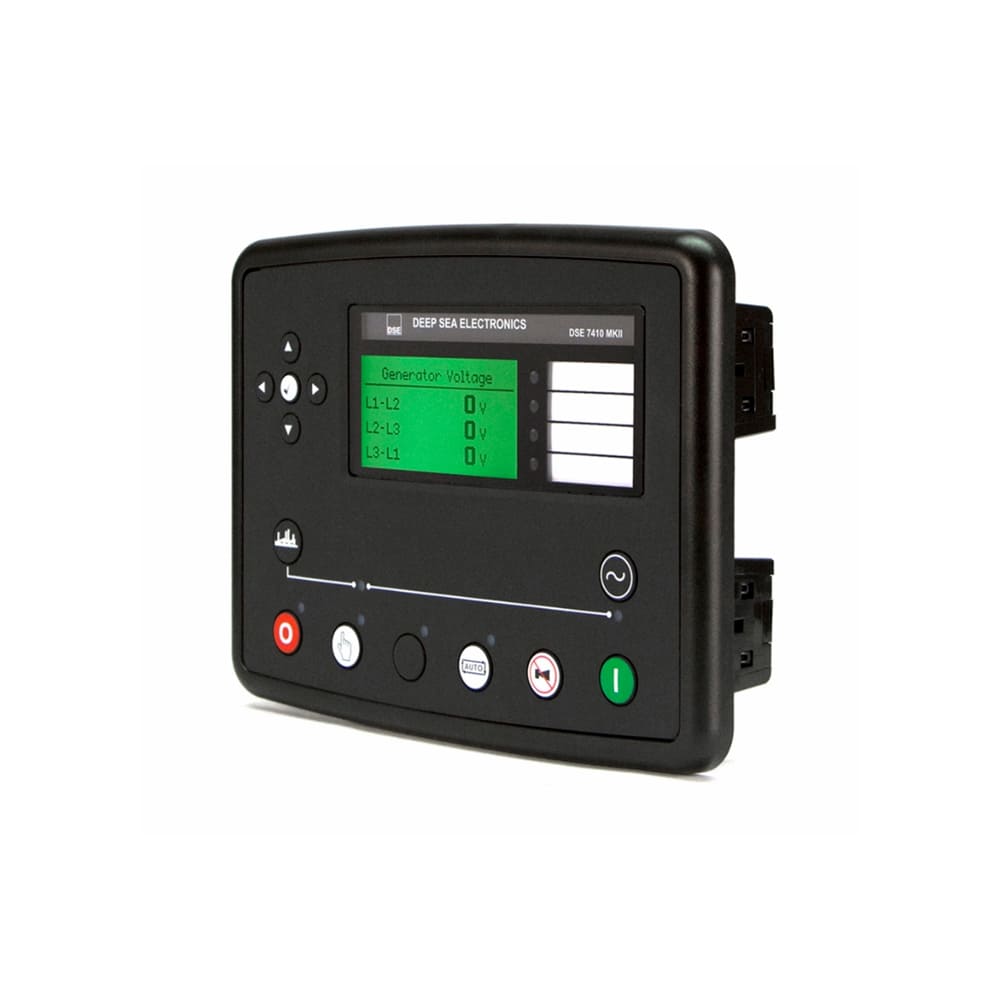

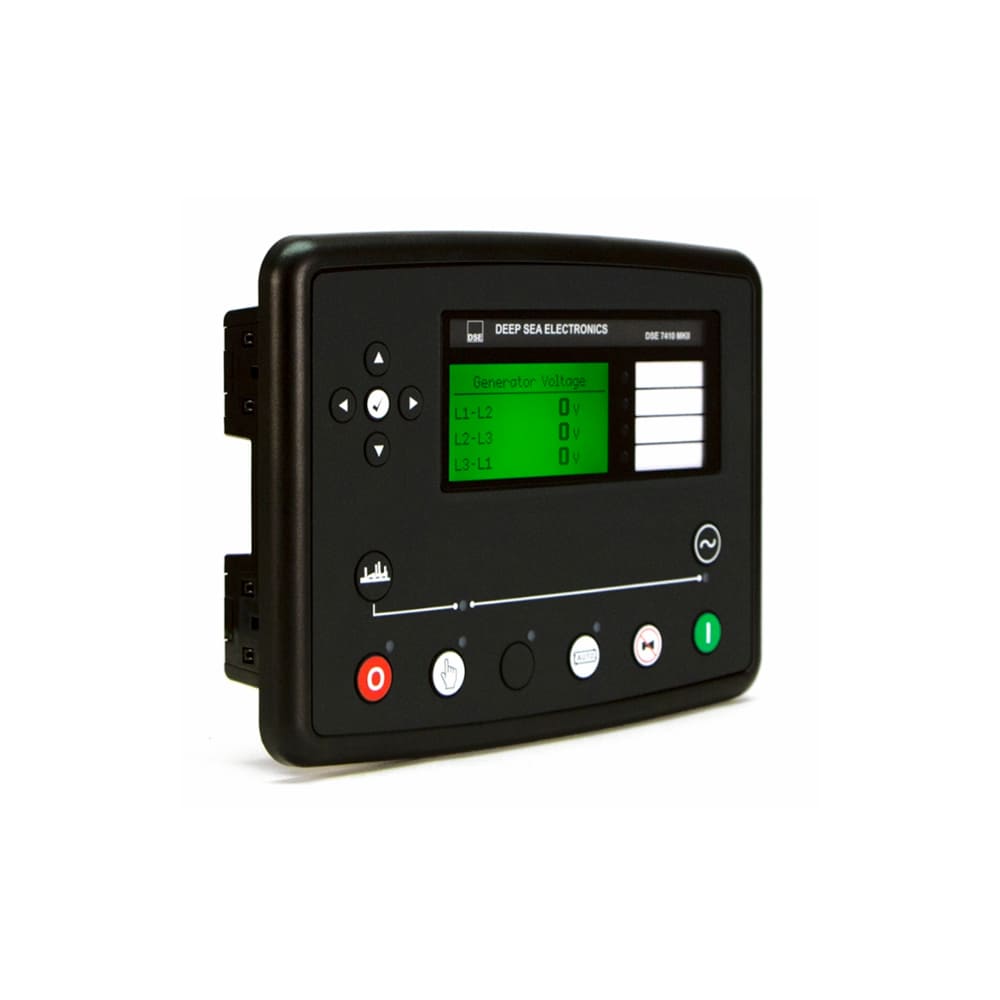

DSE 7410-03 DSE7410 MKII Auto Start Control Module Original

https://powermaster.odoo.com/web/image/product.template/9622/image_1920?unique=a07f83e

DSE7410 MKII Auto Start Control Module

$ 886.49 886.49 USD $ 886.49

$ 886.49

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY

VOLTAGE RATING
8 V to 35 V Continuous 5 V
for up to 1 Minute

PRODUCT VARIANTS
7410-03 - 7410 MKII Auto Start Control Module
WEIGTH
1.94 POUNDS
SIZE
 9 x 7 x 2 Inches
FREQUENCY RANGE

3.5 Hz to 75 Hz


The DSE7410 MKII is an intelligent, powerful auto start control module with high-level features and functionality. The control module is the first module in the DSE range to include in-built SNMP and features an embedded web server. The module is suitable for a wide range of single-set gas and diesel applications.

The control module features an enhanced dual core main processor and extended memory capacity. This allows the module to deliver a faster more powerful performance to return quicker operating responses on complex applications and provides enhanced memory storage for high level data logging functionality.

PRODUCT VARIANTS

7410-03 – 7410 MKII Auto Start Control Module


RATIOMETRIC INPUTS

  Removes the requirement for additional devices.


CUSTOMISABLE POWER UP TEXT AND IMAGES
Company logo can be uploaded to the start up splash screen.
KEY MENU NAVIGATION
 Provides convenient and flexible navigation of parameters.
  • Continuous Voltage Rating - ◖8 V to 35 V Continuous 5 V for up to 1 Minute
  • Cranking Dropouts - ◖Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
  • Maximum Operating Current - ◖510 mA at 12 V, 240 mA at 24 V
  • Maximum Standby Current - ◖330 mA at 12 V, 160 mA at 24 V
  • Charge Fail/Excitation Range - ◖0 V to 35 V

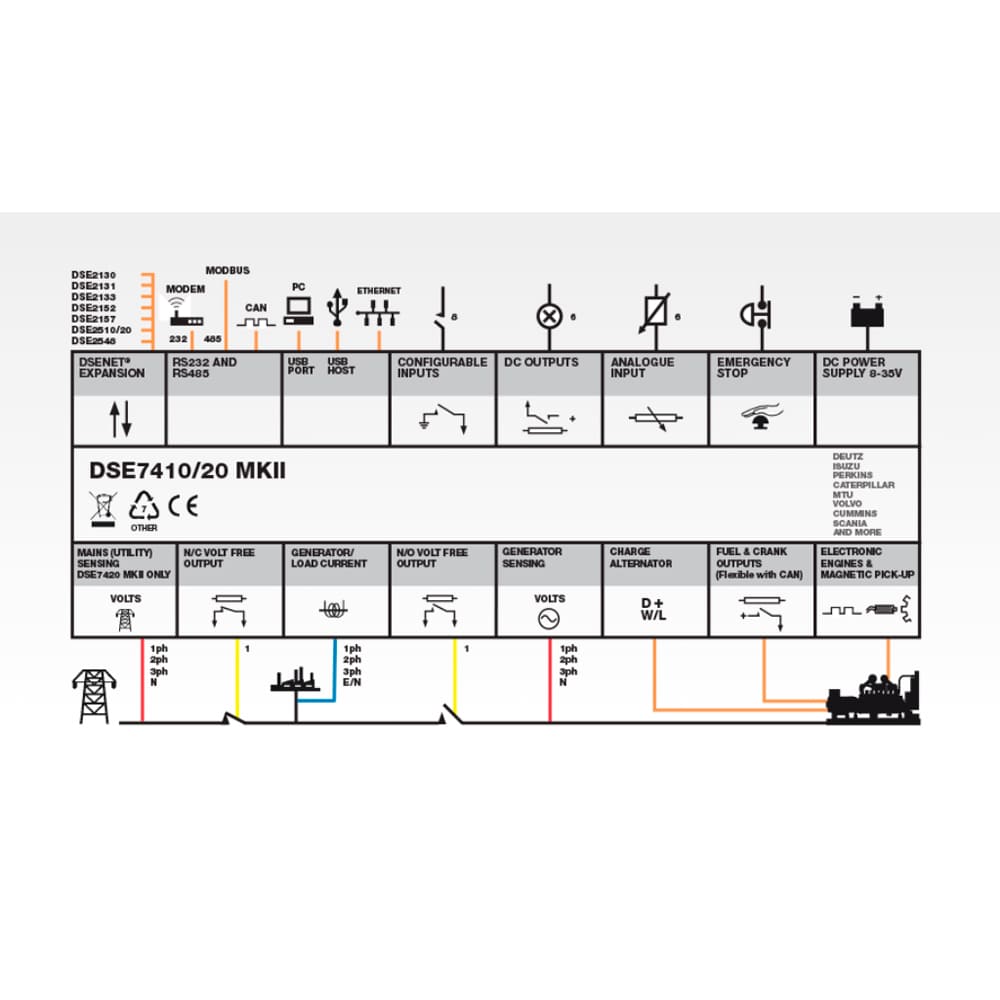

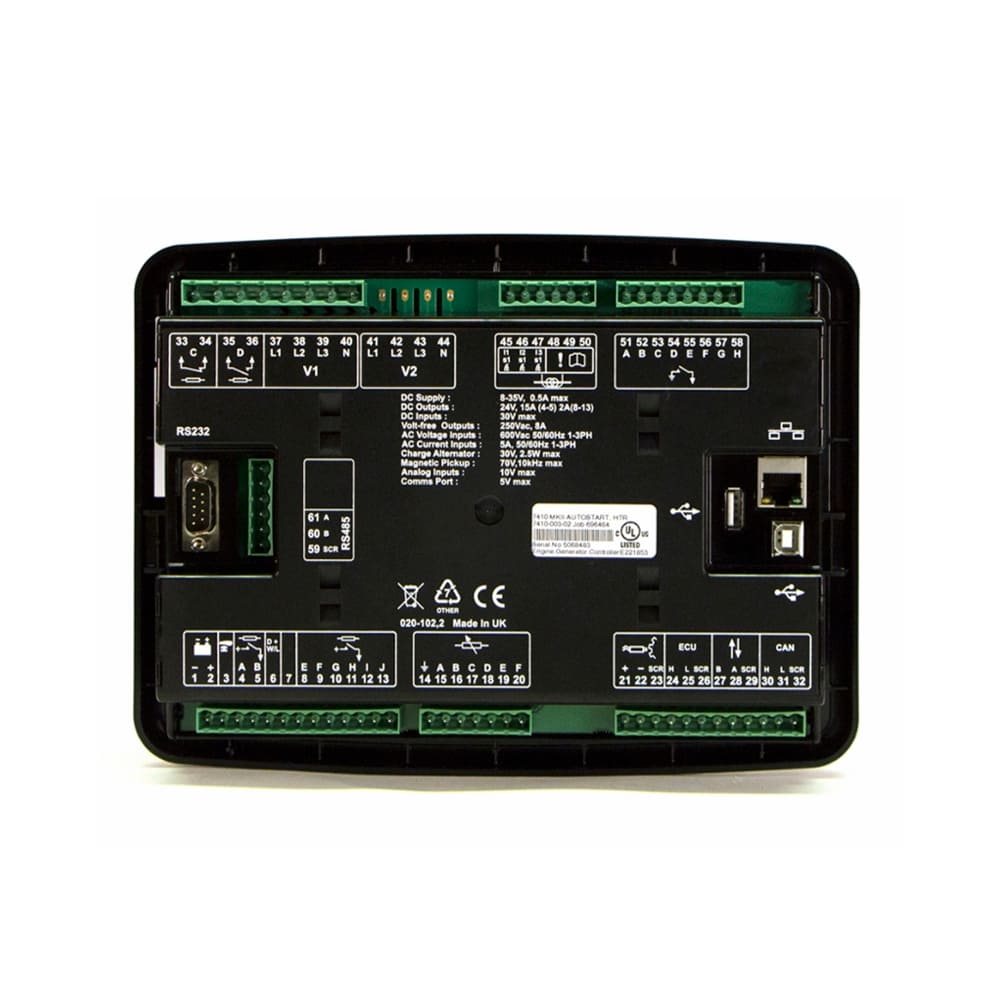

  • Inputs - ◖Digital Inputs A-H : Negative Switching ◖Analogue Inputs A, B, E & F : Configurable as Negative Switching Digital Input 0 V to 10 V Sensor 4mA to 20mA Sensor Resistive Sensor ◖Analogue Inputs C & D Negative : Switching Digital Input Resistive Sensor



  • Outputs - ◖Output A (Fuel) : 15 A DC at supply voltaje - ◖Output B (Start) : 15 A DC at supply voltage ◖Outputs C & D : 8 A AC at 250 V AC (Volt free) ◖Auxiliary Outputs E, F, G, H, I & J : 2 A DC at supply voltage
  • Generator - ◖Voltage Range : 15 V to 415 V AC (Ph-N) 26 V to 719 V AC (Ph to Ph) ◖Frequency Range : 3.5 Hz to 75 Hz
  • Magnetic Pick Up - ◖Voltage Range : +/- 0.5 V to 70 V ◖Frequency Range : 10,000 Hz (max)

The DSE7410 MKII is an intelligent, powerful auto start control module with high-level features and functionality. The control module is the first module in the DSE range to include in-built SNMP and features an embedded web server. The module is suitable for a wide range of single-set gas and diesel applications.

The control module features an enhanced dual core main processor and extended memory capacity. This allows the module to deliver a faster more powerful performance to return quicker operating responses on complex applications and provides enhanced memory storage for high level data logging functionality.


DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

5 V for up to 1 Minute

CRANKING DROPOUTS

Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

MAXIMUM OPERATING CURRENT

510 mA at 12 V, 240 mA at 24 V

MAXIMUM STANDBY CURRENT



INPUTS

DIGITAL INPUTS A-H

ANALOGUE INPUTS A,B, E & F

ANALOGUE INPUTS C & D

OUTPUTS

OUTPUT A (FUEL)

15 A DC at supply voltage

OUTPUT B (START)

15 A DC at supply voltage

OUTPUTS C & D

8 A AC at 250 V AC (Volt free)

AUXILIARY OUTPUTS E,F,G,H,I & J

2 A DC at supply voltage



GENERATOR

VOLTAGE RANGE

FREQUENCY RANGE

MAGNETIC PICK UP

VOLTAGE RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE

10,000 Hz (max)
