  3. DSE 6020-03 MKII Auto Mains (Utility) Failure Control Module (020-521 not included) Original

DSE 6020-03 MKII Auto Mains (Utility) Failure Control Module (020-521 not included) Original

https://powermaster.odoo.com/web/image/product.template/9619/image_1920?unique=88cf813

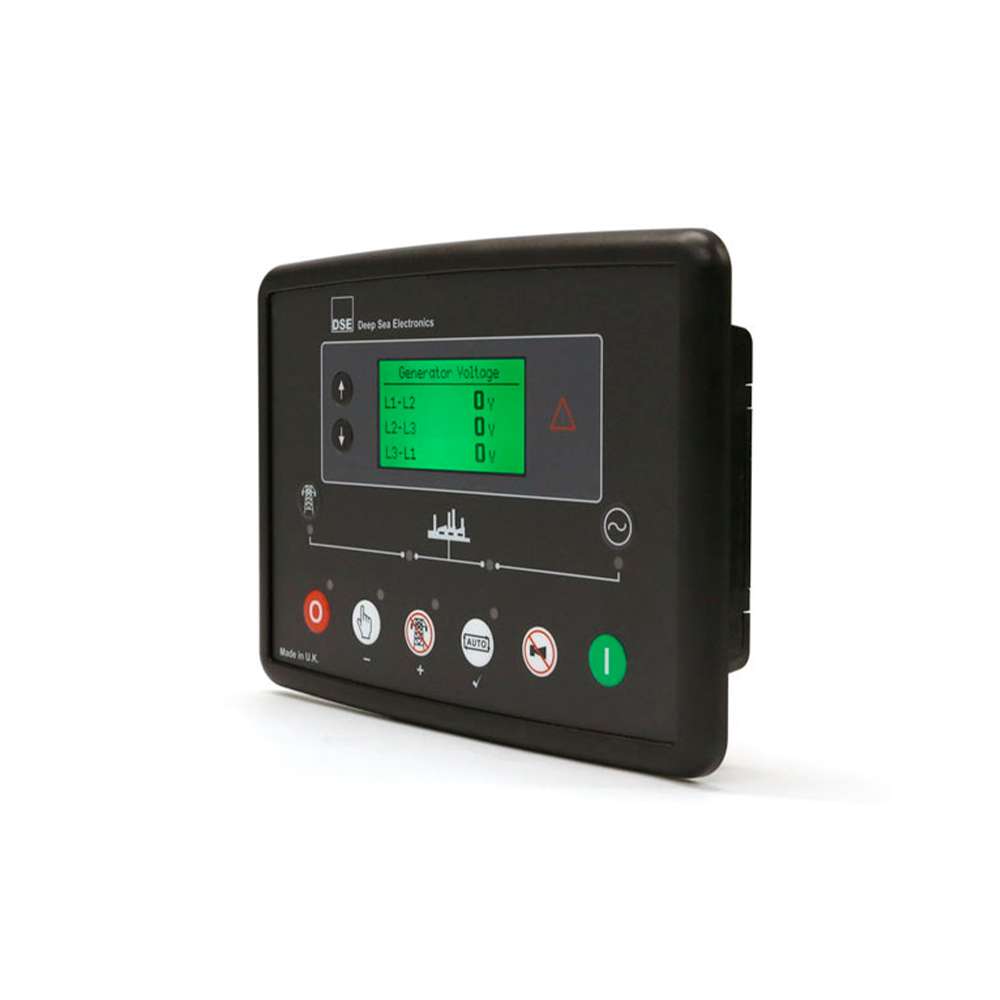

DSE6020-03 - MKII Auto Mains (Utility) Failure Control Module (020-521 not included)

$ 515.89 515.89 USD $ 515.89

$ 515.89

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY

VOLTAGE RATING
8 V to 35 V Continuous

PRODUCT VARIANTS

6020-03 - MKII Auto Mains (Utility) Failure Control Module

WEIGHT

1.1 POUNDS
SIZE
10 x 7 x 2 Inches

FREQUENCY RANGE

3.5 Hz to 75 Hz

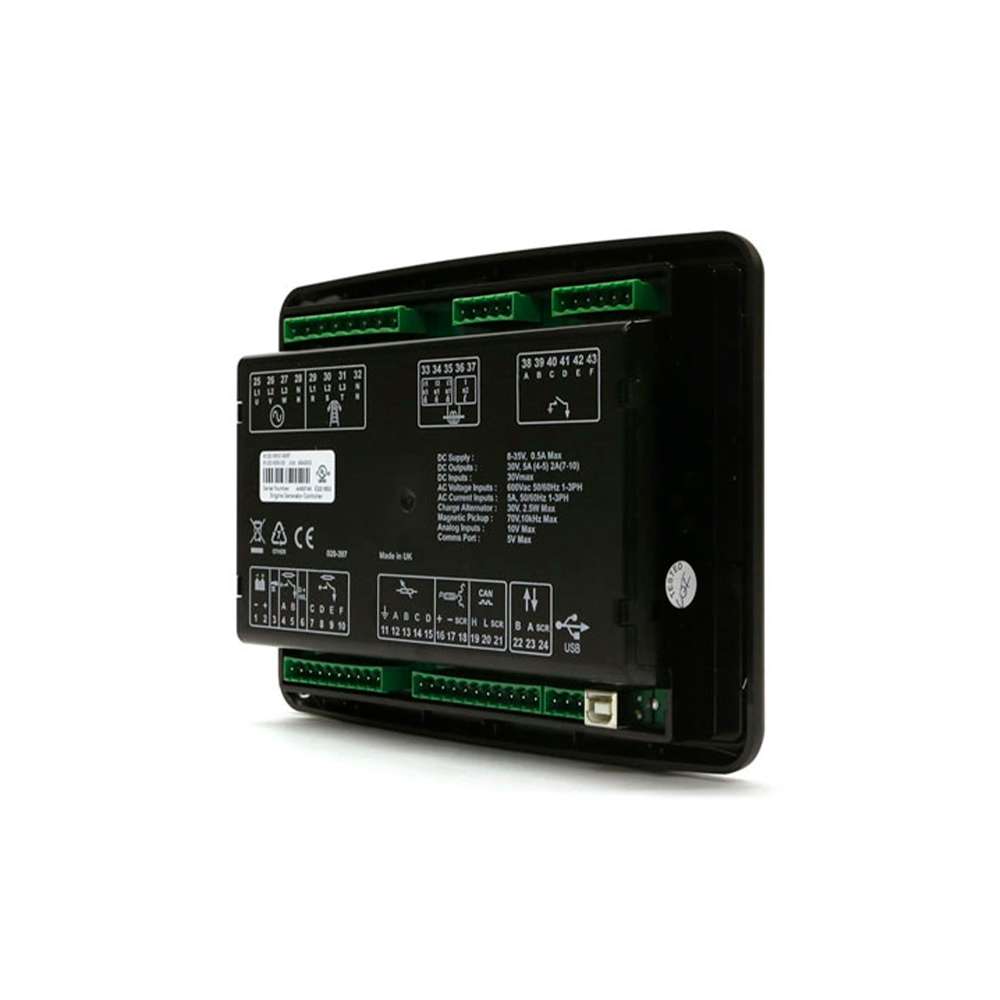

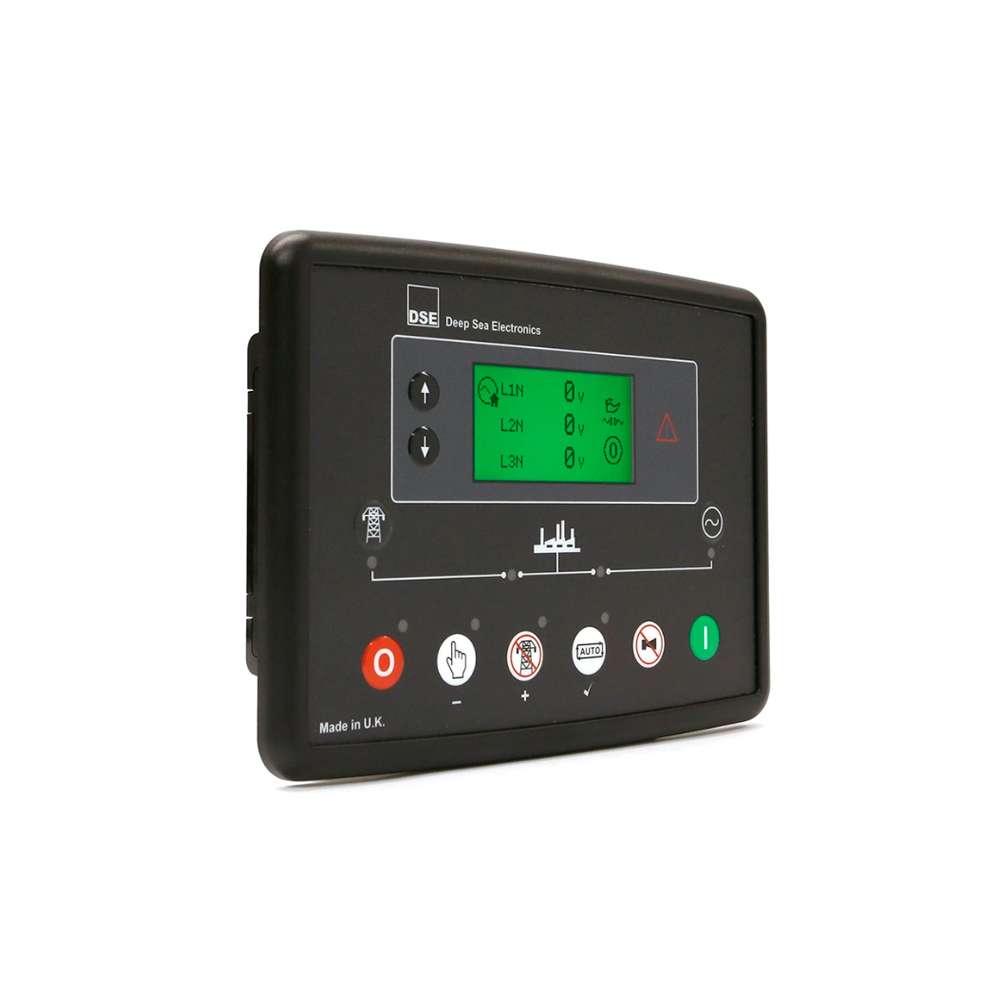

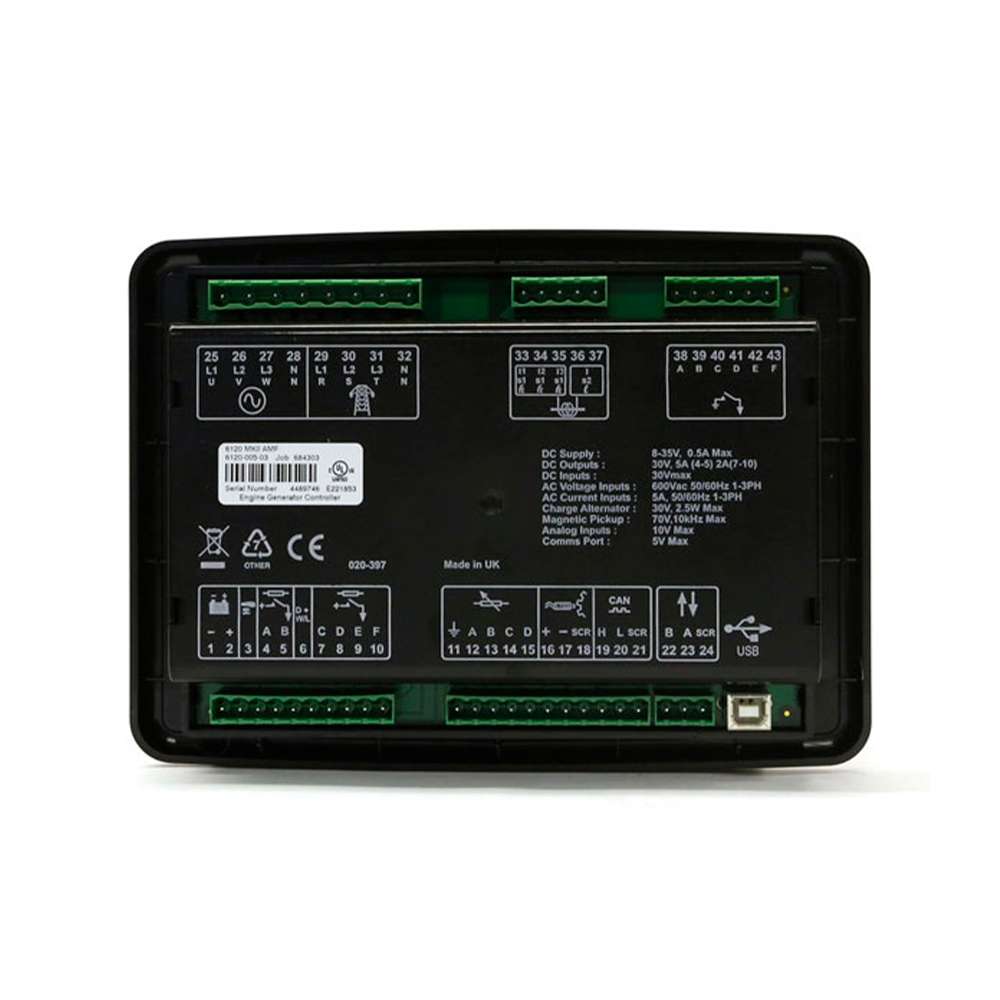

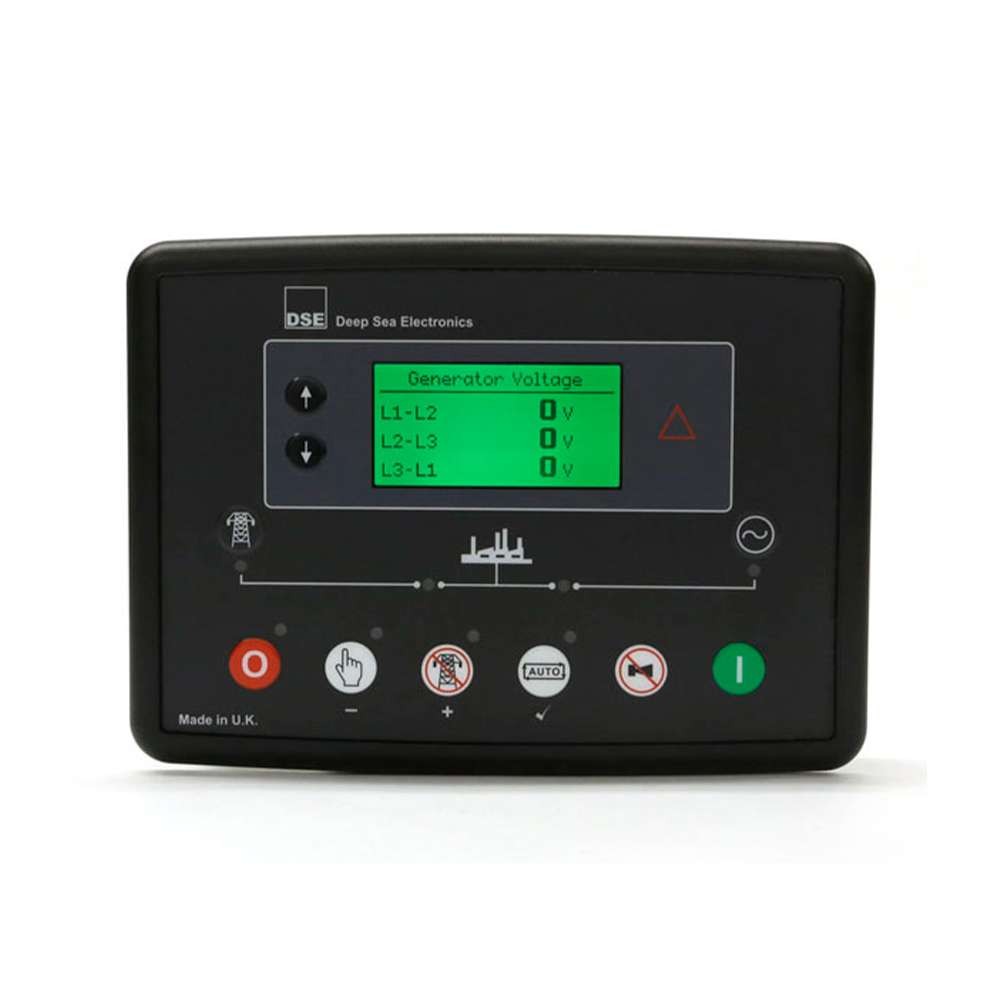

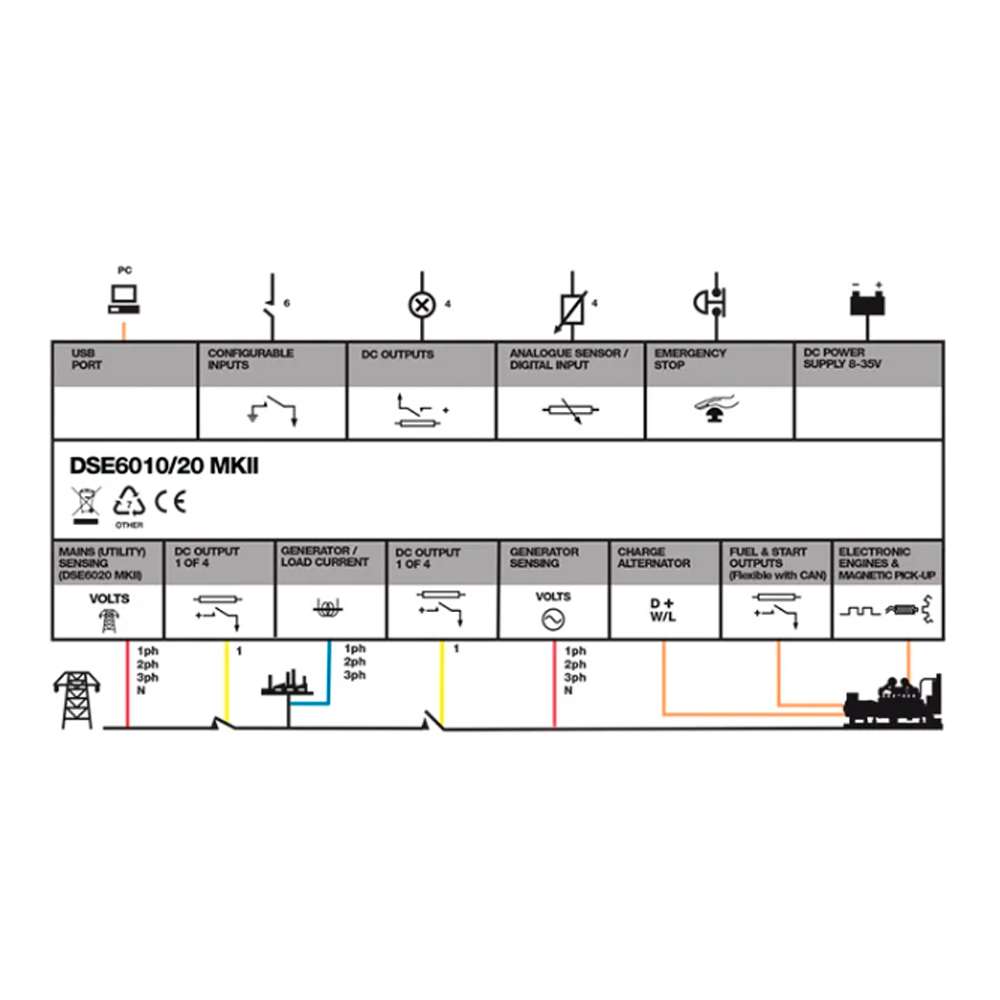

The DSE 6020 MKII is an Auto Mains (Utility) Failure Control Module developed to provide a wide range of operating and monitoring features for single diesel and gas gen-sets.

PRODUCT VARIANTS

6020-03 - MKII Auto Mains (Utility) Failure Control Module

6020-04 - MKII Auto Mains (Utility) Failure Control Module (Htr)

CONFIGURABLE EVENT LOG
 Provides access to historical alarms and operational status.
HEATED DISPLAY OPTION

Ensures the display continues to operate in extreme cold weather conditions.

FUEL & START OUTPUTS​
 Provides multiple installation options.
  • Continuous Voltage Rating - ◖8 V to 35 V Continuous
  • Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
  • Maximum Operating Current - ◖100 mA at 12 V, 105 mA at 24 V
  • Maximum Standby Current - ◖60 mA at 12 V, 55 mA at 24 V
  • Maximum Sleep Current - ◖40 mA at 12 V, 35 mA at 24 V
  • Generator & Mains (Utility)  - ◖Voltage Range : 15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph) ◖Frequency Range : 3.5 Hz to 75 Hz
  • Inputs - ◖Digital Inputs A To F : Negative switching ◖Analogue Inputs A To C : Configurable as: Negative switching digital input 0 Ω to 480 Ω Analogue Input D Configurable as: Negative switching digital input 0 V to 10 V 4 mA to 20 mA 0 Ω to 480 Ω
  • Outputs - ◖Output A (Fuel) : 10 A short term, 5 A continuous, at supply voltage ◖Output B (Start) : 10 A short term, 5 A continuous, at supply voltage ◖Auxiliary Outputs C, D, E & F : 2 A DC at supply voltage


The DSE 6020 MKII is an Auto Mains (Utility) Failure Control Module developed to provide a wide range of operating and monitoring features for single diesel and gas gen-sets.


DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained

during cranking.


MAXIMUM OPERATING CURRENT

100 mA at 12 V, 105 mA at 24 V


MAXIMUM STANDBY CURRENT

60 mA at 12 V, 55 mA at 24 V

MAXIMUM SLEEP CURRENT

40 mA at 12 V, 35 mA at 24 V



GENERATOR & MAINS (UTILITY)

VOLTAGE RANGE

15 V to 415 V AC (Ph to N)

26 V to 719 V AC (Ph to Ph)

FREQUENCY RANGE

3.5 Hz to 75 Hz

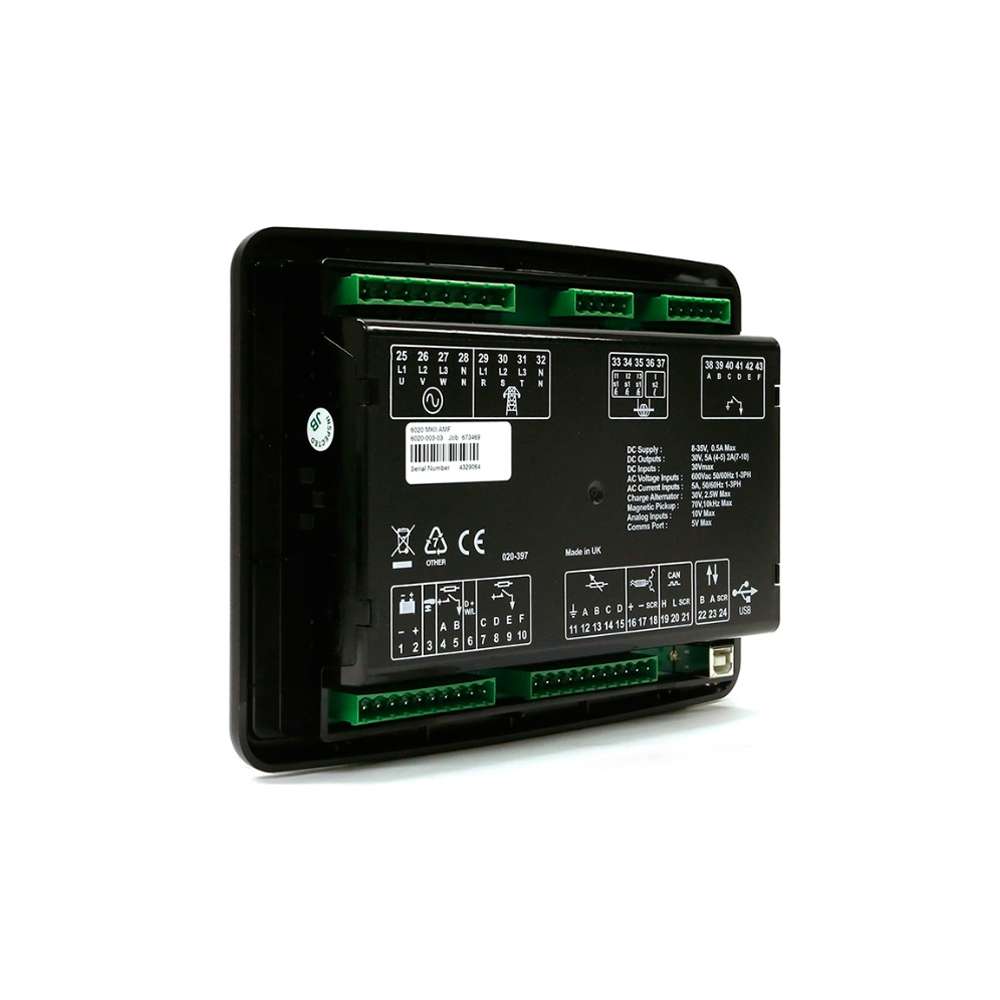

INPUTS

DIGITAL INPUTS A to F

Negative switching

ANALOGUE INPUTS A to C

Configurable as:

Negative switching digital input

0 Ω to 480 Ω

ANALOGUE INPUT D

Configurable as:

Negative switching digital input

0 V to 10 V

4 mA to 20 mA

0 Ω to 480 Ω



OUTPUTS

OUTPUT A (FUEL)

10 A short term, 5 A continuous,

at supply voltage


OUTPUT B (START)

10 A short term, 5 A continuous,

at supply voltage


AUXILIARY OUTPUTS C, D, E & F

2 A DC at supply voltage ­­
