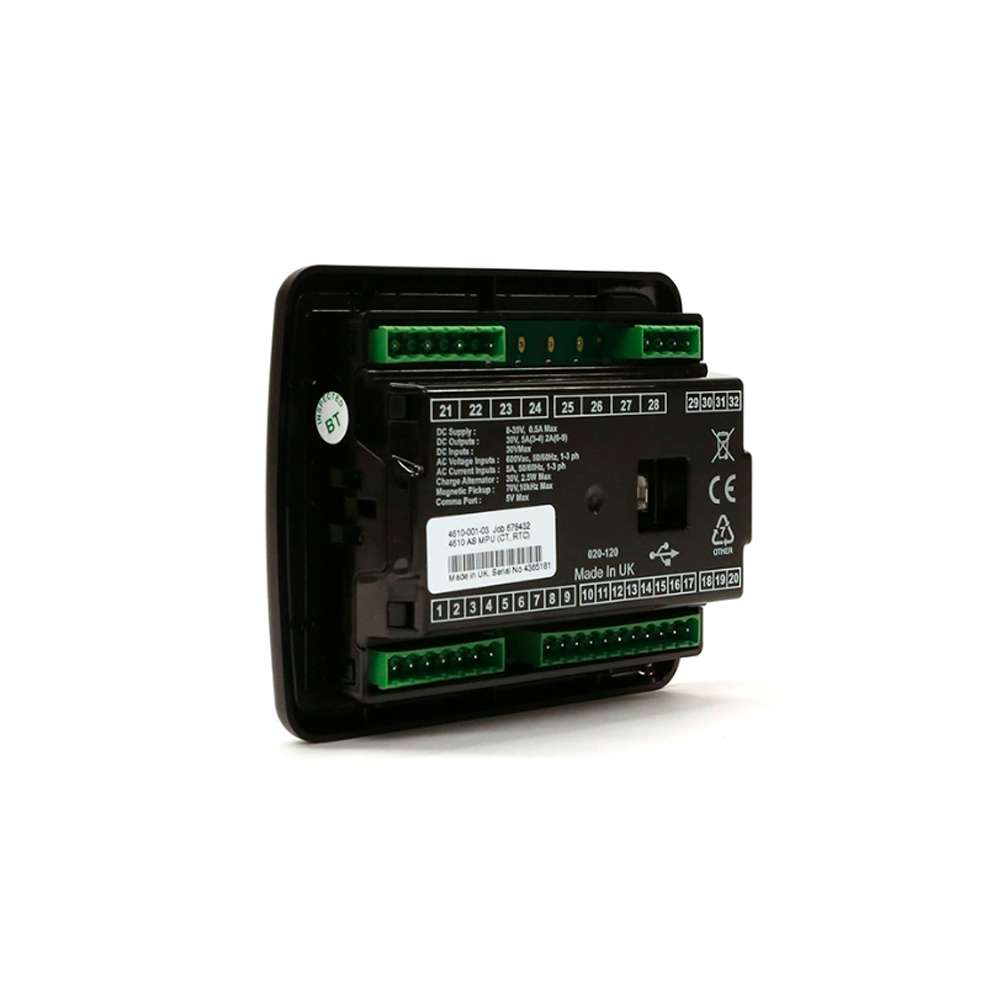

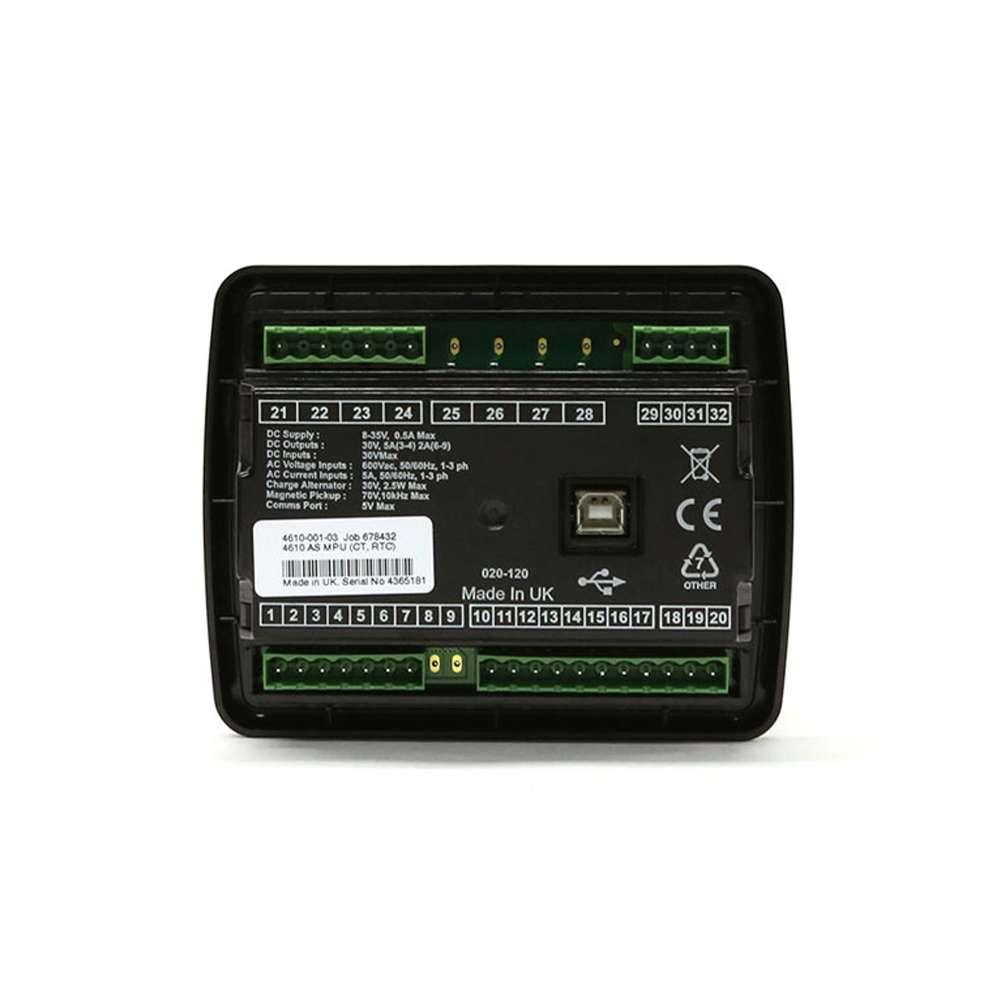

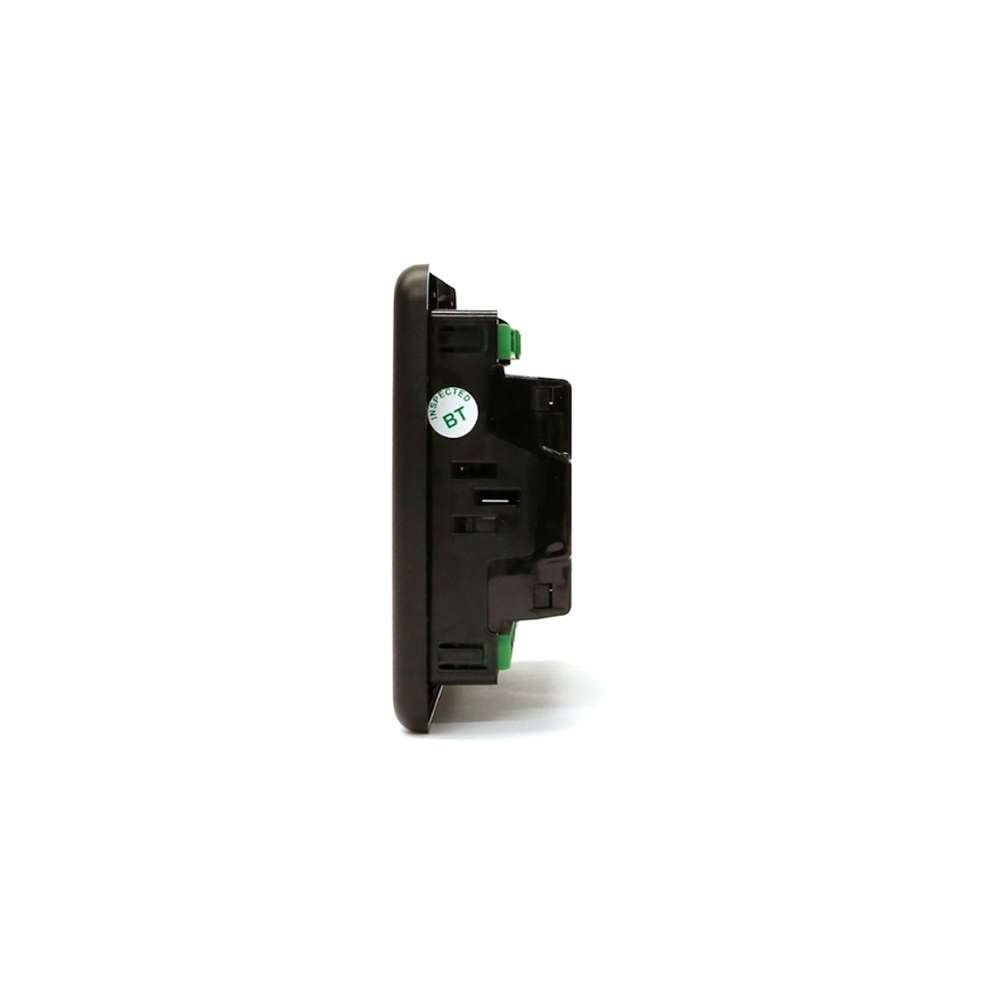

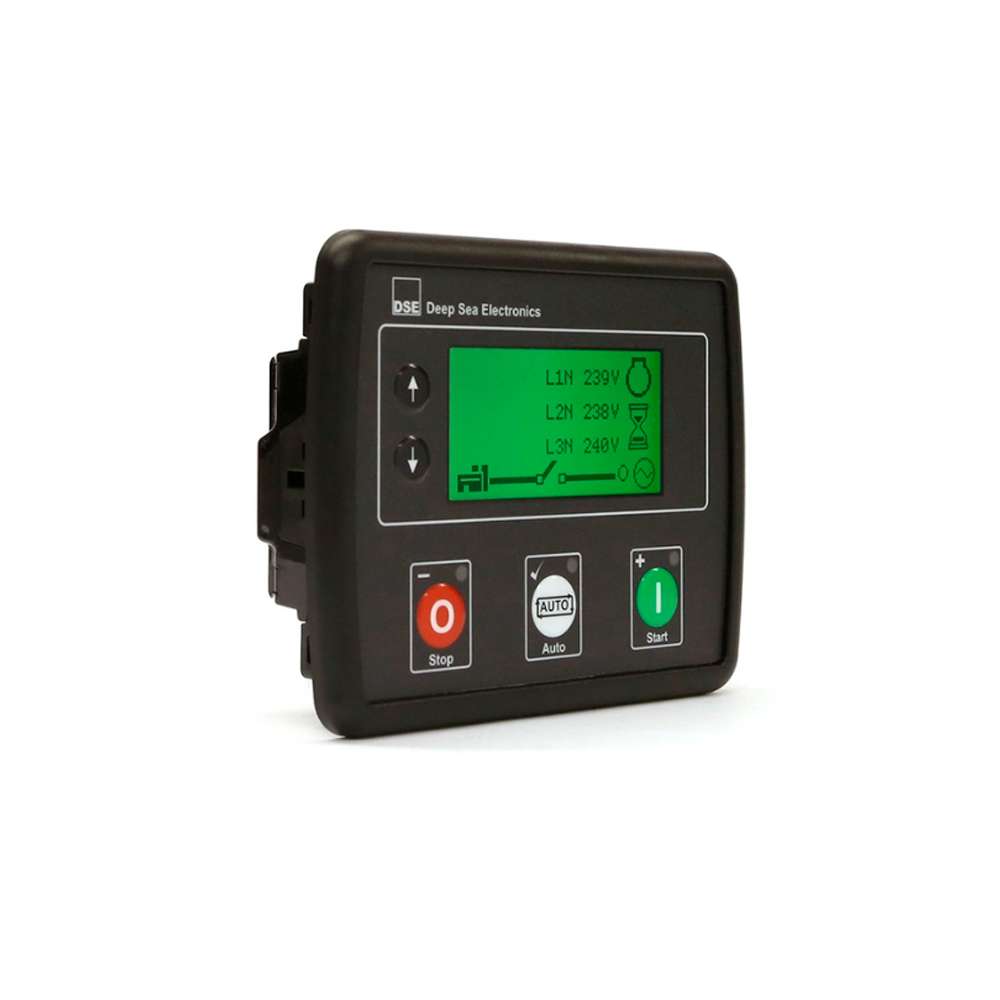

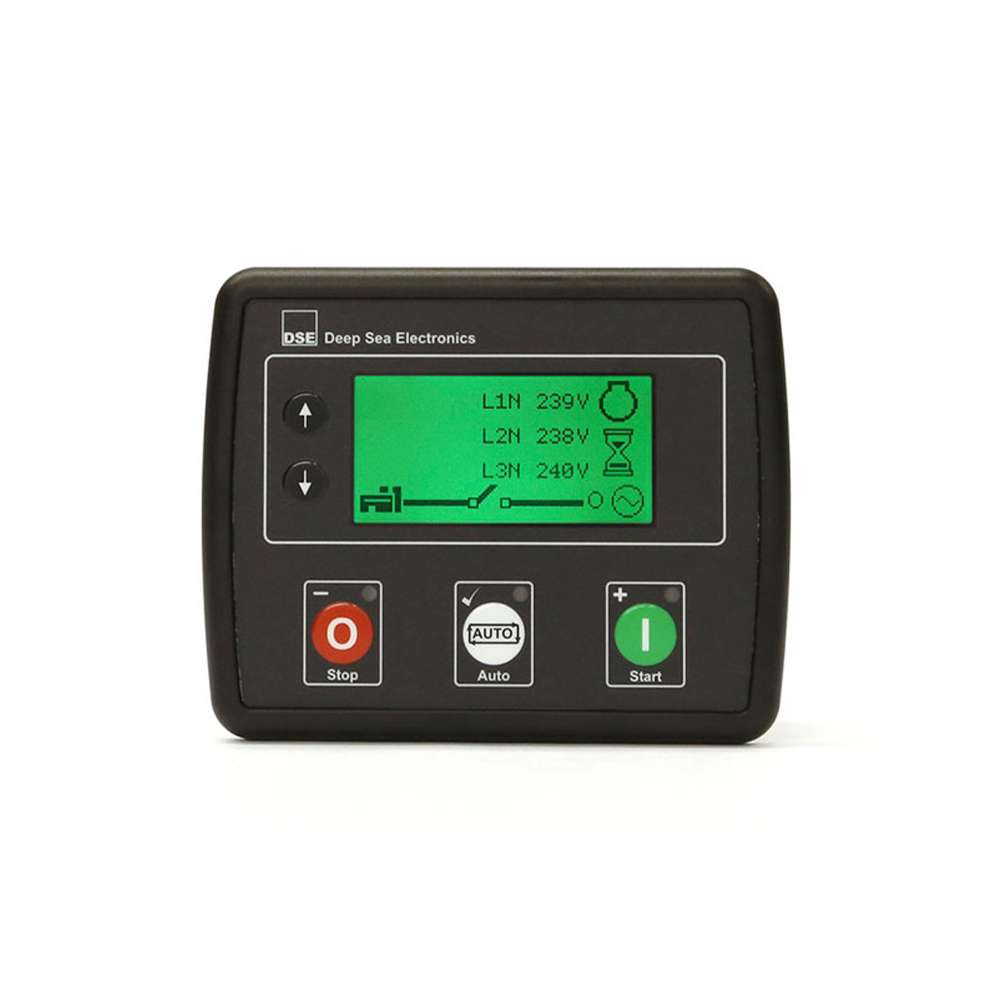

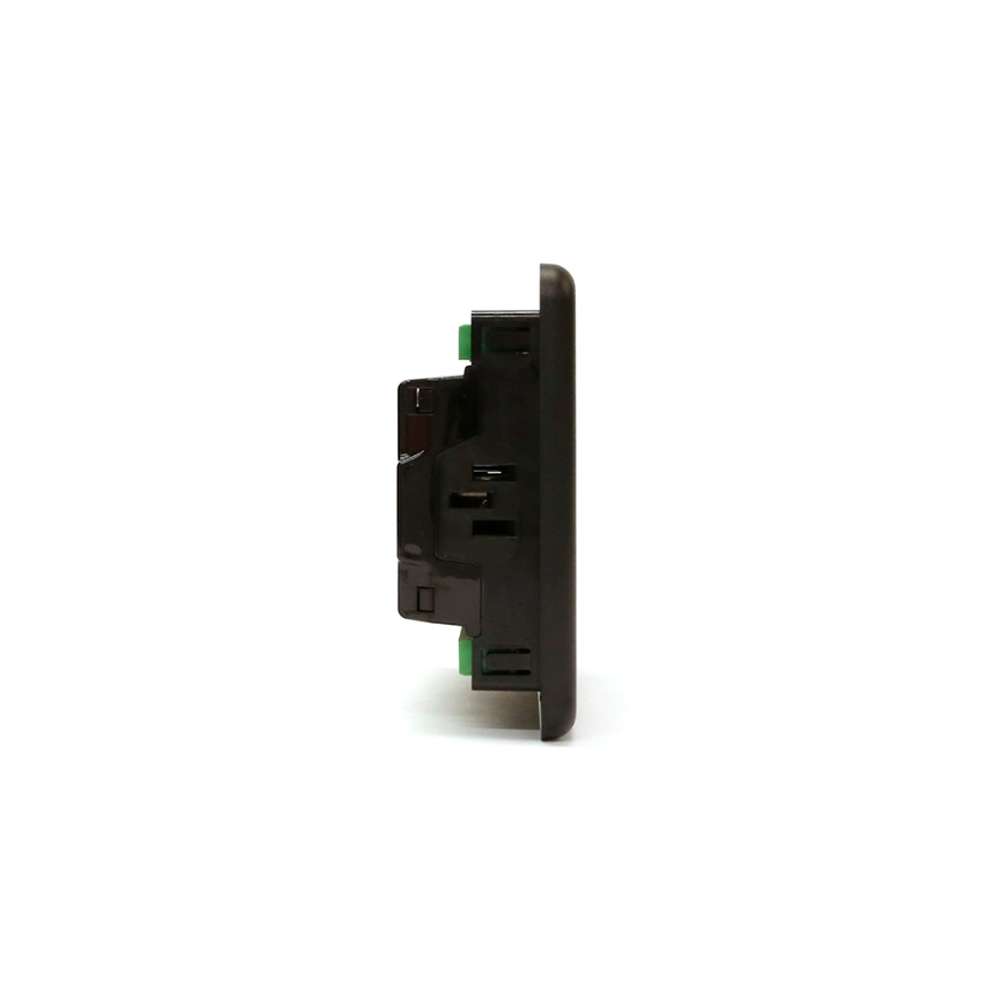

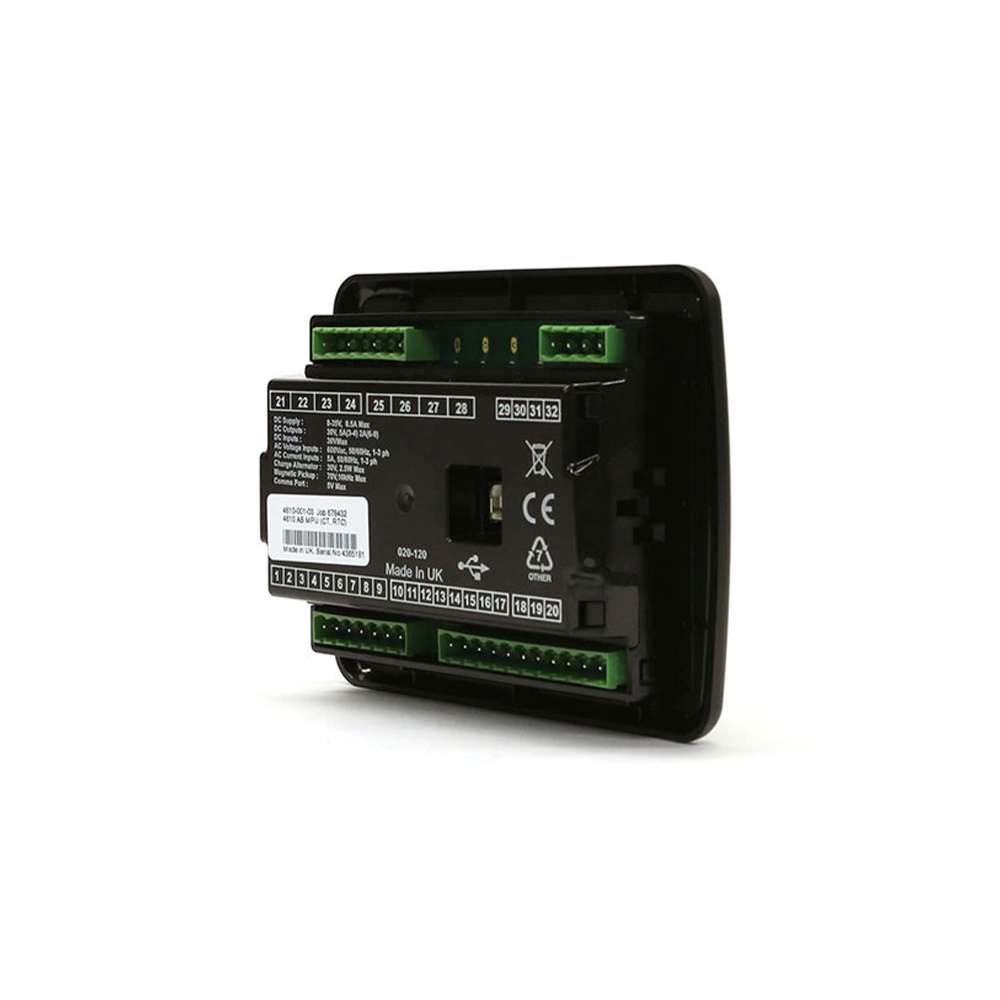

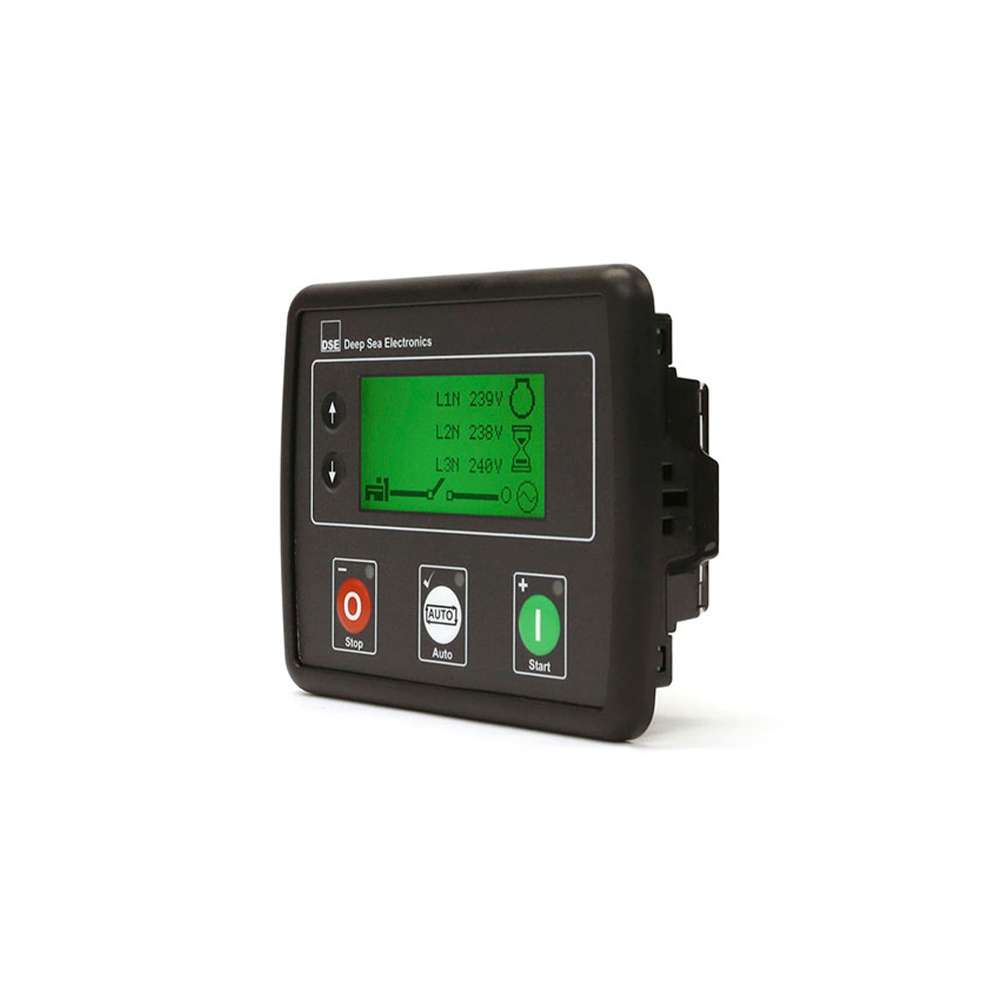

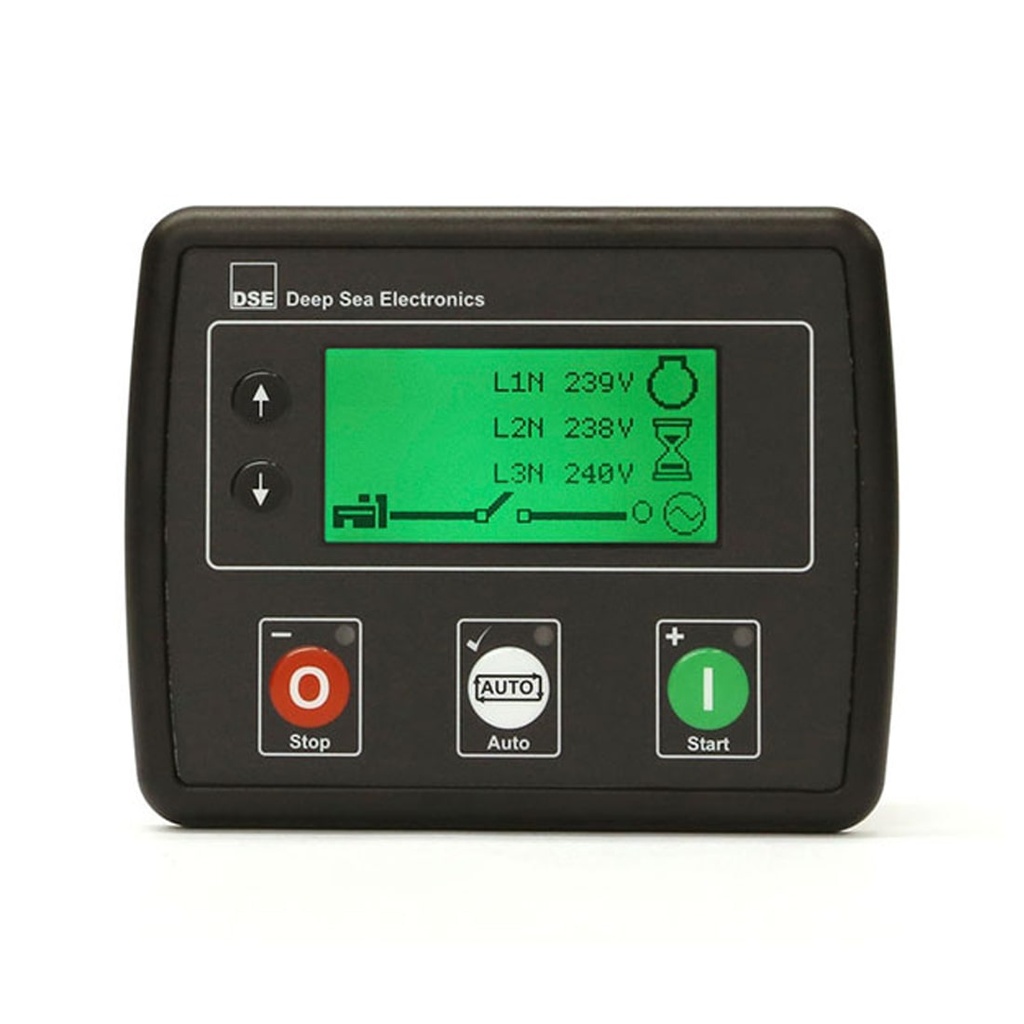

DSE 4610-03 Auto Start Control Module (MPU,CT,RTC) Original

https://powermaster.odoo.com/web/image/product.template/9625/image_1920?unique=6ccda2d

DSE4610 - Auto Start Control Module (Mpu,Ct,Rtc) ***ADD 020-282***

$ 507.59 507.59000000000003 USD $ 507.59

$ 507.59

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days


DC SUPPLY
VOLTAGE RATING
8 V to 35 V Continuous



PRODUCT VARIANTS
4610-03 - 4610 Auto Start Control Module (Mpu,Ct,Rtc)


WEIGHT
0.6 POUNDS
SIZE
7 x 5 x 2 Inches
FREQUENCY RANGE

3.5 Hz to 75 Hz

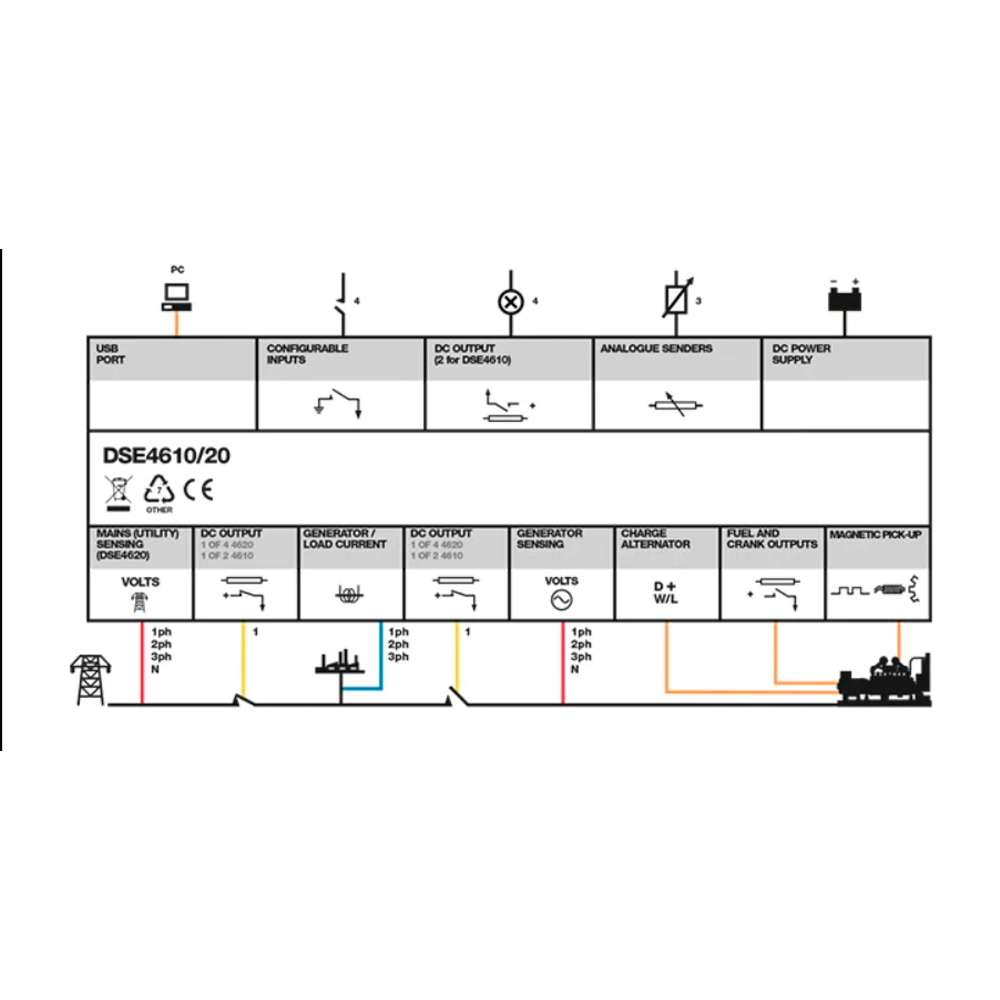

The DSE4610 is a compact Auto Start Control Module that has been developed to provide an outstanding range of features within a compact enclosure.

PRODUCT VARIANTS

4610-03 – 4610 Auto Start Control Module (Mpu,Ct,Rtc)



FUEL & CRANK OUTPUTS

Provides controlled engine starting and stopping.

CONFIGURABLE EVENT LOG

Provides access to historical alarms and operational status.

MAGNETIC PICK-UP SPEED SENSING.

Provides full monitoring flexibility.

  • Continuous Voltage Rating - ◖8 V to 35 V Continuous
  • Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
  • Maximum Operating Current - ◖85 mA at 12 V, 96 mA at 24 V
  • Maximum Standby Current - ◖51 mA at 12 V, 47 mA at 24 V
  • Maximum Sleep Current - ◖35 mA at 12 V, 32 mA at 24 V
  • Maximum Deep Sleep Current - ◖<10 uA at 12 V, <10 uA at 24 V
  • Outputs - ◖Output A (Fuel) : 10 A short term, 5 A continuous, at supply voltage ◖Output B (Start) : 10 A short term, 5 A continuous, at supply voltage ◖Auxiliary Outputs C & D : 2 A DC at supply voltage ­­
  • Generator - ◖Voltage Range : 15 V to 415 V AC (Ph-N) 26 to 719 V AC (Ph - Ph) ◖Frequency Range 3.5 Hz to 75 Hz
  • Magnetic Pick-Up - ◖Voltage Range : +/- 0.5 V to 70 V ◖Frequency Range : 10,000 Hz (max)


The DSE4610 is a compact Auto Start Control Module that has been developed to provide an outstanding range of features within a compact enclosure.


DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT

85 mA at 12 V, 96 mA at 24 V

MAXIMUM STANDBY CURRENT

51 mA at 12 V, 47 mA at 24 V

MAXIMUM SLEEP CURRENT

35 mA at 12 V, 32 mA at 24 V

MAXIMUM DEEP SLEEP CURRENT

<10 uA at 12 V, <10 uA at 24 V



OUTPUTS

OUTPUT A (FUEL)

10 A short term, 5 A continuous,

at supply voltage

OUTPUT B (START)

10 A short term, 5 A continuous,

at supply voltage

AUXILIARY OUTPUTs C & D

2 A DC at supply voltage ­­



GENERATOR

VOLTAGE RANGE

15 V to 415 V AC (Ph-N)

26  to 719 V AC (Ph – Ph)

FREQUENCY RANGE

3.5 Hz to 75 Hz

MAGNETIC PICK-UP

VOLTAGE RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE

10,000 Hz (max)
