  3. DSE 4520-05 MKII AMF (020-282 gasket not included) Original

DSE 4520-05 MKII AMF (020-282 gasket not included) Original

https://powermaster.odoo.com/web/image/product.template/9629/image_1920?unique=f222d1c

DSE4520 MKII AMF (020-282 gasket not included)

$ 518.69 518.69 USD $ 518.69

$ 518.69

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE RATING
8 V to 35 V Continuous
PRODUCT VARIANTS

4520-05 - 4520 Auto Mains (Utility) Failure Control Module (Ct, Rtc)

WEIGHT
0.57 POUNDS
SIZE
5 x 4 x 1 Inches
FREQUENCY RANGE

3.5 Hz to 75 Hz

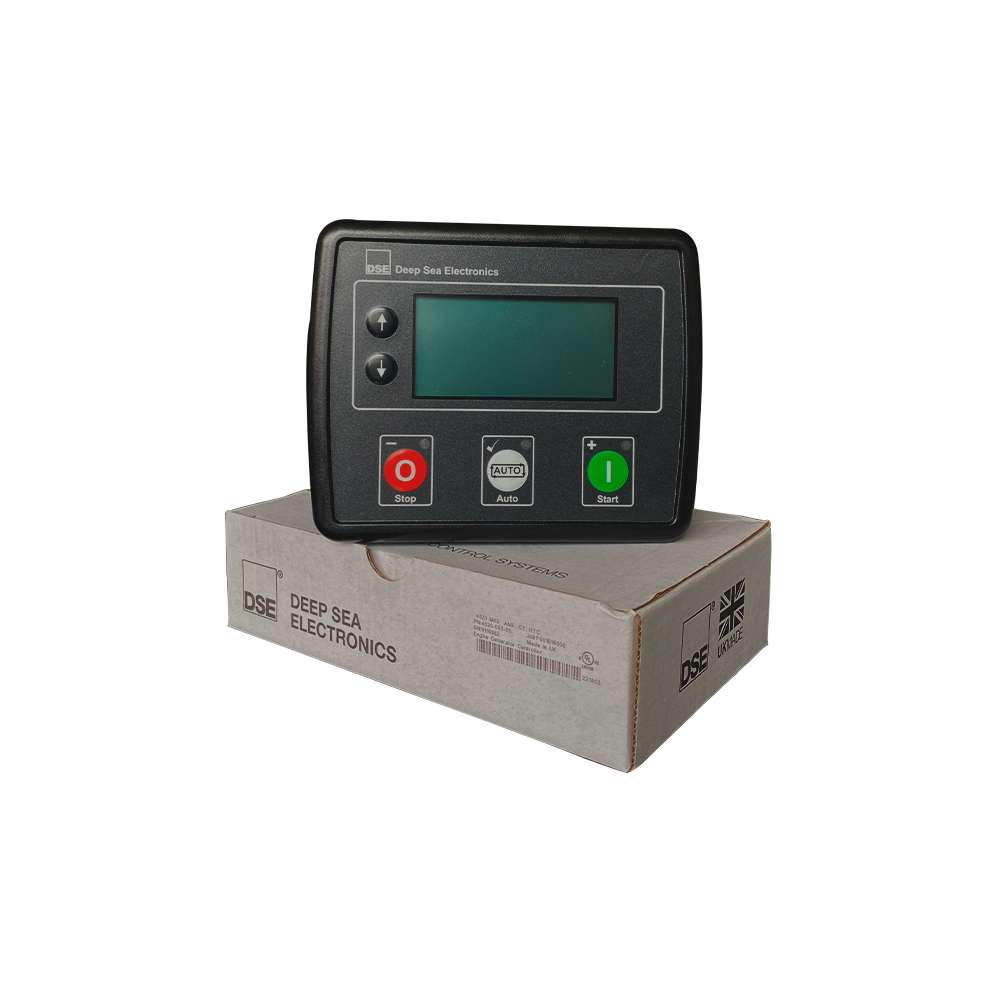

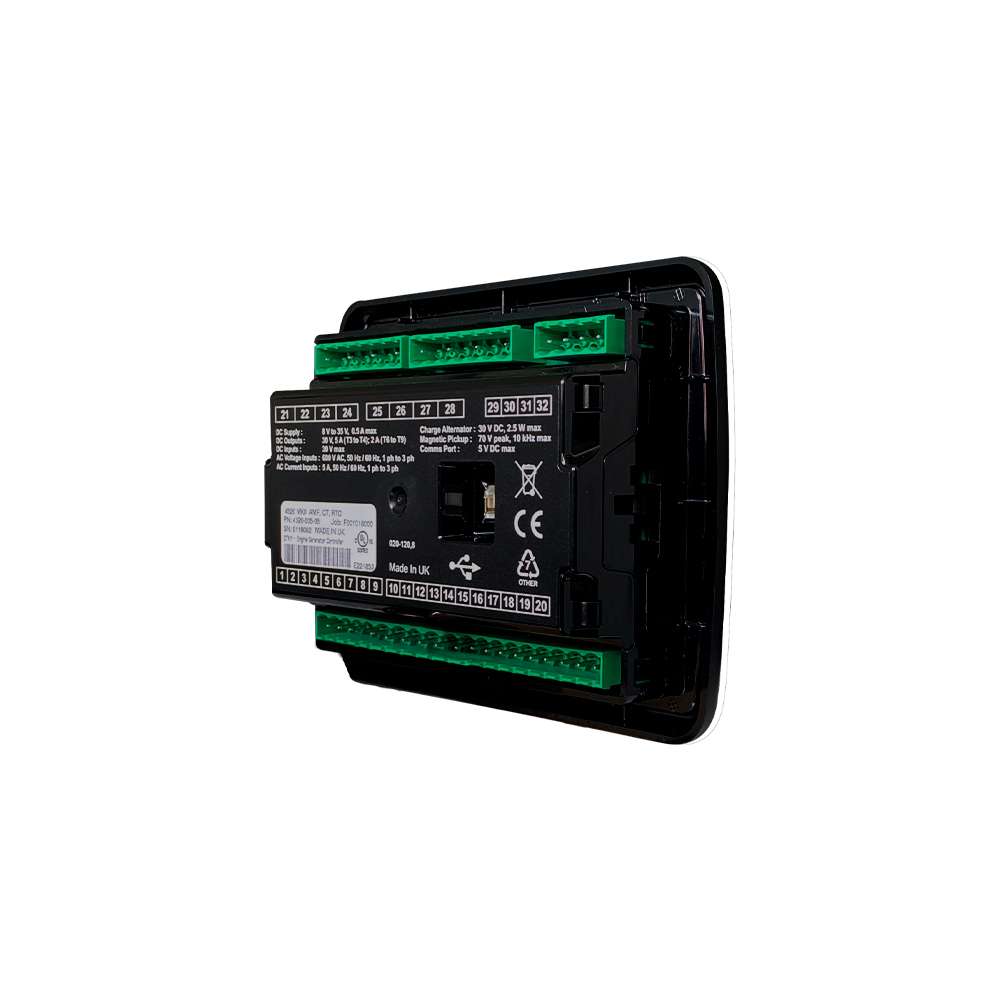

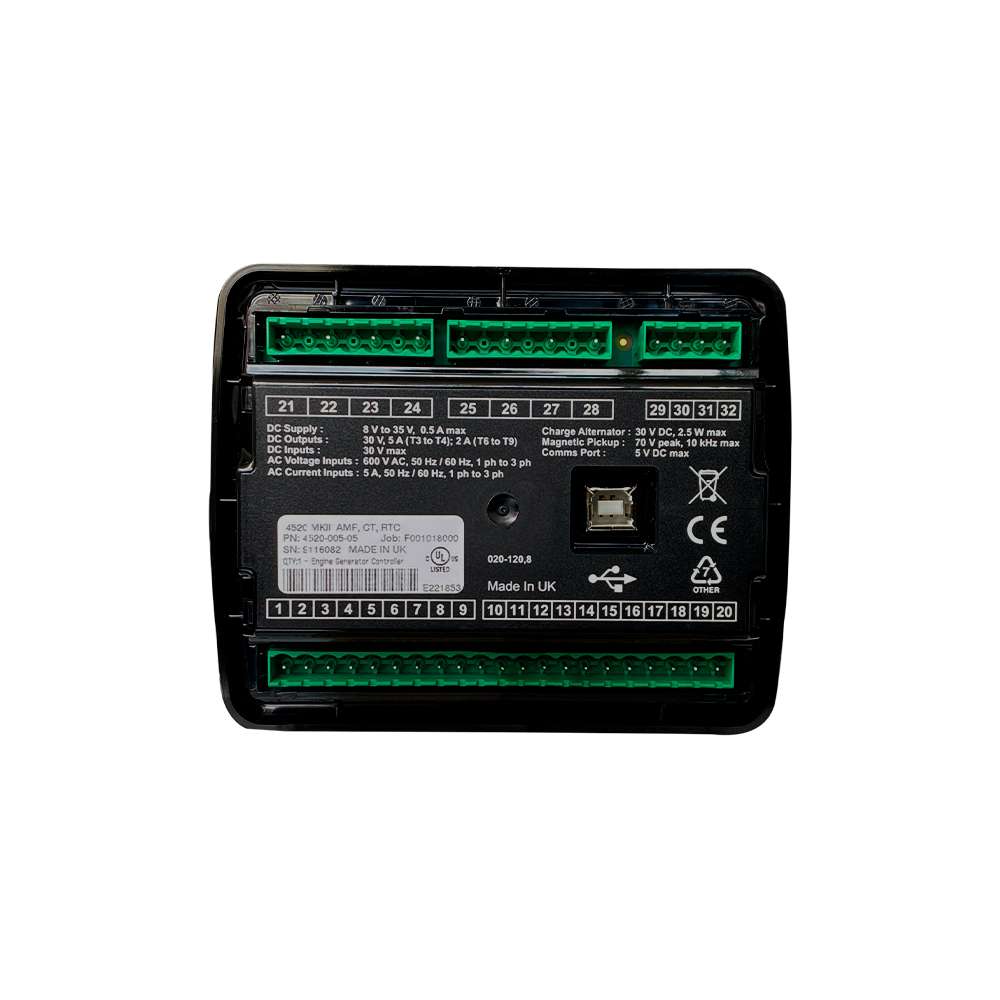

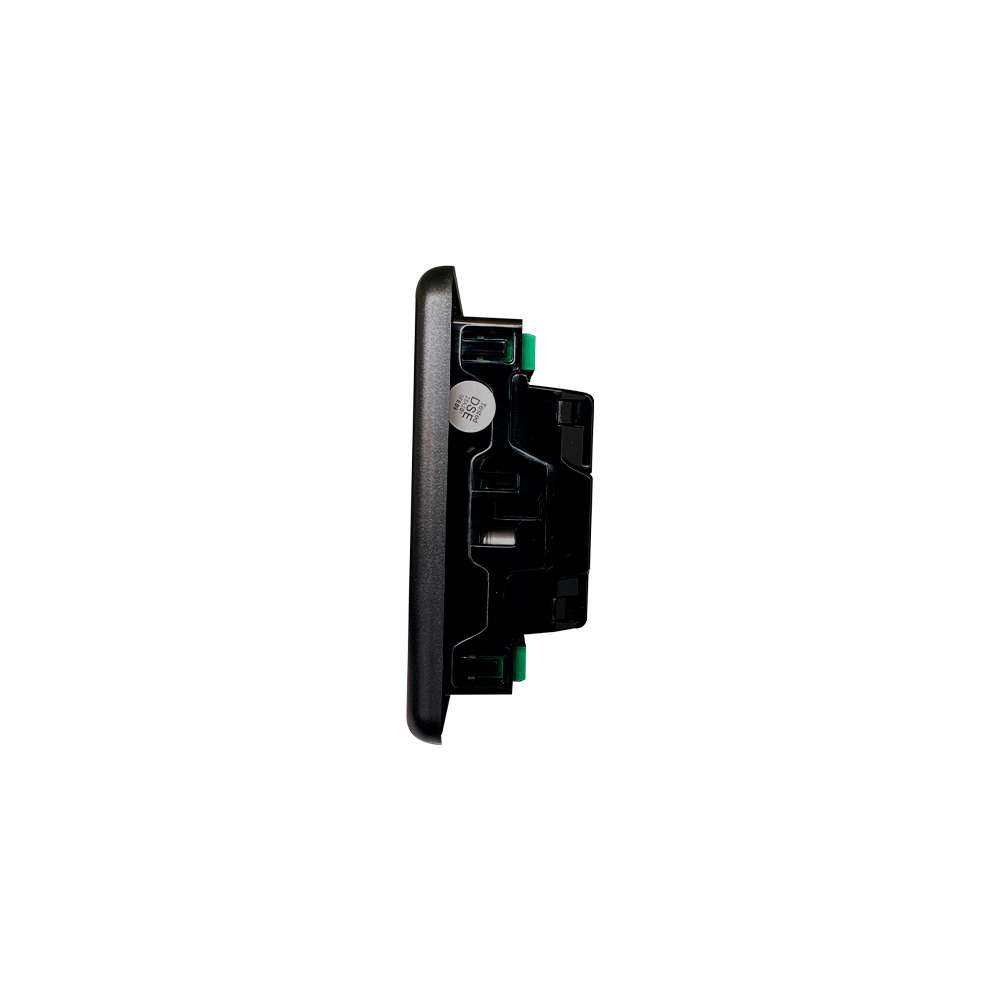

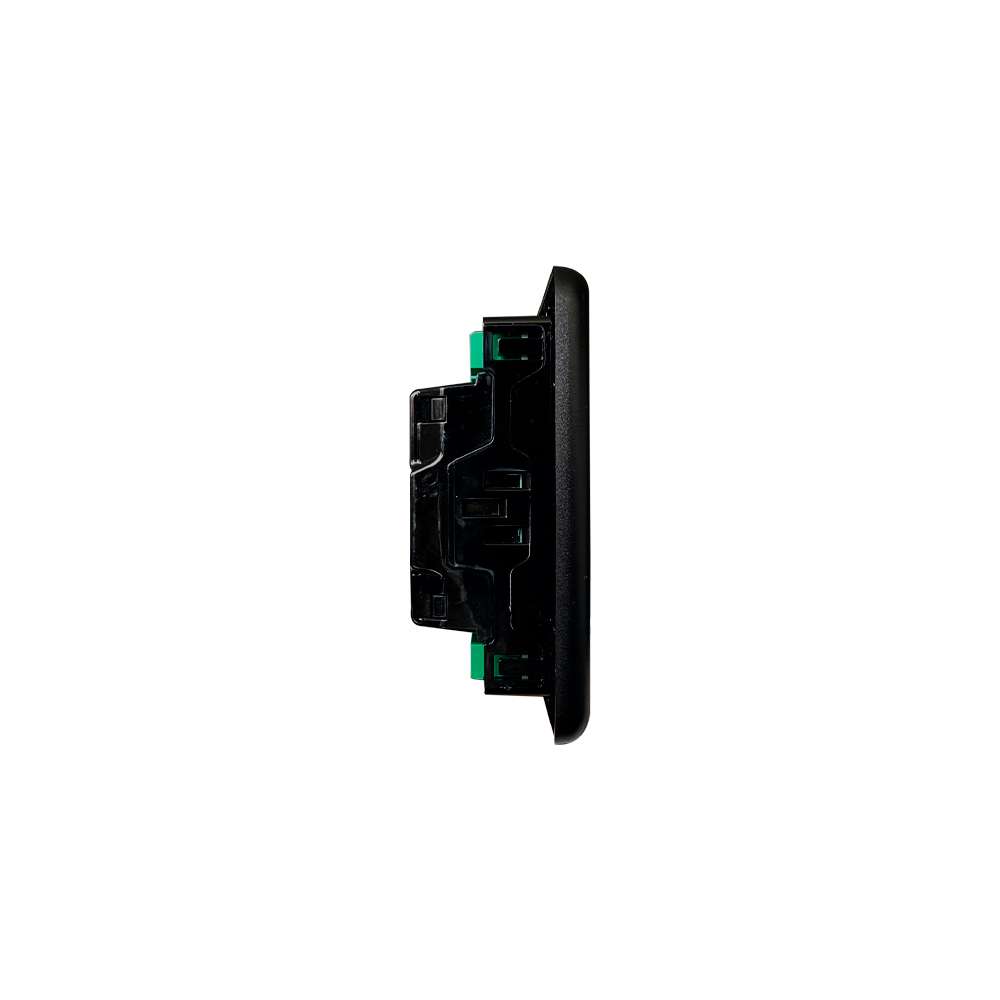

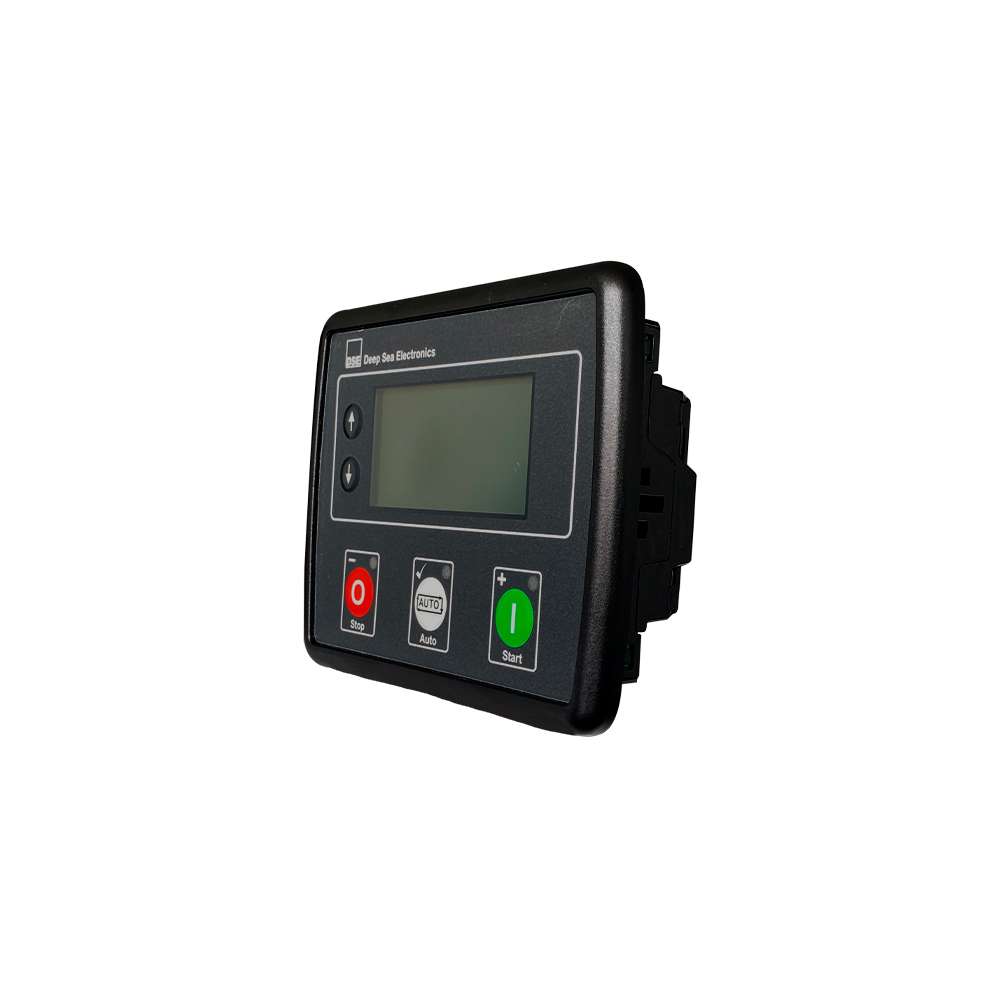

The DSE4520 MKII is a compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact enclosure.

THE MODULE CAN BE CONFIGURED FOR USE AS AN AUTO START CONTROL MODULE.

PRODUCT VARIANTS

4520-05 – 4520 Auto Mains (Utility) Failure Control Module (Ct, Rtc)

4520-35 – 4520 Auto Mains (Utility) Failure Control Module (Ct, Rtc, Htr)



HEATED DISPLAY OPTION

Ensures the display continues to operate in extreme cold weather conditions.

POWER SAVE MODE

Minimises battery drain when the system is not in use.

FUEL AND START OUTPUTS
Provides multiple installation options.
  • Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
  • Maximum Standby Current - ◖51 mA at 12 V, 47 mA at 24 V
  • Maximum Deep Sleep Current - ◖<10 uA at 12 V, <10 uA at 24 V
  • Mains (Utility) - ◖Voltage Range : 15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph) ◖Frequency Range : 3.5 Hz to 75 Hz
  • Outputs - ◖Output A (Fuel) : 10 A short term, 5 A continuous, at supply voltaje ◖Output B (Start) 10 A short term, 5 A continuous, at supply voltaje ◖Auxiliary Outputs C & D : 2 A DC at supply voltage ­­
  • Generator - ◖Voltage Range : 15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph) ◖Frequency Range : 3.5 Hz to 75 Hz
  • Storage Temperature Range - ◖-40 °C to +85 °C (-40 °F to +185 °F)
  • Operating Temperature Range - ◖-30 °C to +70 °C (-22 °F to +158 °F)

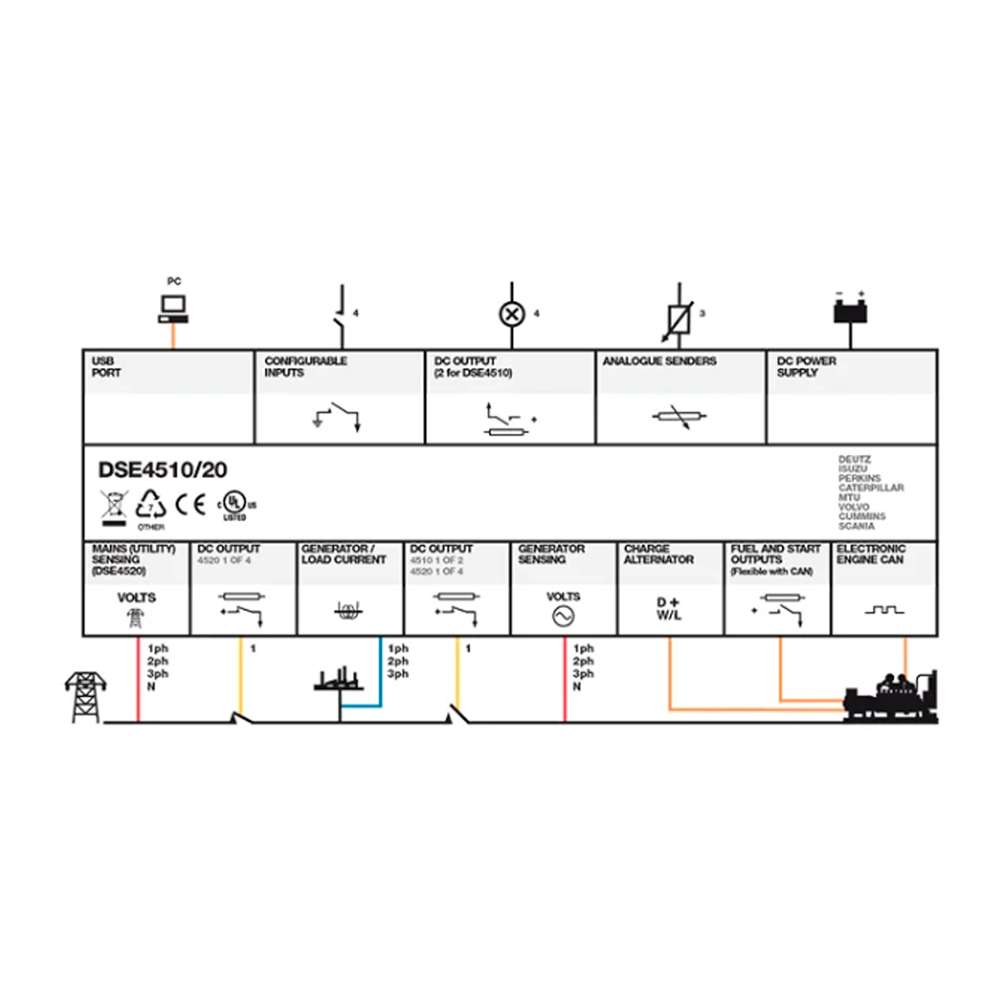

The DSE4520 MKII is a compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact enclosure.

THE MODULE CAN BE CONFIGURED FOR USE AS AN AUTO START CONTROL MODULE.


DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT

85 mA at 12 V, 96 mA at 24 V

MAXIMUM STANDBY CURRENT

51 mA at 12 V, 47 mA at 24 V

MAXIMUM SLEEP CURRENT

35 mA at 12 V, 32 mA at 24 V

MAXIMUM DEEP SLEEP CURRENT

<10 uA at 12 V, <10 uA at 24 V



OUTPUTS

OUTPUT A (FUEL)

10 A short term, 5 A continuous,

at supply voltage

OUTPUT B (START)

10 A short term, 5 A continuous,

at supply voltage

AUXILIARY OUTPUTs C & D

2 A DC at supply voltage ­­



GENERATOR

VOLTAGE RANGE

15 V to 415 V AC (Ph to N)

26 V to 719 V AC (Ph to Ph)

FREQUENCY RANGE

3.5 Hz to 75 Hz
