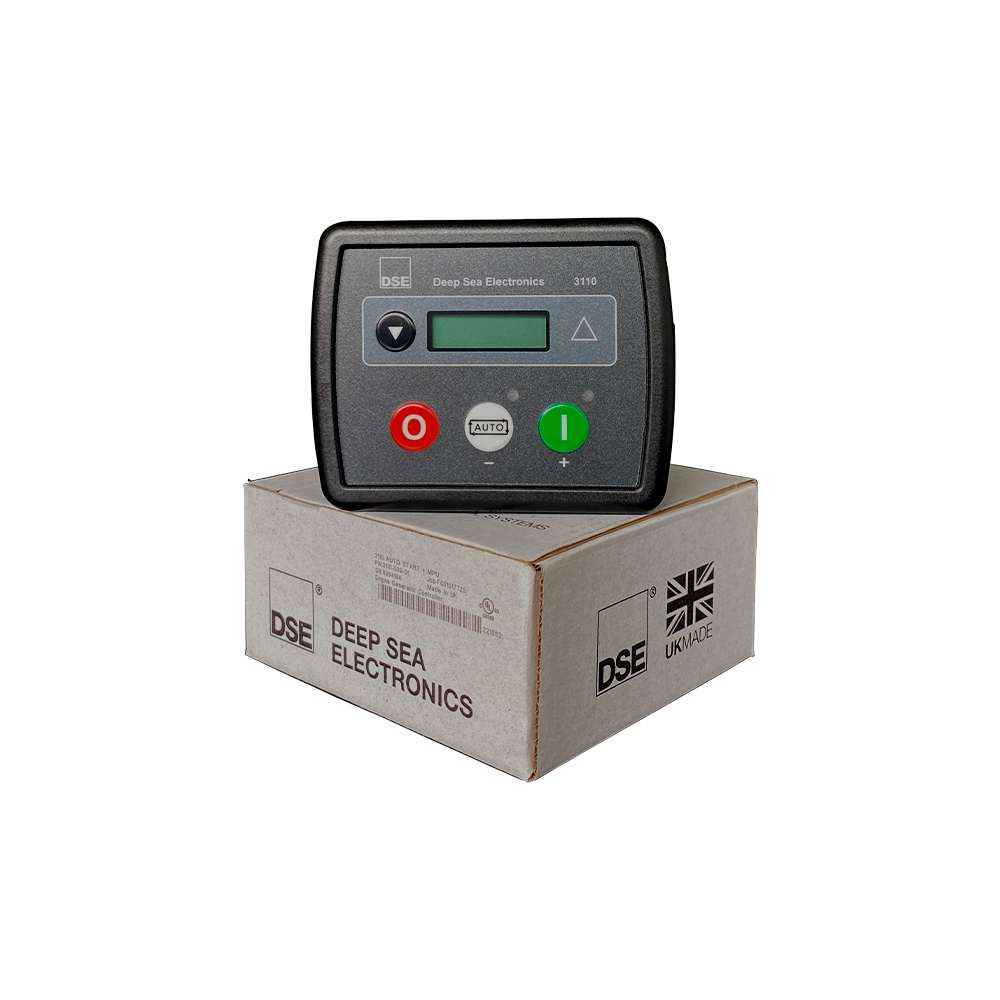

DSE 3110-01 Auto Start MPU ***020-385 gasket not included Original

https://powermaster.odoo.com/web/image/product.template/9845/image_1920?unique=021ea08

DSE3110 Auto start MPU UL CC (020-385 gasket not included)

$ 283.79 283.79 USD $ 283.79

$ 283.79

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY
VOLTAGE RATING
8 V to 35 V Continuous

PRODUCT VARIANTS
3110-01 - Manual & Auto Start Control Module (Mpu)


WEIGHT
 0.3 POUNDS
SIZE
3 x 3 x 1 Inches
FREQUENCY RANGE
3.5 Hz to 75 Hz

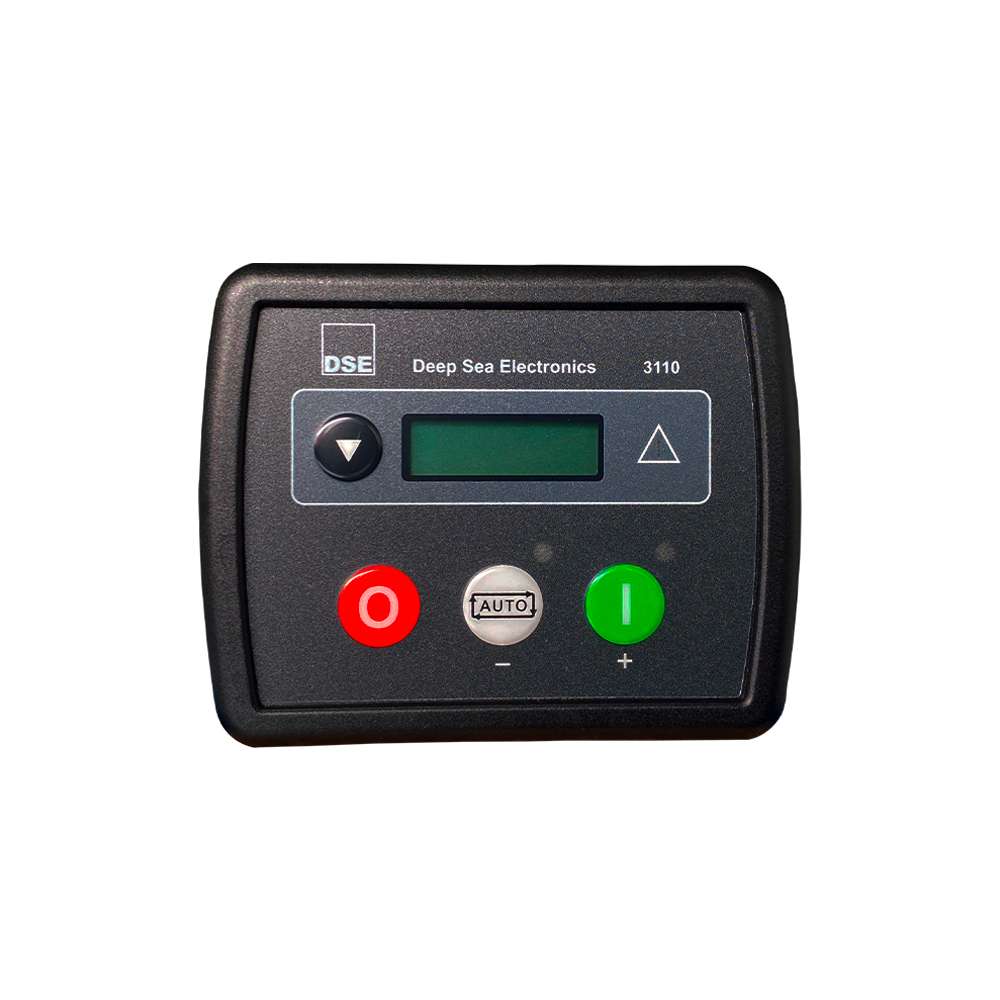

The DSE3110 is an outstanding compact control module that provides a comprehensive range of features for single-set applications. The controller can be used in manual or auto start mode.

PRODUCT VARIANTS

110-01 – Manual & Auto Start Control Module (Mpu)

3110-02 – Manual & Auto Start Control Module (Can)

3110-31 – Manual & Auto Start Control Module (Mpu) UL CC

CONFIGURABLE TIMERS & ALARMS
Provides excellent system flexibility.
ENGINE PRE-HEAT
Warms the engine to a safe temperature at start-up to increase engine life.
REMOTE START INPUT
Provides a simple connection to operate the generator from a remote location.
  • Continuous Voltage Rating - ◖8 V to 35 V Continuous
  • Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
  • Charge Fail/ Excitation - ◖8 V to 35 V fixed power source 2.5 W
  • Nominal Standby Current - ◖23 mA at 12 V, 18 mA at 24 V
  • Maximum Operating Current - ◖35 mA at 12 V, 30 mA at 24 V
  • Outputs - ◖Output A (Fuel) : 2 A DC at supply voltage ◖Output B (Start) : 2 A DC at supply voltage ◖Auxiliary Outputs C,D : 2 A DC at supply voltage



  • Generator - ◖Voltage Range : 15 V - 333 V AC (L-N) ◖Frequency Range : 3.5 Hz to 75 Hz
  • Magnetic Pick Up - ◖Voltage Range : +/- 0.5 V to 70 V ◖Frequency Range :10,000 Hz (max)
  •  Dimensions - ◖Overall : 98 mm x 79 mm x 40 mm 3.9” x 3.1” x 1.6” ◖Panel Cut-Out : 80 mm x 68 mm 3.1” x 2.7” ◖Maximum Panel Thickness : 8 mm 0.3”



The DSE3110 is an outstanding compact control module that provides a comprehensive range of features for single-set applications. The controller can be used in manual or auto start mode.



DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

CHARGE FAIL/ EXCITATION

8 V to 35 V fixed power source 2.5 W

NOMINAL STANDBY CURRENT

23 mA at 12 V, 18 mA at 24 V

MAXIMUM OPERATING CURRENT

35 mA at 12 V, 30 mA at 24 V




OUTPUTS

OUTPUT A (FUEL)

2 A DC at supply voltage

OUTPUT B (START)

2 A DC at supply voltage

AUXILIARY OUTPUTS C & D

2 A DC at supply voltage

GENERATOR

VOLTAGE RANGE

15 V – 333 V AC (L-N)

FREQUENCY RANGE

3.5 Hz to 75 Hz




MAGNETIC PICK-UP

VOLTAGE RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE

10,000 Hz (max)
