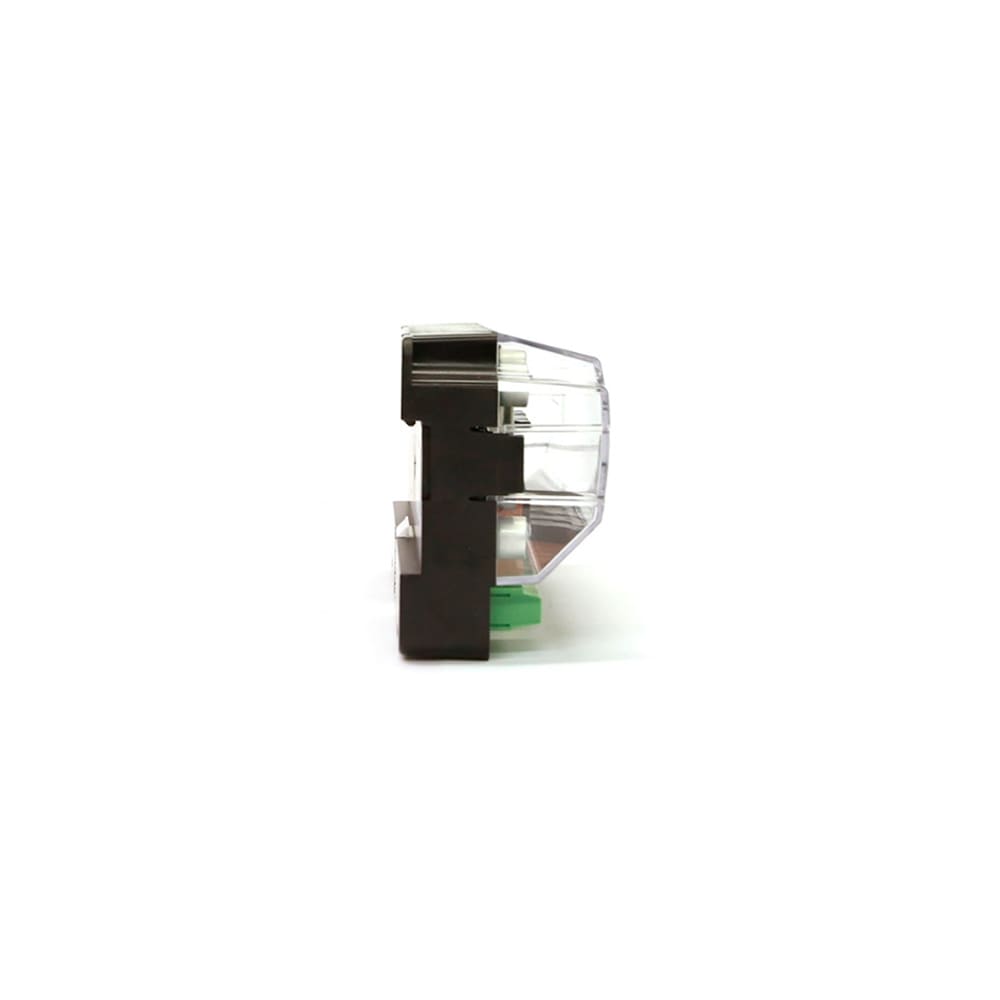

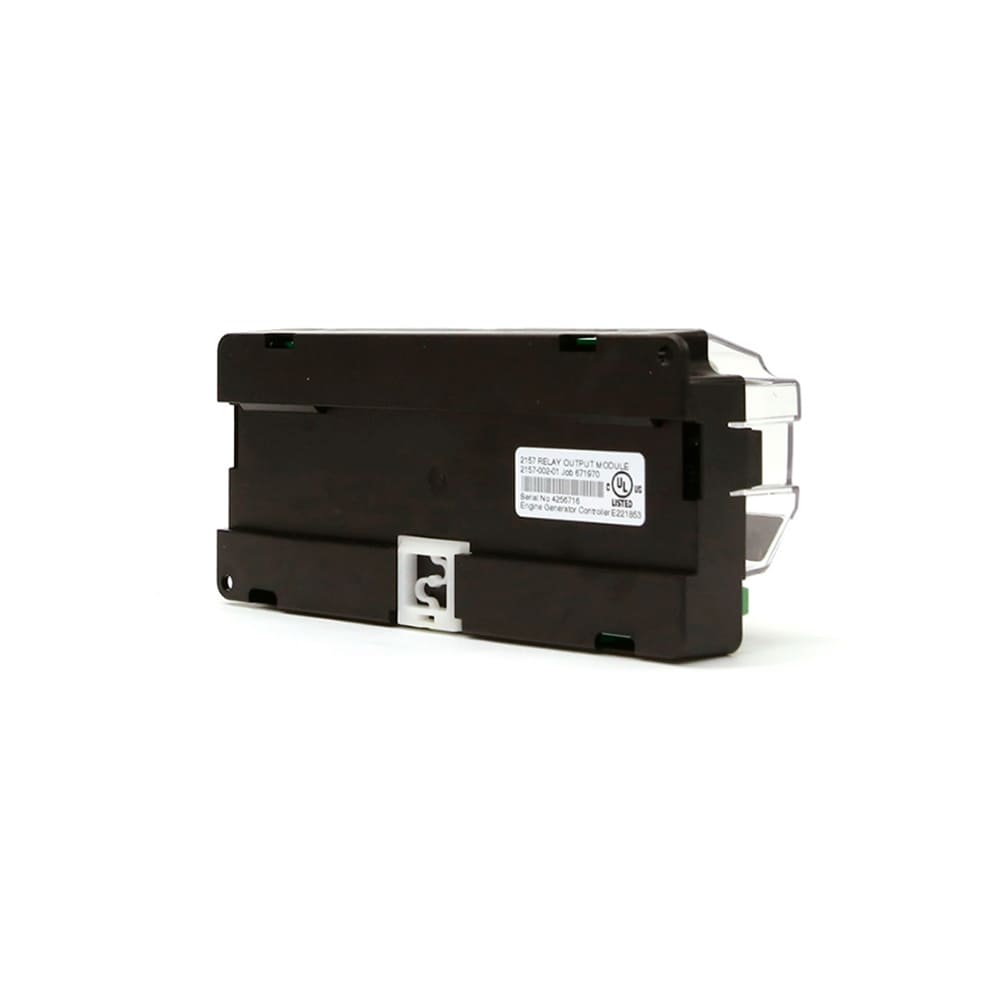

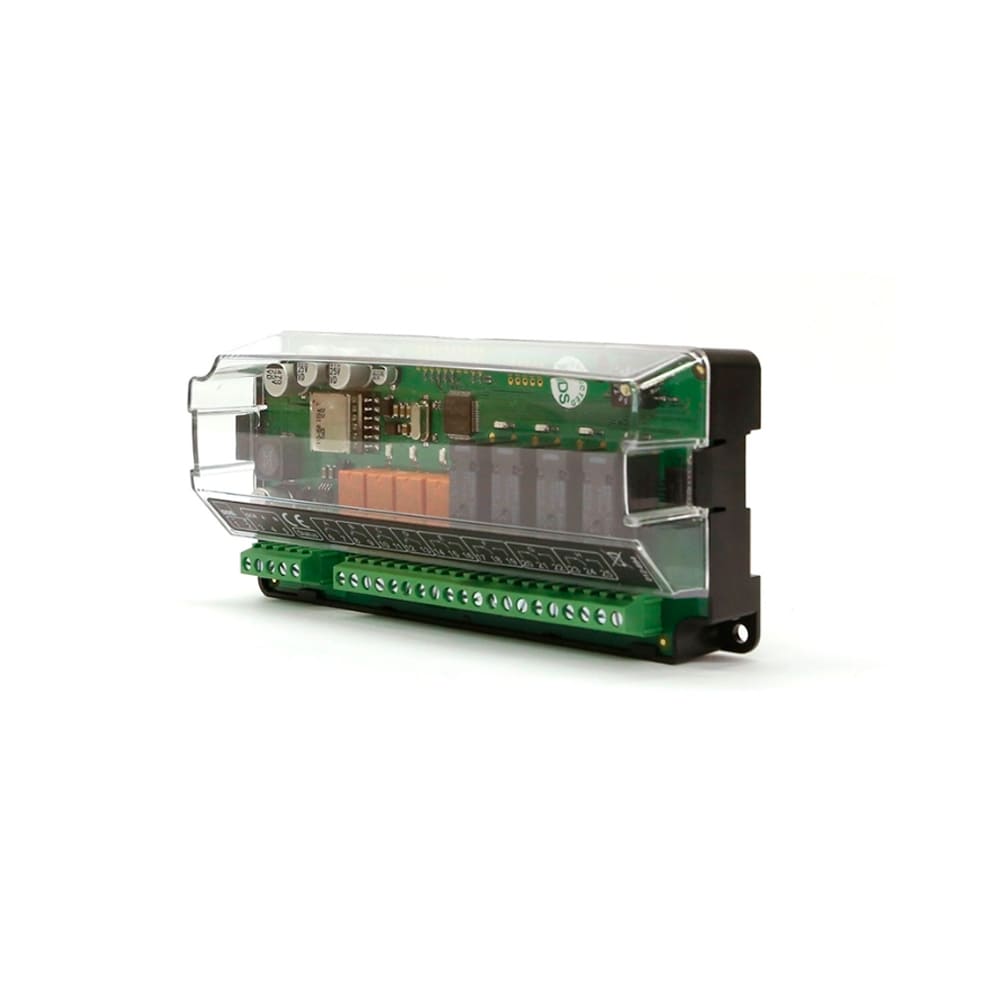

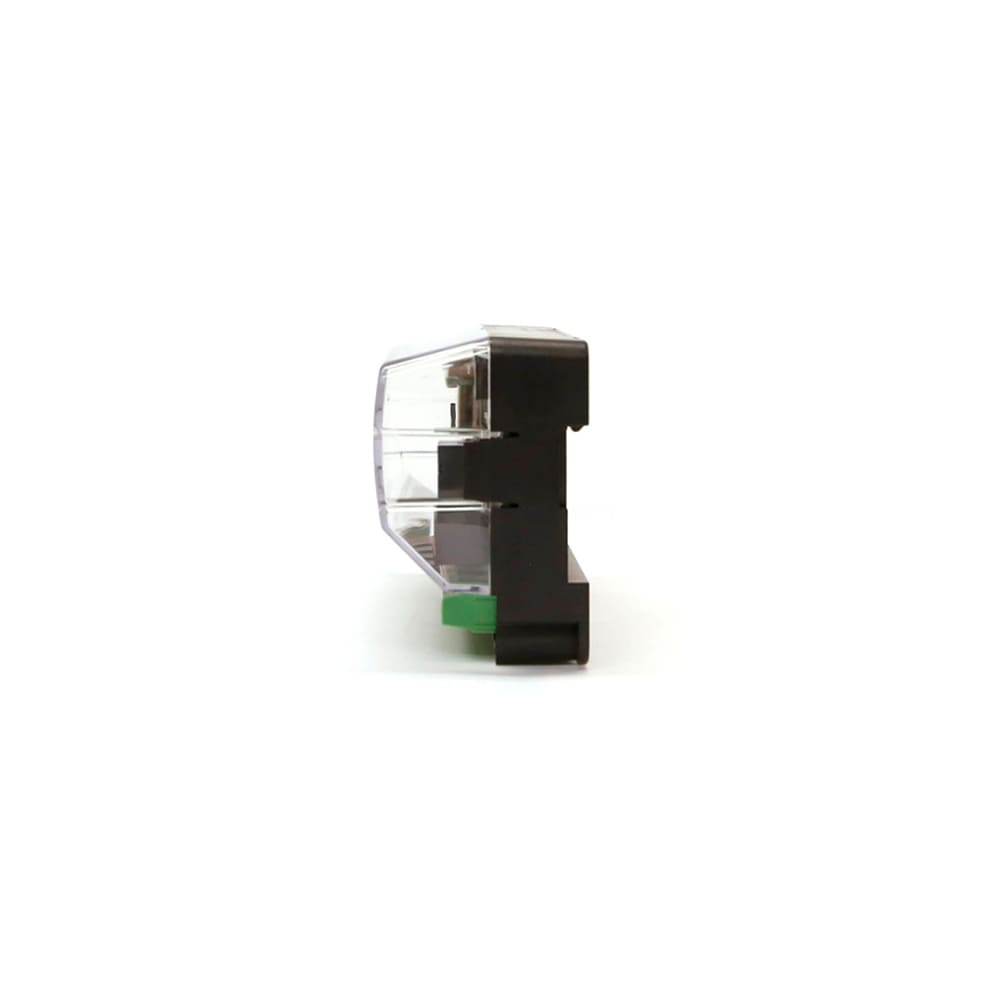

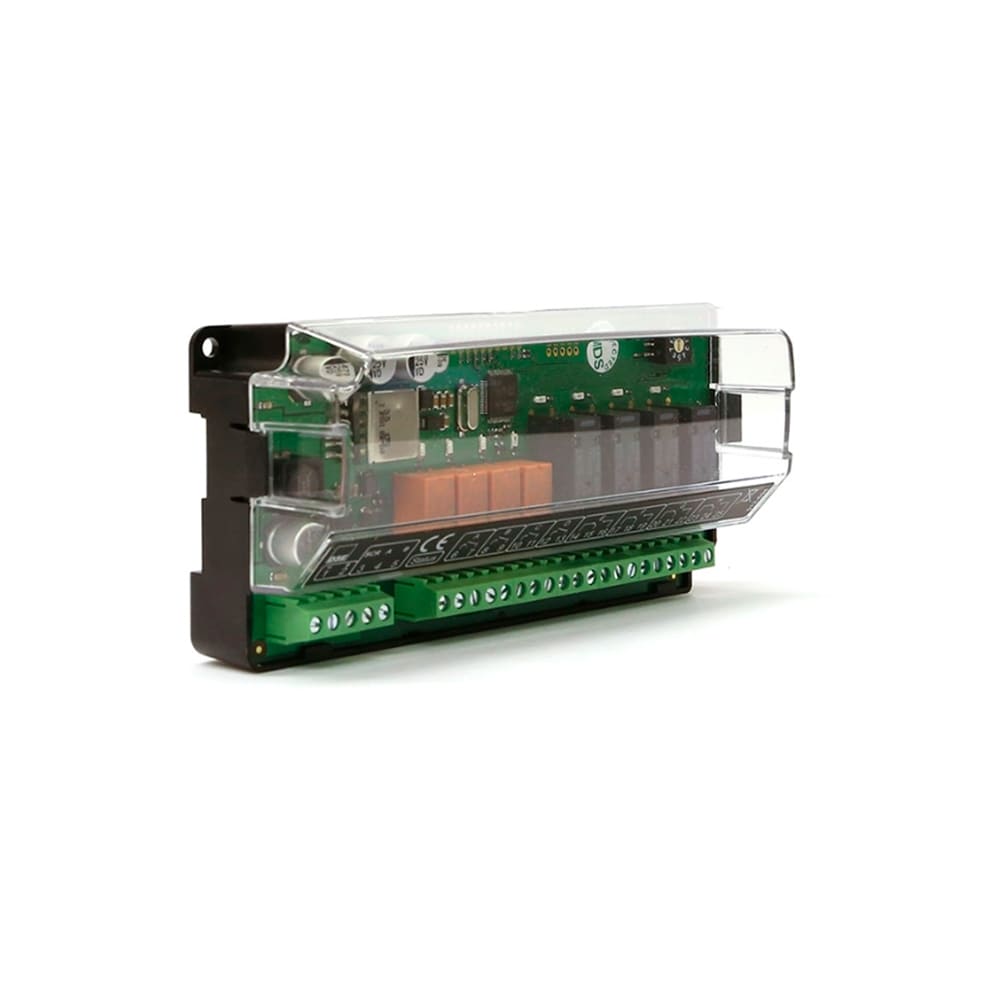

​DSE 2157-01 Net Outout (8 port) Expansion Module Original

https://powermaster.odoo.com/web/image/product.template/9636/image_1920?unique=c1a304d

DSENet Outout (8 port) Expansion Module

$ 289.09 289.09000000000003 USD $ 289.09

$ 289.09

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY

VOLTAGE RATING
8 V to 35 V DC continuous

PRODUCT VARIANTS

2157-01 - 2157 Output Expansion Module



WEIGHT
0.6 POUNDS
SIZE
7 x 3 x 2 Inches



STORAGE TEMPERATURE RANGE
-40 °F to +185 °F


The DSE2157 is an output relay expansion module providing 8 additional outputs to the control system. Up to 10 x DSE2157 modules can be linked to together to provide increased output options.

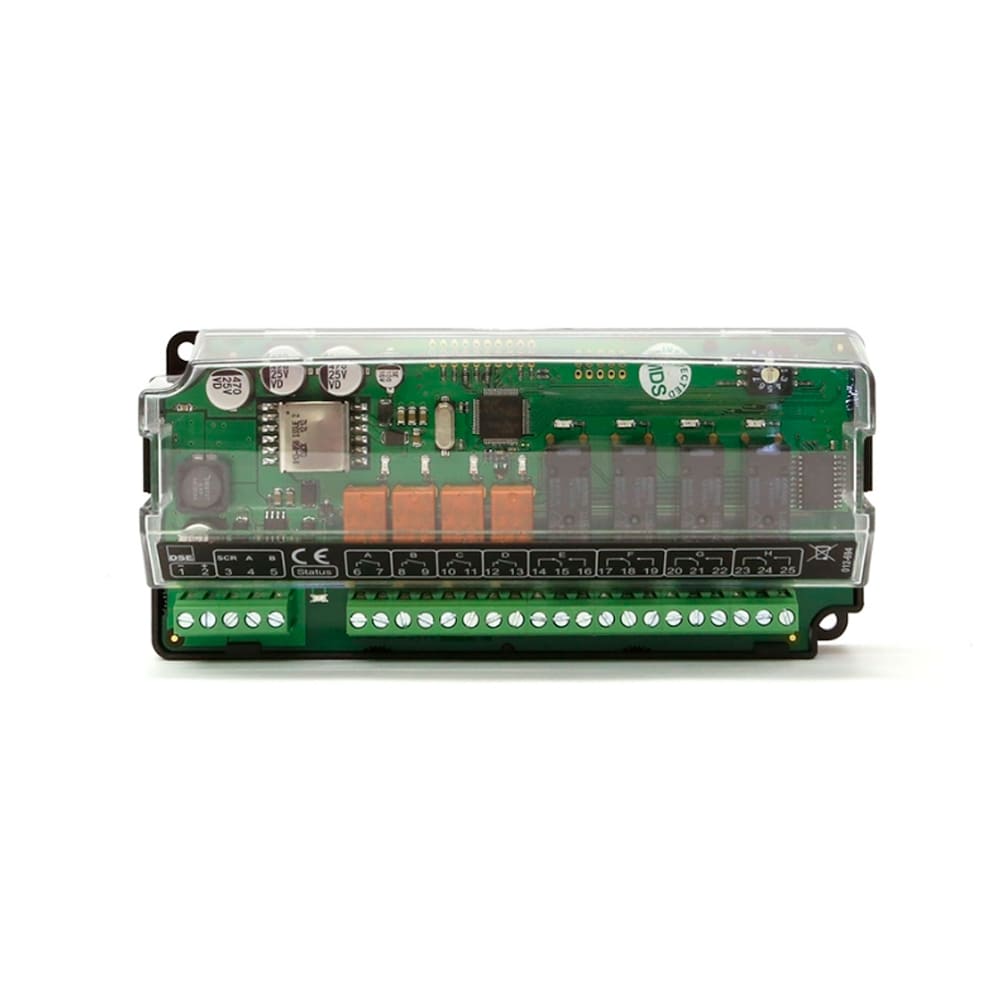

Designed to give greater output flexibility for meeting complex industry generator control specifications.  The module includes eight configurable relay contacts with LED indicators. These can be configured as 4 normally open and 4 normally closed. All configurations are controlled within the host control module.


MAX OF 80
Relay contacts
DIN RAIL
And chassis mount.
CONNECT MAXIMUM OF 10
x DSE2157’s to a single host controller.


  • Continuous Voltage Rating - ◖8 V to 35 V DC continuous
  • Cranking Dropouts - ◖Able to survive 0 V for 50 ms, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
  • Maximum Operating Current - ◖325 mA at 12 V, 152 mA at 24 V
  • Maximum Standby Current - ◖70 mA at 12 V, 32 mA at 24 V

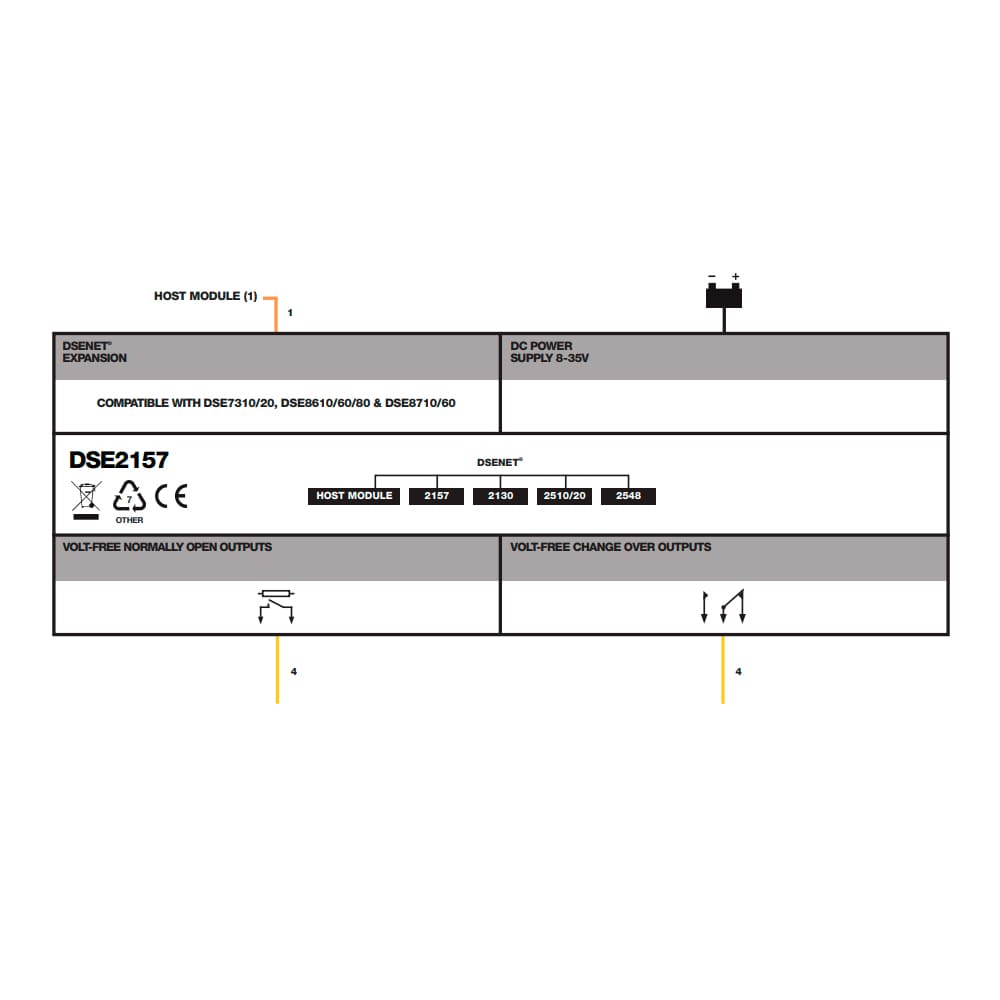

  • Digital Outputs - ◖Number : 8 ◖Type : 4 normally open volt-free contacts 4 changeover volt-free contacts ◖Output Rating : 2 A at maximum of 30 VDC
  • Communications - ◖DSENet® Fully isolated


  • Operating Temperature - ◖-30 °C to +70 °C / -22 °F to +158 °F
  • Storage Temperature - ◖-40 °C to +85 °C / -40 °F to +185 °F
  • Dimensions - ◖Overall (W x H x D) : 164.5 mm x 76.4 mm x 48.9 mm / 6.48” x 3.0” x 1.93”

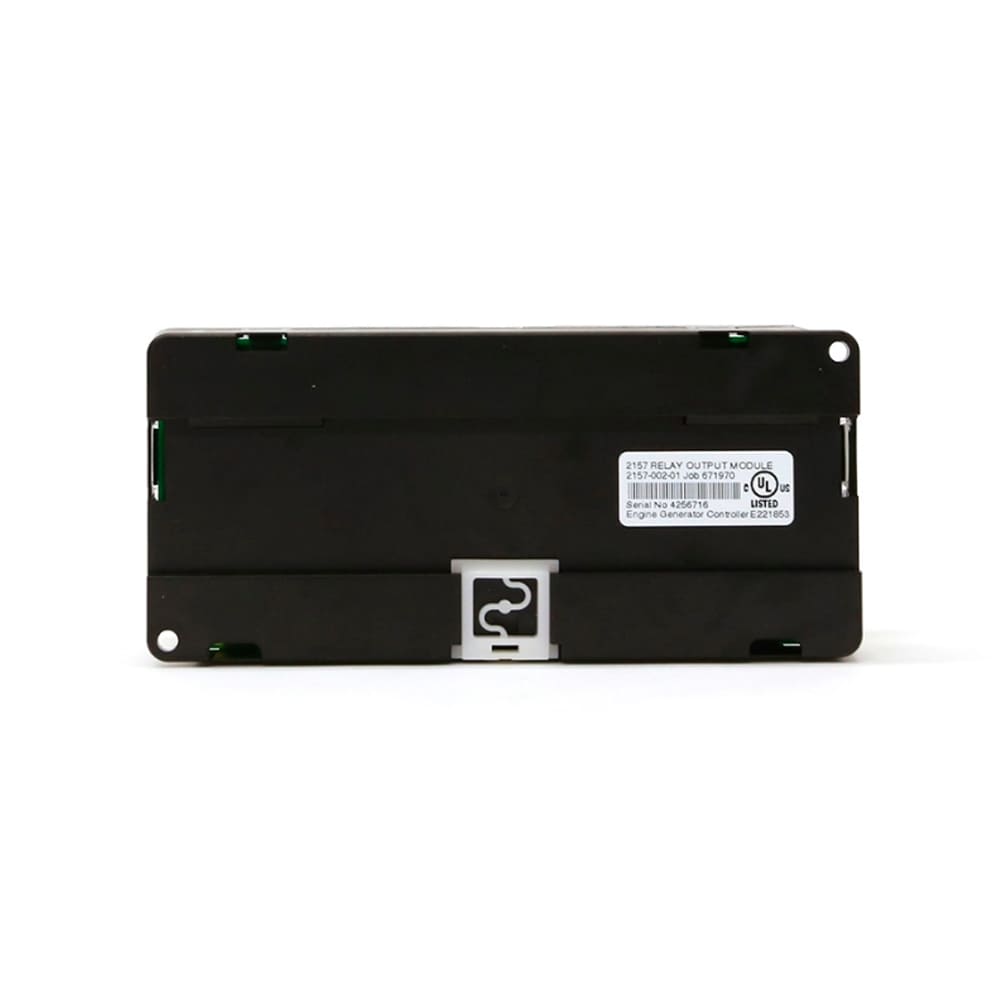

  • Mounting - ◖DIN Rail 35 mm / 1.35“ ◖Chassis : 2 M4 mounting holes with 152.5 mm x 64.5 mm / 6.0” x 2.54” centres

The DSE2157 is an output relay expansion module providing 8 additional outputs to the control system. Up to 10 x DSE2157 modules can be linked to together to provide increased output options.

Designed to give greater output flexibility for meeting complex industry generator control specifications.  The module includes eight configurable relay contacts with LED indicators. These can be configured as 4 normally open and 4 normally closed. All configurations are controlled within the host control module.
