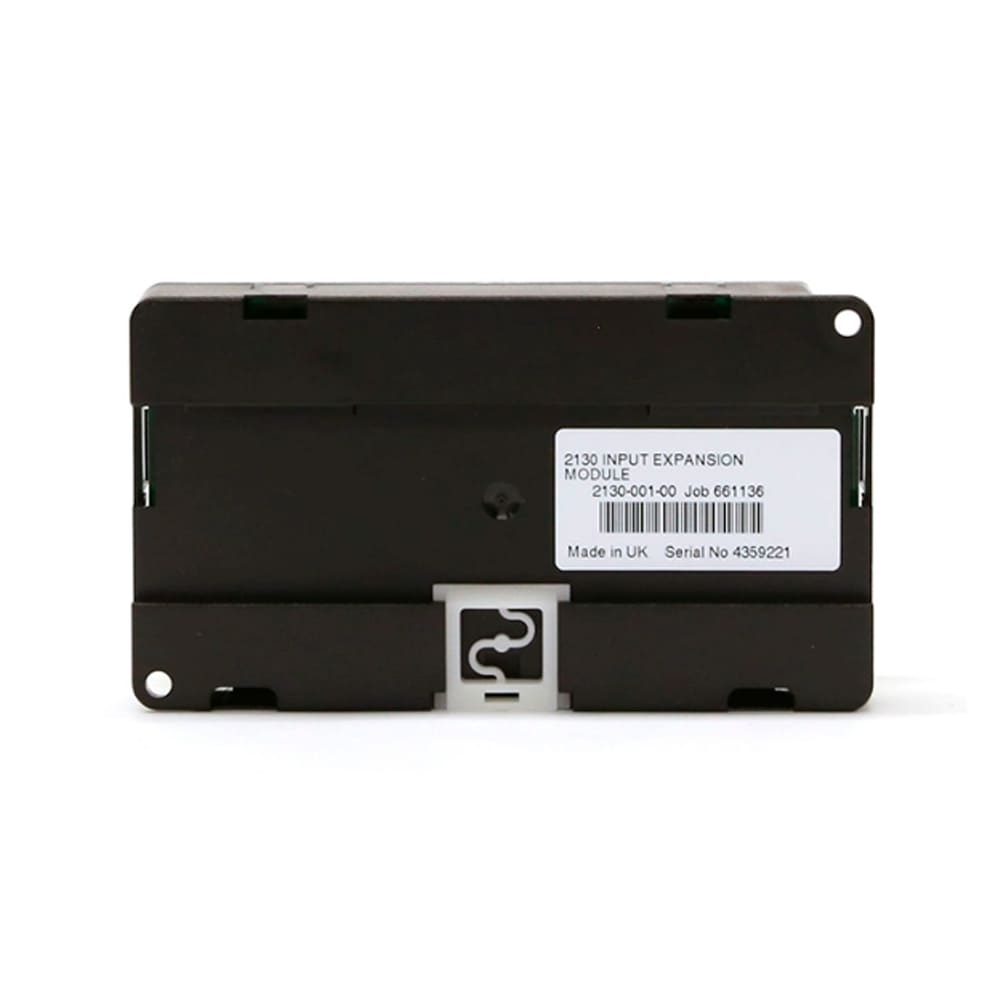

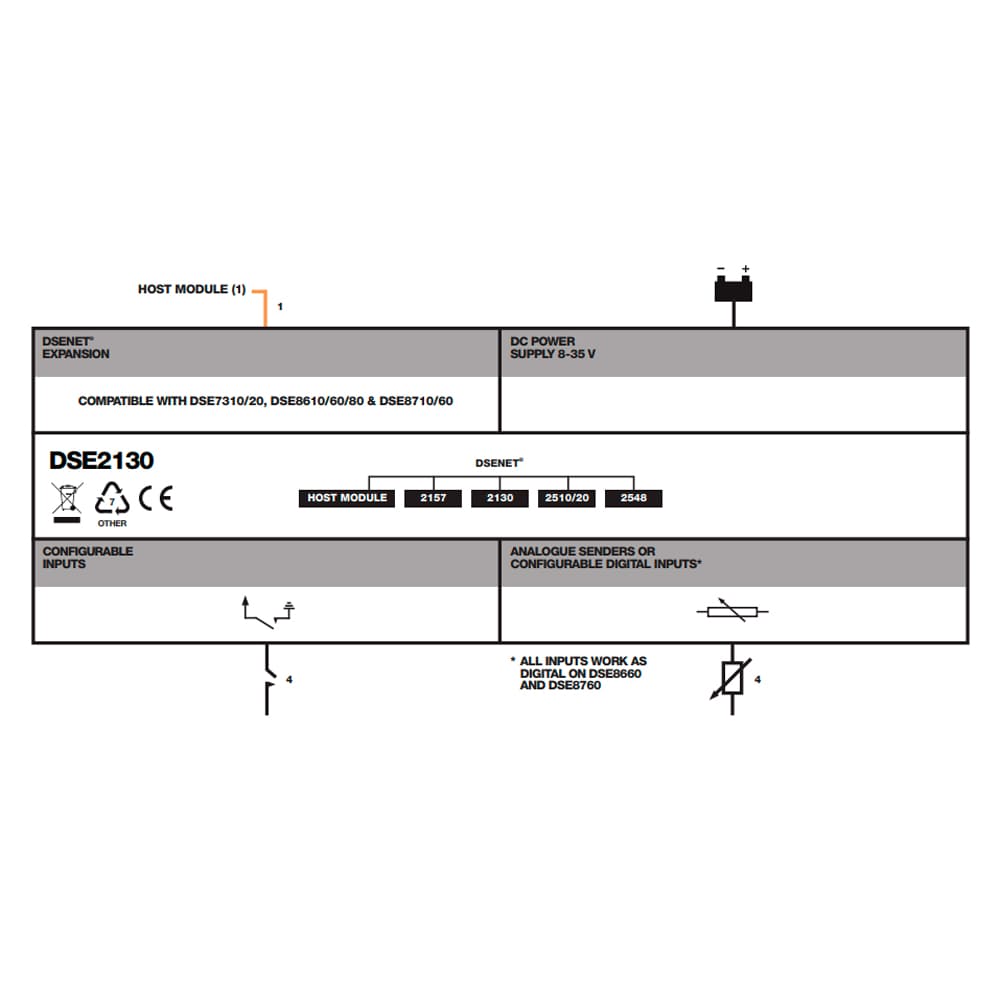

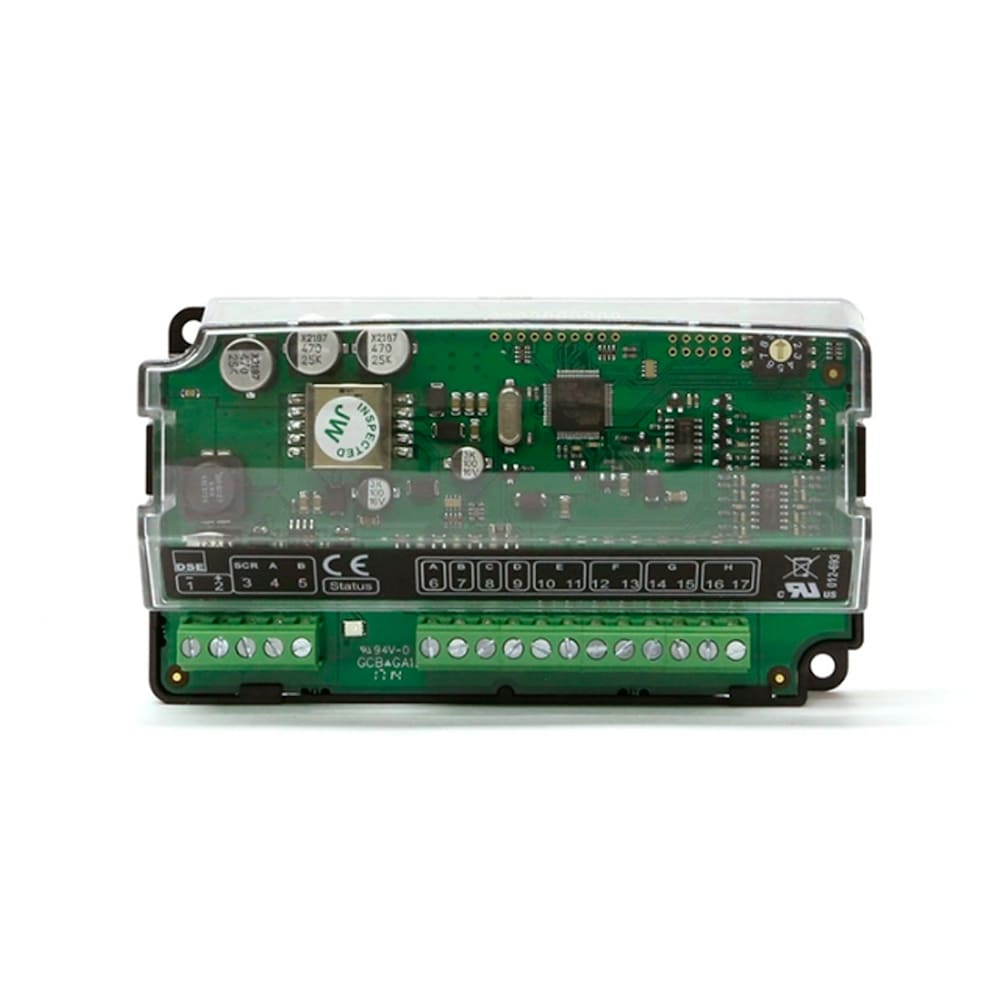

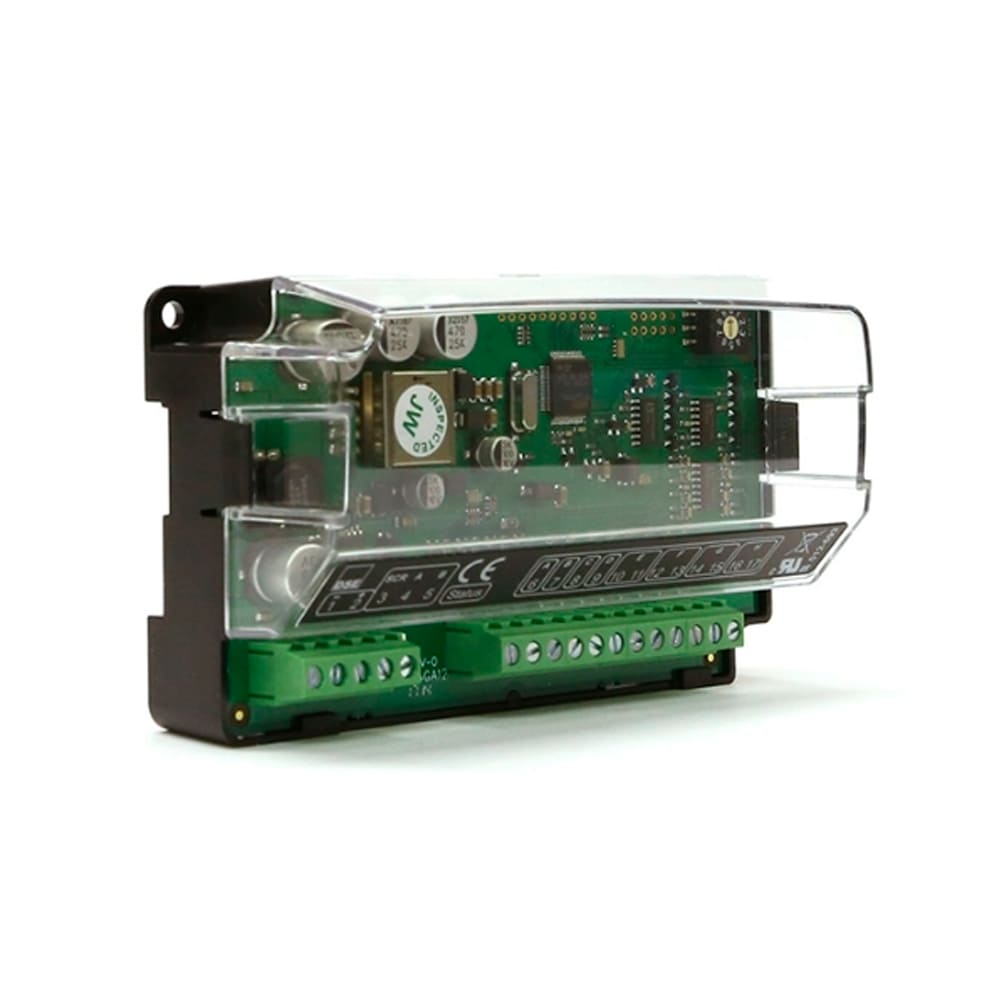

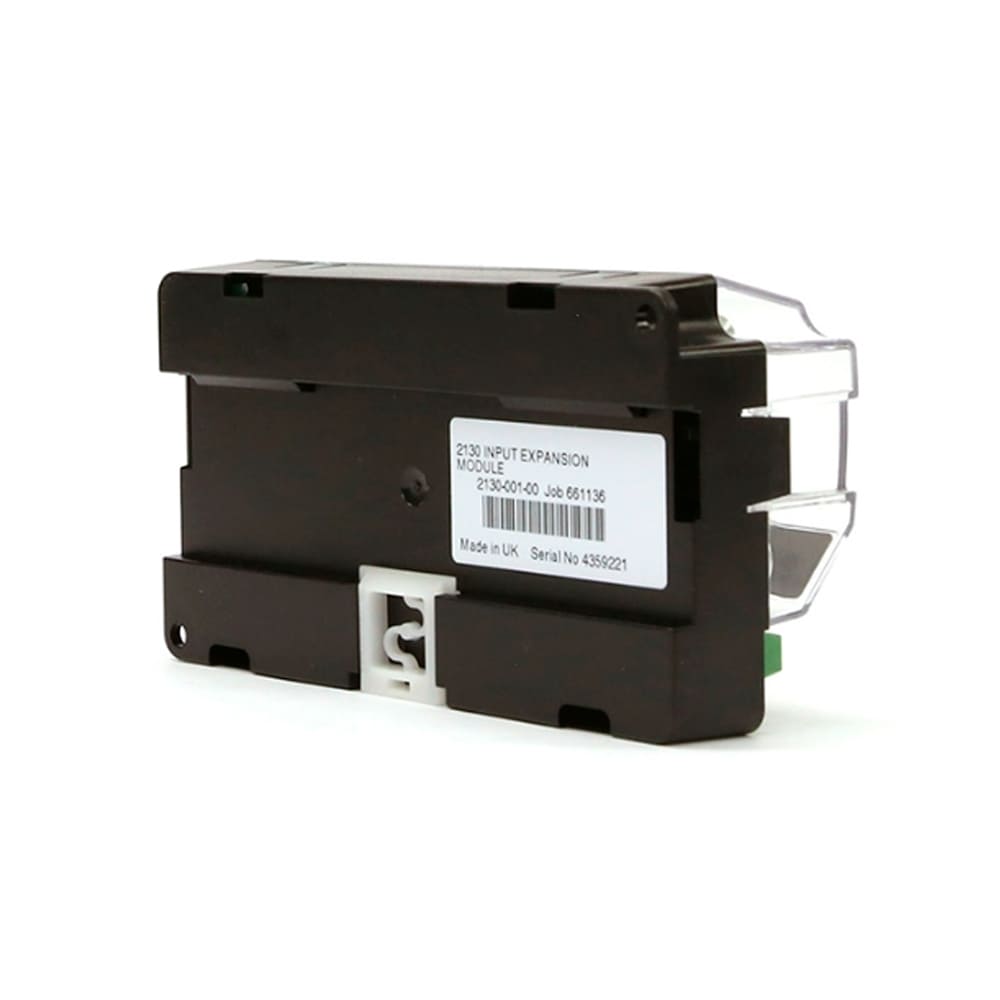

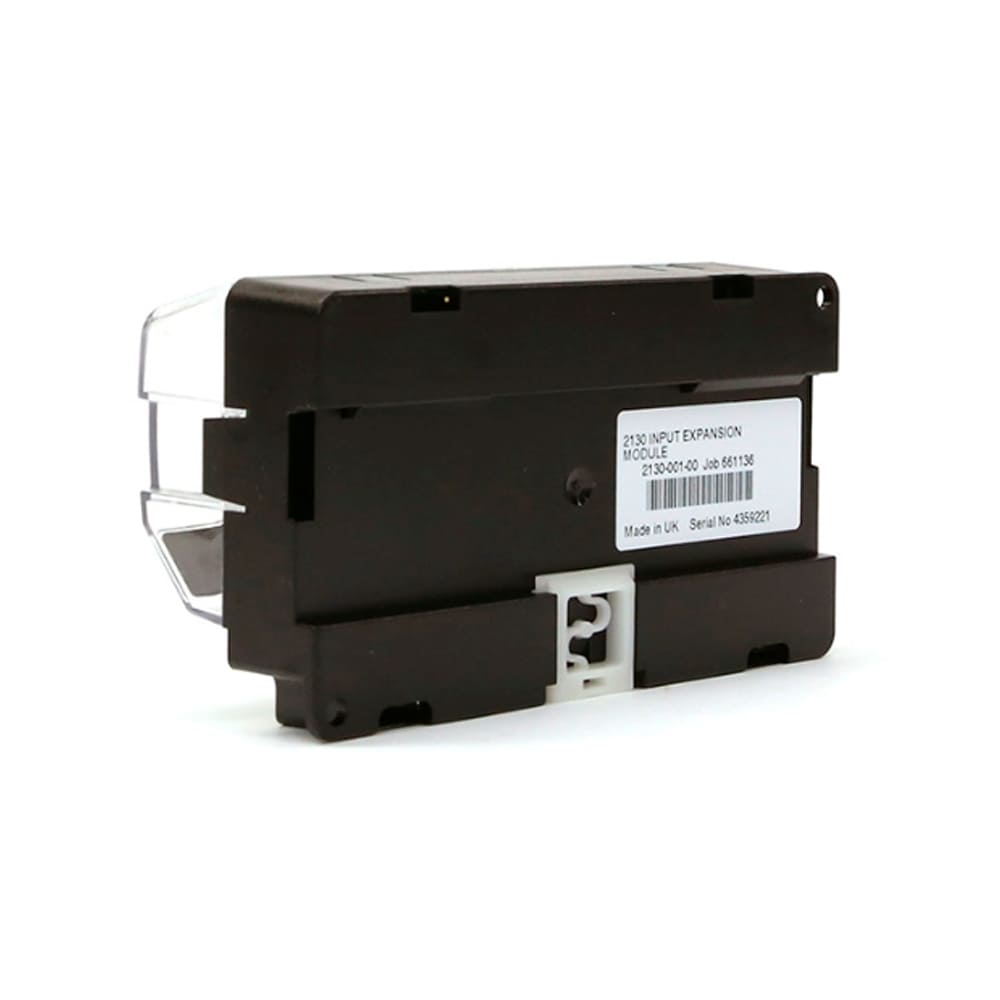

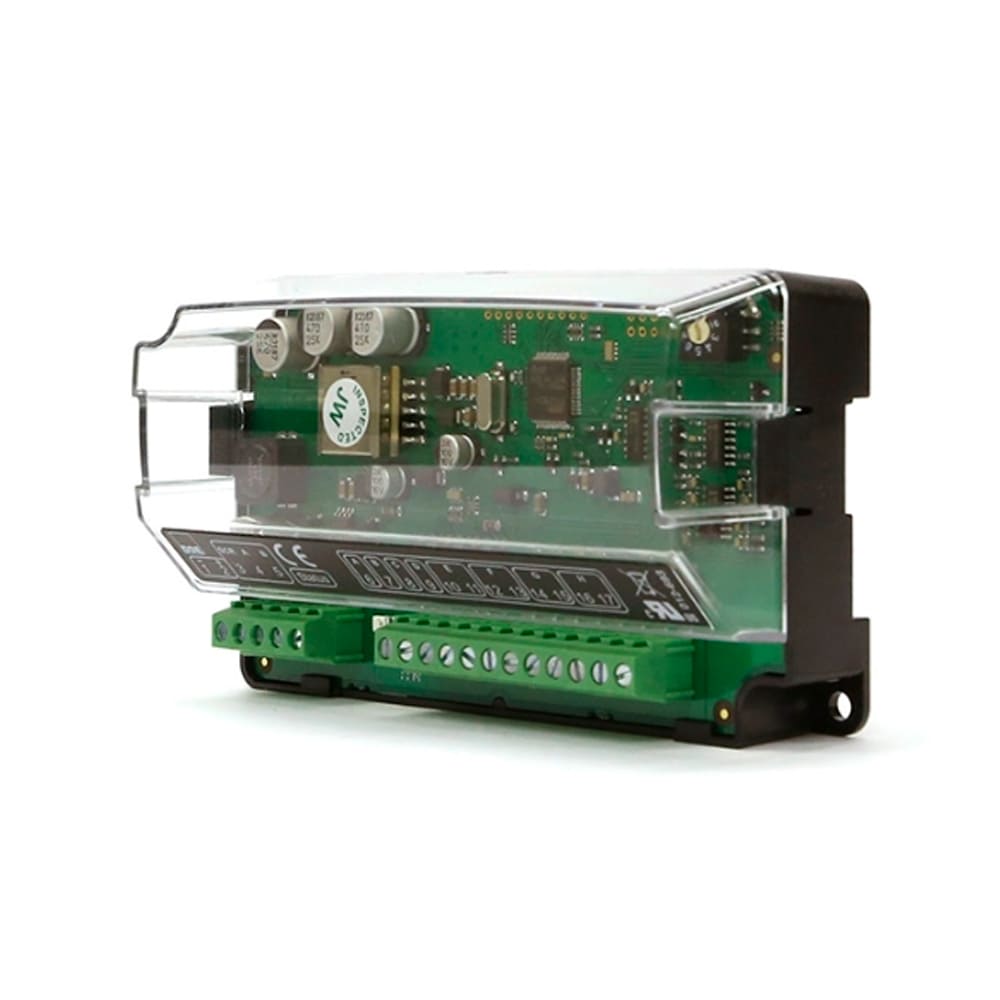

The DSE2130 is an input expansion module providing 8 additional inputs to the control module. Four of these can be configured for use as analogue inputs. Up to 4 x DSE2130 modules can be linked together to provide up to 32 additional inputs.
Designed to give greater flexibility for meeting complex industry generator control specifications.
All configurations are controlled within the host control module.
MAX OF 32 DIGITAL INPUTS
16 can be configured for use as analogue.
1.2km (0.75 MILE)
Working range.
POWER ON/LINK Lost LED.
Continuous Voltage Rating
- ◖8 V to 35 V
Continuous
Cranking Dropouts
- ◖Able to survive 0 V for 50 mS, providing
supply was at least 10 V before dropout and supply recovers to 5 V. This is
achieved without the need for internal batteries. LEDs and backlight will not
be maintained during cranking.
Maximum Operating Current
- ◖200 mA at 12 V,
100 mA at 24 V
Maximum Standby Current
- ◖120 mA at 12 V, 60 mA at 24 V

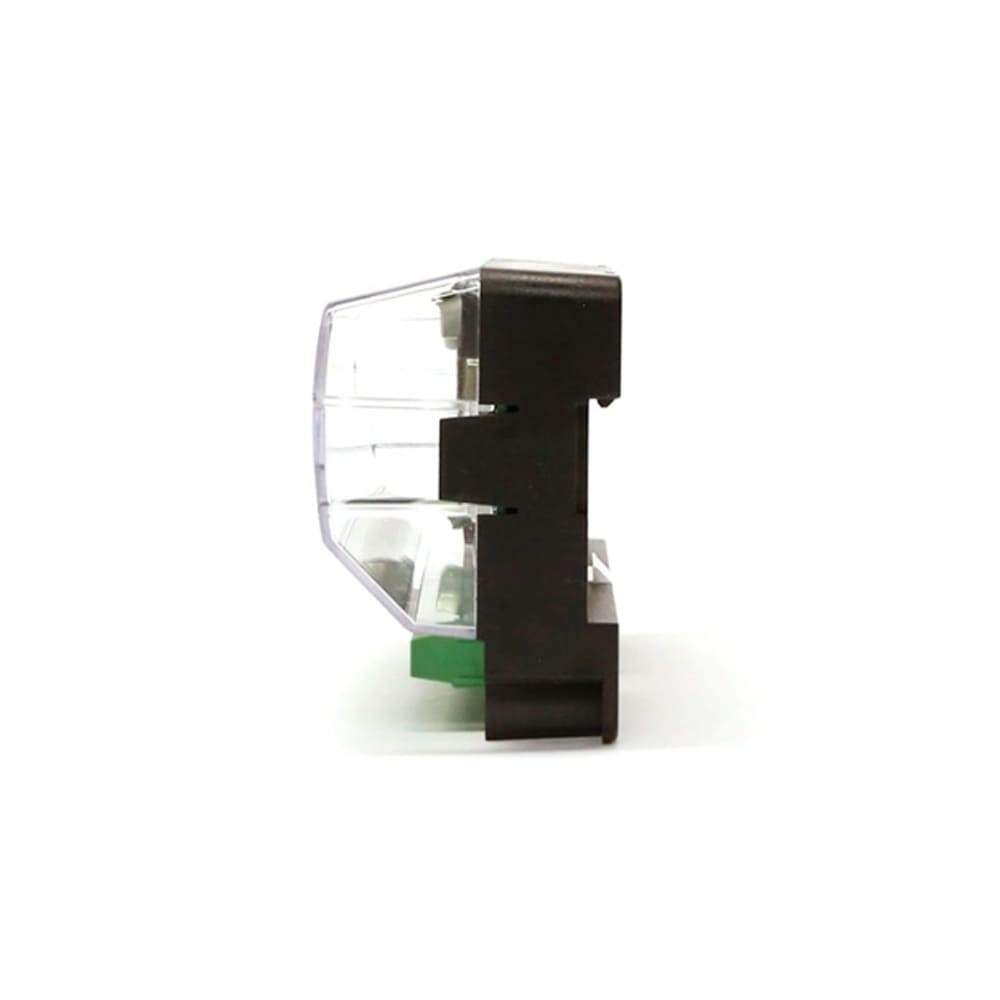

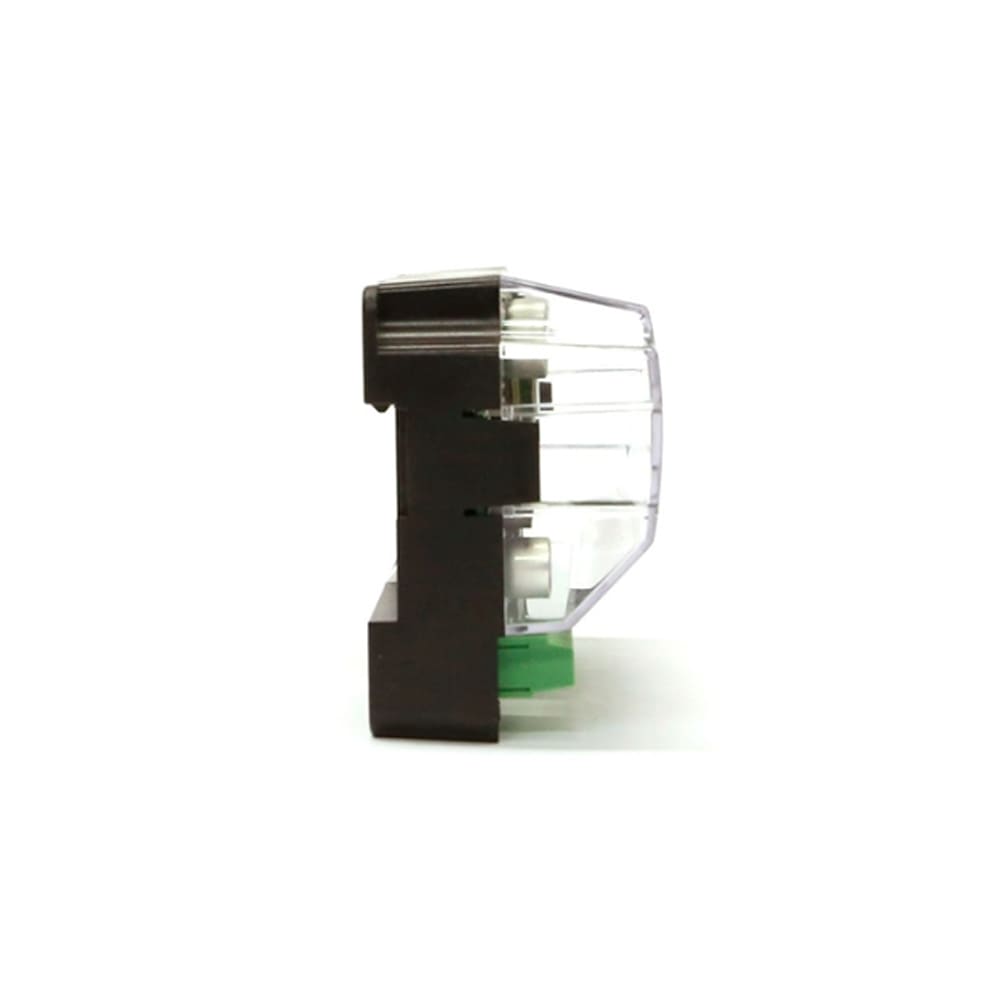

Dimensions
- ◖Overall : 134 mm x 76 mm x 49 mm 5.3” x 3”
x 1.9
The DSE2130 is an input expansion module providing 8 additional inputs to the control module. Four of these can be configured for use as analogue inputs. Up to 4 x DSE2130 modules can be linked together to provide up to 32 additional inputs. Designed to give greater flexibility for meeting complex industry generator control specifications.
All configurations are controlled within the host control module.
