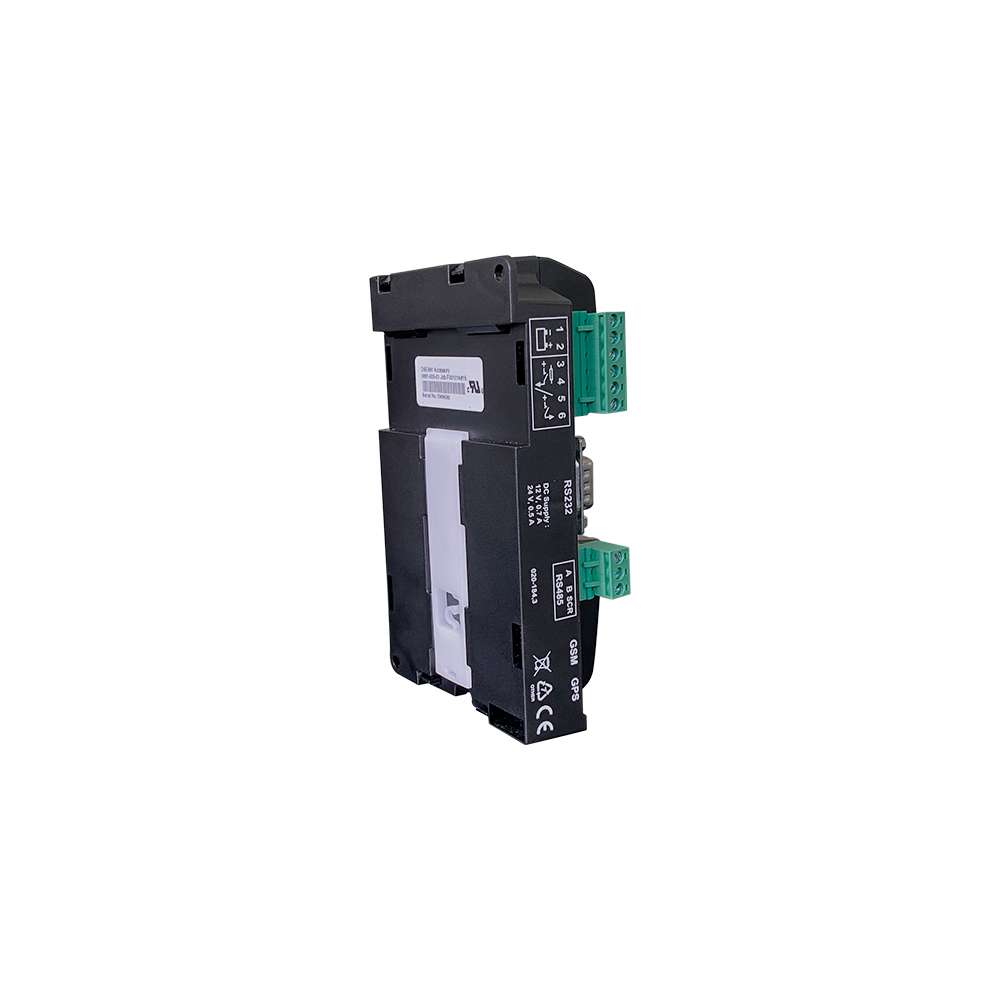

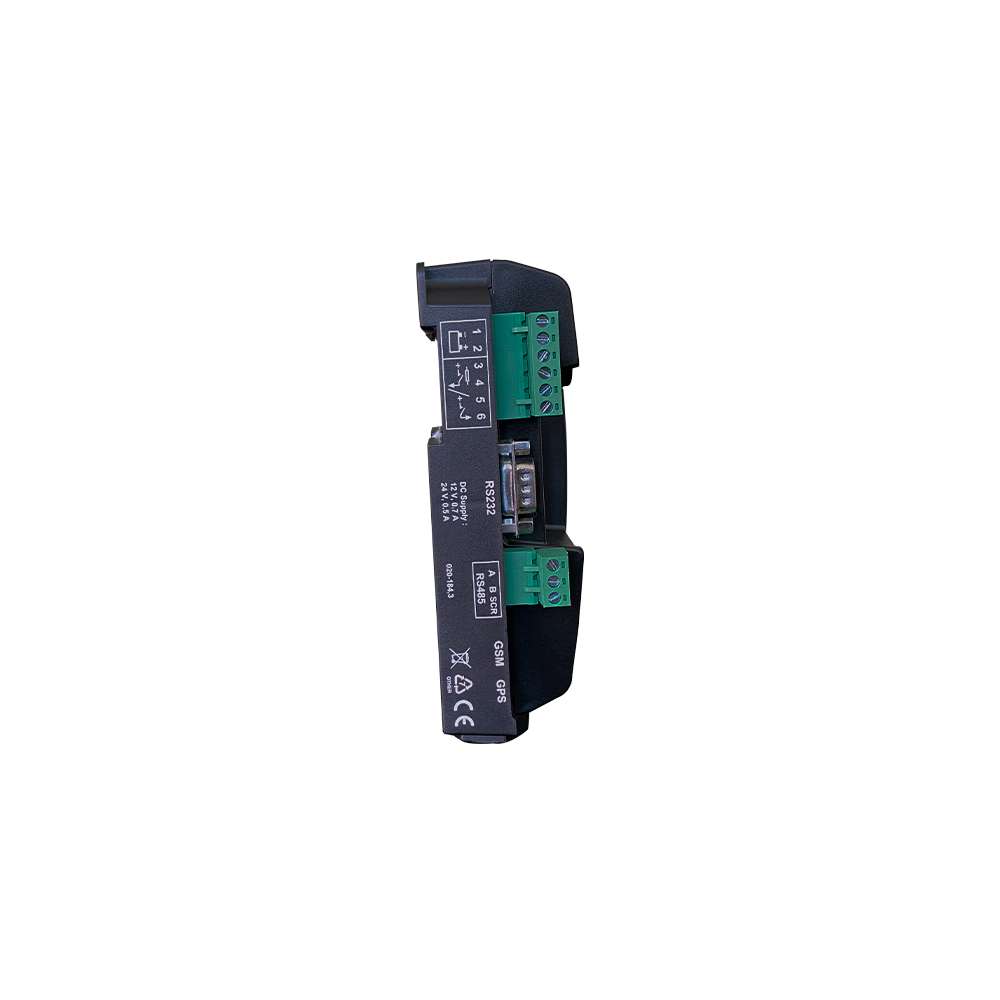

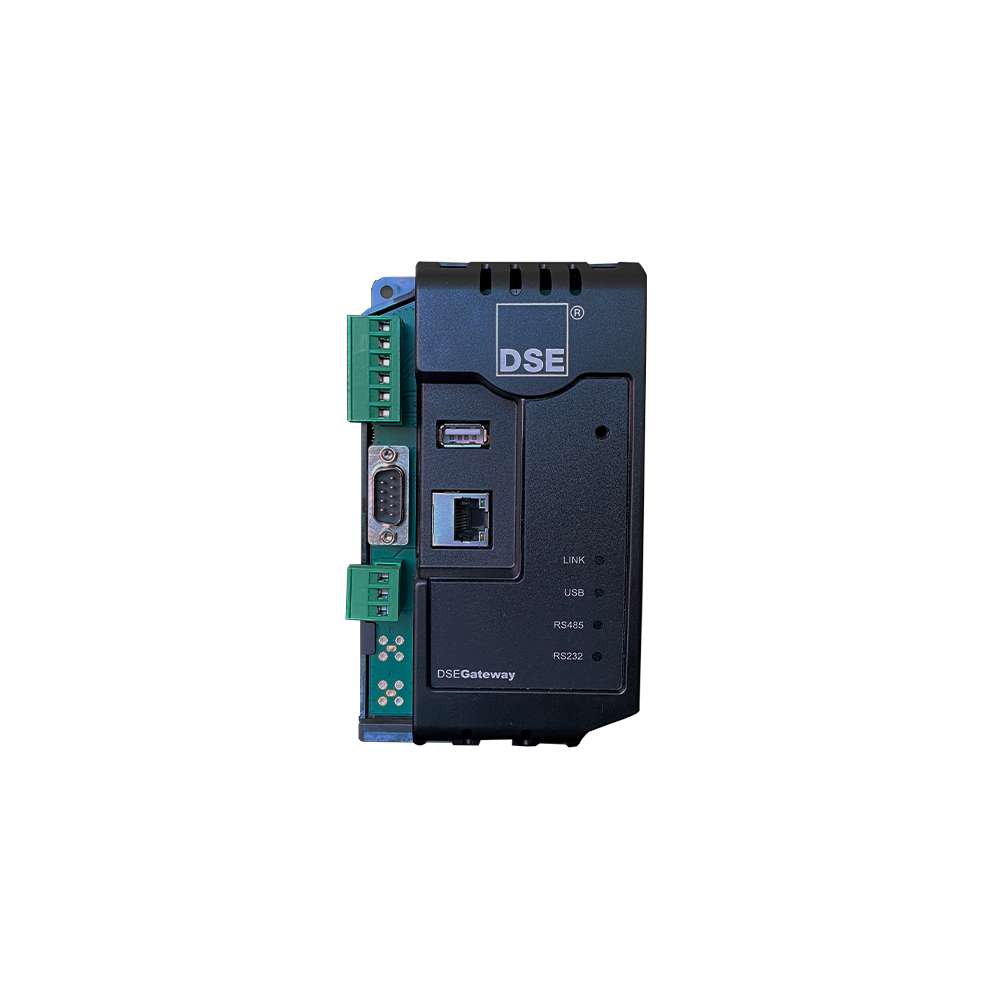

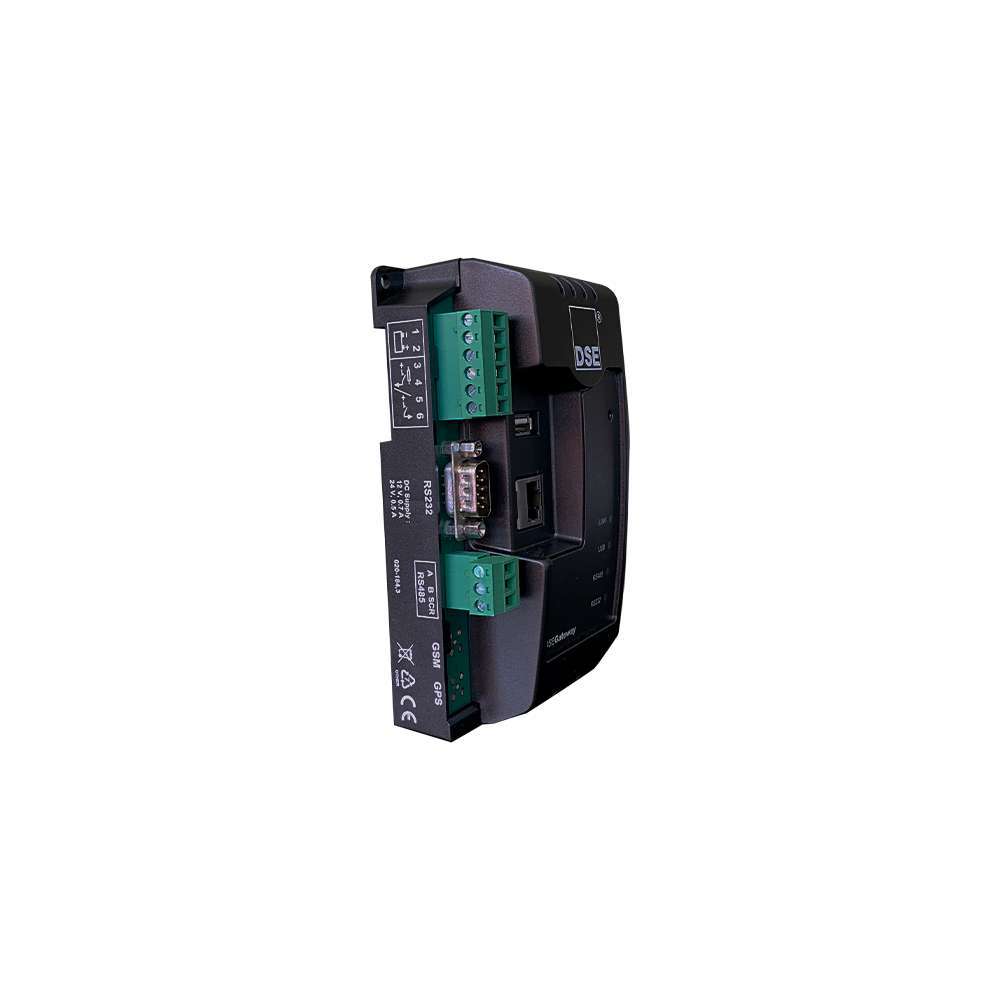

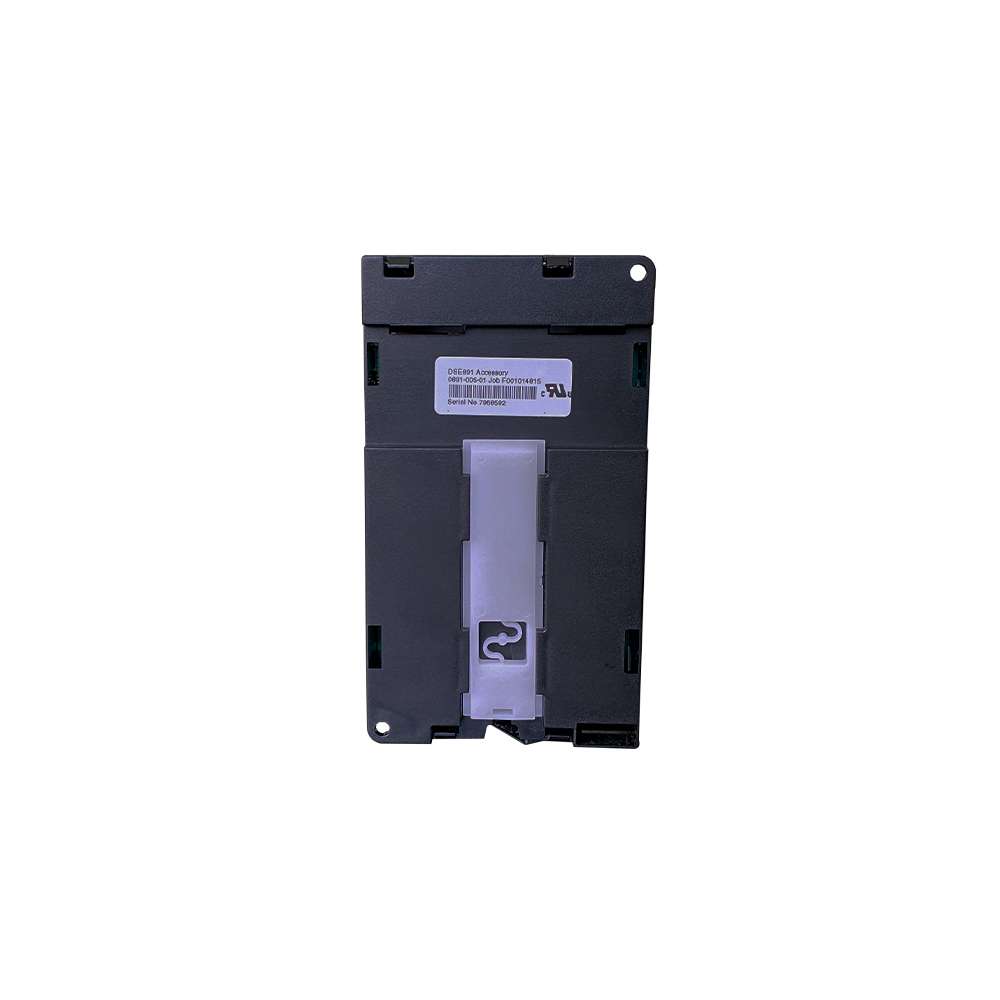

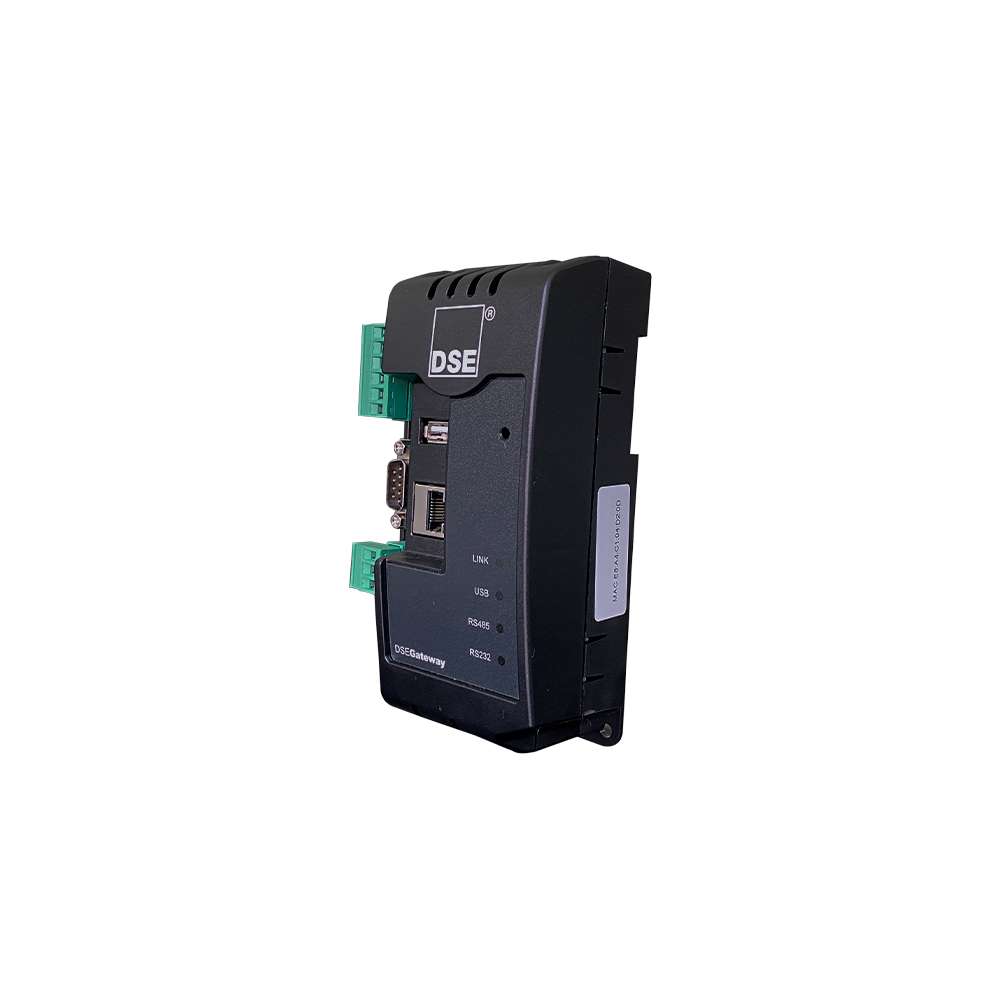

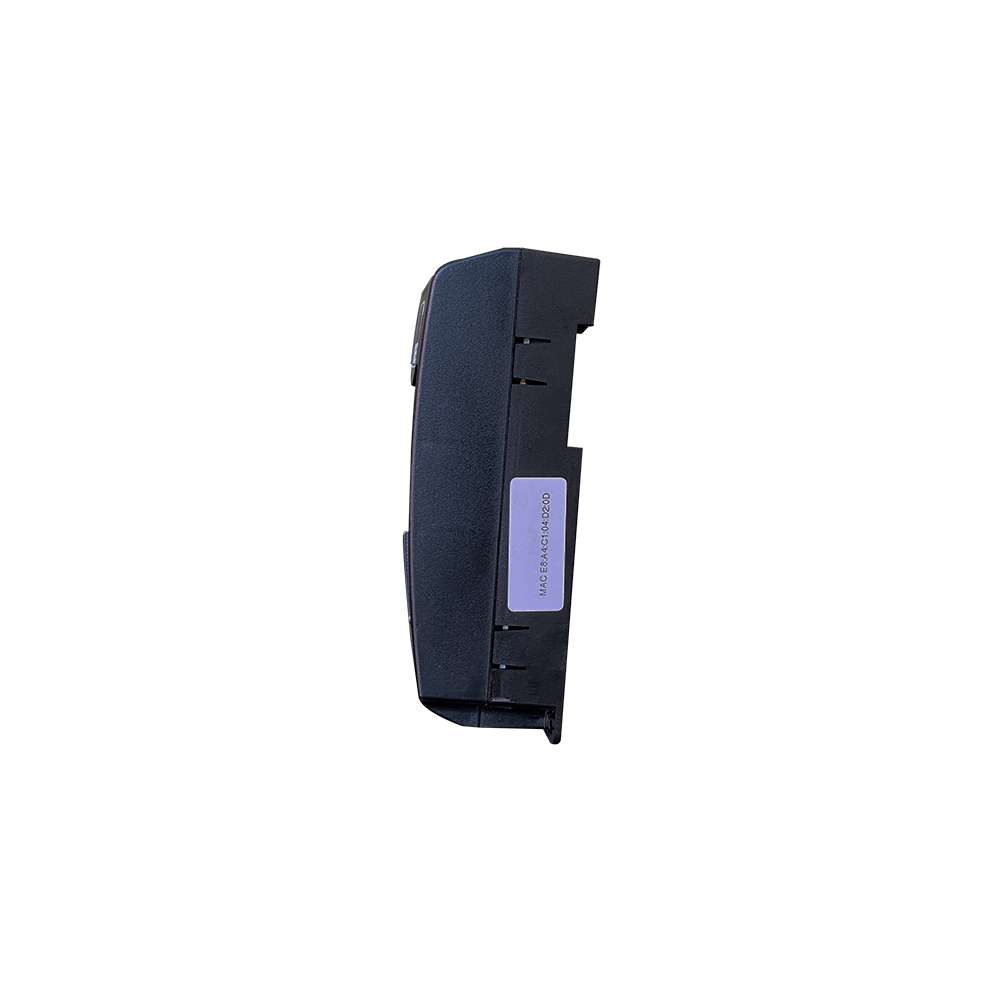

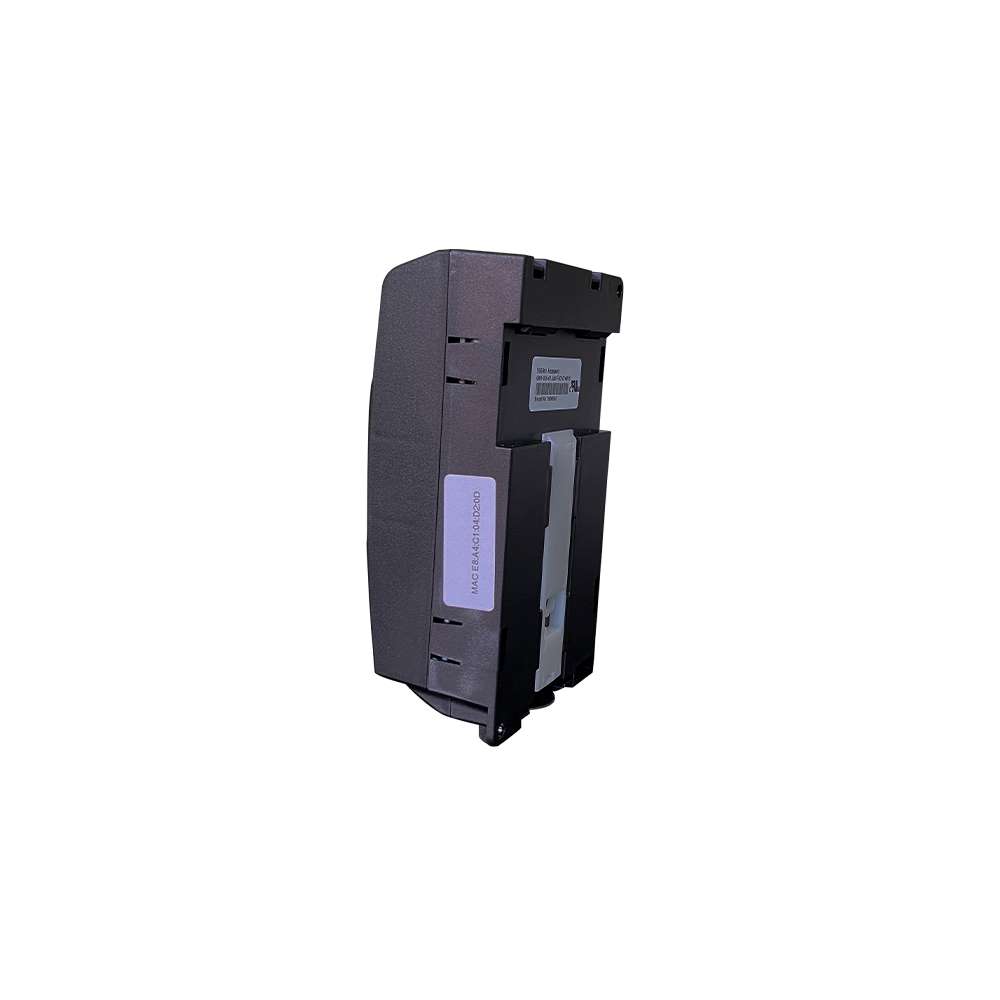

DSE 0892-01 Simple Management Network Protocol (SMNP) Gateway Original

https://powermaster.odoo.com/web/image/product.template/9620/image_1920?unique=b1155ee

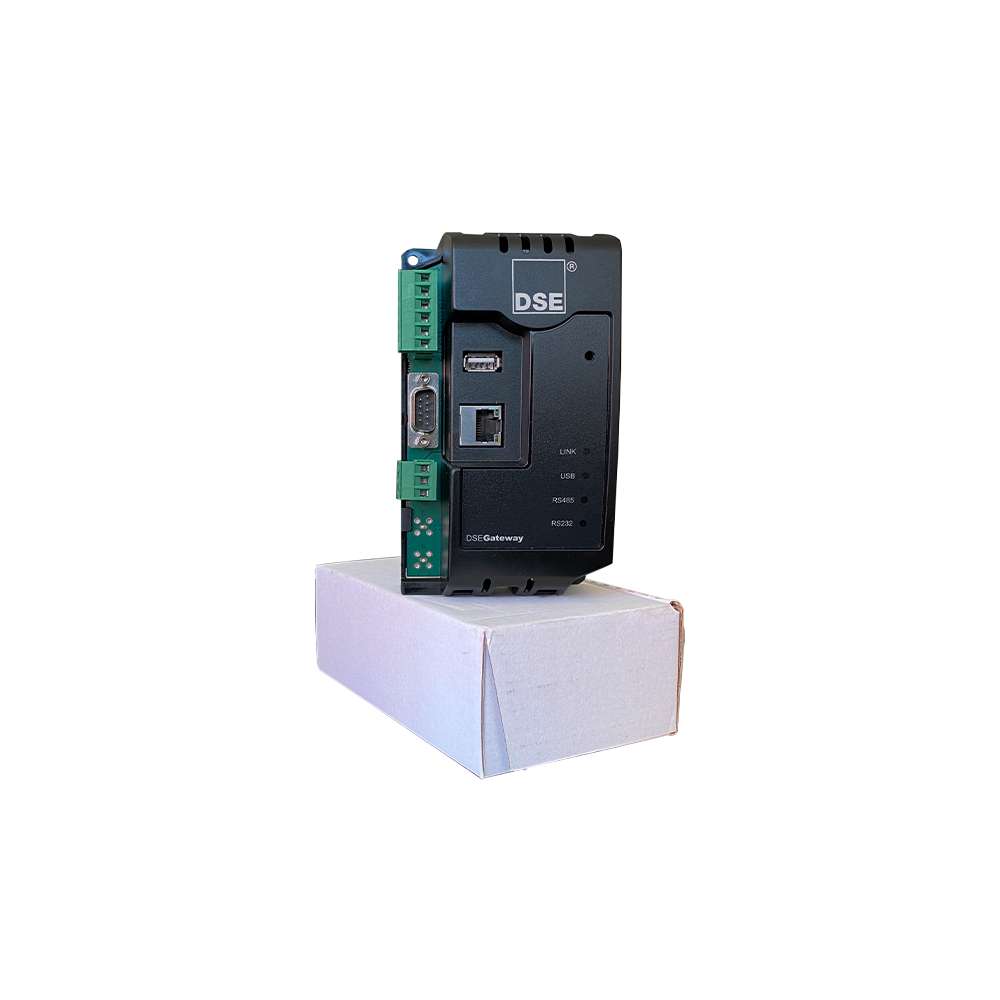

DSE892 Simple Management Network Protocol (SMNP) Gateway

$ 47,029.00 47029.0 USD $ 47,029.00

$ 47,029.00

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY

VOLTAGE RATING
8 V to 35 V Continuous


PRODUCT VARIANTS

0892-01 – 892 Simple Management Network Protocol (SMNP) Gateway



WEIGHT

0.5 POUNDS
SIZE
6 x 4 x 2 Inches

MAXIMUM OPERATING CURRENT

200 mA at 12 V 110 mA at 24 V


The DSE892 connects DSE control modules to external SNMP systems. Once a connection is made full monitoring and control functionality becomes active. The gateway device specialises in monitoring the instrumentation and operating state of the connected DSE control module.


CUSTOMISABLE EMAIL/SNMP TRAPS

Based upon module instrumentation values.

​SIMPLE INTERNET

Browser configuration.

​MULTIPLE DSE CONTROL MODULE

Compatibility

  • Continuous Voltage Rating - ◖8 V to 35 V Continuous
  • Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 8 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
  • Maximum Operating Current - ◖200 mA at 12 V 110 mA at 24 V
  • Maximum Standby Current - ◖150 mA at 12 V 90 mA at 24 V

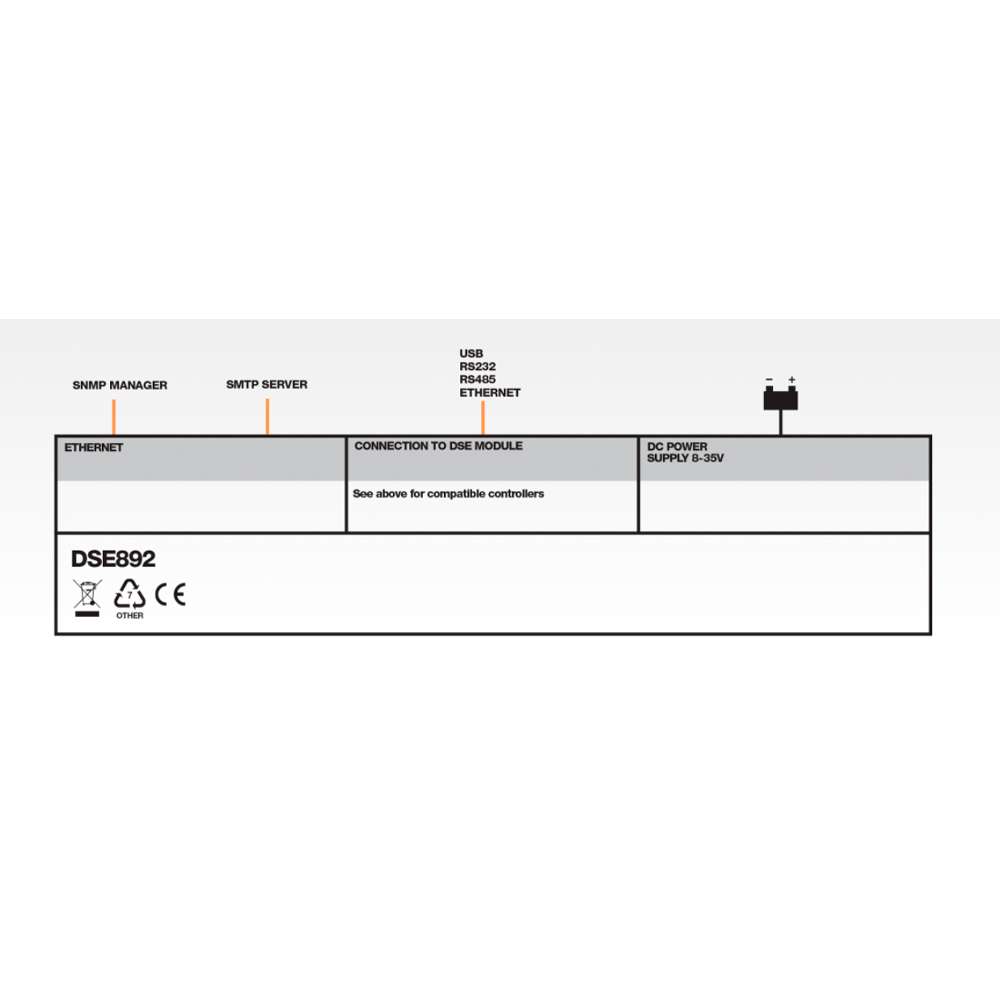

  • Communications - ◖USB (Single DSE Controller) ◖RS232 (Single DSE Controller) ◖RS485 (Multiple DSE Controllers) ◖Ethernet (Multiple DSE Controllers) ◖Ethernet SNMP & SMTP
  • Dimensions - ◖Overall : 85 mm x 149 mm x 51 mm 3.3” x 5.8” x 2.0” ◖Mounting Din : Rail Chassis Mounting
  • Operating Temperature Range - ◖-30°C to +70°C
  • Storage Temperature Range - ◖-40°C to +80°C


The DSE892 connects DSE control modules to external SNMP systems. Once a connection is made full monitoring and control functionality becomes active. The gateway device specialises in monitoring the instrumentation and operating state of the connected DSE control module.
