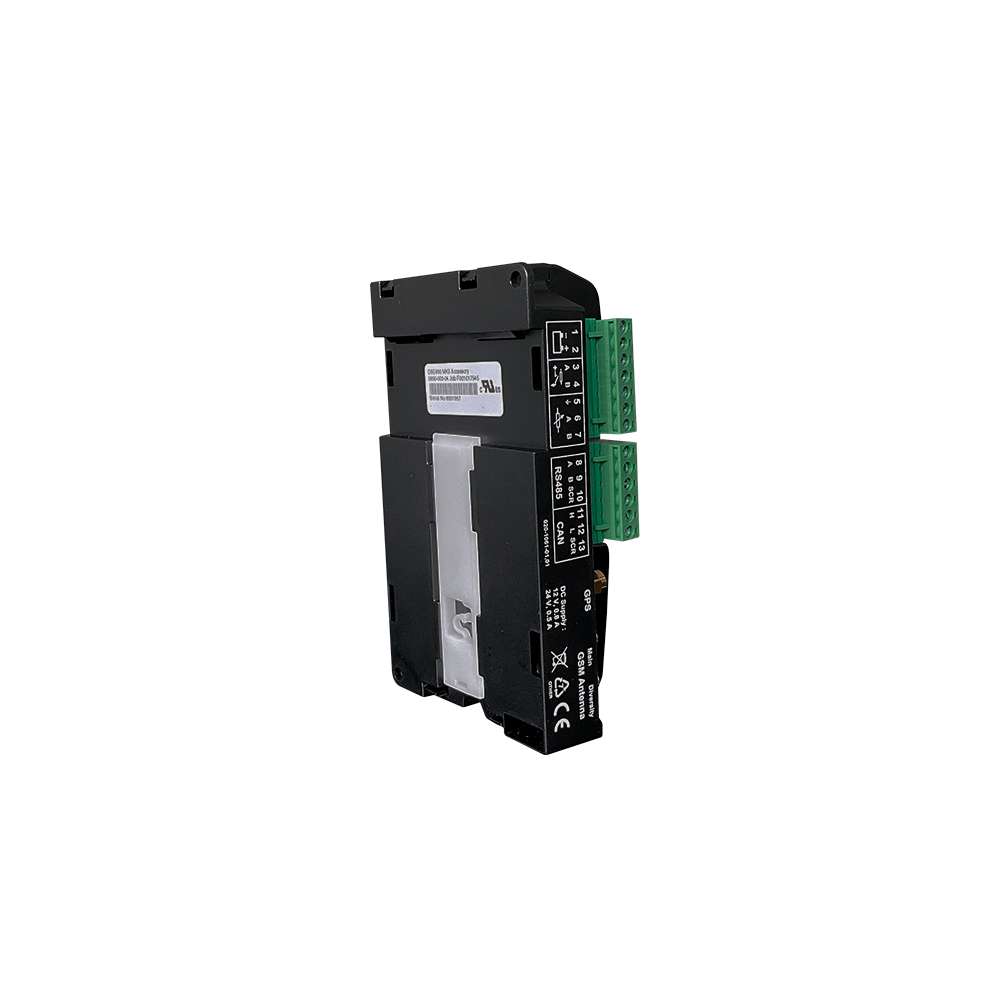

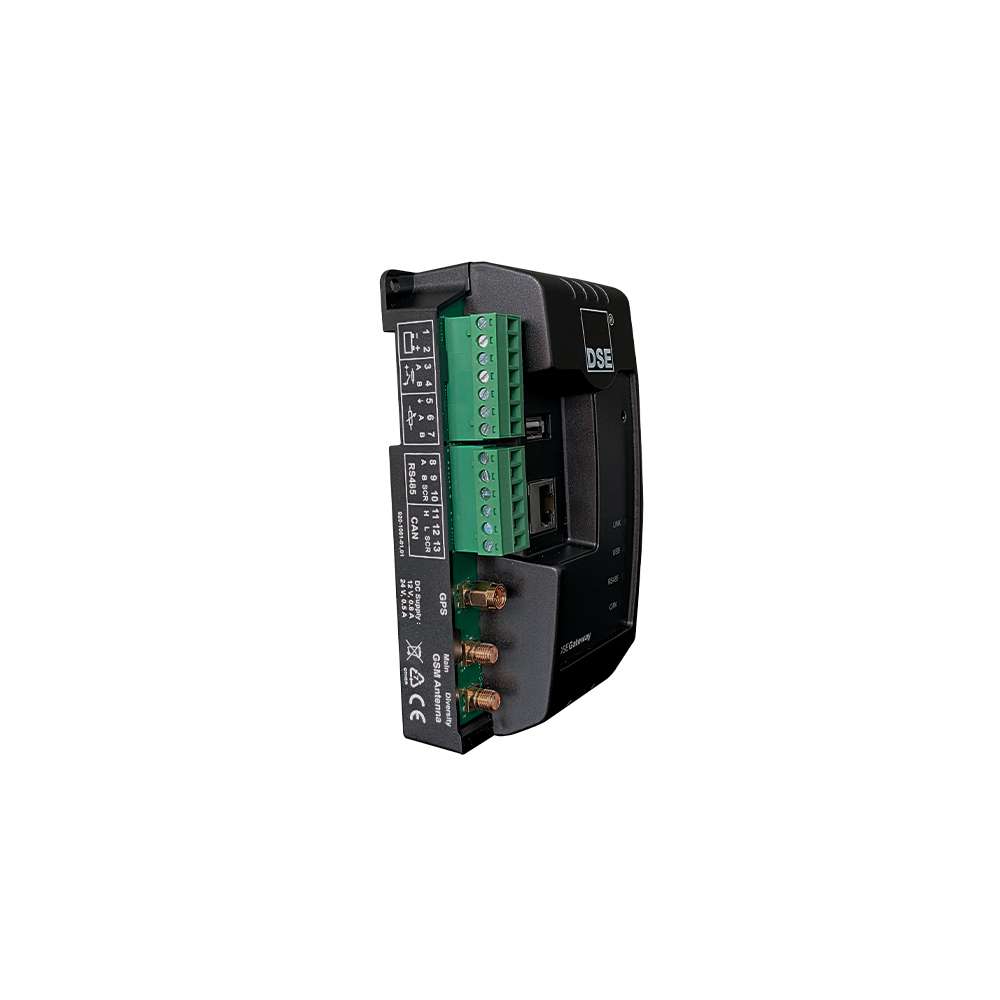

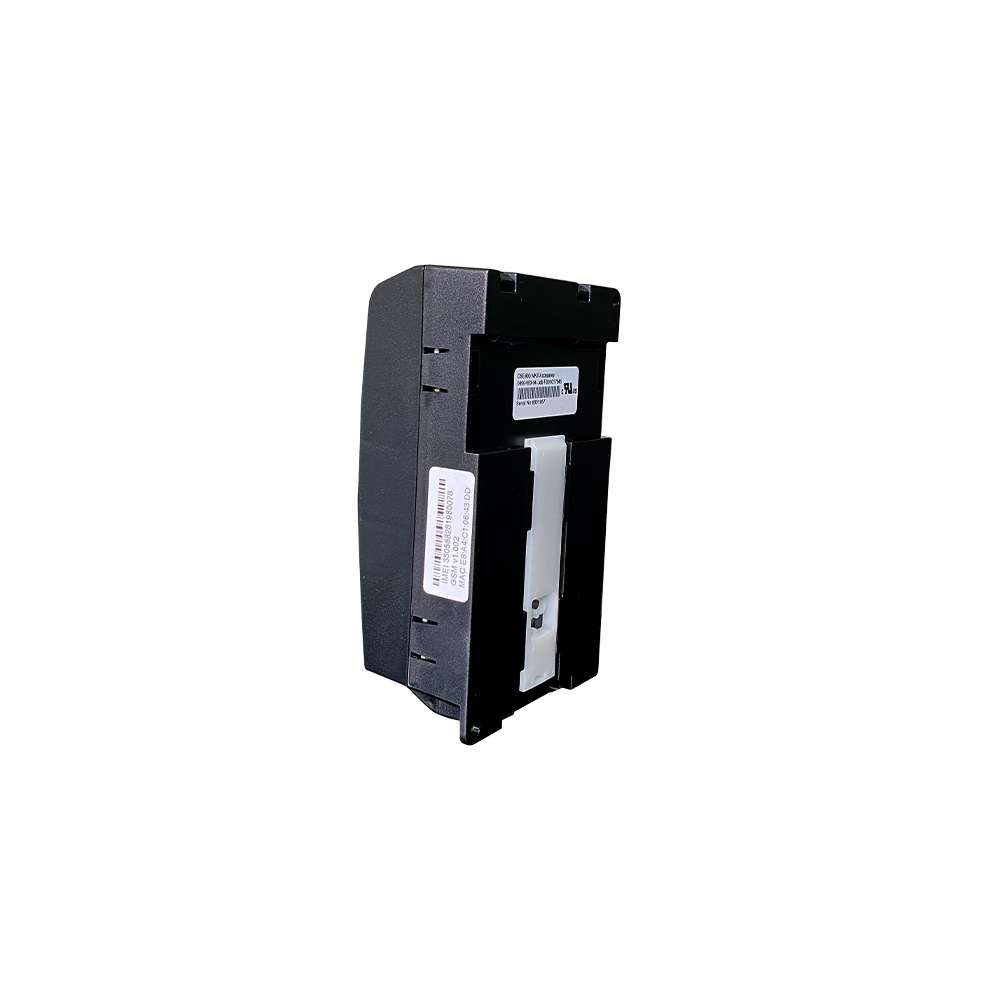

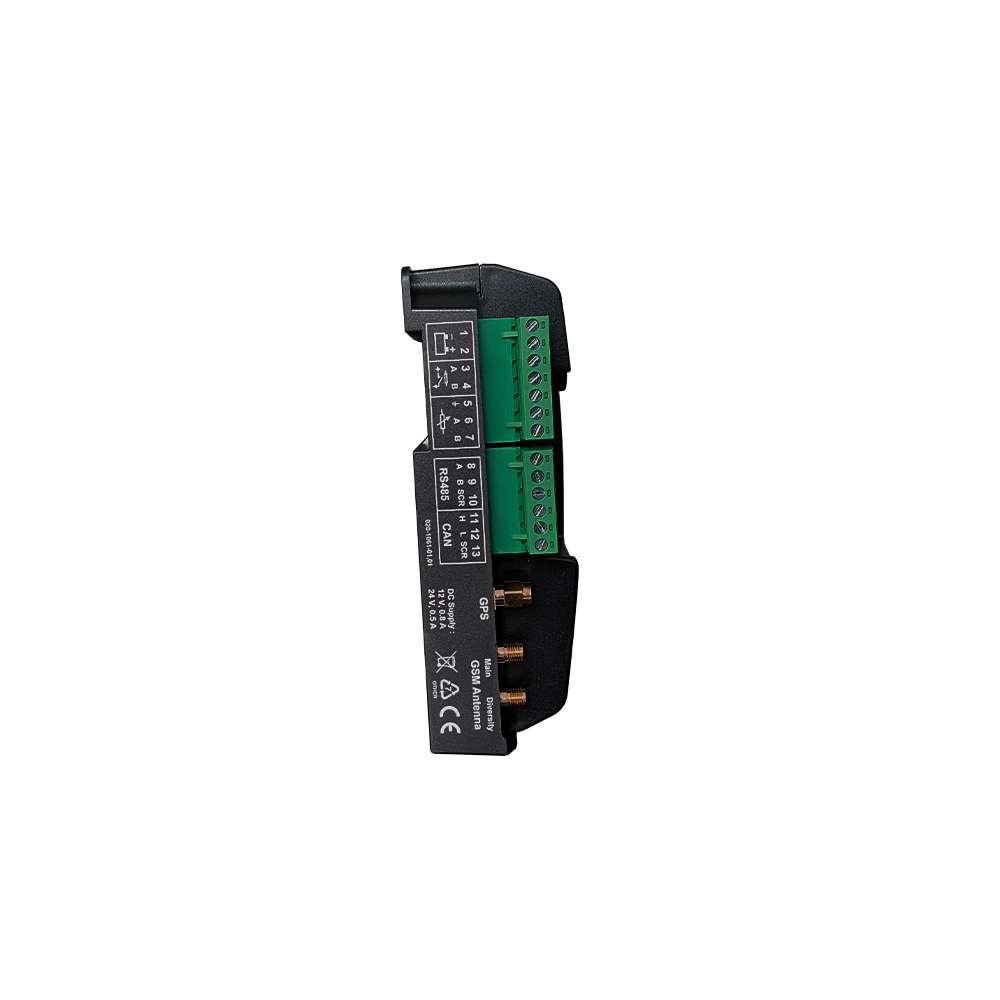

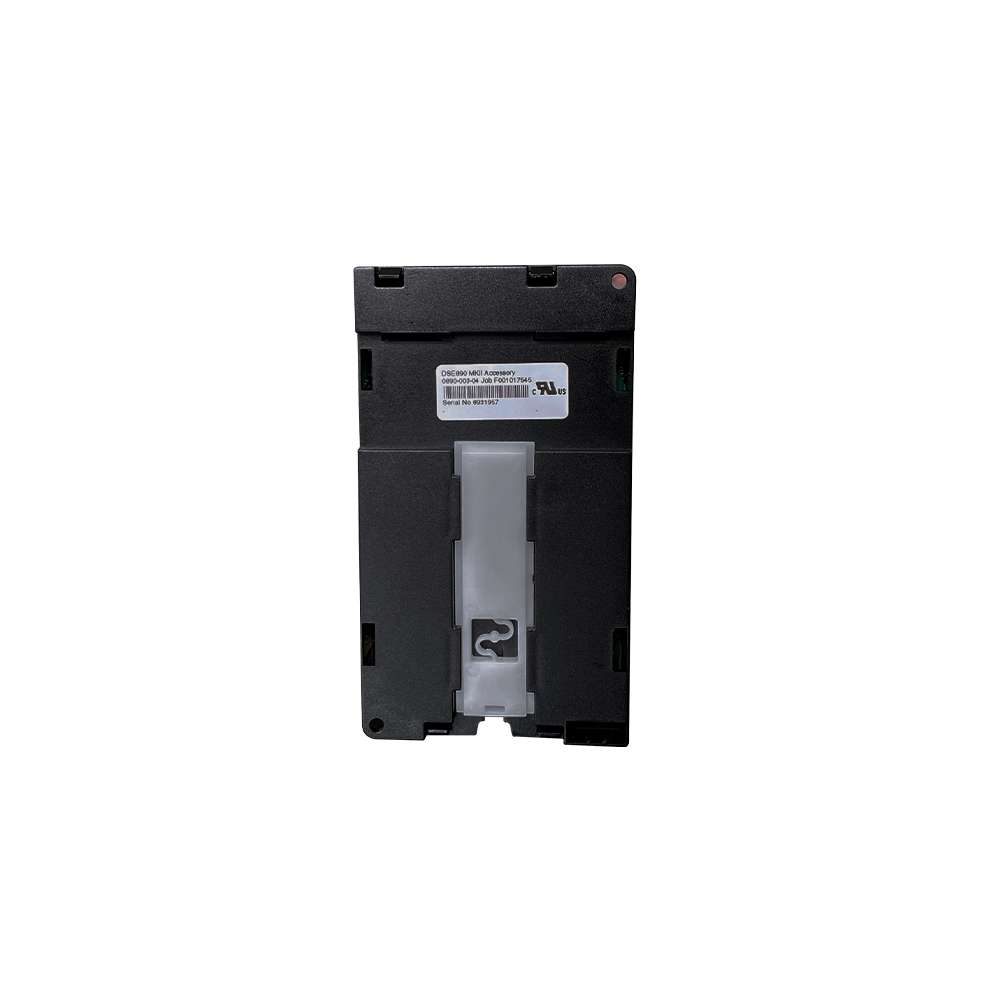

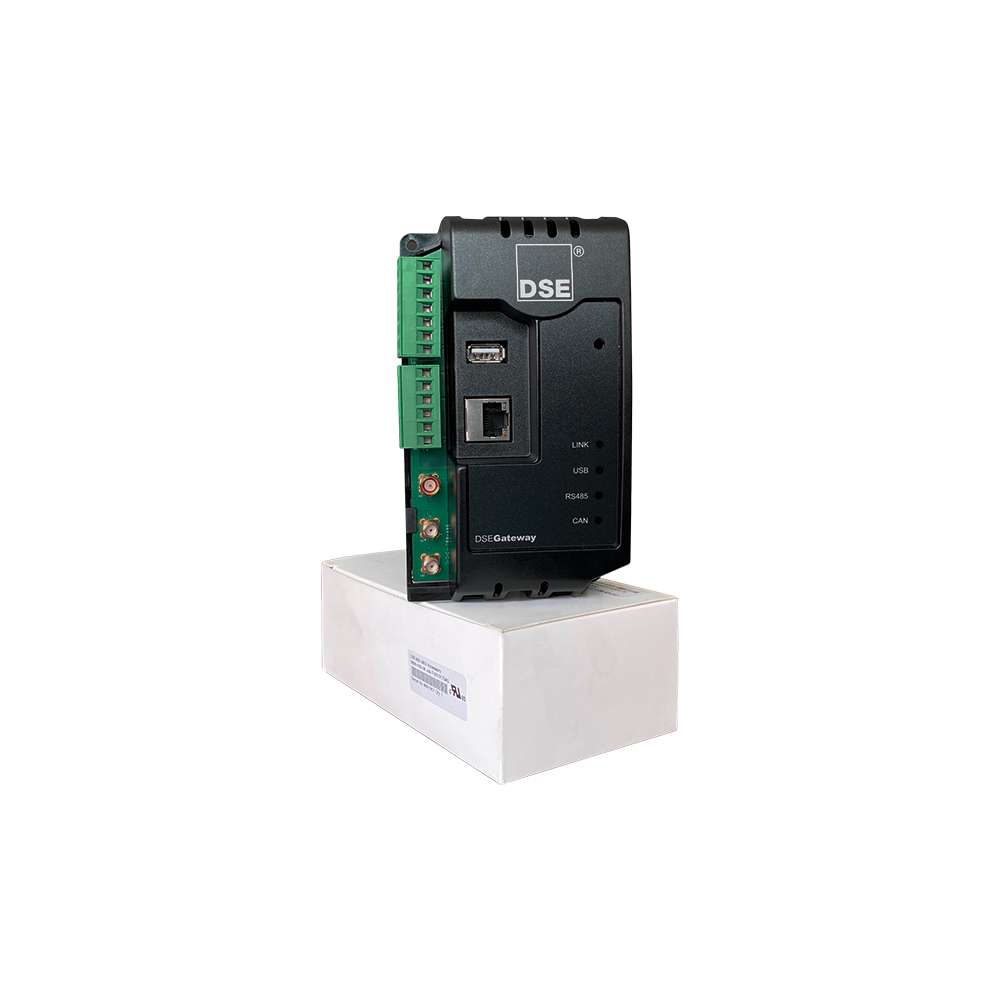

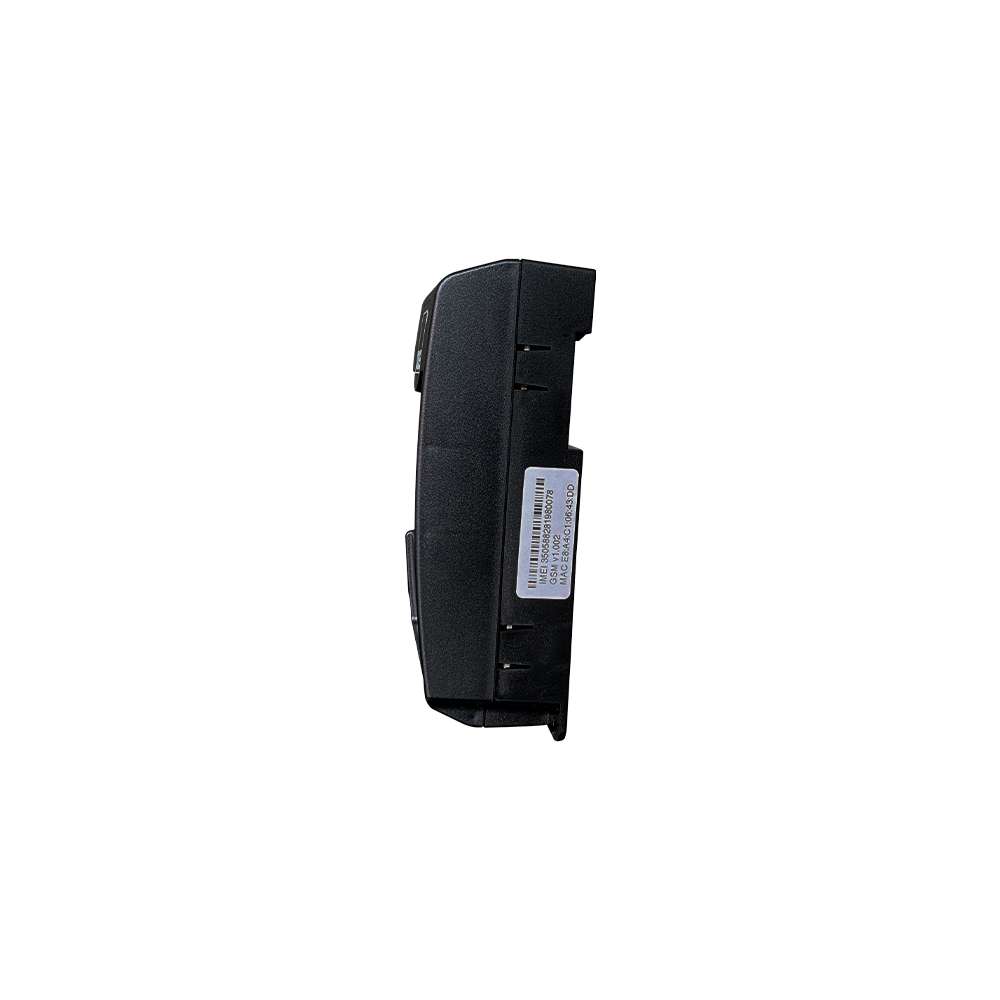

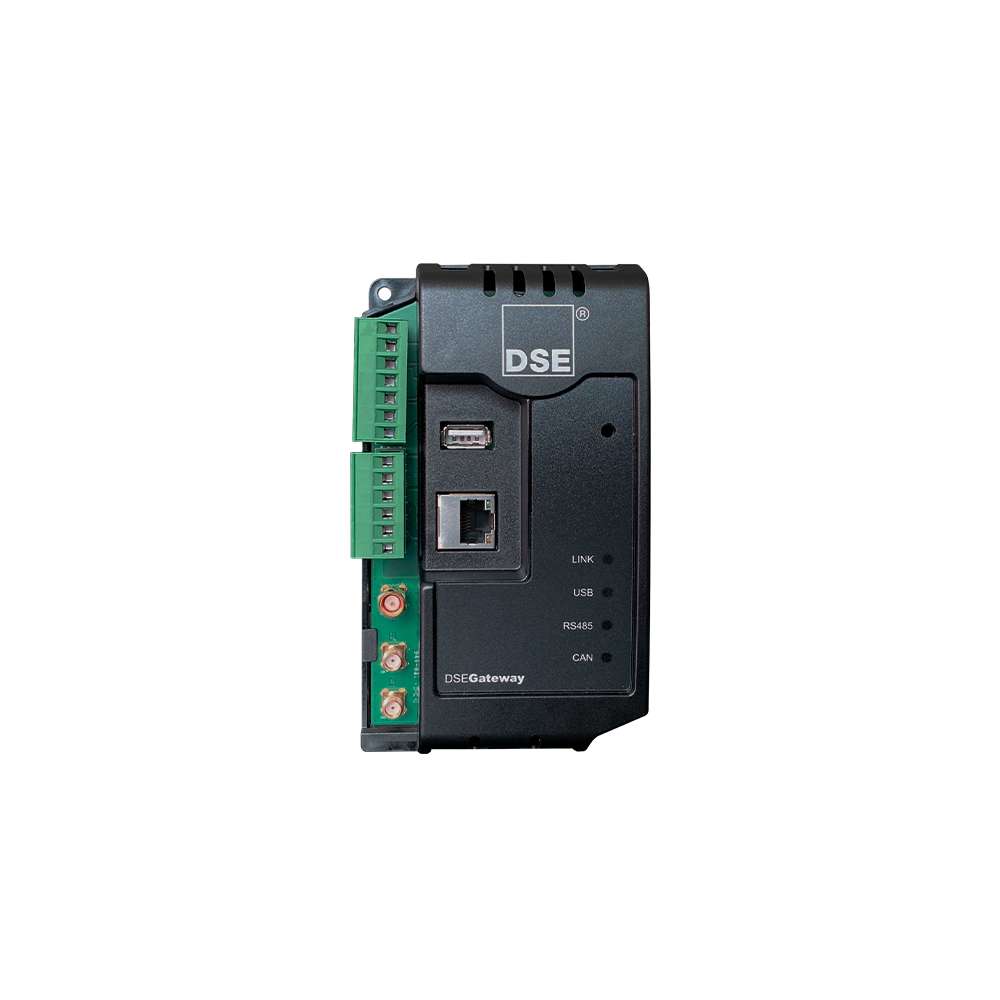

DSE 0890-04 4G MKII DSEWebNet / IoT Gateway - 4G (GSM/Ethernet) Original

https://powermaster.odoo.com/web/image/product.template/9633/image_1920?unique=3286cf8

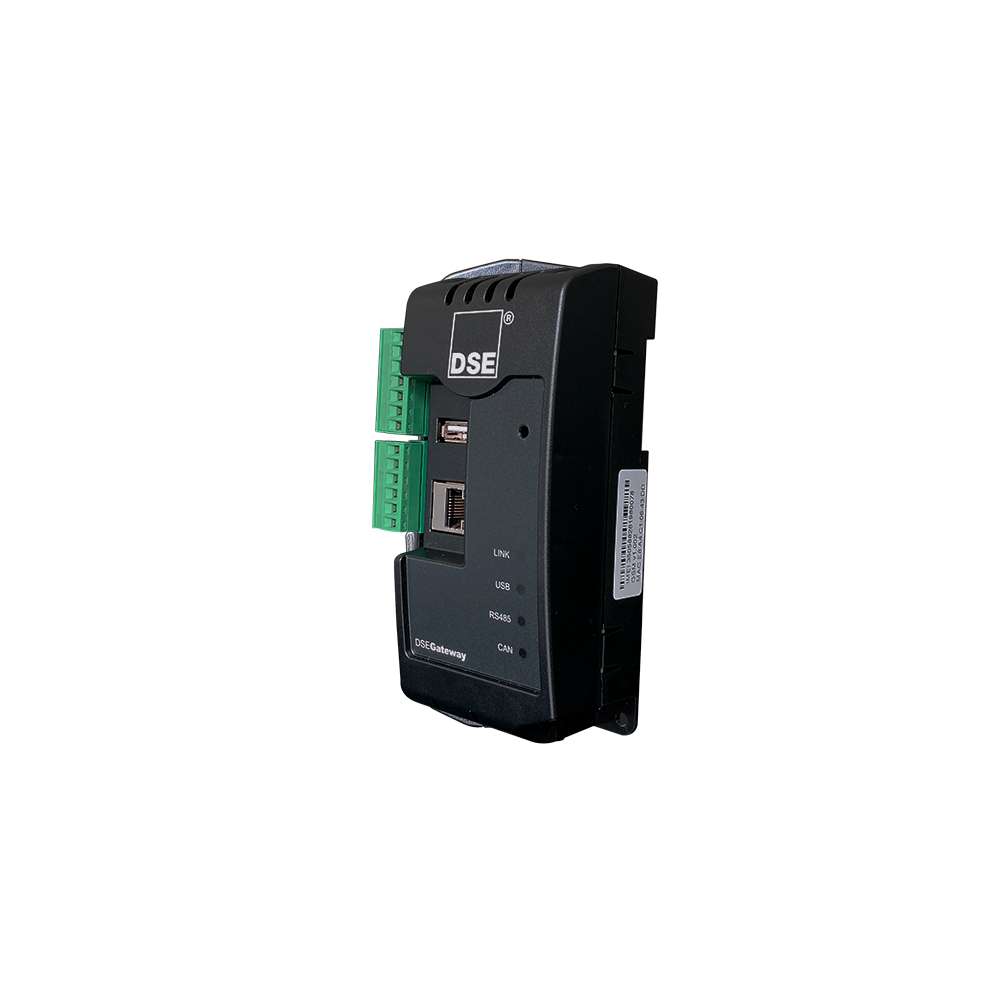

DSE890 MKII DSEWebNet / IoT Gateway - 4G (GSM/Ethernet)

$ 559.99 559.99 USD $ 559.99

$ 559.99

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY

VOLTAGE RATING
8 V to 36 V continuous

PRODUCT VARIANTS

0890-04 - 890 DSEWebnet® / IoT Gateway - 4G GSM/Ethernet


WEIGHT
0.5 POUNDS
SIZE
6 x 4 x 2 Inches
MOUNTING
  DIN Rail
Chassis Mount


The DSE890 MKII is an Ethernet/4G gateway device that enables compatible DSE controllers to be monitored remotely via DSEWebNet® software or third-party MQTT brokers.


REQUIRES - Combined 4G LTE (Main & Diversity) and GPS Antenna - 020-1053 if 4G Signal is Needed.

Unit also fully compatible with 2G & 3G.

The DSE890 MKII gateway communicates with a maximum of five connected DSE controllers, monitoring instrumentation and operating states. When this data changes, data is logged internally and transmitted from the gateway device to the DSEWebNet® or MQTT broker (Amazon Web Services, Google, IBM etc..).

DSEWebNet® software is accessed using an Internet browser or the dedicated app. Users are able to perform multiple tasks including: monitoring equipment, clearing alarm conditions, starting/stopping equipment and monitoring fuel levels


​4G CONNECTIVITY
Provides a high-speed connection for data transfer on remote sites.
DIN RAIL & CHASSIS MOUNT​

Provides flexible mounting options.

SUPPORTS 2G & 3G​

Multiple support for flexibility.

  • Continuous Voltage Rating - ◖8 V to 36 V continuous
  • Cranking Dropouts - ◖Able to survive 0 V for 100 mS, providing supply was at least 8 V before dropout and supply recovers to 8 V. This is achieved without the need for internal batteries
  • Maximum Operating Current - ◖GSM : 755 mA at 12 V 376 mA at 24 V ◖GSM & GPS : 755 mA at 12 V 376 mA at 24 V
  • Maximum Standby Current - ◖GSM : 207 mA at 12 V 113 mA at 24 V ◖GSM & GPS : 207 mA at 12 V 113 mA at 24 V
  • Communications - ◖USB : (Single DSE Controller) ◖CAN* : (Multiple DSE Controller) ◖RS485 : (Multiple DSE Controllers) ◖Ethernet : (Multiple DSE Controllers)
  • Dimensions - ◖85 mm x 149 mm x 51 mm ◖Mounting : DIN Rail Chassis Mount
  • Only active for third-party MQTT brokers.



The DSE890 MKII is an Ethernet/4G gateway device that enables compatible DSE controllers to be monitored remotely via DSEWebNet® software or third-party MQTT brokers.

REQUIRES - Combined 4G LTE (Main & Diversity) and GPS Antenna - 020-1053 if 4G Signal is Needed.

Unit also fully compatible with 2G & 3G.

The DSE890 MKII gateway communicates with a maximum of five connected DSE controllers, monitoring instrumentation and operating states. When this data changes, data is logged internally and transmitted from the gateway device to the DSEWebNet® or MQTT broker (Amazon Web Services, Google, IBM etc..).

DSEWebNet® software is accessed using an Internet browser or the dedicated app. Users are able to perform multiple tasks including: monitoring equipment, clearing alarm conditions, starting/stopping equipment and monitoring fuel levels


DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 36 V continuous

CRANKING DROPOUTS

Able to survive 0 V for 100 mS, providing supply was at least 8 V before dropout and supply recovers to 8 V. This is achieved without the need for internal batteries

MAXIMUM OPERATING CURRENT

GSM                      755 mA at 12 V

                              376 mA at 24 V

GSM & GPS          755 mA at 12 V

                              376 mA at 24 V

MAXIMUM STANDBY CURRENT





COMMUNICATIONS

USB (Single DSE Controller)

RS485 (Multiple DSE Controllers)

Ethernet (Multiple DSE Controllers)

CAN* (Single DSE Controller)

*Only active for third-party MQQT brokers.
