DSE 0855-01 USB to Ethernet Communications Device Original

https://powermaster.odoo.com/web/image/product.template/9634/image_1920?unique=2e0fcd3

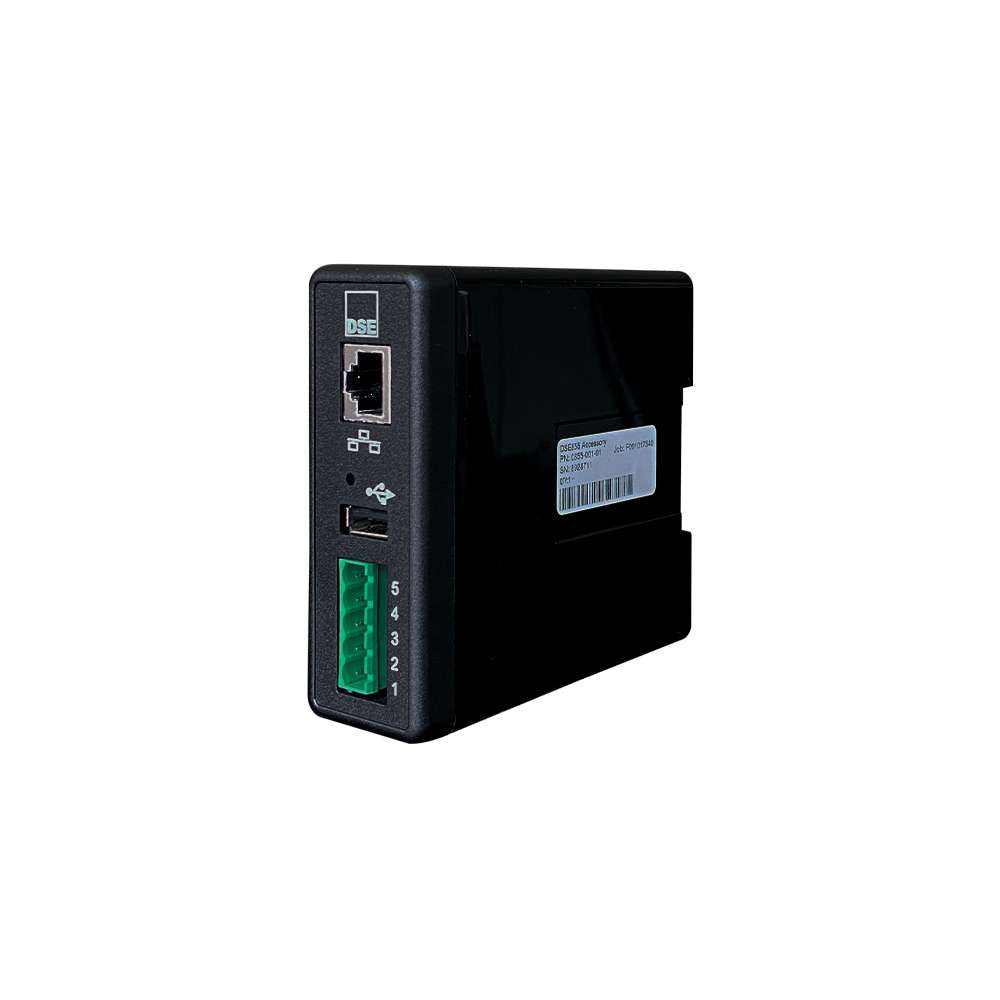

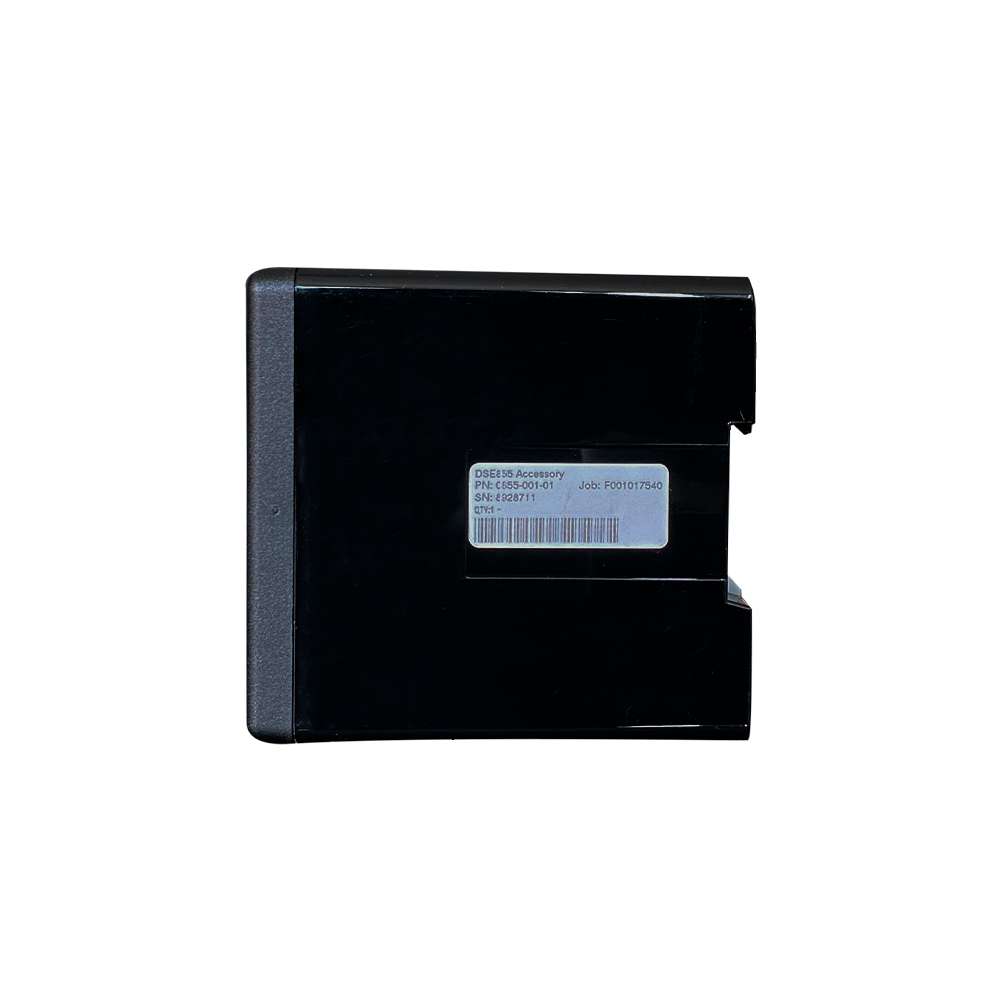

DSE855 USB to Ethernet Communications Device

$ 148.19 148.19 USD $ 148.19

$ 148.19

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY

VOLTAGE RATING
8 V To 35 V Continuous



PRODUCT VARIANTS

0855-01 - 855 USB to Ethernet Communications Device





WEIGHT
0.5 POUNDS

SIZE
5 x 4 x 2 Inches




OPERATING TEMPERATURE RANGE
-22 °F to + 158 °F

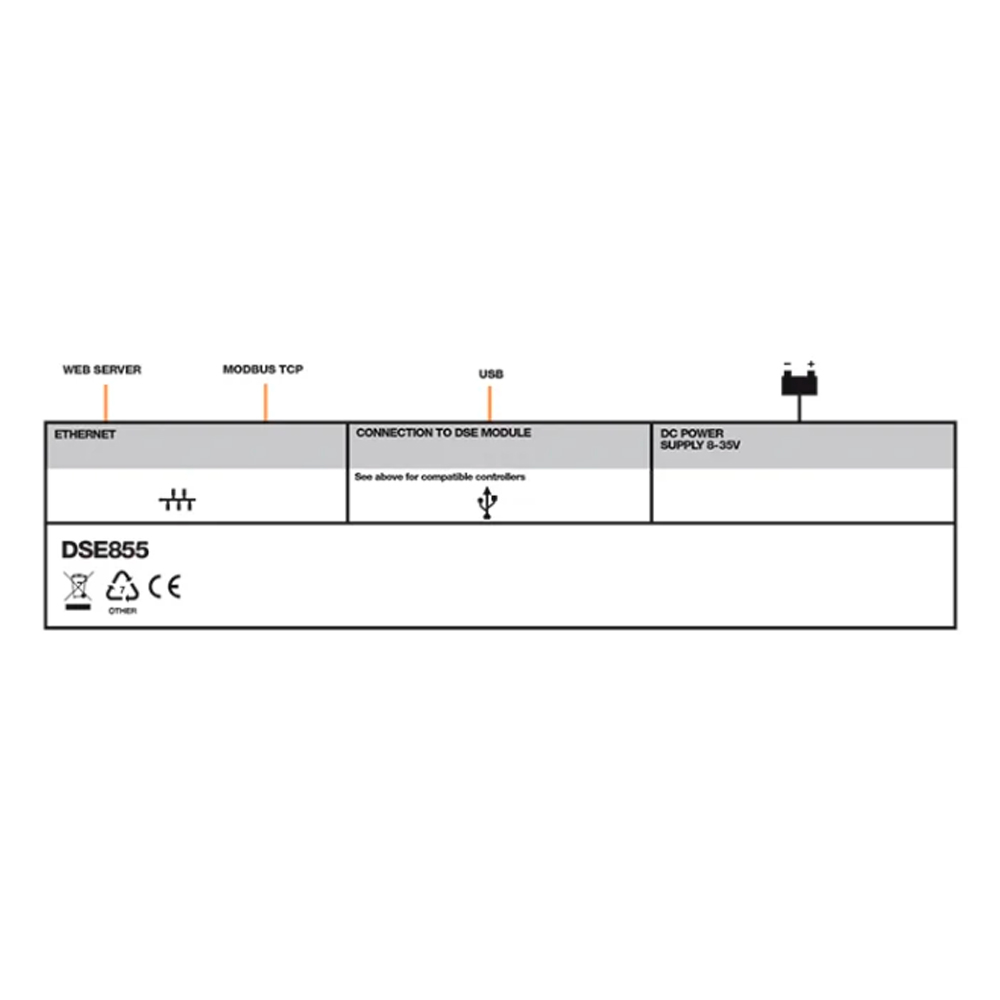

The DSE855 communications device allows monitoring of a single DSE controller with USB connectivity over a LAN or WAN connection. To achieve this the DSE855 utilises its in-built web server or MODBUS TCP. In order to use over a LAN connection the on-site router must be configured to be accessible from any global location.

Works with:

Auto Start:

DSEL401MKII/DSE4310/DSE4410/DSE4510/DSE4610/DSE6010 MKII/DSE6110/DSE6610/DSE7110 MKII/DSE7210/DSE7310

Auto Mains (Utility) Failure:

DSE4320/DSE4420/DSE4520/DSE4620/DSE6020/DSE6120 MKII/DSE6620/DSE7120MKII/DSE7220/DSE7320


CONVERTS A USB PORT
To an Ethernet port.
SIMPLE INTERNET
Browser configuration.
REMOTE CONTROL & MONITORING

For all connected modules.

  • Continuous Voltage Rating - ◖8 V To 35 V Continuous
  • Cranking Dropouts - ◖Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
  • Maximum Operating Current - ◖123 mA at 12 V 71 mA at 24 V
  • Maximum Standby Current - ◖104 mA at 12 V 63 mA at 24 V
  • Remote control & monitoring for all connected modules.



  • Communications - ◖USB (Single DSE Controller) Ethernet

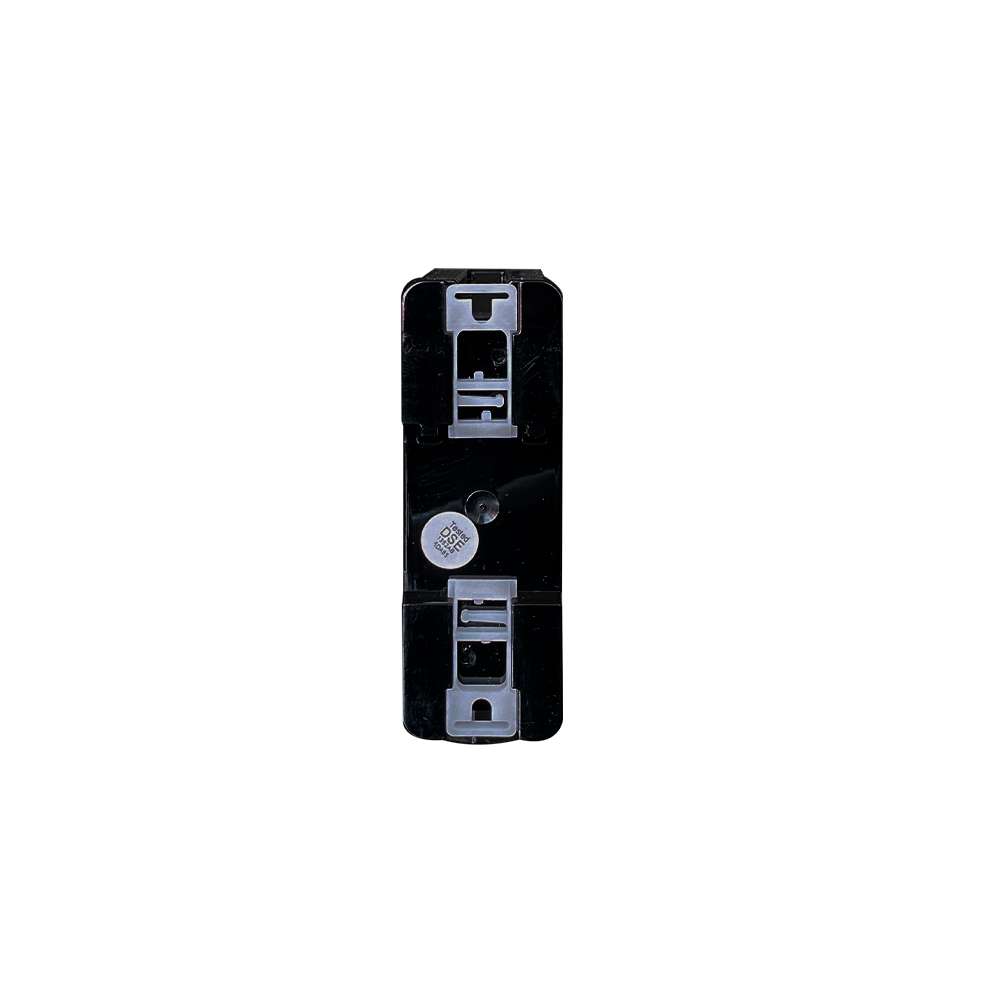

  • Dimensions - ◖Overall : 35 mm x 97 mm x 102 mm 1.4” x 3.8” x 4.0” ◖Mounting : DIN Rail
  • Operating Temperature Range - ◖-30 °C to + 70 °C -22 °F to + 158 °F
  • Storage Temperature Range - ◖-40 °C to + 80 °C -40 °F to + 176 °F

The DSE855 communications device allows monitoring of a single DSE controller with USB connectivity over a LAN or WAN connection. To achieve this the DSE855 utilises its in-built web server or MODBUS TCP. In order to use over a LAN connection the on-site router must be configured to be accessible from any global location.

Works with:

Auto Start:

DSEL401MKII/DSE4310/DSE4410/DSE4510/DSE4610/DSE6010 MKII/DSE6110/DSE6610/DSE7110 MKII/DSE7210/DSE7310

Auto Mains (Utility) Failure:

DSE4320/DSE4420/DSE4520/DSE4620/DSE6020/DSE6120 MKII/DSE6620/DSE7120MKII/DSE7220/DSE7320
