DSE 0701-05 MKII Auto Start Original

DSE0701-05 Auto Start MKII

$ 204.92 204.92000000000002 USD $ 204.92

$ 204.92

This combination does not exist.

Add to cart Buy now

DSE DSE0701-05

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY

VOLTAGE RATING

8 V to 35 V continuous

PRODUCT VARIANTS

0701-05 – 701MKII Manual & Auto Start Control Module

WEIGHT

0.5 POUNDS

SIZE
5 x 3 x 2 Inches

FREQUENCY RANGE

3.5 Hz to 75 Hz

Key Features
Description

AUXILIARY

SHUTDOWN INPUT

Provides a simple input for a remote stop switch.

ENGINE PRE-HEAT

Warms the engine to a safe temperature at start-up to increase engine life.

LED STATUS INDICATION

Provides instant generator operating status.

Continuous Voltage Rating - ◖8 V to 35 V continuous
Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without internal batteries.
Maximum Operating Current - ◖26 mA at 12 V, 27 mA at 24 V
Maximum Standby Current - ◖20 mA at 12 V, 21 mA at 24 V

Charge/Fail Exitation Range - ◖0 V TO 35 V
Outputs - ◖Start : Solid state 1.2 A negative grounding terminal ◖Run : Solid state 1.2 A negative grounding terminal ◖Pre-Heat : Solid state 1.2 A negative grounding terminal
Generator - ◖Voltage Range : 15 V - 333 V AC (L-N) ◖Frequency Range : 3.5 Hz to 75 Hz

Ensures the generator can only be operated when the key is used.
Helps to reduce module variants held in stock.
Provides a simple input for a remote stop switch.
Provides instant generator operating status.
Warms the engine to a safe temperature at start-up to increase engine life.
Protects engine from long-term damage.

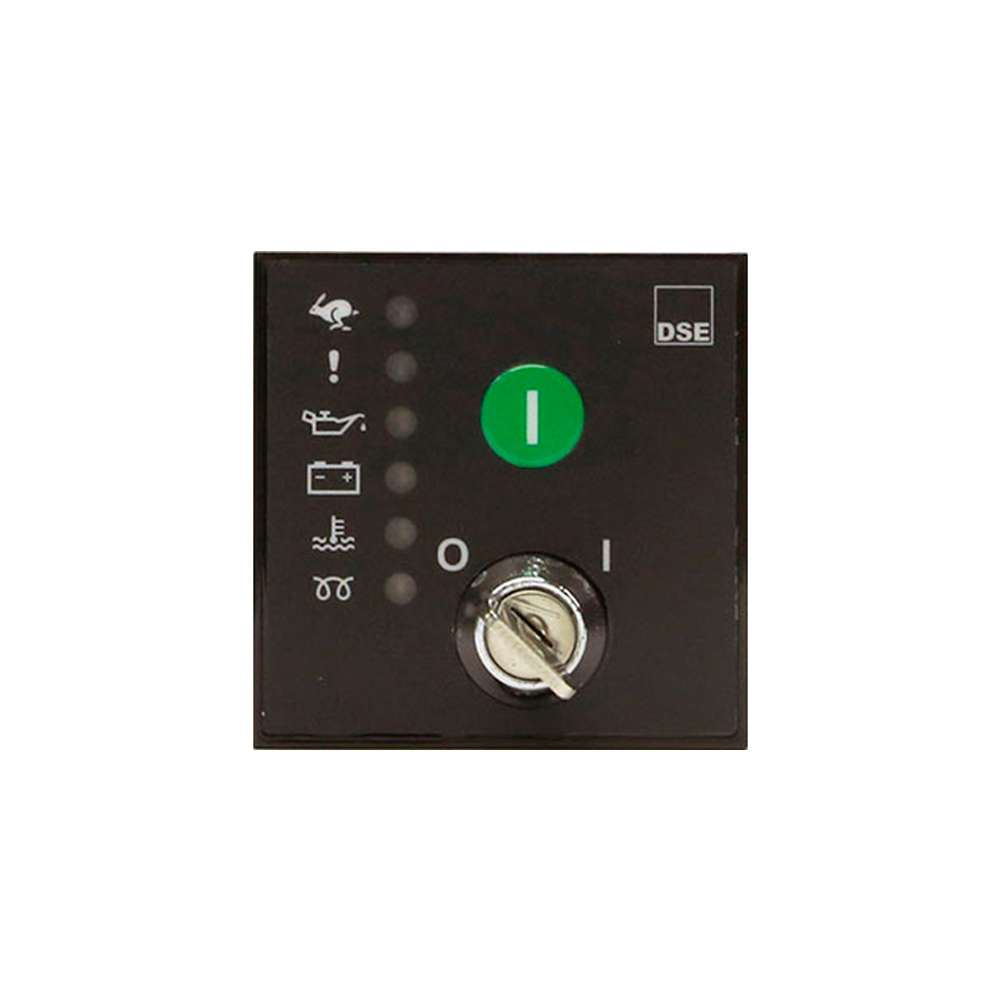

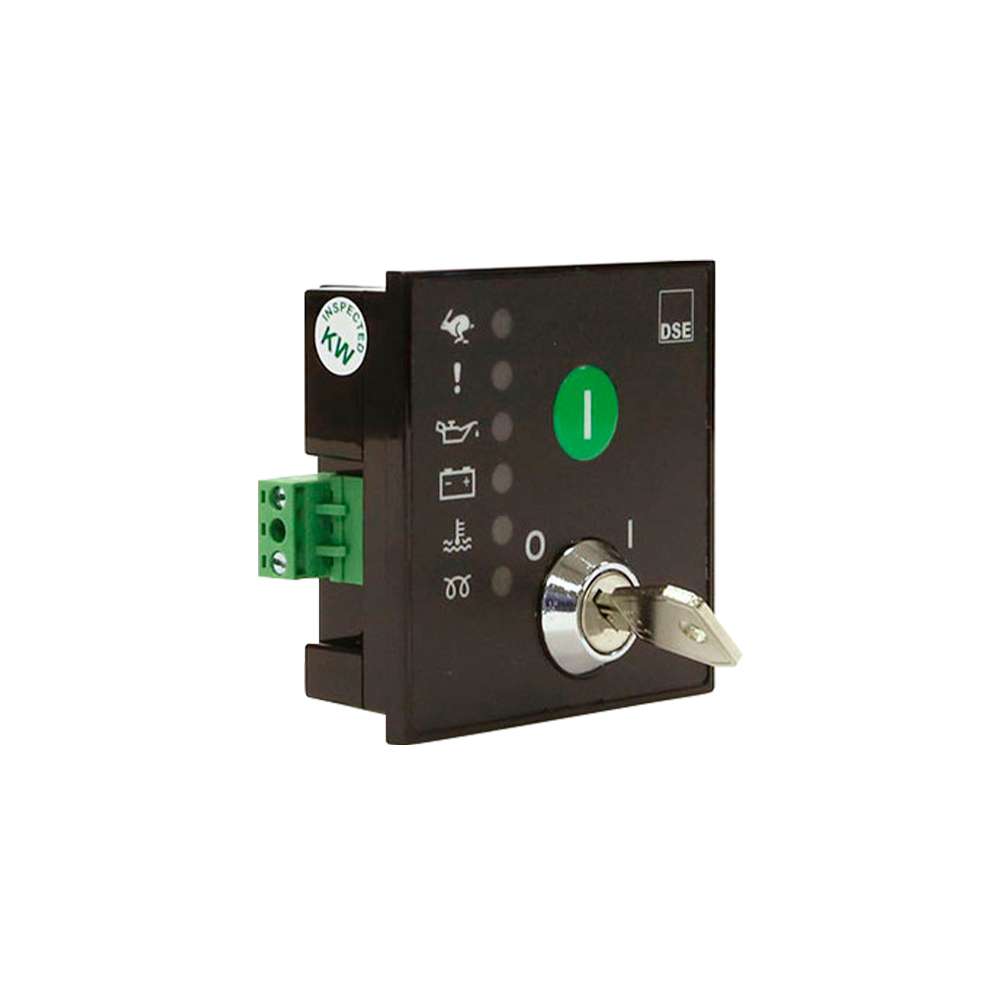

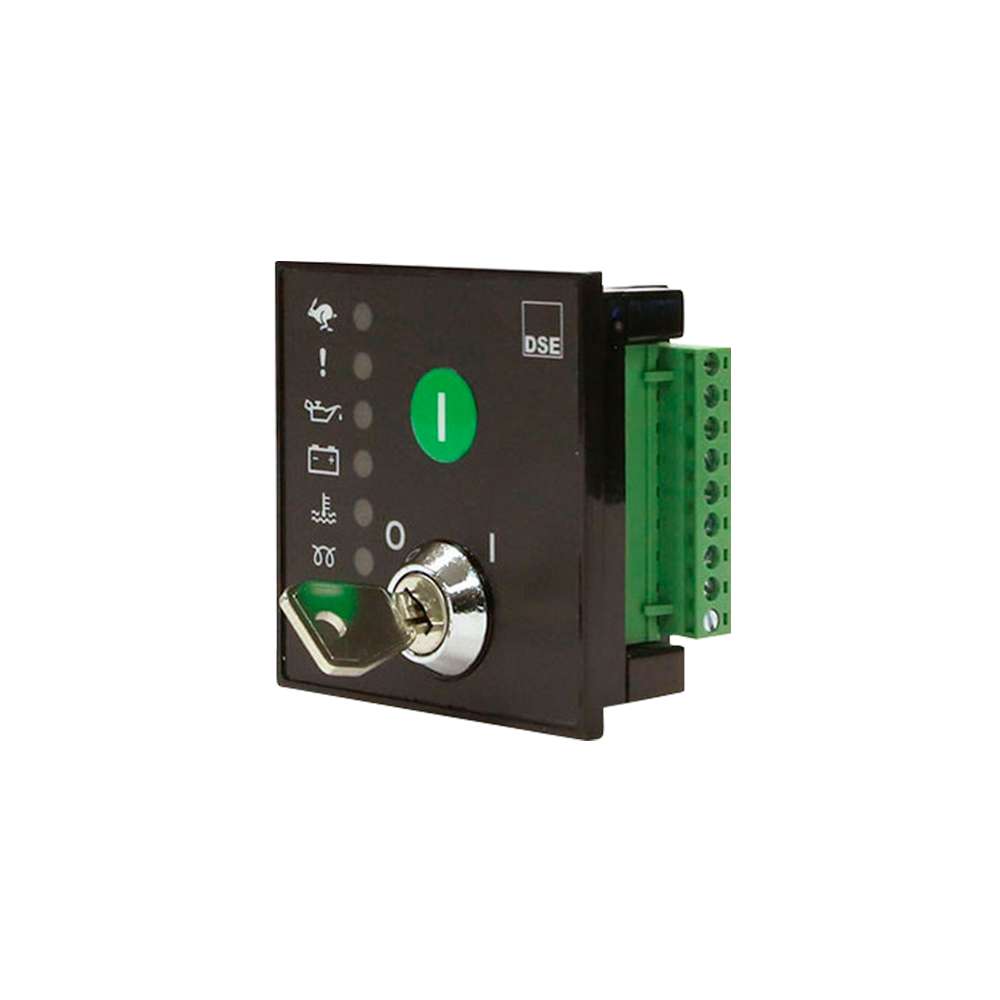

The DSE701 MKII is a compact control module that offers a range of features for single-set applications. The controller can be used in manual or auto start mode.
