  3. DSE 0334-01 Auto Transfer Switch Control Module - 12/24 Volt DC Supply (020-389 gasket not included) Original

DSE 0334-01 Auto Transfer Switch Control Module - 12/24 Volt DC Supply (020-389 gasket not included) Original

https://powermaster.odoo.com/web/image/product.template/9638/image_1920?unique=66f7752

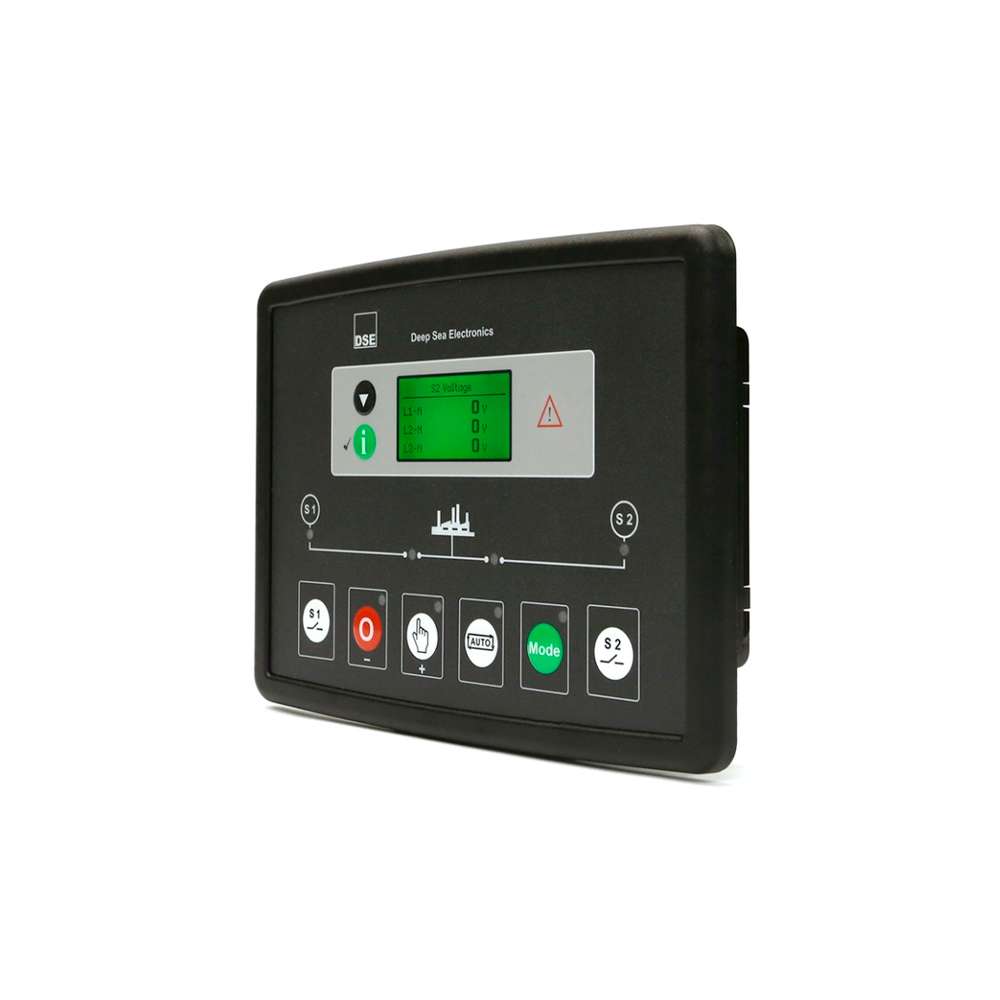

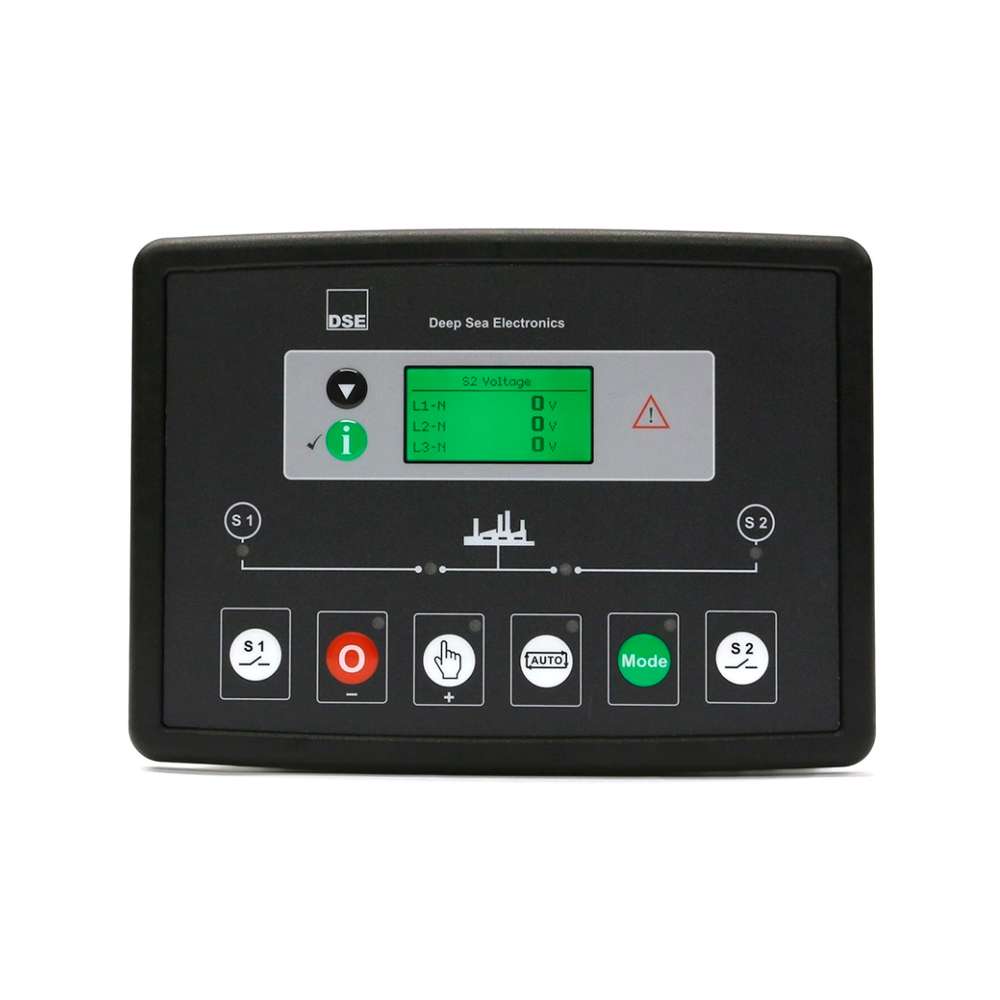

DSE334 Auto Transfer Switch Control Module - 12/24 Volt DC Supply (020-389 gasket not included)

$ 568.59 568.59 USD $ 568.59

$ 568.59

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY

VOLTAGE RATING
8 V to 35 V Continuous

PRODUCT VARIANTS

0334-01 - 334 Auto Transfer Switch Control Module - 12/24 Volt DC Supply

WEIGHT
1.14 POUNDS
SIZE
8 x 6 x 1 Inches
FREQUENCY RANGE
3.5 Hz to 75 Hz



PRODUCT VARIANTS

0334-01 - 334 Auto Transfer Switch Control Module - 12/24 Volt DC Supply

​ DSE CONFIGURATION SUITE PC SOFTWARE
Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.
CHECK SYNC FEATURE
Configurable event log
AUTOMATIC SWITCH OVER BETWEEN SUPPLIES
Switches power when mains (utility) supply fails and switches back when mains (utility) supply returns.
  • Continuous Voltage Rating - ◖8 V to 35 V Continuous
  • Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
  • Maximum Operating Current - ◖292 mA at 12 V, 167 mA at 24 V
  • Maximum Standby Current - ◖101 mA at 12 V, 66 mA at 24 V
  • Mains (Utility) - ◖Voltage Range : 15 V to 333 V AC (L-N) ◖Frequency Range : 3.5 Hz to 75 Hz
  • Outputs - ◖Output A (Mains/Utility/S1) : Normally closed volt-free output 8 A AC at 250 V AC ◖Output B (Generator/S2) : Normally open volt-free output 8 A AC at 250 V AC ◖Output C (Start And Run) : Normally closed volt-free output 8 A DC at 35 V DC (UL Rating 30 V) ◖Output D : Changeover volt-free output 8 A AC at 250 V AC ◖Output E : Normally open volt-free output 8 A AC at 250 V AC


  • Generator Voltage Range 15 V to 333 V AC (L-N) Frequency Range 3.5 Hz to 75 Hz
  • Dimensions Overall 215 mm x 158 mm x 42 mm 8.5” x 6.2” x 1.6” Panel Cut-Out 182 mm x 137 mm 7.2” x 5.4” Maximum Panel Thickness 8 mm 0.3”
  • Operating Temperature Range -30°C to +70°C
  • Storage Temperature Range -40°C to +80°C

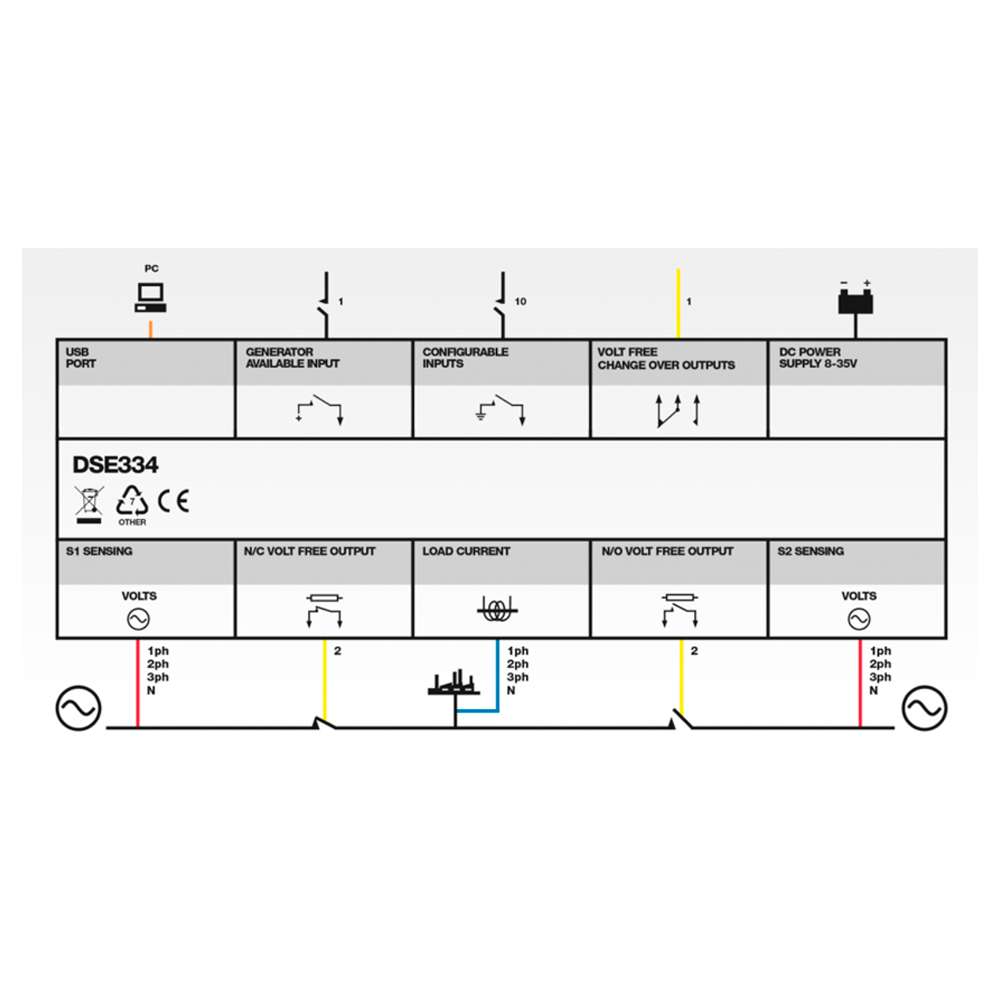

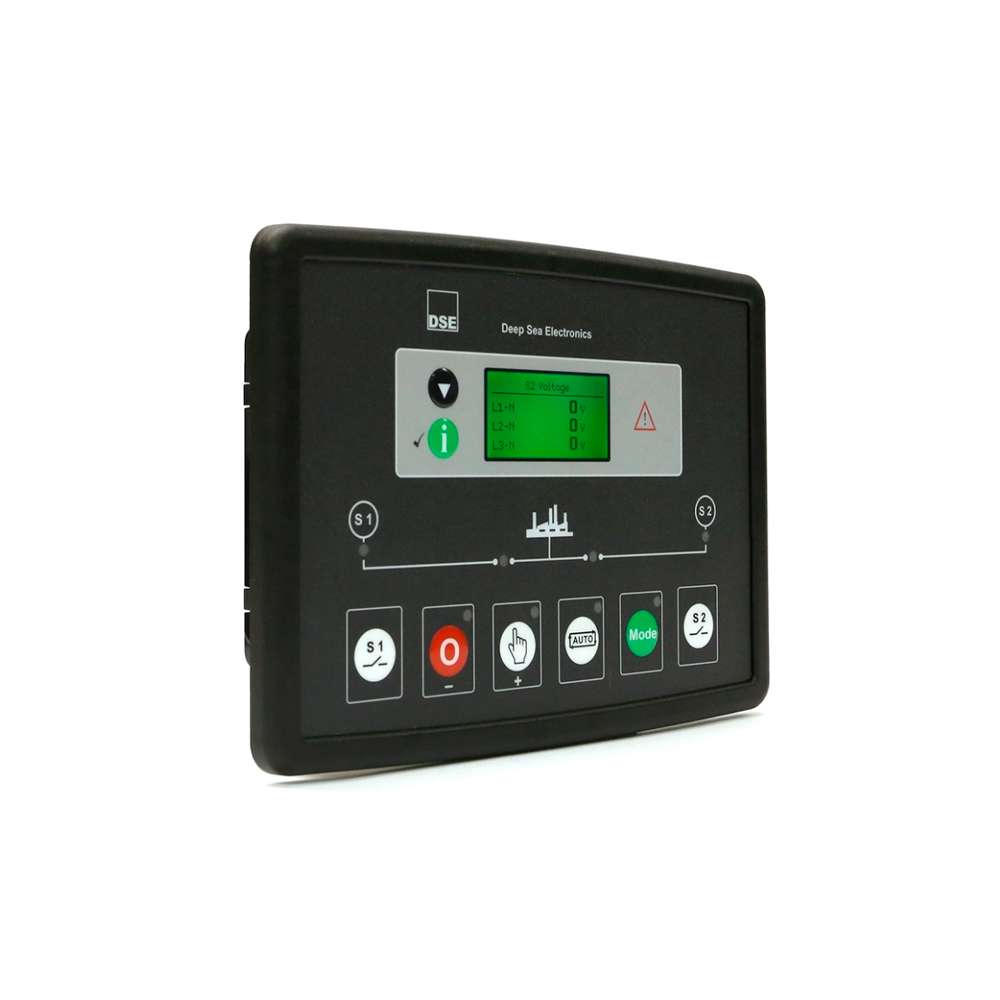

The DSE334 Automatic Transfer Switch Control Module monitors the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both.

The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available.


DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous


CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.


MAXIMUM OPERATING CURRENT

292 mA at 12 V, 167 mA at 24 V


MAXIMUM STANDBY CURRENT

101 mA at 12 V, 66 mA at 24 V


MAINS (UTILITY)

VOLTAGE RANGE

15 V to 333 V AC (L-N)


FREQUENCY RANGE

3.5 Hz to 75 Hz




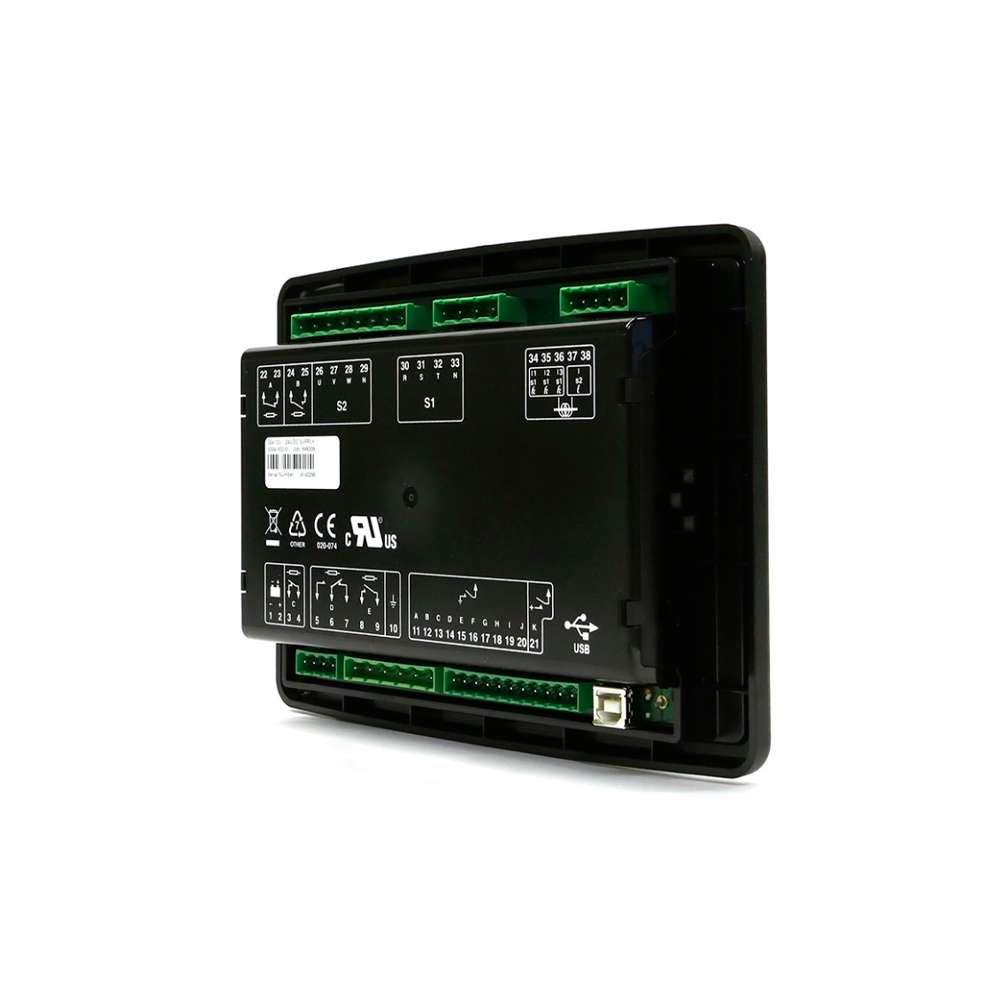

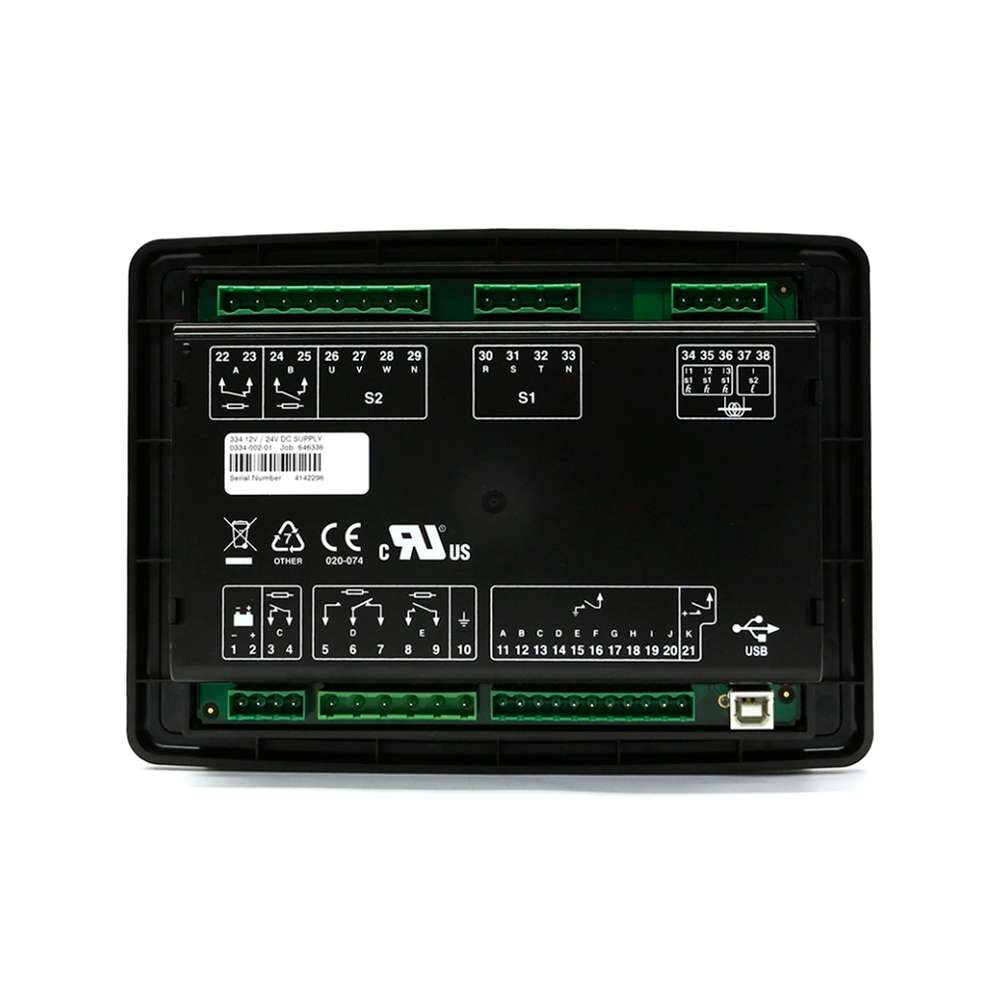

OUTPUTS

OUTPUT A (MAINS/UTILITY/S1)

Normally closed volt-free output 8 A AC at 250 V AC


OUTPUT B (GENERATOR/S2)

Normally open volt-free output 8 A AC at 250 V AC


OUTPUT C (START AND RUN)

Normally closed volt-free output 8 A DC at 35 V DC (UL Rating 30 V)


OUTPUT D

Changeover volt-free output 8 A AC at 250 V AC


OUTPUT E

Normally open volt-free output 8 A AC at 250 V AC


GENERATOR

VOLTAGE RANGE

15 V to 333 V AC (L-N)

FREQUENCY RANGE

3.5 Hz to 75 Hz
