  3. Hotstart CTM10110-N00 Original Engine Heater

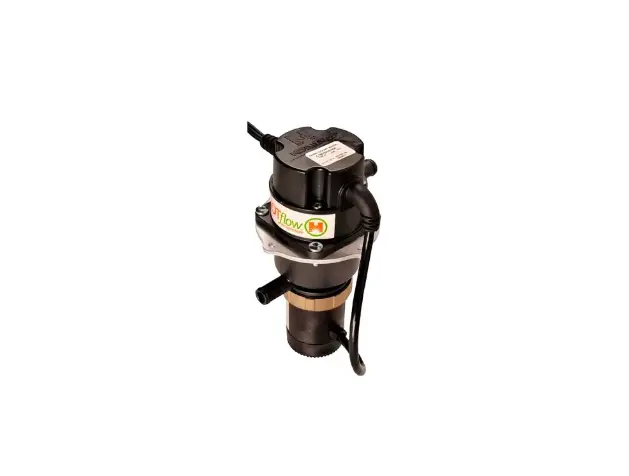

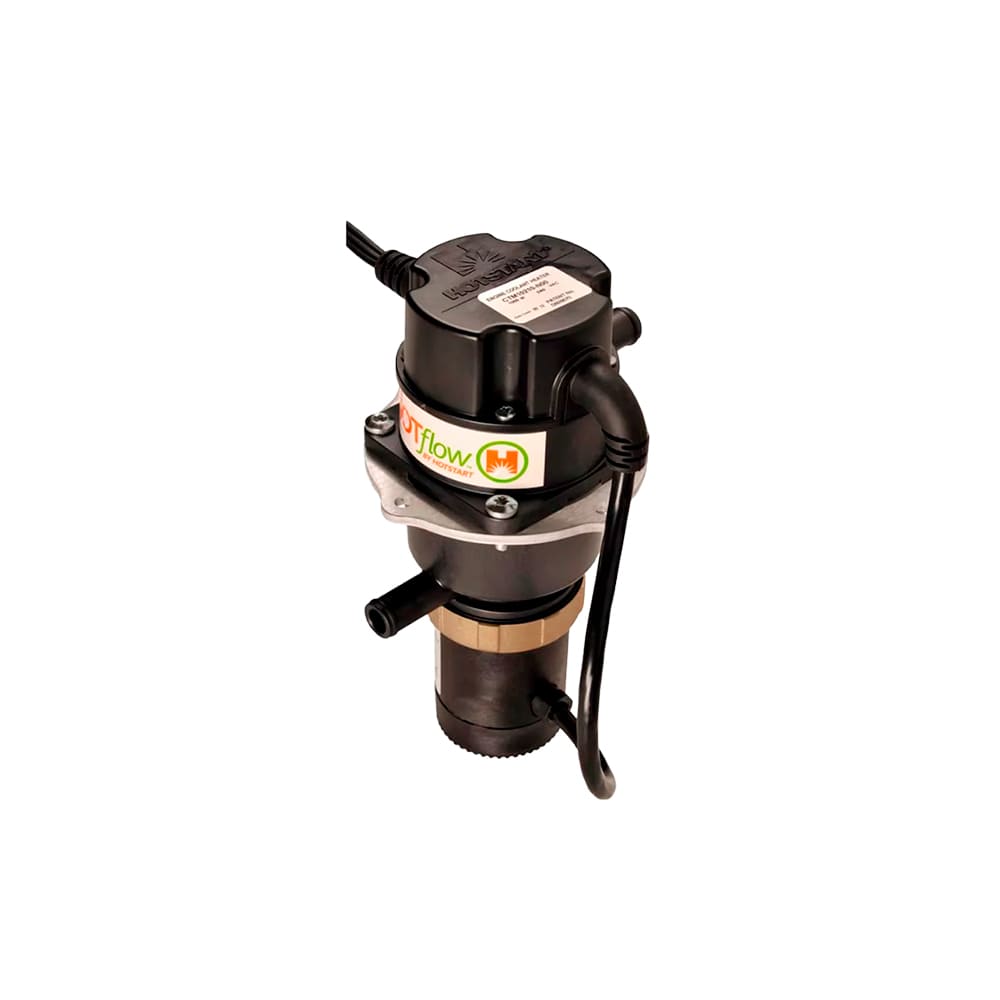

Hotstart CTM10110-N00 Original Engine Heater

https://powermaster.odoo.com/web/image/product.template/9726/image_1920?unique=3c4bf5d

CTM 1000W 120V 100-120F NEMA

$ 769.99 769.99 USD $ 769.99

$ 769.99

Not Available For Sale

This combination does not exist.

Contact Us
Engine Heater Hotstart HOT Flow COOLANT System CTM10110-N00

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

POWER SUPPLY

120v 60Hz 1kW 8.8 Amps

PART NUMBER
CTM10110-N00

1000W – 120V

WEIGHT

3,9 POUNDS

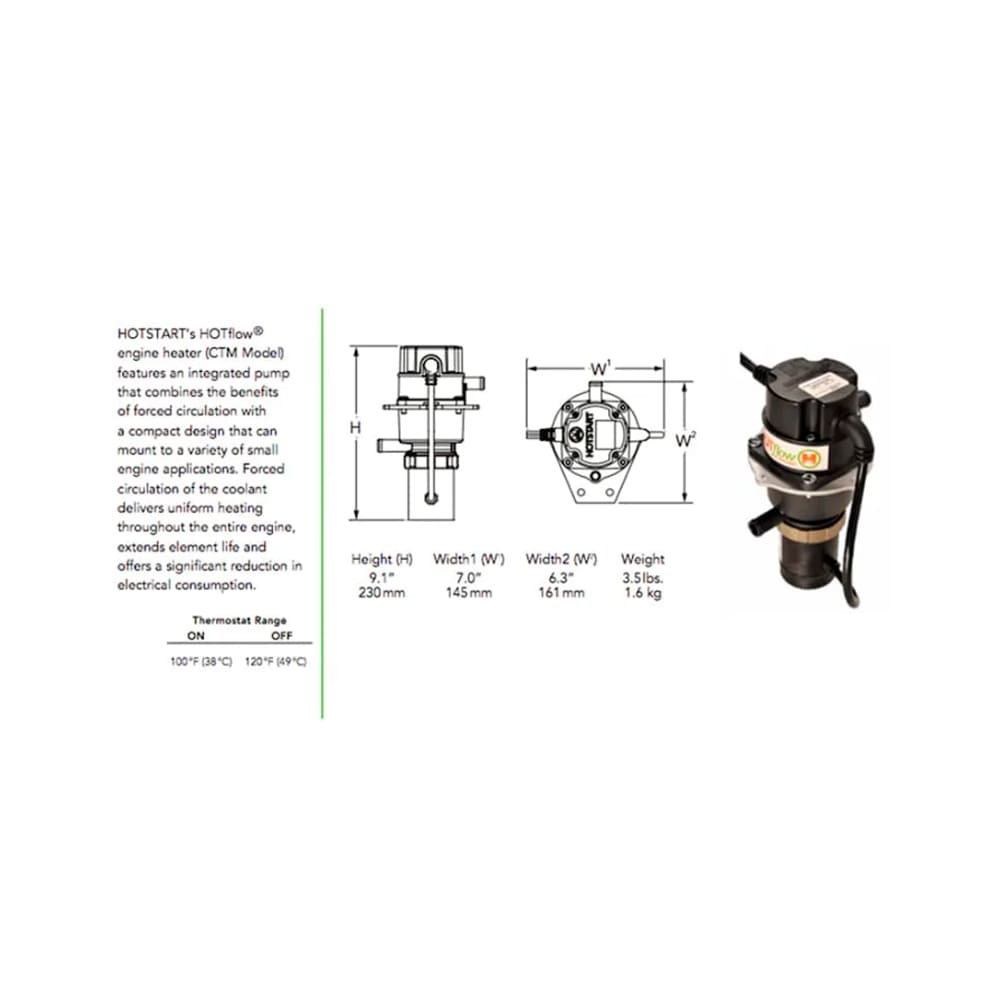

SIZE

12 x 8 x 8 Inches

MODEL AVAILABLE

UL/C-US
Compact design Easy to install




ENGINE DISPLACEMENT

  500-700 CID / 8-12 L

TEMPERATURE CONTROL

 Fixed, 100-120°F (38-49°C)

FLUID TYPE

Water/Coolant mix (50% water, 50% glycol)

  • System - ◖Voltage (60 Hz): 120 V ◖Ingress: IP44 ◖Min./Max. Ambient Temp: -40°F/104°F (-40°C/40°C) ◖Application: for use in weather protected applications ◖Certification: UL/C-US recognized models available (E250789) CE-compliant models available


  • Coolant - ◖Fluid Type: Water Coolant mix (50% water/50% glycol) ◖Heat Power: 1.5 kW ◖Temp. Control: Fixed, 100 – 120 °F (38–49°C) ◖Temp. High Limit: 300 °F (149°C) ◖Flow: 3.5 gpm @ 4 psi (13.3 L/min @ 28 kPa) ◖Inlet/Outlet: 0.625” (16mm) hose barb



HOTflow TM model CTM was developed to pre-heat diesel and gas engines for stationary land power, marine and construction equipment. HOTSTART’s CTM HOTflow TM heating system is a complete coolant preheater. It features an integrated pump that combines the benefits of forced circulation with a compact design that can mount to a variety of small engine applications. The CTM model heats engines up to 20L displacement. Forced circulation of the coolant delivers uniform heating throughout the entire engine, extends element life and offers a significant reduction in electrical consumption.
