  3. Power Master R230 Automatic Voltage Regulator

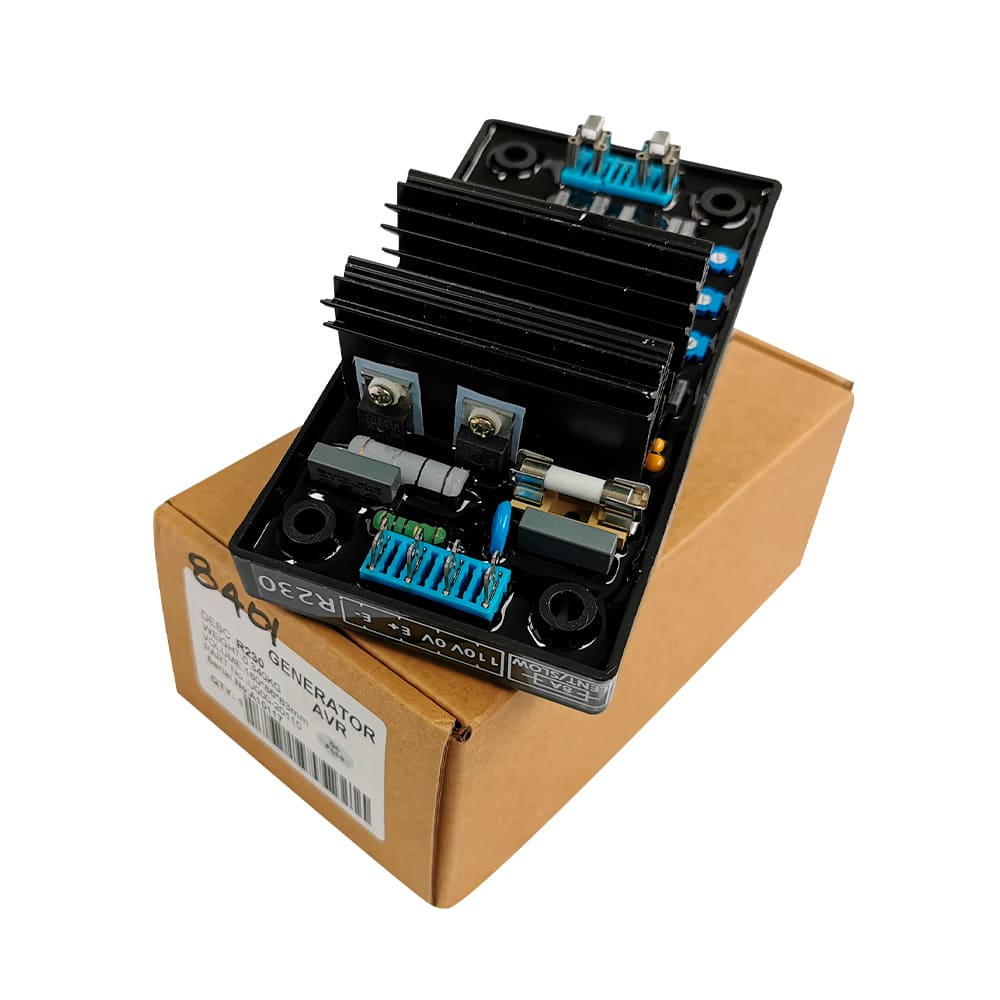

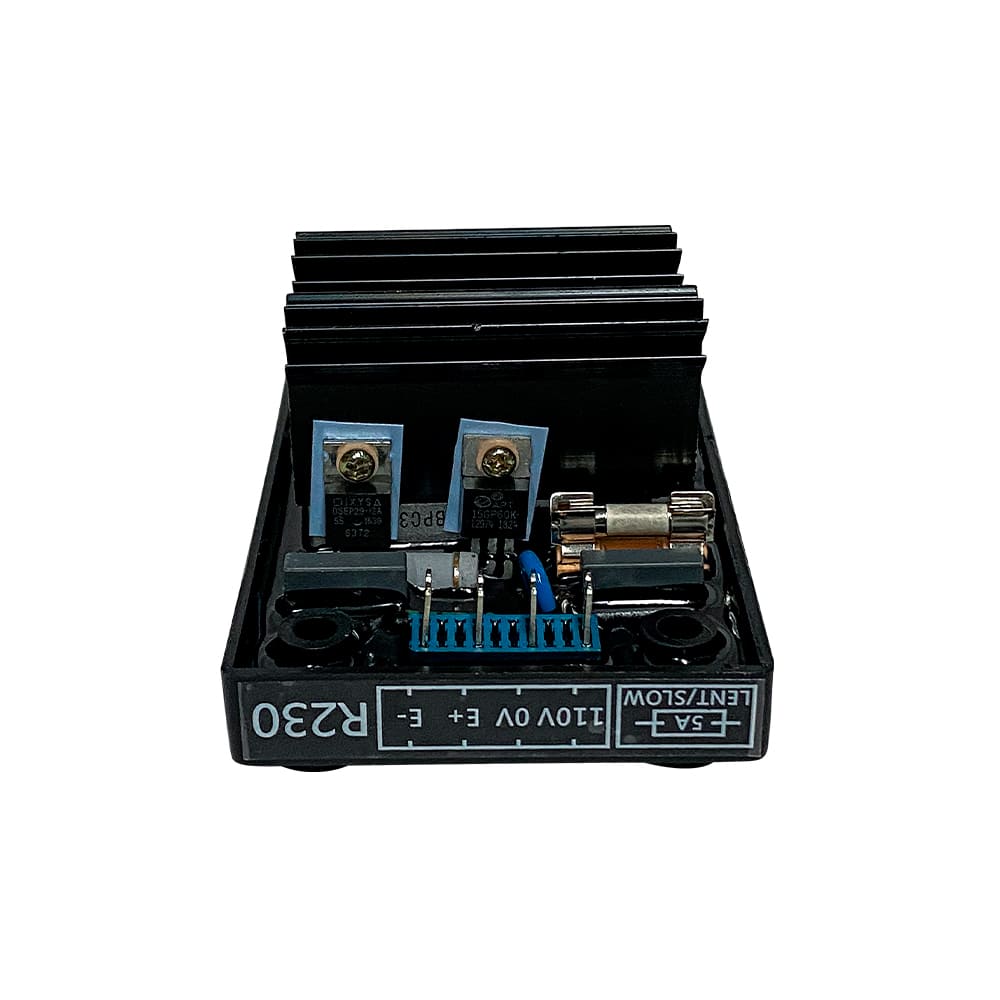

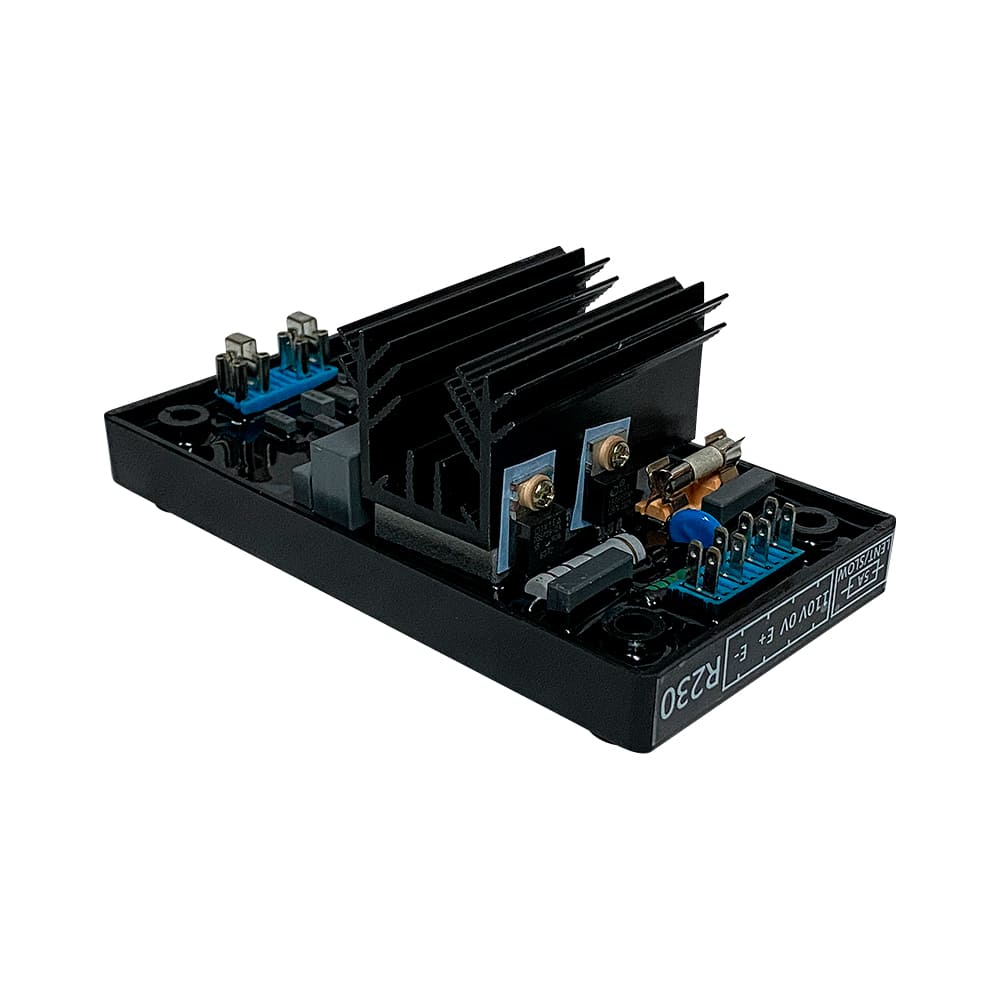

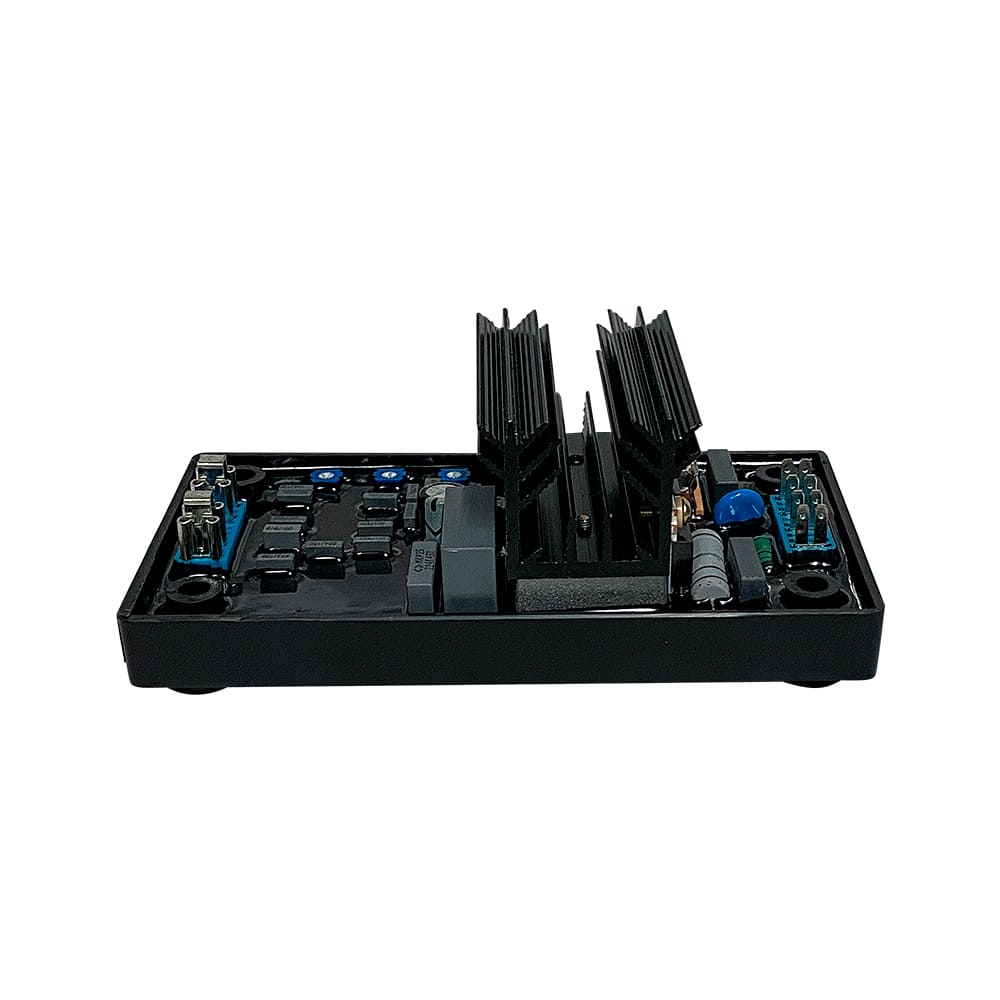

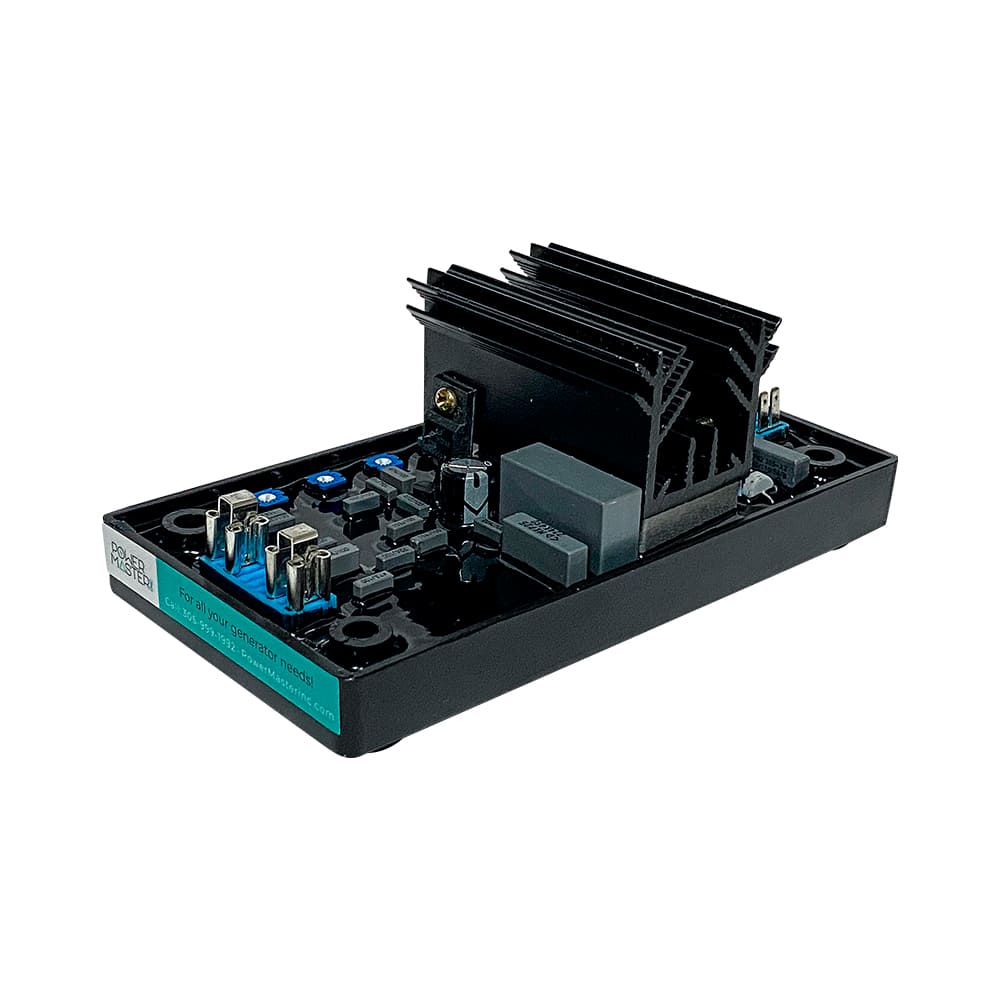

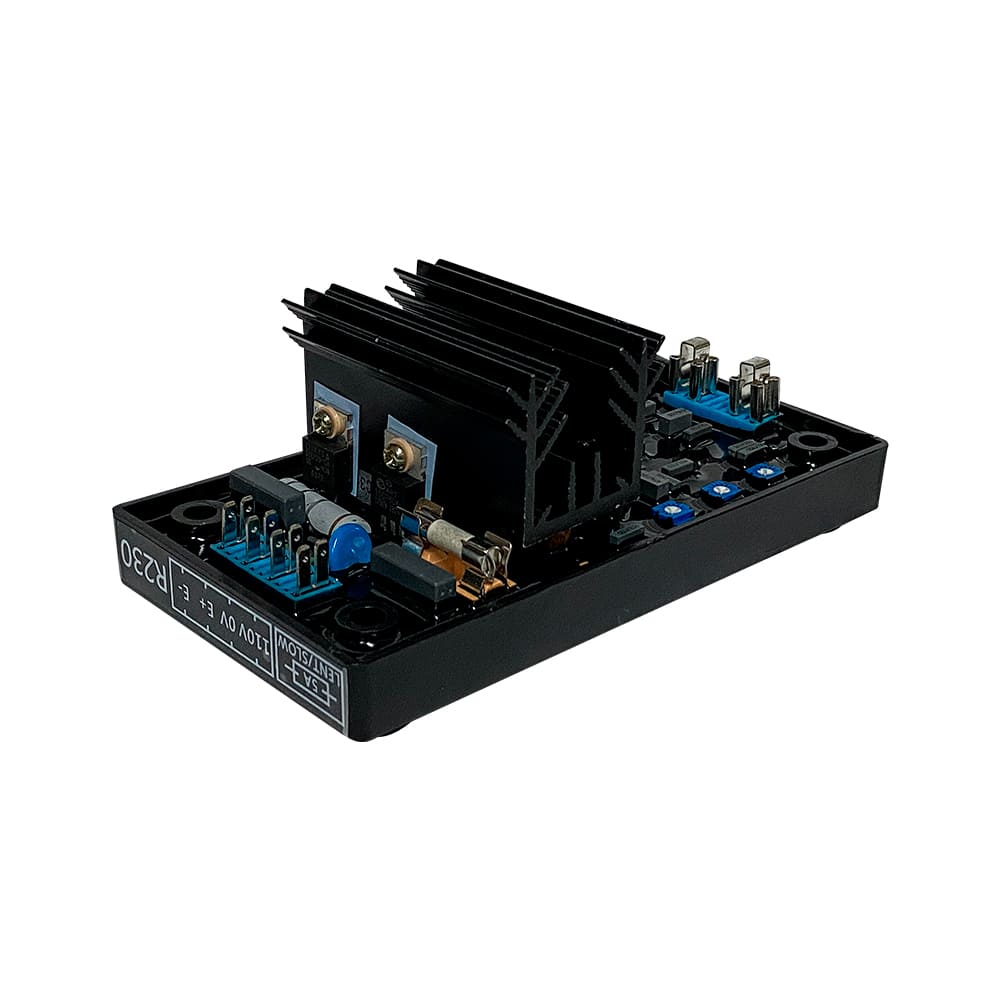

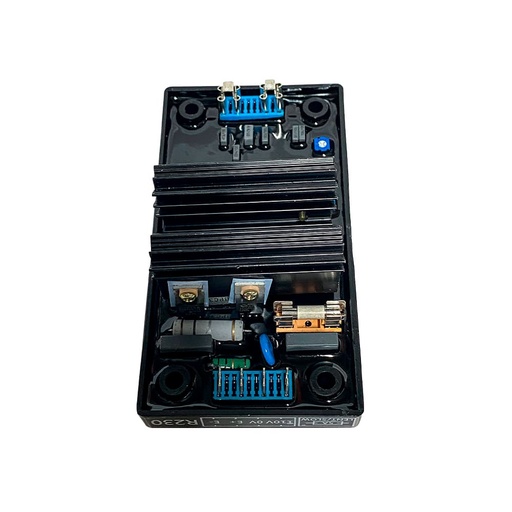

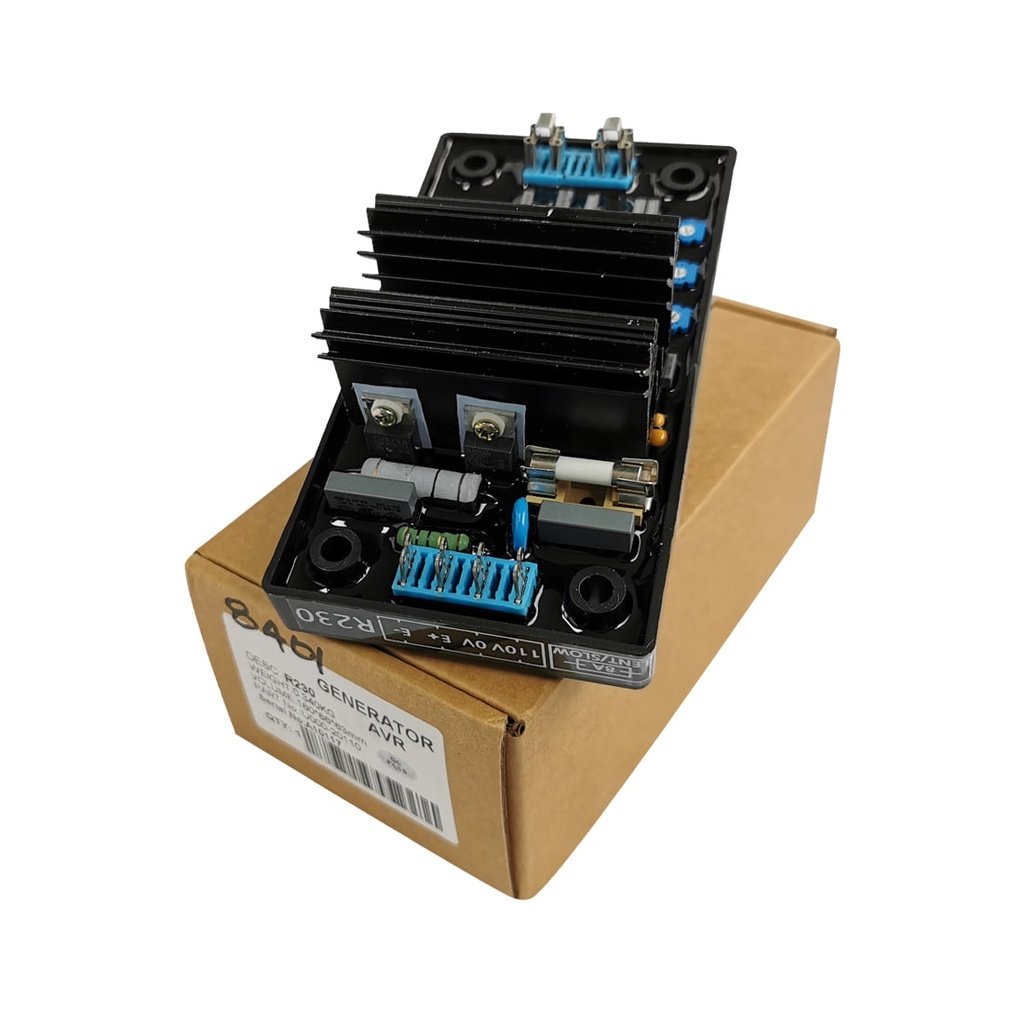

Power Master R230 Automatic Voltage Regulator

https://powermaster.odoo.com/web/image/product.template/9607/image_1920?unique=6c0b037

R230 Automatic Voltage Regulator. Voltage supply/sensing range 85 to 139 V (50/60 Hz).

$ 41.49 41.49 USD $ 41.49

$ 41.49

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

POWER INPUT

120V AC / 90 - 140V AC

OUTPUT
Max.100V DC - 120V AC
WEIGHT

0.7 POUNDS

SIZE

 7 x 4 x 3 Inches




VOLTAGE REGULATION AROUND

± 0.5%




The R230 Automatic Voltage Regulator is transistor controlled and monitored, thereby providing excellence regulation regardless of load distortions. The voltage accuracy is +/- 0.5% in a stable.


UNIT POWER DISSIPATION

Max. 6 watts



THERMAL DRIFT

0.03% change in AVR environment

VIBRATION

1.5G /5 - 30Hz 5.0G /30 - 500Hz

  • Power Input (pmg) - 120V AC / 90-140V AC / 1 phase 2 wire 45 - 65 Hz
  • Output - ◖Voltage: Max.100V DC - 120V AC ◖Current: Continuous 8A / lntermittent  10A for 10 secs. ◖Resistance: 15 ohms minimum
  • Voltage regulation - around ± 0.5%.
  • Voltage supply/sensing range -  85 to 139 V (50/60 Hz)
  • Rapid response time - (500 ms) fer a transient voltage variation arnplitude of ± 20%
  • External Voltage Adjustment - +/-5% with 5K o,1/2 watt trimmer
  • Unit Power Dissipation - Max. 6 watts


  • EMI Suppression - Internal electromagnetic interference
  • Under Frequency Protection - 47/57 Hz (adjustable)
  • Thermal Drift - 0.03% change in AVR environment
  • Vibration -  1.5G /5 - 30Hz 5.0G /30 - 500Hz
  • Relative humidity - <95%.
  • Operating Temperature - -40° - 60°
  • Storage temperature --40° - 85°



  • The R230 Automatic Voltage Regulator is transistor controlled and monitored, thereby providing excellence regulation regardless of load distortions. The voltage accuracy is +/- 0.5% in a stable.


Stability Adjustment

Power supply protected by 8 A fuse, slow- blow action (tolerates 10 A for 10 s)

Droop Adjustment

  Rapid response time (500 ms) for a transient voltage variation amplitude of ± 20% – Voltage setting P1

Trim Adjustment

  Potentiometer for remote voltage adjustment, 1000 Ω / 0.5 W min: adjustment range ± 5%. – Remove the ST4 jumper.


The alternator with shunt excitation is self-excited with an R230 voltage regulator.


The regulalor monitors the exciter excitation current as a tunction of the alternator output voltage. Very simple in design, the alternator win shunt excitation has no sustaining short-arcult capacity:

Power supply protected by 8 A fuse, slow-blow action tolerates 10 A for 10 5)

Frequency: 50 Hz with ST3 jumper - 60 Hz without ST3 Jumpe

Factory-set underspeed protection P3
