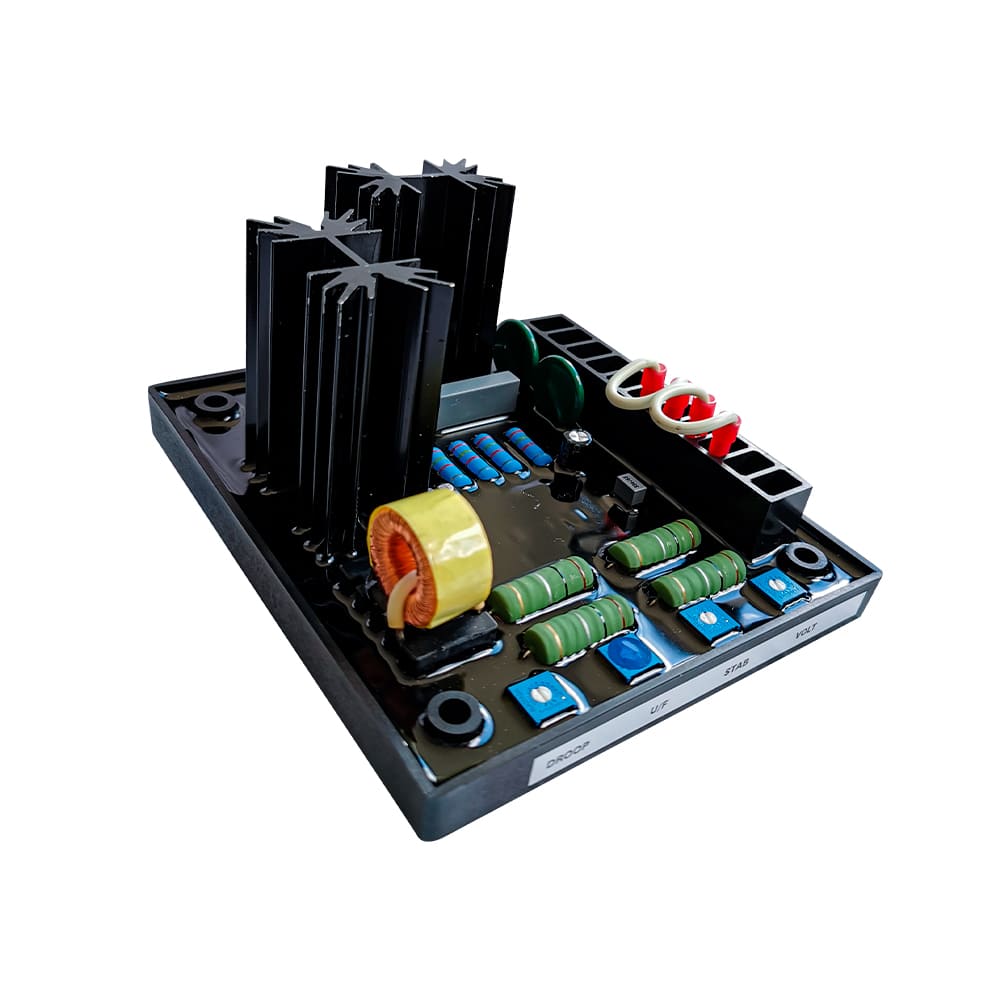

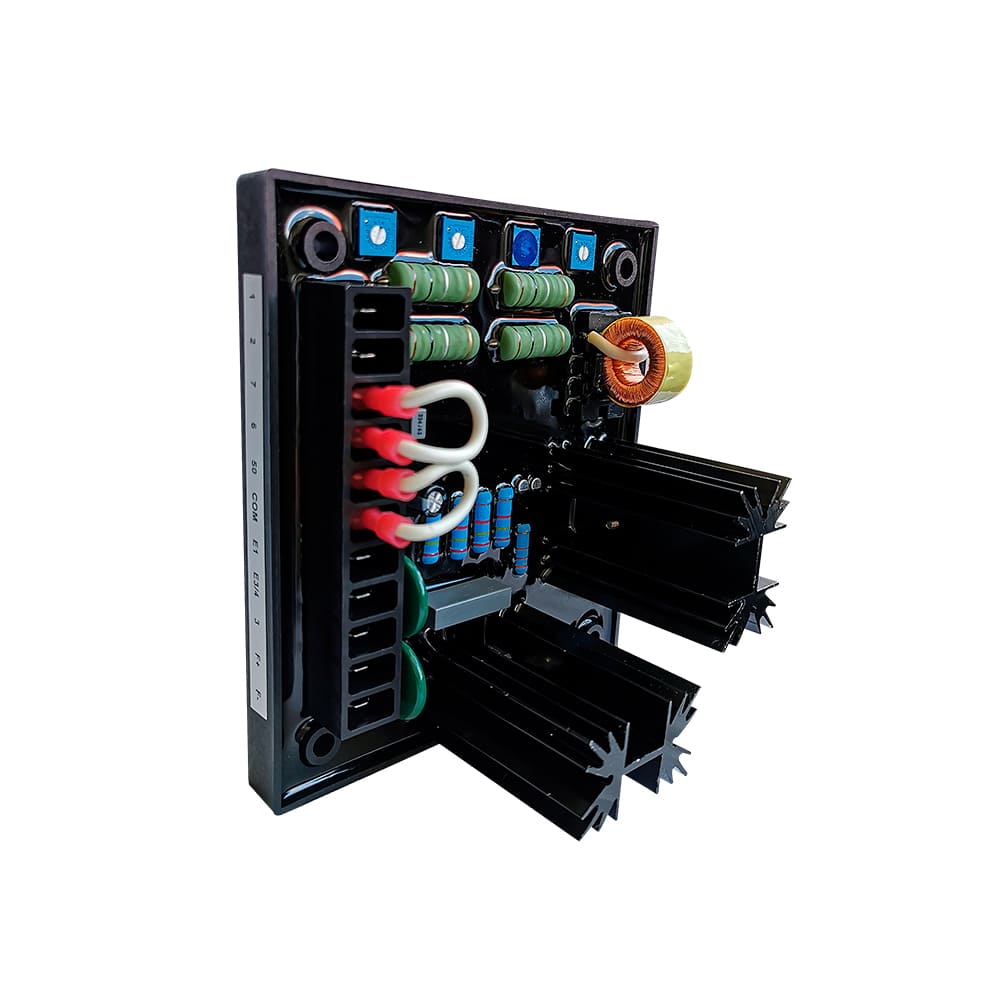

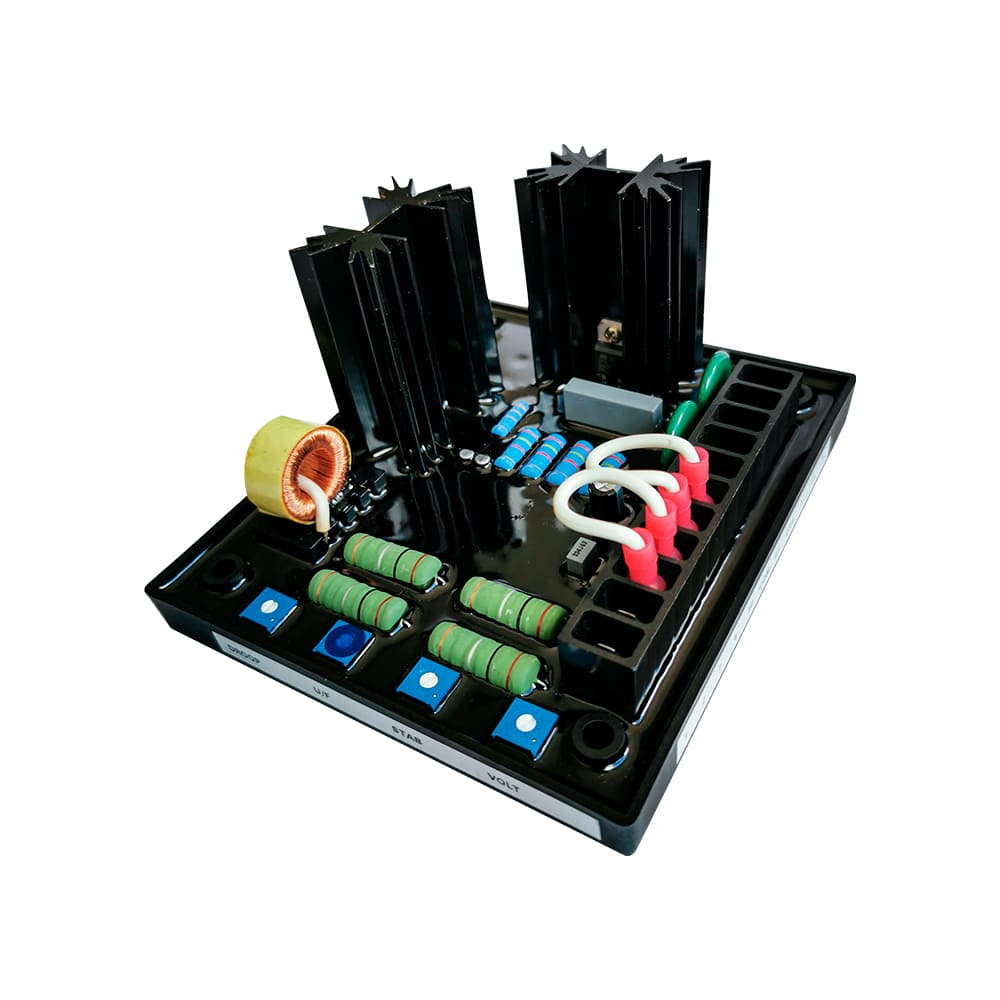

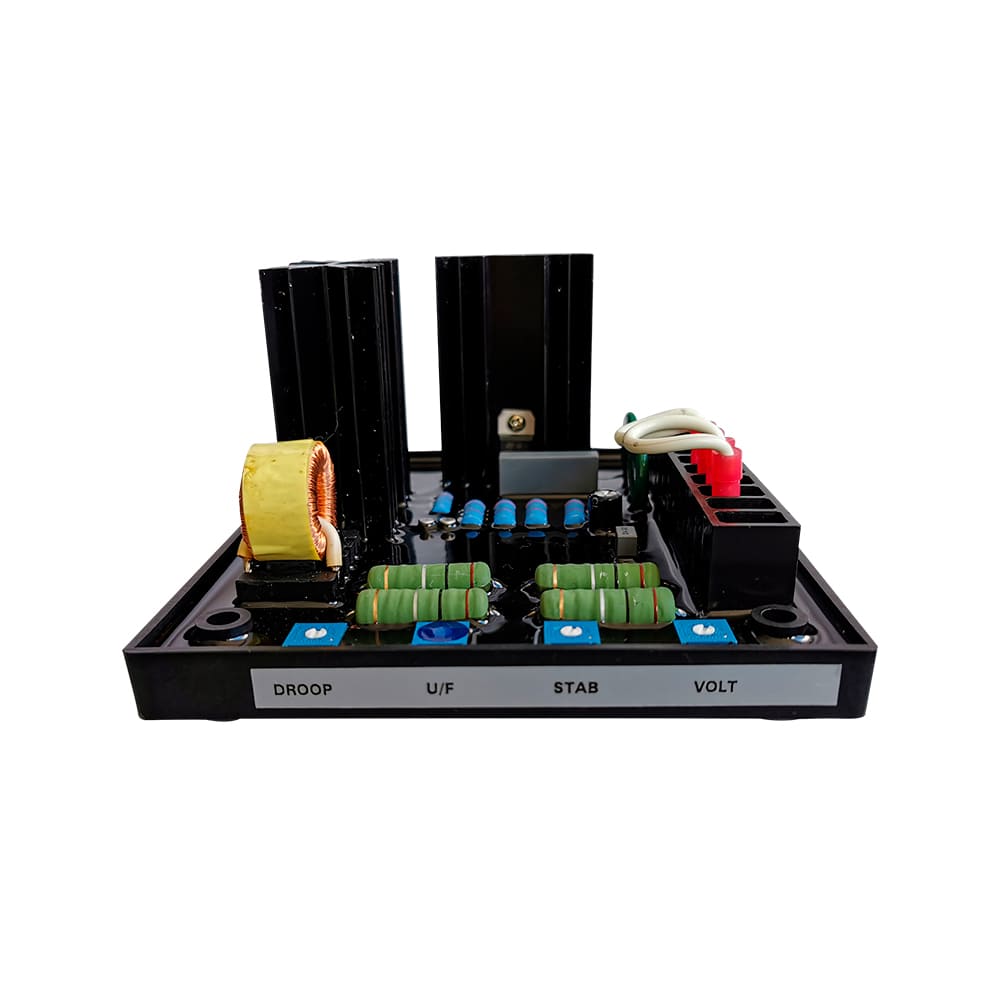

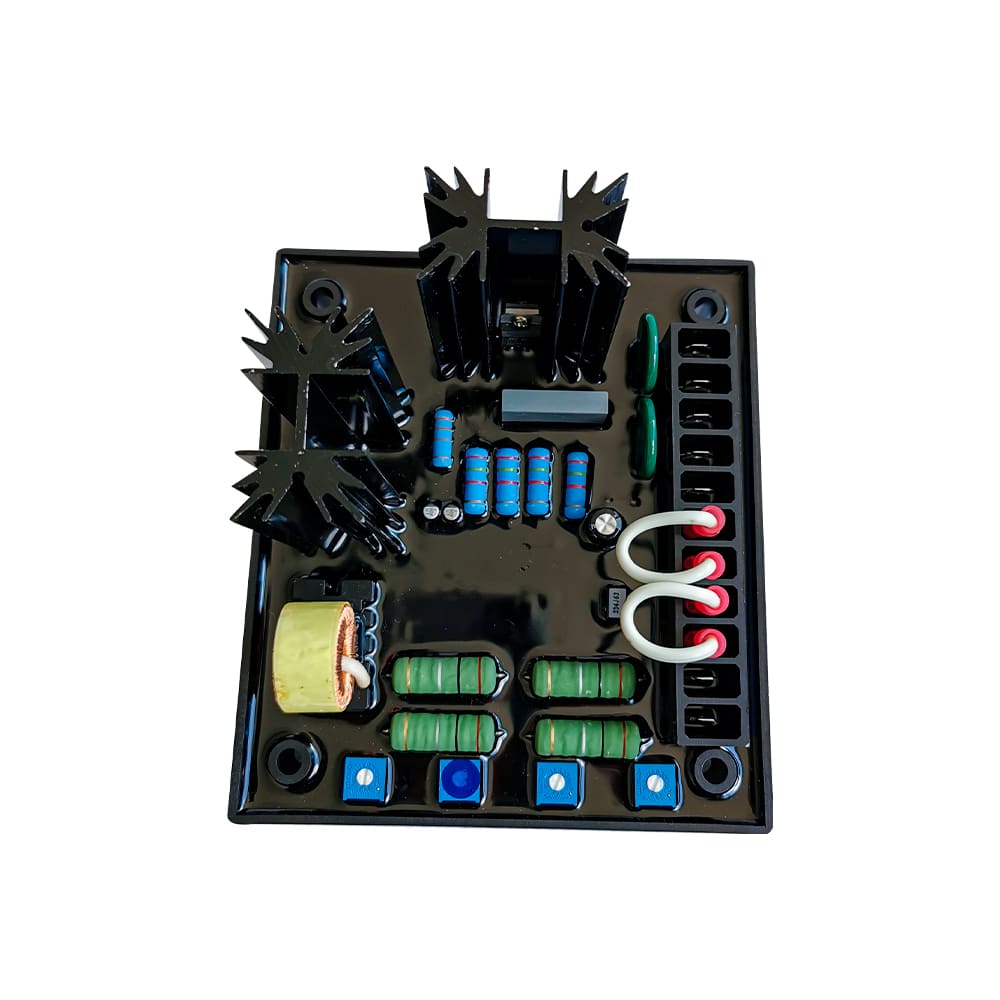

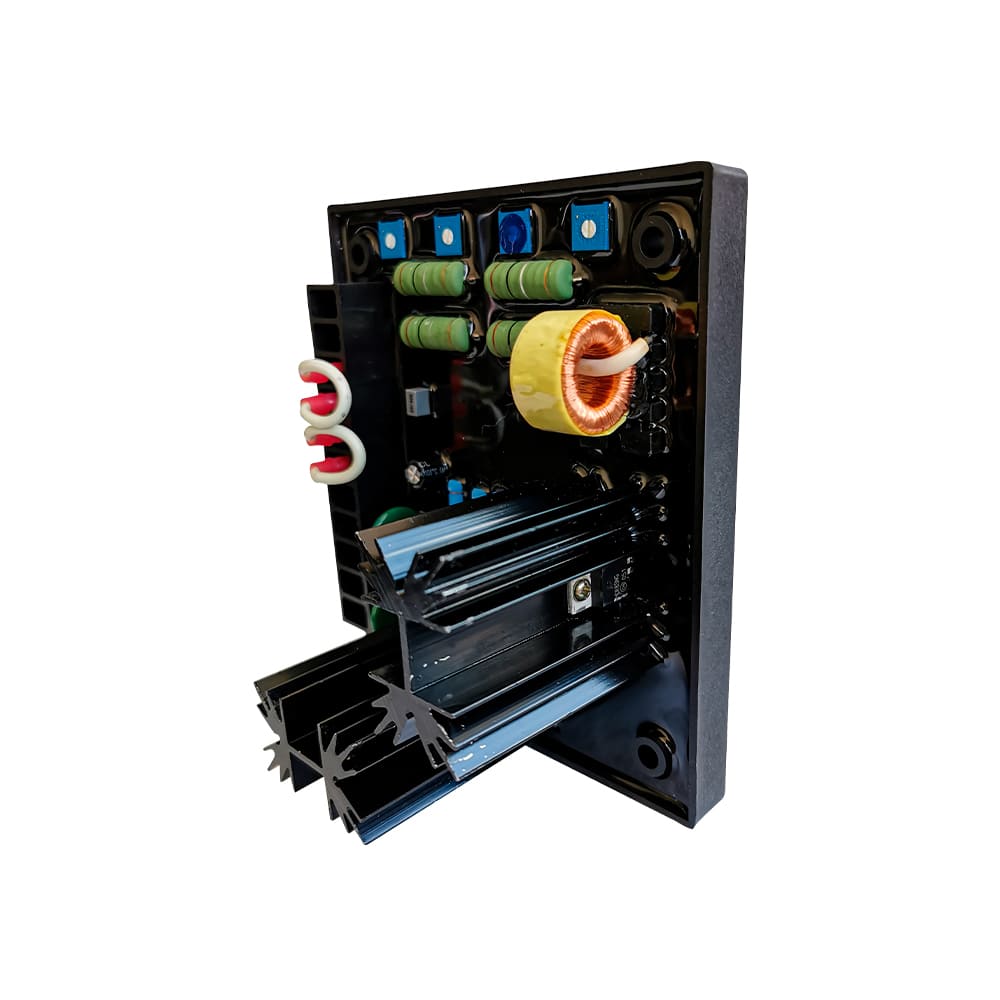

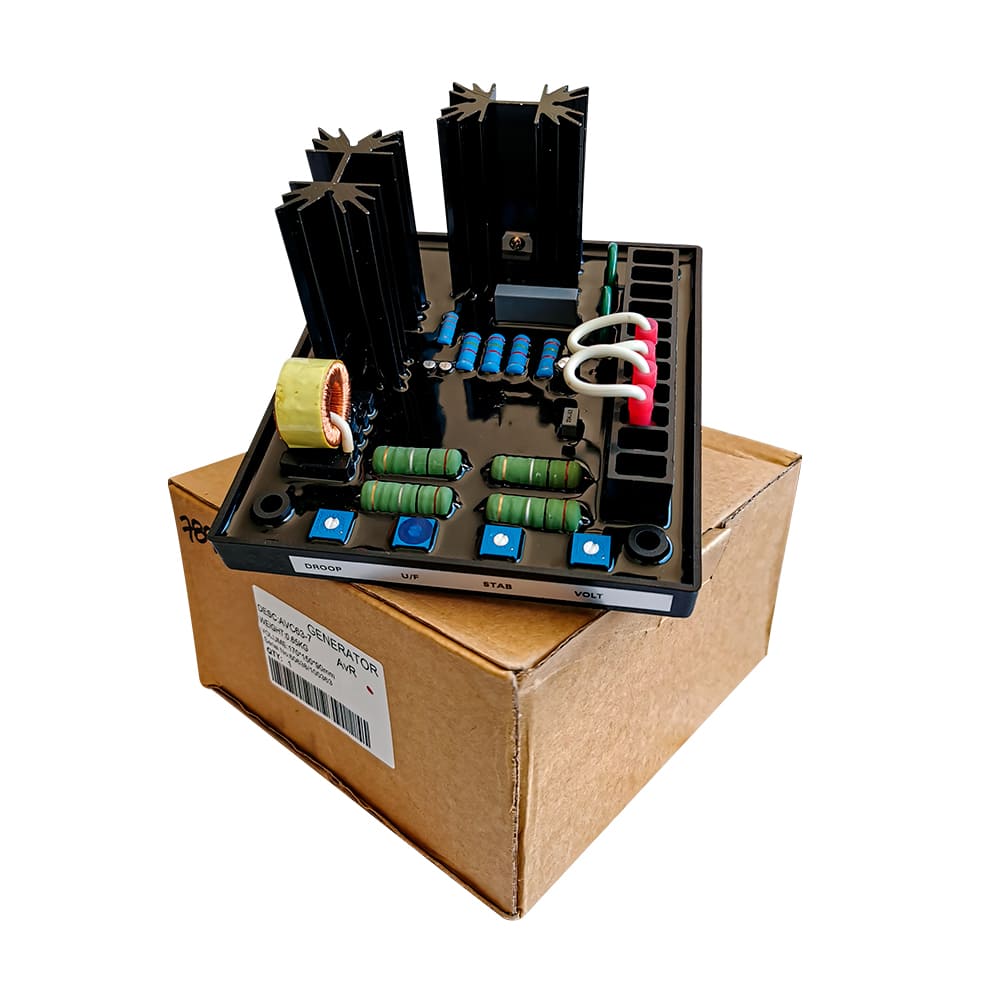

Power Master AVC63-7 Automatic Voltage Regulator

Power Master AVC63-7 Automatic Voltage Regulator

AVC63-7 Automatic Voltage Regulator. 190 TO 277 Vac, 50/60Hz, 900VA

$ 137.49 137.49 USD $ 137.49

$ 137.49

This combination does not exist.

Add to cart Buy now

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

POWER INPUT

170 to 305 Vac, single-phase, 50/60 Hz.

OUTPUT POWER

7 Adc at 63 Vdc maximum continuous with a 240 Vac input.

WEIGHT

1,2 POUNDS

SIZE

7 x 6 x 3 Inches

VOLTAGE DRIFT

<±1%

Key Features
Description

The AVC63-7 AVR Voltage Regulator is an encapsulated unit contained in a plastic case. The regulator controls the dc exciter field power of conventional, 50 or 60 Hz brushless generators that have a 63 Vdc exciter field to regulate the generator output voltage.

SENSING VOLTAGE

170 to 264 Vac, single-phase, 50/60 Hz

TEMPERATURE OPERATING

–40 to 60°C (–40 to 140°F) –65 to 85°C (–85 to 185°F)

REGULATION ACCURACY

±0.25%

DC Output - ◖Power 7 Adc at 63 Vdc maximum continuous with a 240 Vac input.
Exciter Field DC Resistance - ◖9.0 ohms minimum.
AC Power Input - ◖170 to 305 Vac, single-phase, 50/60 Hz. ◖Burden: 900 VA maximum at 240 Vac power.
AC Sensing Voltage - ◖170 to 264 Vac, single-phase, 50/60 Hz. ◖Burden: 5 VA.
Voltage Adjust Range - ◖170 to 264 Vac using the internal voltage adjust. The external voltage adjust provides a ±10% adjustment of the nominal value determined by the internal voltage adjust.
Regulation Accuracy - ◖±0.25%
Voltage Drift - ◖<±1% voltage variation for a 50°C (122°F) change.
Response Time - ◖<16 ms
Frequency Compensation

Voltage Buildup - ◖Internal provisions for automatic buildup from generator residual voltage as low as 6 Vac at 25 Hz.
Power Dissipation - ◖35 W maximum
Paralleling Provisions - ◖CT input for customer supplied 5 A nominal CT. Adjustable droop from 0 to 6% with 5 A input at 0.8 power factor. CT input burden is 2.5 VA.
Temperature Operating - ◖–40 to 60°C (–40 to 140°F) –65 to 85°C (–85 to 185°F)
Vibration Withstands - ◖1.2 G at 5 to 26 Hz; 0.036" double amplitude at 27 to 53 Hz; 5 G at 53 to 1,000 Hz.
Shock Withstands - ◖up to 15 G in each of three mutually perpendicular axes.
Agency Recognition Certified - ◖per CSA Standard C22.2 No. 14
Weight - ◖1,2 POUNDS.

The AVC63-7 AVR Voltage Regulator is an encapsulated unit contained in a plastic case. The regulator controls the dc exciter field power of conventional, 50 or 60 Hz brushless generators that have a 63 Vdc exciter field to regulate the generator output voltage.

Regulation is provided by sensing the generator output voltage, converting it to a dc signal and comparing the signal to a reference voltage signal. An error signal is developed and used to control the dc field power in order to maintain a constant generator output.
