Power Master ATS2PC0150-22 Automatic Transfer Switch, and Enclosure / 2pole / 150Amp

https://powermaster.odoo.com/web/image/product.template/9815/image_1920?unique=a354f8e

Automatic Transfer Switch, Controller and Enclosure / 2pole / 150Amp

$ 1,059.99 1059.99 USD $ 1,059.99

$ 1,059.99

Not Available For Sale

This combination does not exist.

Contact Us
Automatic Transfer Switch ATS2PC0150-22

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

RATED VOLTAGE

120/240 VAC

SWITCH TYPE

Double throw with Neutral position.​

WEIGHT

27 POUNDS

SIZE

6 × 16 × 20 Inche​s

RATED CURRENT

150 Amp.

COMPACT SIZE

With user-friendly status LED display.

BUILD-IT 1 TO 4 WEEKS

   With / without load exerciser.

MODULAR DESIGN

  for installation next to switch or on the door.

  • Rated Voltage - ◖120/240 VAC
  • Rated Current - ◖150 Amp
  • Rated Frequency - ◖50/60 Hz
  • Pole - ◖2 Poles
  • Switch Type - ◖Double throw with Neutral position
  • Operating Current - ◖2.6A @ 220V
  • ATS Class - ◖Class PC
  • Overvoltage Trip - ◖270 VAC adjustable


  • Overvoltage Reset - ◖260 VAC
  • Undervoltage Trip - ◖170 VAC Adjustable
  • Undervoltage Reset - ◖180 VAC
  • Remote Start Dry - ◖6A @ 277 VAC ◖Contact Capacity: 6A @ 28 VDC Max
  • Power Consumption - ◖< 1W
  • Dimensions - ◖Weight: 27 POUNDS ◖Size: 6 x 16 x 20 Inches

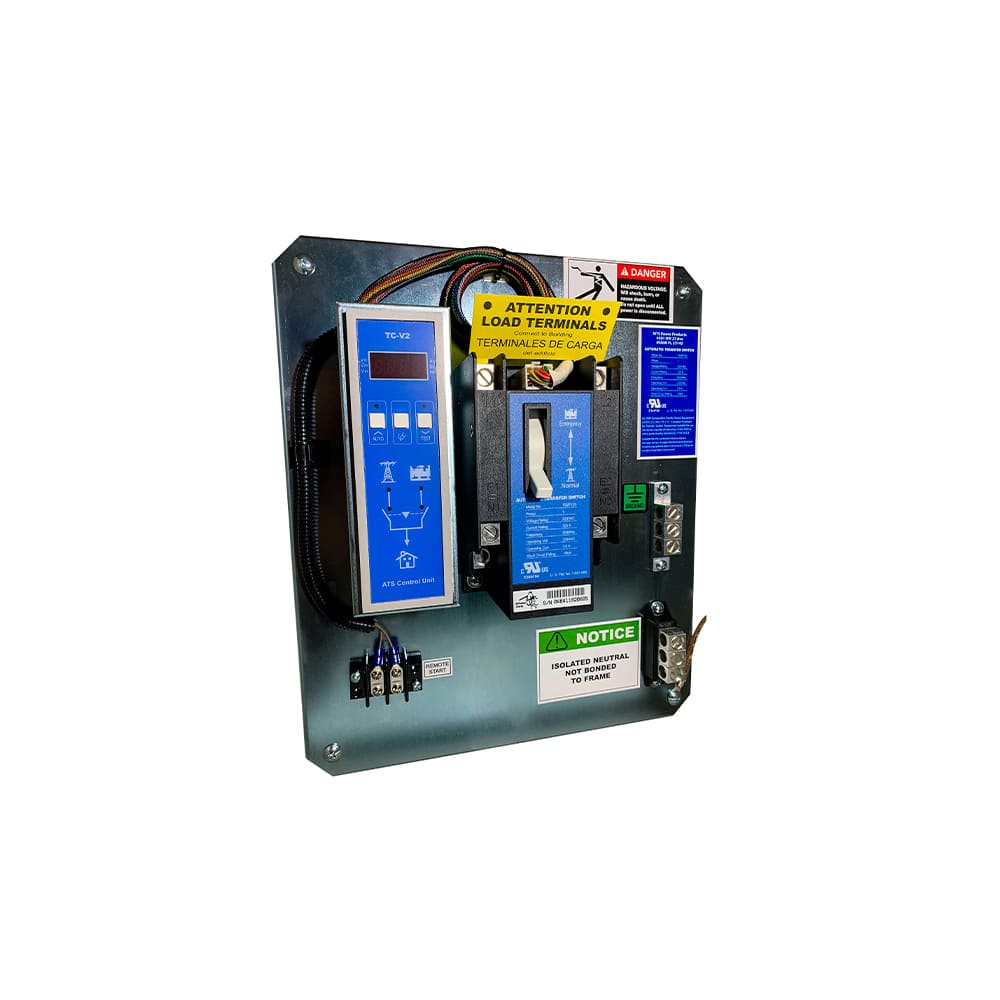

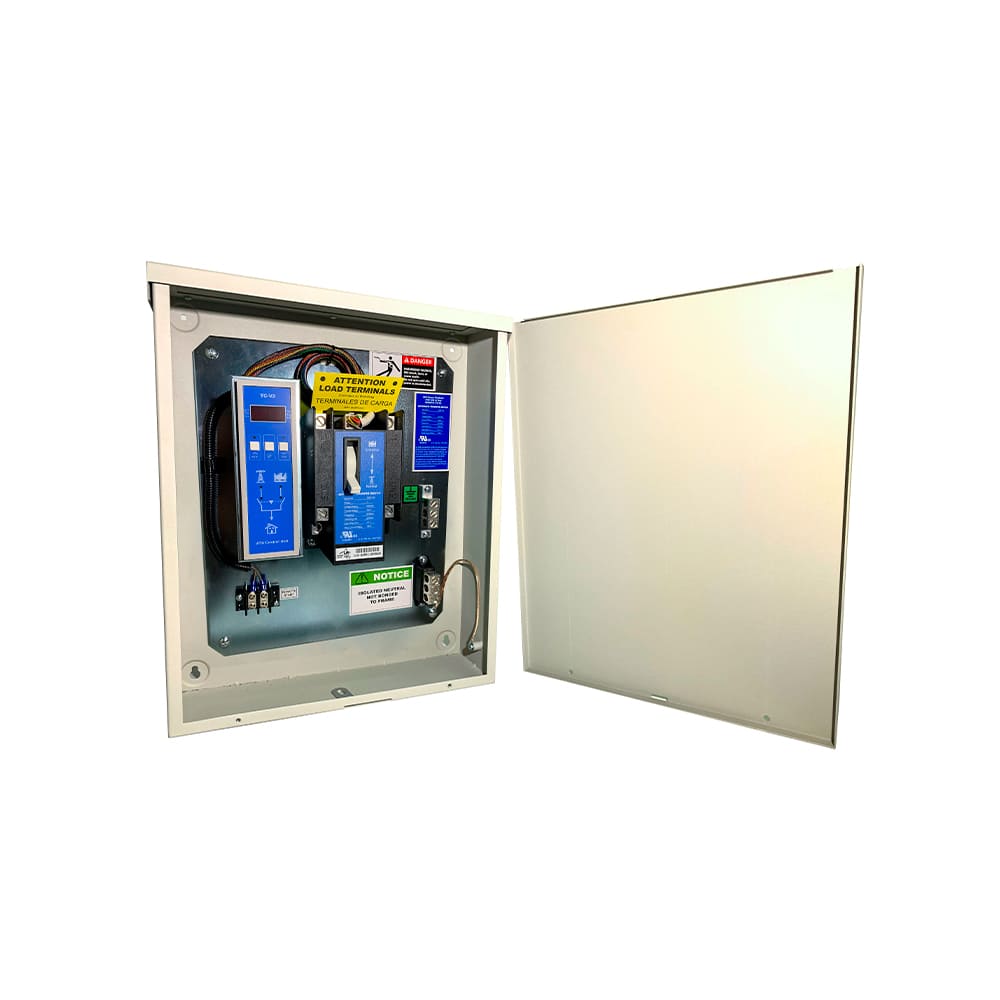

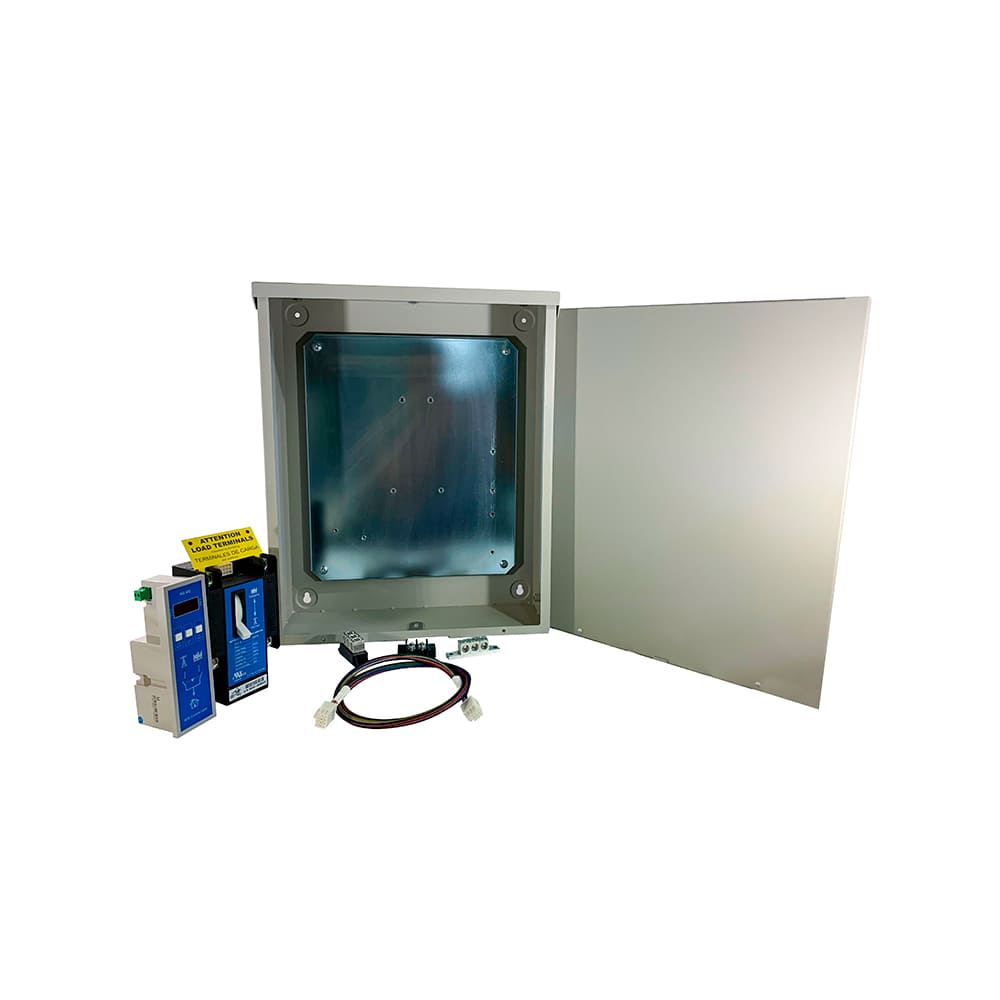

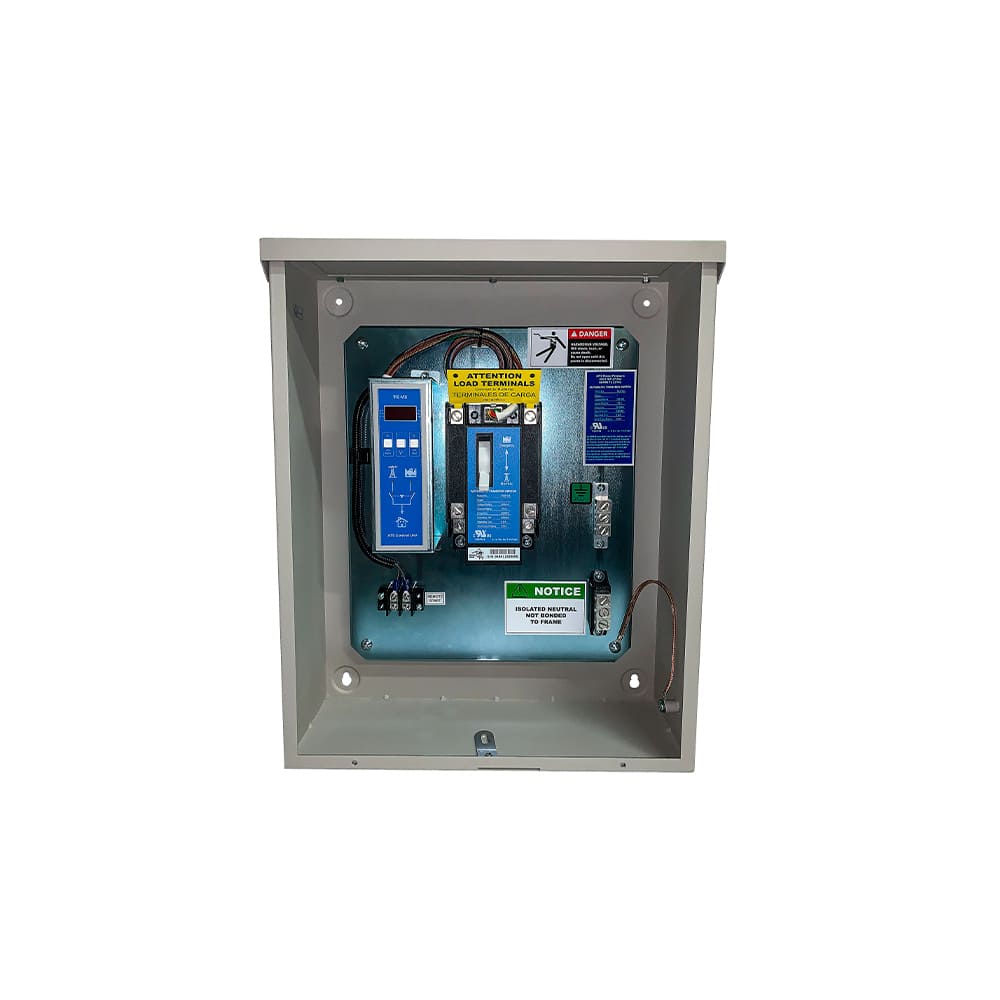

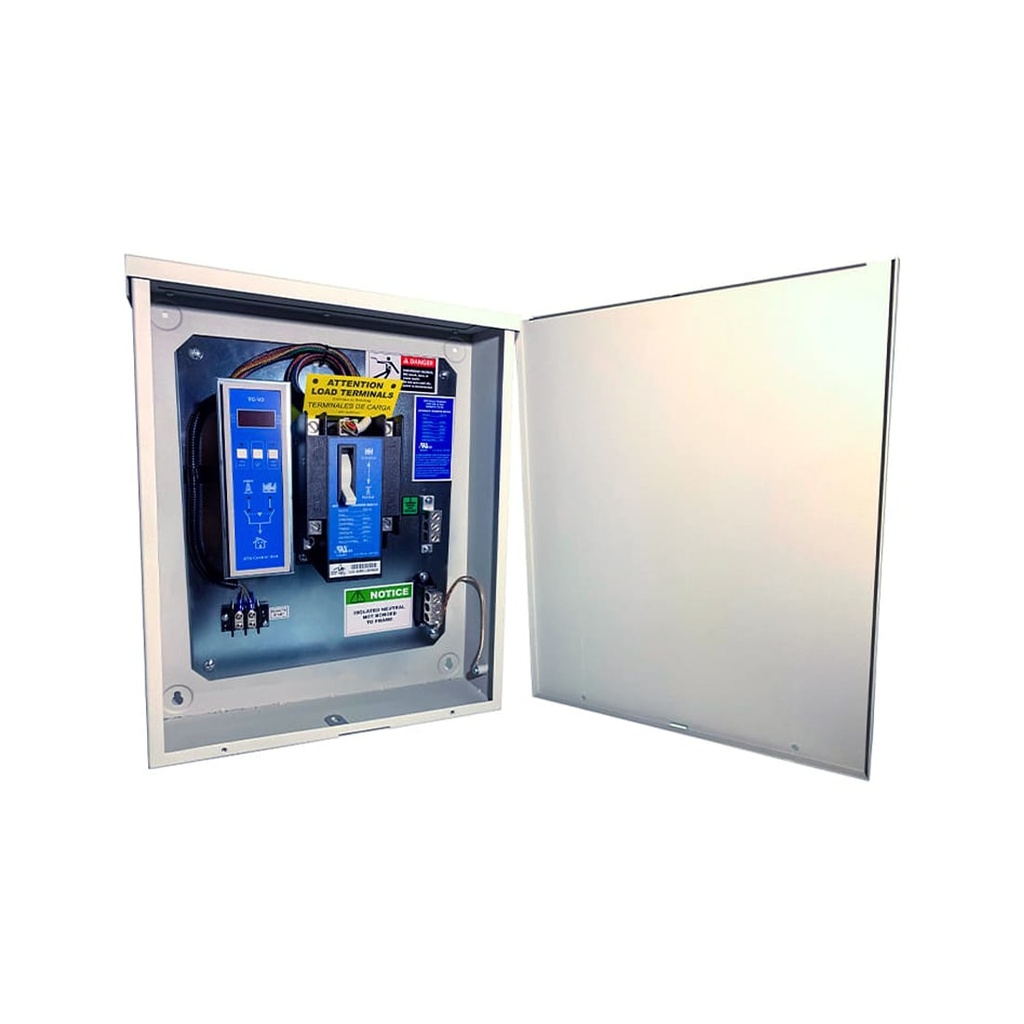

The ATS2PC0150-22 is a brand-new modularized design ATS Automatic Transfer Switch with enclosure. Ideal for residential power systems, with rated current of 125A and rated voltage 110 Vac or 220 Vac single phase to choose from, it is electrically of manually operated and all parts are made with UL 94V-0 plastic for highest safety standards.
