  3. MTS ADVR-2200M Digital Voltage Regulator

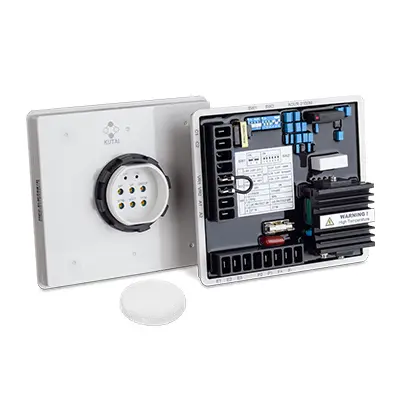

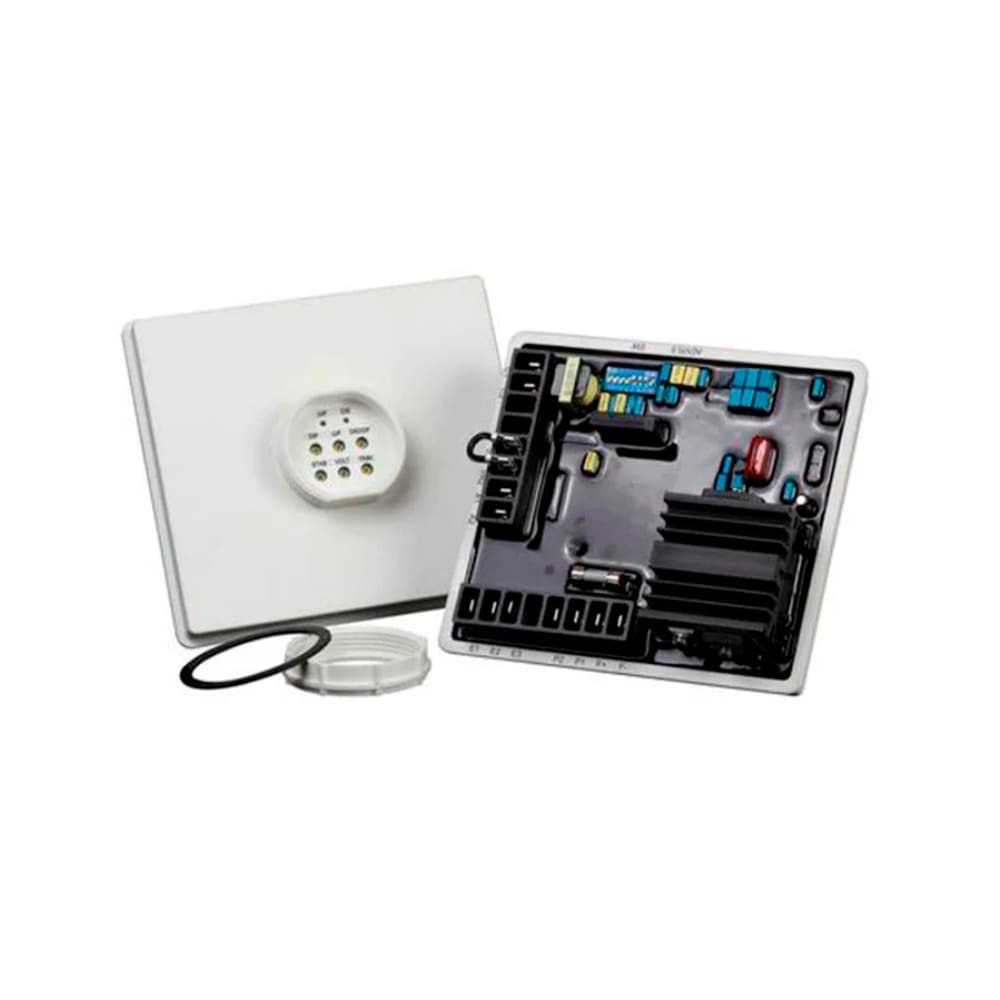

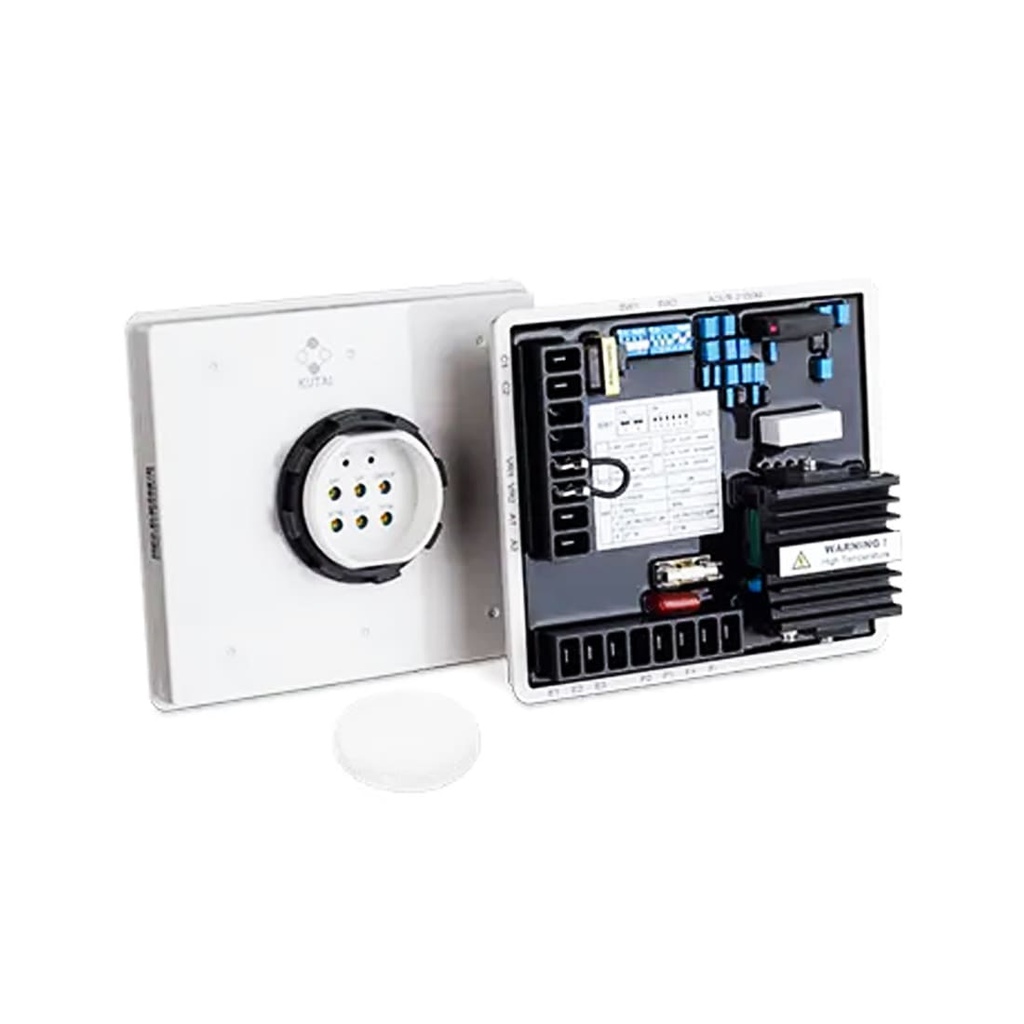

MTS ADVR-2200M Digital Voltage Regulator

https://powermaster.odoo.com/web/image/product.template/10052/image_1920?unique=5f4aa6b

Hybrid Analog Digital Voltage Regulator

$ 460.77 460.77 USD $ 460.77

$ 460.77

Not Available For Sale

This combination does not exist.

Contact Us
ADVR Mcpherson Controls ADVR-2200M

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

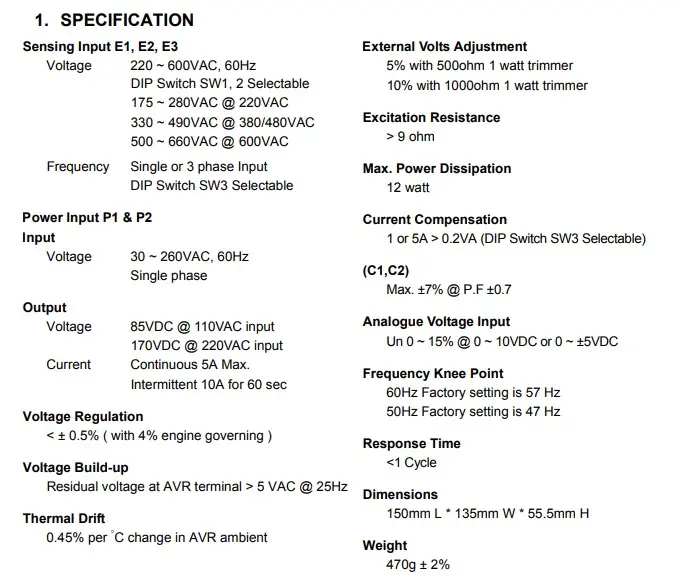

SENSING INPUT

Volt. 220 ~ 600VAC, 60Hz

DIP Switch SW1, 2 Selectable

OUTPUT

Voltage 85VDC @ 110VAC input

WEIGTH
4 POUNDS
SIZE

6 x 5 x 2 Inches

VOLTAGE REGULATION

30-260 VAC, 60Hz

POWER DISSIPATION

 12 watts

THERMAL DRIFT

  0.45% per °C change in AVR ambient

VOLTAGE BUILD UP

Residual voltage at AVR terminal > 5 VAC @ 25Hz

  • Sensing Input E1, E2, E3 - ◖Voltage:  220 ~ 600VAC, 60Hz DIP Switch SW1, 2 Selectable 175 ~ 280VAC @ 220VAC 330 ~ 490VAC @ 380/480VAC 500 ~ 660VAC @ 600VAC  ◖Frecuency:  Single or 3 phase Input DIP Switch SW3 Selectable.
  • Power Input P1 & P2 - ◖ Input: Voltage: 30 ~ 260VAC, 60Hz Single phase ​ ◖Output ◖Voltage: 85VDC @ 110VAC◖Input: 170VDC @ 220VAC input Current Continuous 5A Max. Intermittent 10A for 60 sec
  • Voltage Regulation - ◖< ± 0.5% ( with 4% engine governing )
  • Voltage Build-up - ◖Residual voltage at AVR terminal > 5 VAC @ 25Hz
  • Thermal Drift - ◖0.45% per C change in AVR ambient
  • External Volts Adjustment - ◖5% with 500ohm 1 watt trimmer - ◖10% with 1000ohm 1 watt trimmer


  • Excitation Resistance - ◖> 9 ohm
  • Max. Power Dissipation - ◖ 12 watt
  • Current Compensation - ◖1 or 5A > 0.2VA (DIP Switch SW3 Selectable)
  • (C1,C2) - ◖ Max. ±7% @ P.F ±0.7
  • Analogue Voltage Input - ◖Un 0 ~ 15% @ 0 ~ 10VDC or 0 ~ ±5VDC
  • Frequency Knee Point- ◖ 60Hz Factory setting is 57 Hz 50Hz Factory setting is 47 Hz
  • Response Time- ◖ <1 Cycle



Replaces Marathon DVR-2000 Series

ADVR-2200M is an Digital/Analog hybrid voltage regulator that substitutes certain Marathon DVR applications. This regulator can work with either single or three phase sensing and PMG. The ADVR-2200M as protection against over excitation, as well PF (power factor) correction inputs. And also as capabilities for DROOP Paralleling.
