DSE 9474-01 Intelligent Battery Charger (90-305v 50/60Hz) Original - OLD

https://powermaster.odoo.com/web/image/product.template/11237/image_1920?unique=cdcb00f

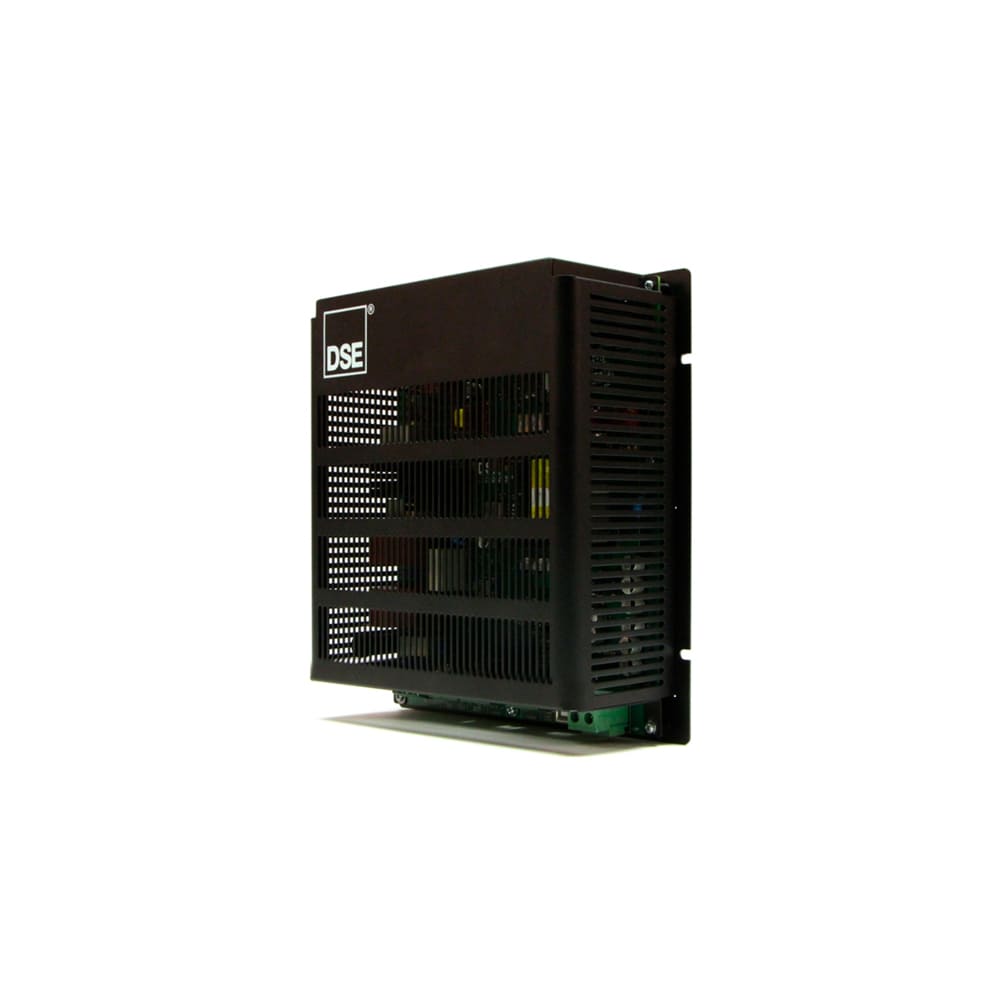

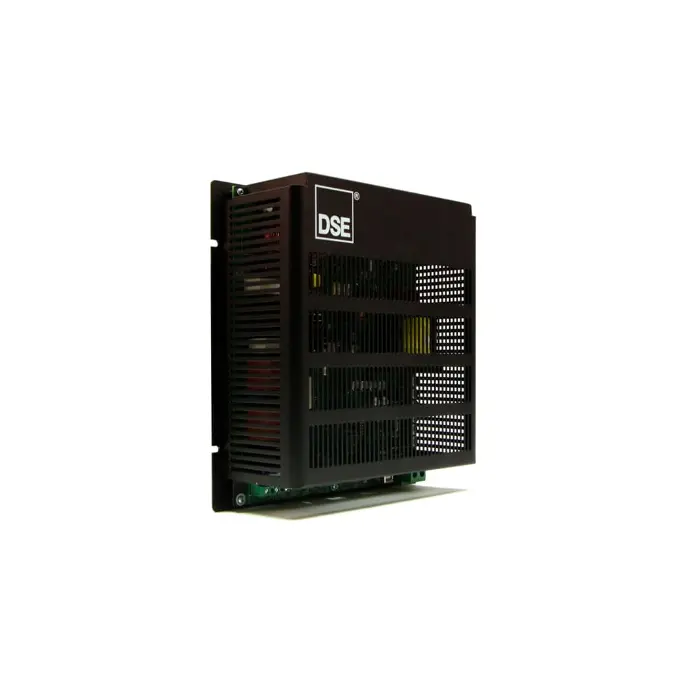

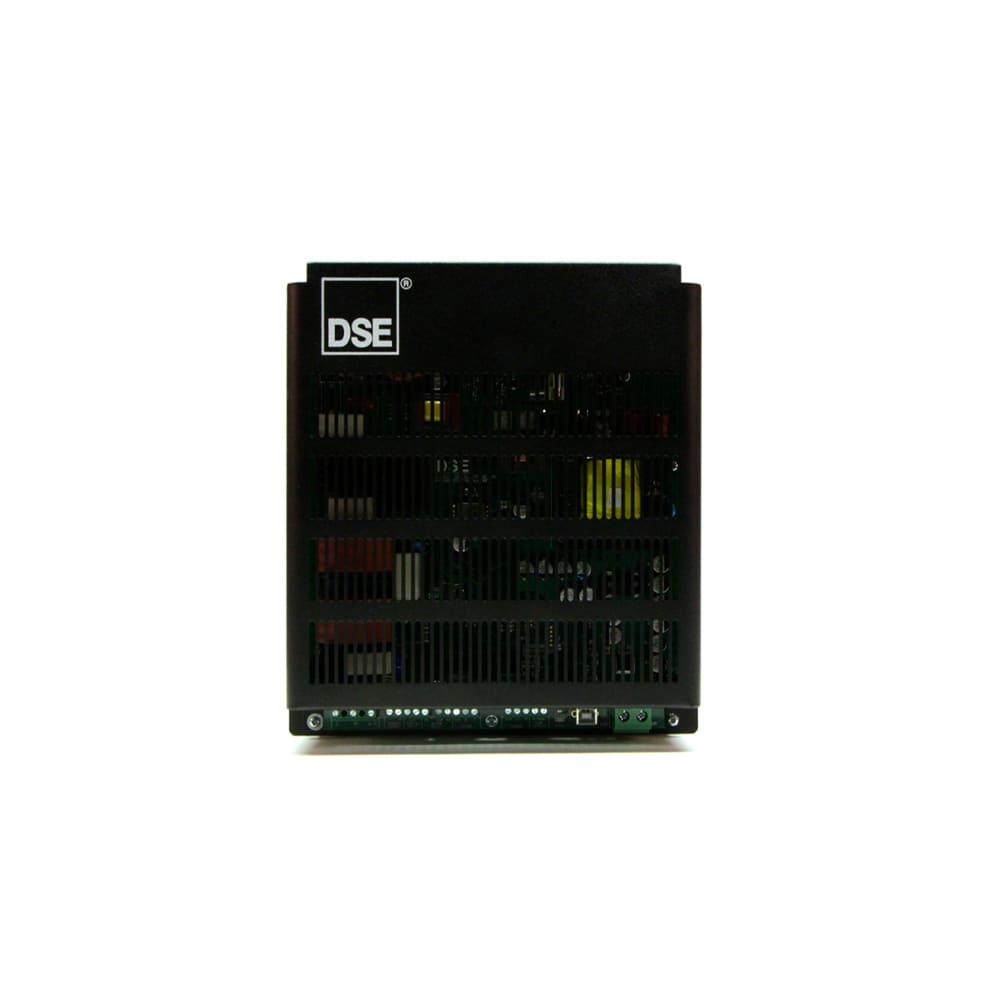

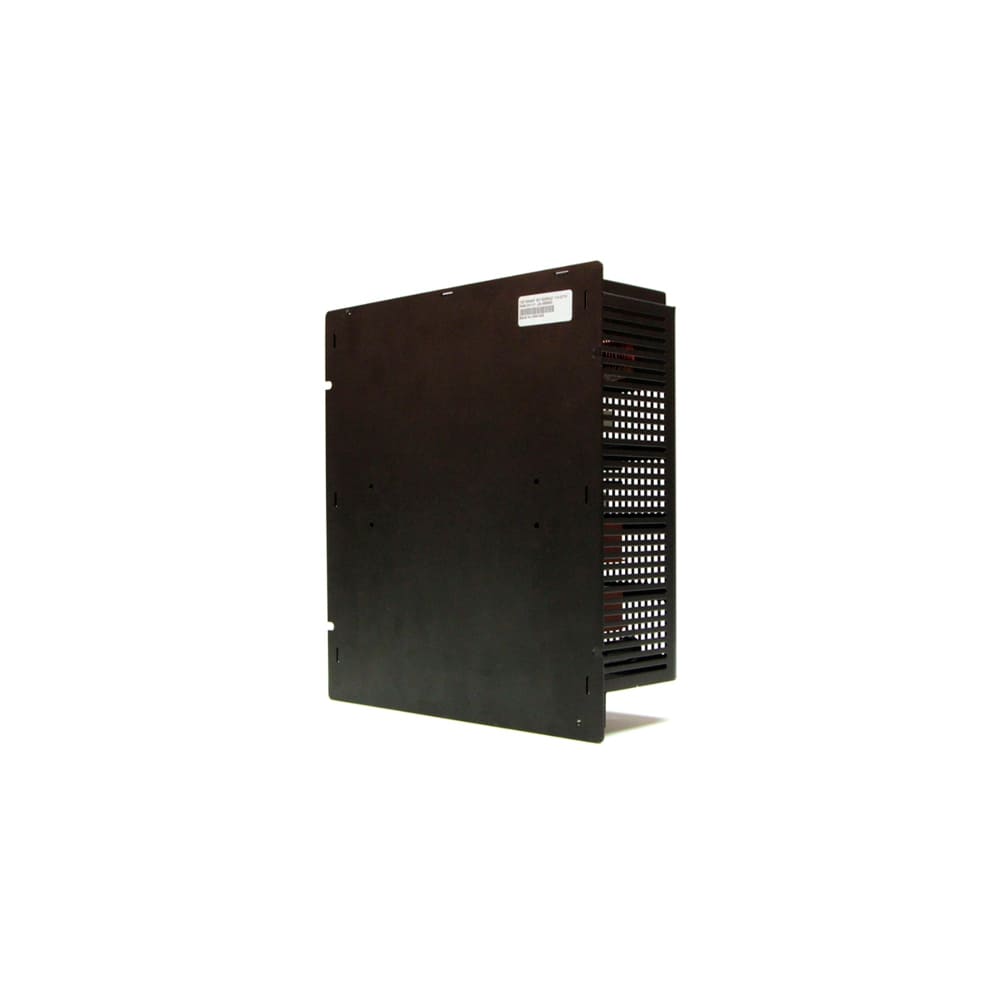

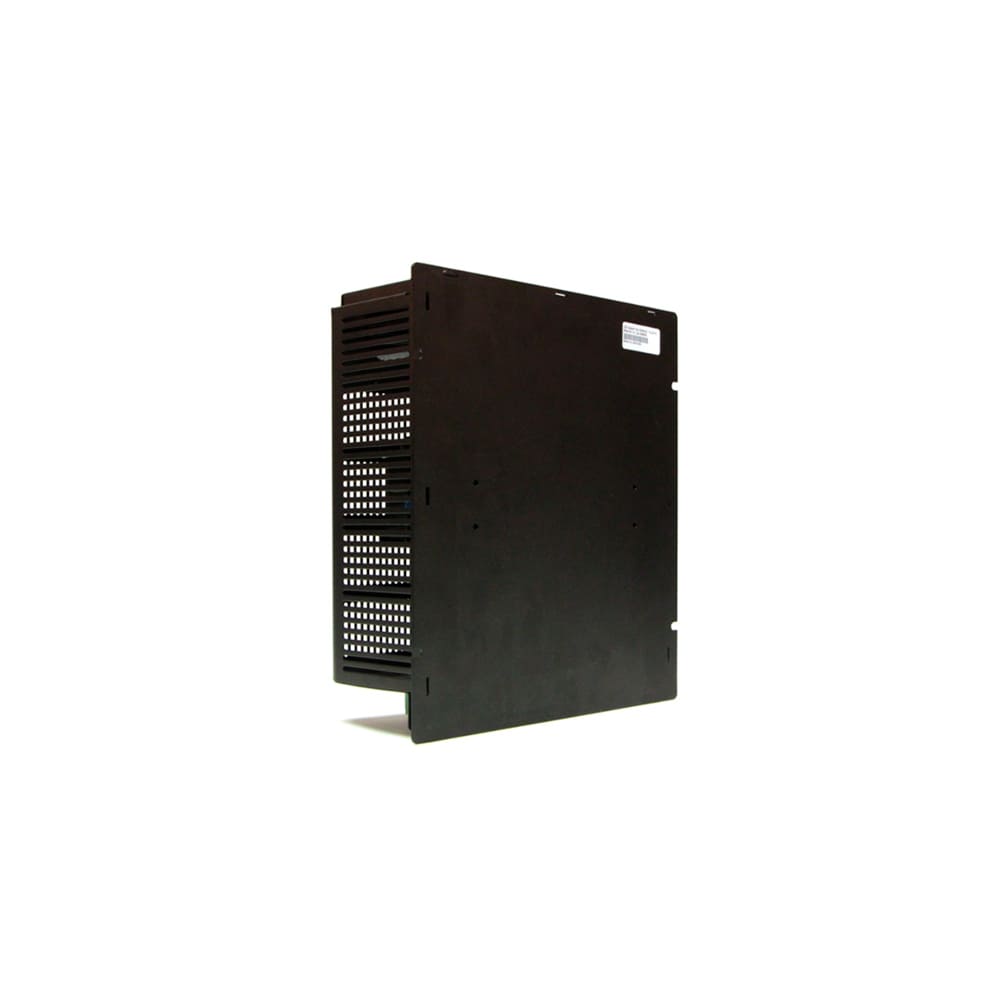

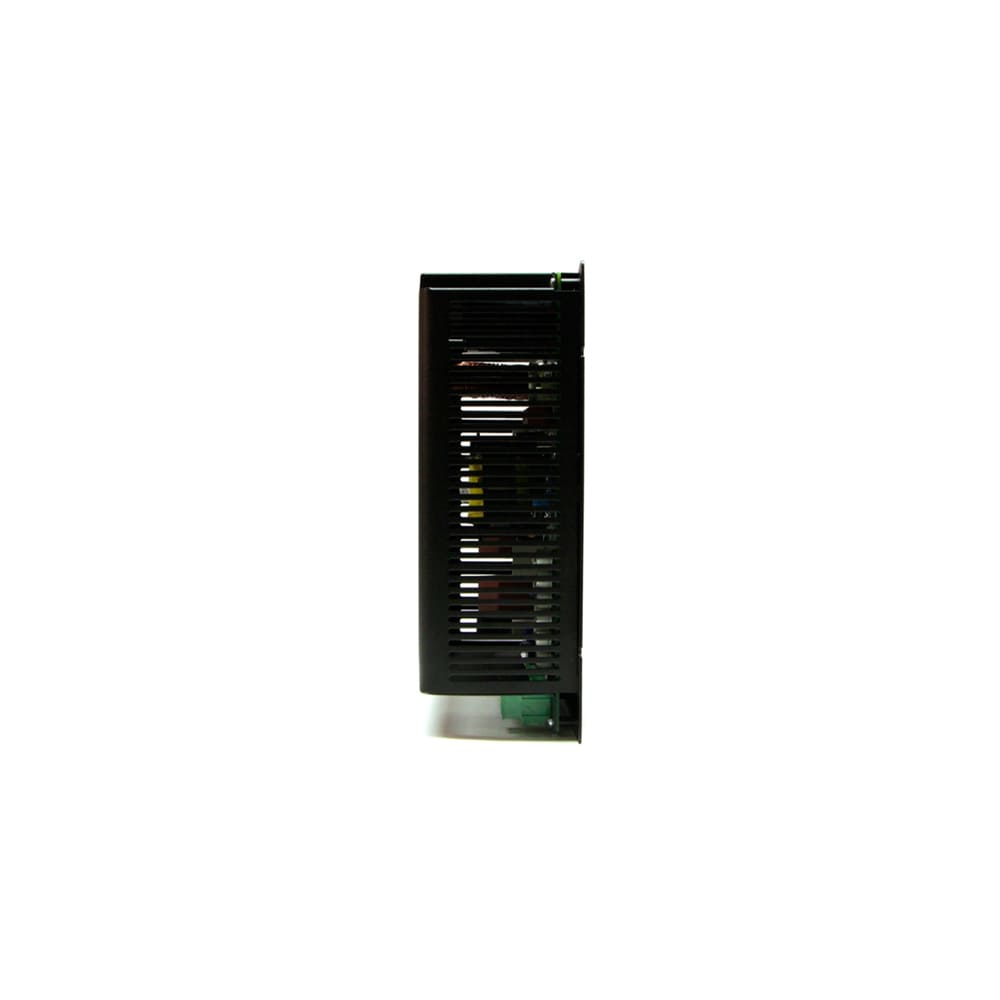

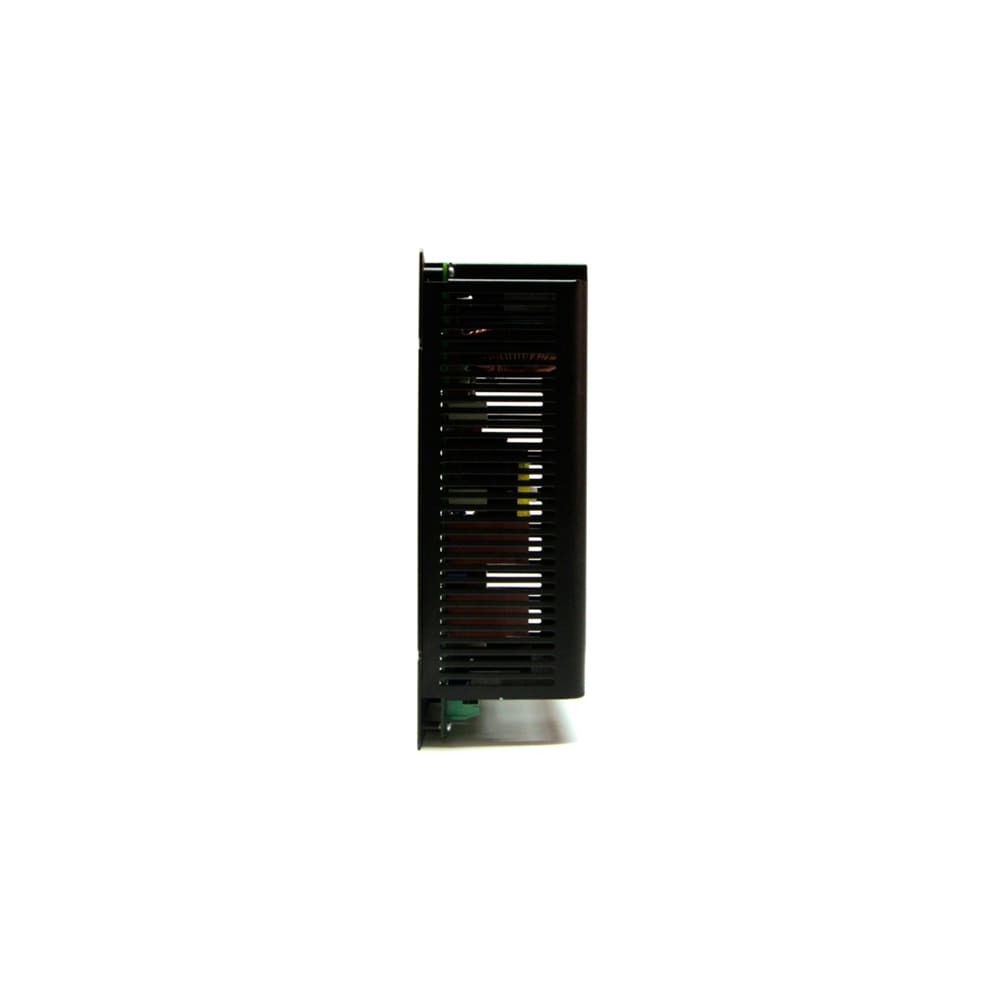

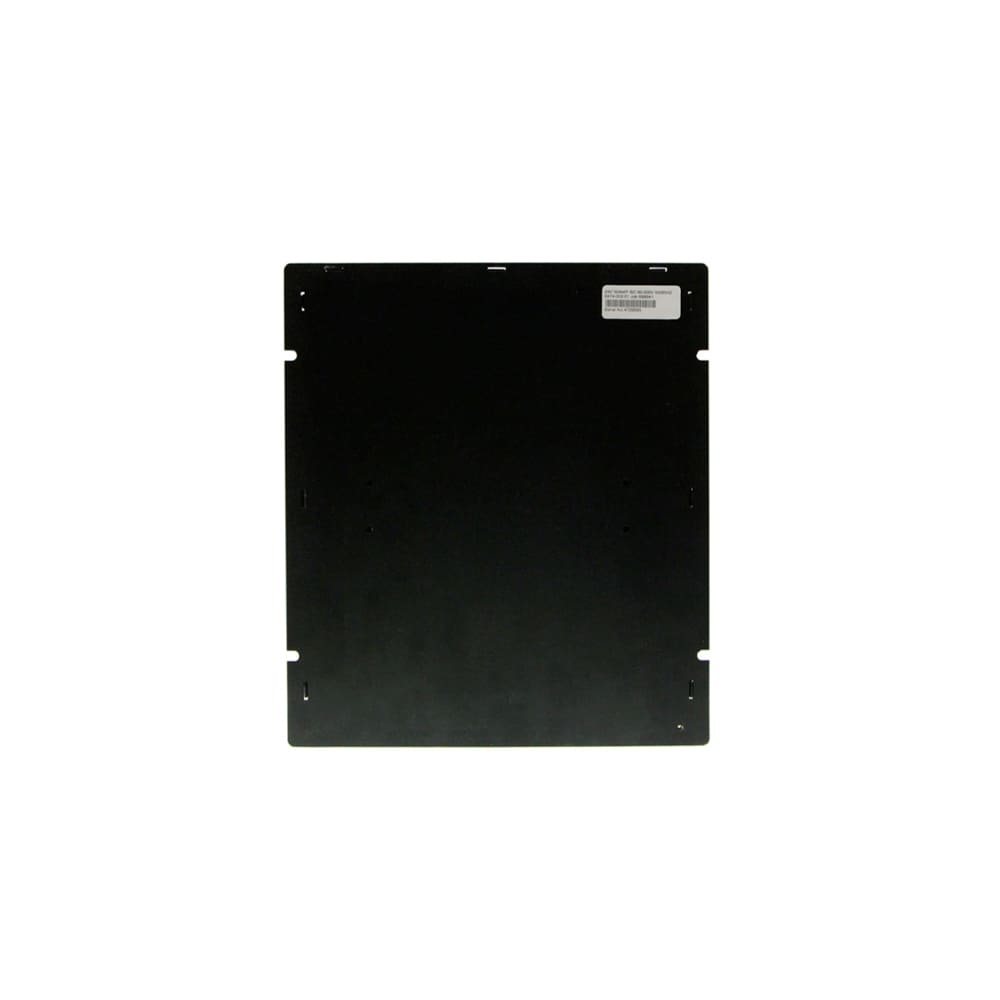

DSE 9474-01 Battery Charger

$ 1,101.09 1101.09 USD $ 1,101.09

$ 1,101.09

Not Available For Sale

This combination does not exist.

Contact Us
DSE Battery Charger 9474-01

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

VOLTAGE RANGE

90 V to 305 V (L-N)

PRODUCT VARIANTS

9474-01 - 24 volt 30 amp Intelligent Battery Charger

WEIGHT

1.7 POUNDS

SIZE

13 x 8 x 6 Inches

FREQUENCY RANGE

 48 Hz to 64 Hz (L-N)


The DSE9474 is an intelligent 24-volt, 30 amp CAN enabled switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery life. The charger is programmed using the DSE Configuration Suite Software. The charger can be DIN rail or chassis mounted and has three built-in LEDs to indicate current charging status and fault conditions. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.



​CHARGE FAILURE RELAY

3 A 30 V DC volt free relay

TEMPERATURE SENSOR INPUT​

PT1000

​DC OUTPUT

DSE9474 DC OUTPUT

  • AC Supply - ◖Voltage Range:​ 90 V to 305 V (L-N) ◖ Frequency Range: 48 Hz to 64 Hz (L-N)
  • DC Output - ◖DSE9474 DC OUTPUT ◖Ripple And Noise: 1% ◖Efficiency: >90%
  • Regulation  - ◖Line: <0.5% ◖Load: 1%
  • Temperature Sensor Input - ◖PT1000
  • Protection - ◖Short Circuit DC Under & Over Voltage DC Over Current Reverse Polarity Over Temperature AC Under & Over Voltage
  • Charge Failure Relay - ◖3 A 30 V DC volt free relay

The DSE9474 is an intelligent 24-volt, 30 amp CAN enabled switch-mode battery charger that can be programmed for different charging curves. This helps to maximise battery life. The charger is programmed using the DSE Configuration Suite Software. The charger can be DIN rail or chassis mounted and has three built-in LEDs to indicate current charging status and fault conditions. The charger continues to operate during cranking and running and accepts multiple AC voltage connections.


AC SUPPLY

VOLTAGE RANGE

90 V to 305 V (L-N)

FREQUENCY RANGE

48 Hz to 64 Hz (L-N)

DC OUTPUT

DSE9474 DC OUTPUT

RIPPLE AND NOISE

1%

EFFICIENCY

>90%


REGULATION

LINE

<0.5%

LOAD

1%



TEMPERATURE SENSOR INPUT

PT1000

PROTECTIONS

Short Circuit

DC Under & Over Voltage

DC Over Current

Reverse Polarity

Over Temperature

AC Under & Over Voltage


CHARGE FAILURE RELAY

3 A 30 V DC volt free relay
