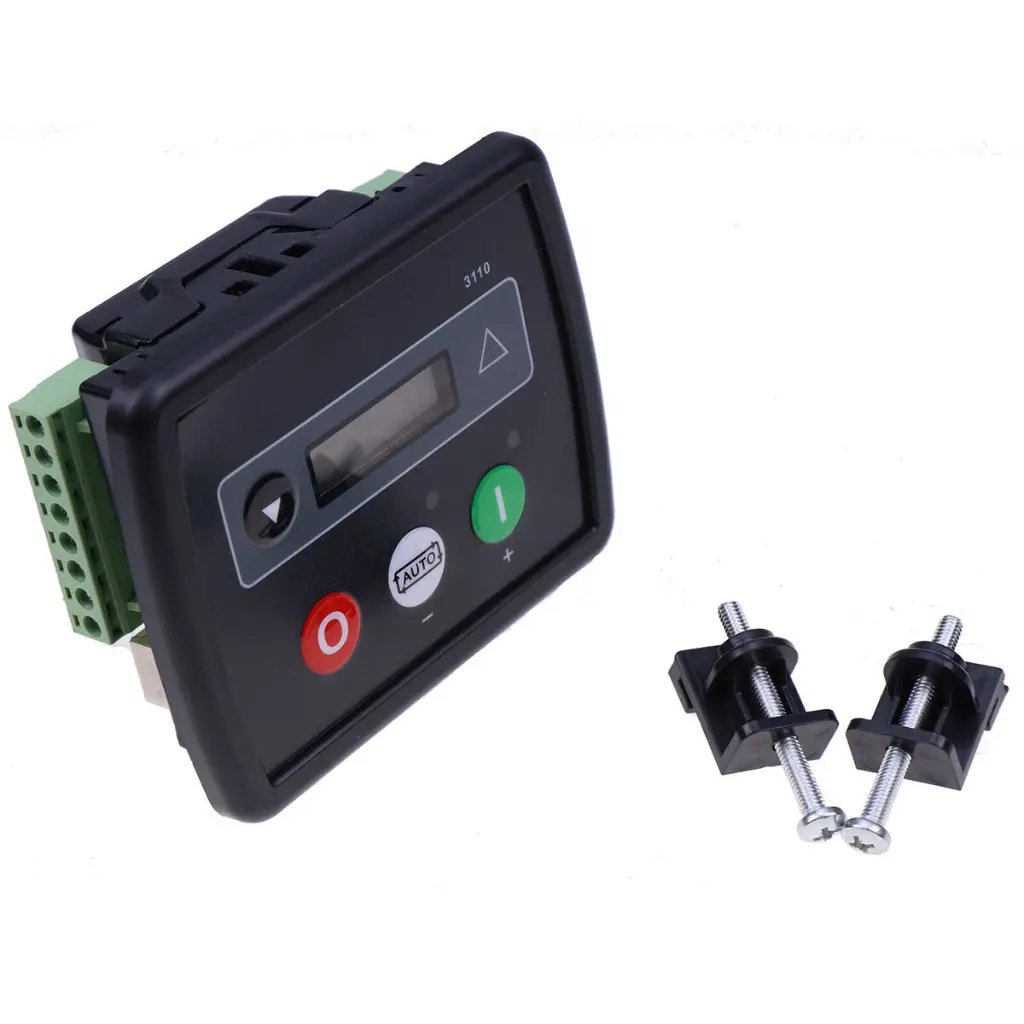

DSE 3110-008-31 Manual & Auto Start Control Module (MPU).webp

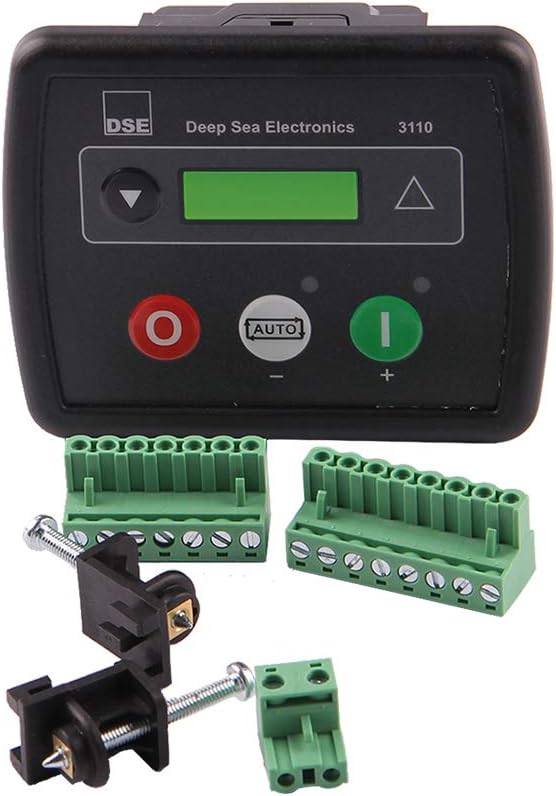

DSE 3110-008-31 Control Module (MPU) Original

3110-31 (MPU) Auto Start Controller

$ 283.79 283.79 USD $ 283.79

$ 283.79

This combination does not exist.

Add to cart Buy now

DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

DC SUPPLY

Continuous Voltage Rating
8 V to 35 V Continuous

PRODUCT VARIANTS

3110-01 - Manual & Auto Start Control Module (Mpu)

WEIGHT

0.5 POUNDS

SIZE

5 x 2 x 3 Inches

FREQUENCY RANGE

3.5 Hz to 75 Hz

Key Features
Description

CONFIGURABLE INPUTS/OUTPUTS

6 digital inputs/4 outputs – 2 outputs configurable on magnetic pick-up variant

ENGINE PRE-HEAT

Warms the engine to a safe temperature at start-up to increase engine life.

REMOTE START INPUT

Provides a simple connection to operate the generator from a remote location.

DC Supply - ◖Continuous Voltage Rating: 8 V to 35 V Continuous
Cranking Dropouts - ◖Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
Charge Fail/ Excitation - ◖8 V to 35 V fixed power source 2.5 W
Nominal Standby Current - ◖23 mA at 12 V, 18 mA at 24 V
Maximum Operating Current - ◖35 mA at 12 V, 30 mA at 24 V

Outputs - ◖Output A (Fuel): 2 A DC at supply voltage ◖Output B (Start): 2 A DC at supply voltage ◖Auxiliary Outputs C,D: 2 A DC at supply voltage
Generator - ◖Voltage Range: 15 V - 333 V AC (L-N) ◖Frequency Range: 3.5 Hz to 75 Hz
Magnetic Pick Up - ◖Voltage Range: +/- 0.5 V to 70 V ◖Frequency Range: 10,000 Hz (max)
Dimensions - ◖Panel Cut-Out: 80 mm x 68 mm 3.1” x 2.7” ◖Maximum Panel Thickness: 8 mm 0.3

The DSE3110 can be utilised as a Manual or Auto Start Module for single gen-set applications or engine only applications. The module has been designed to work with electronic and non-electronic engines, providing advanced engine monitoring and protection features.
