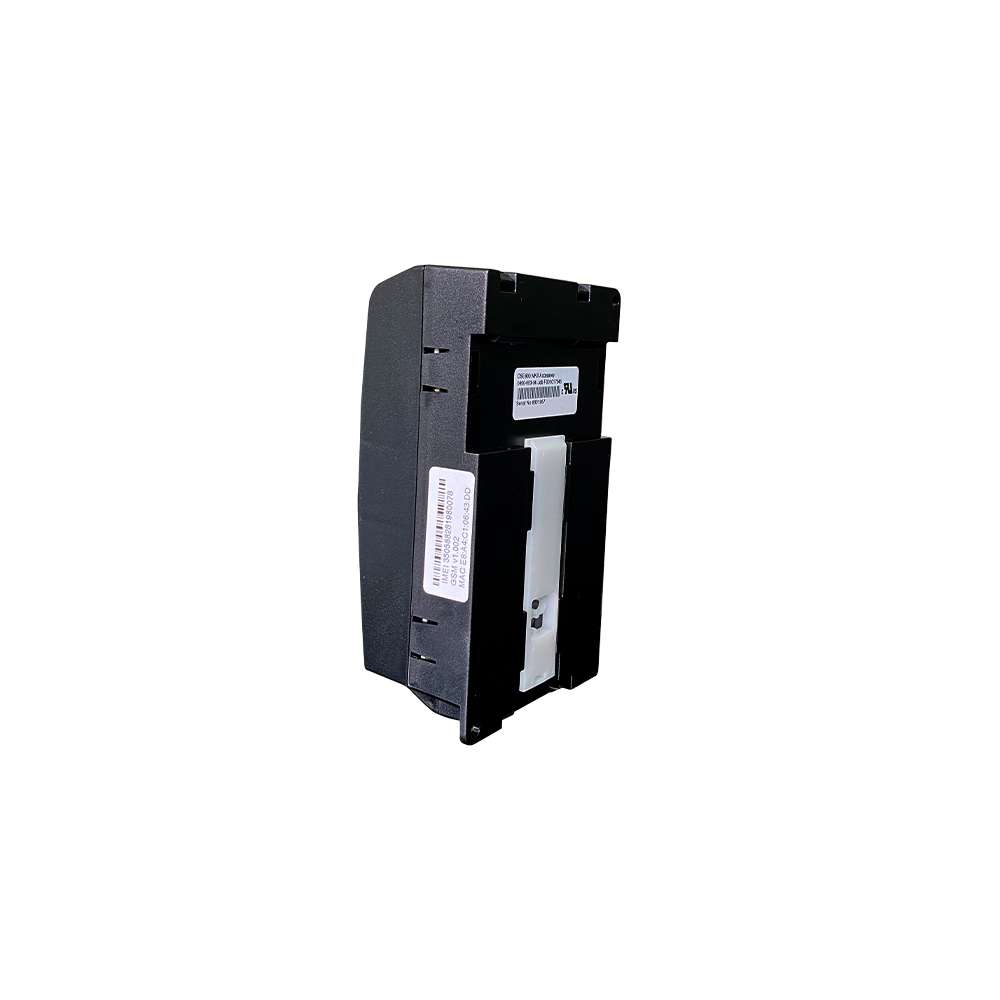

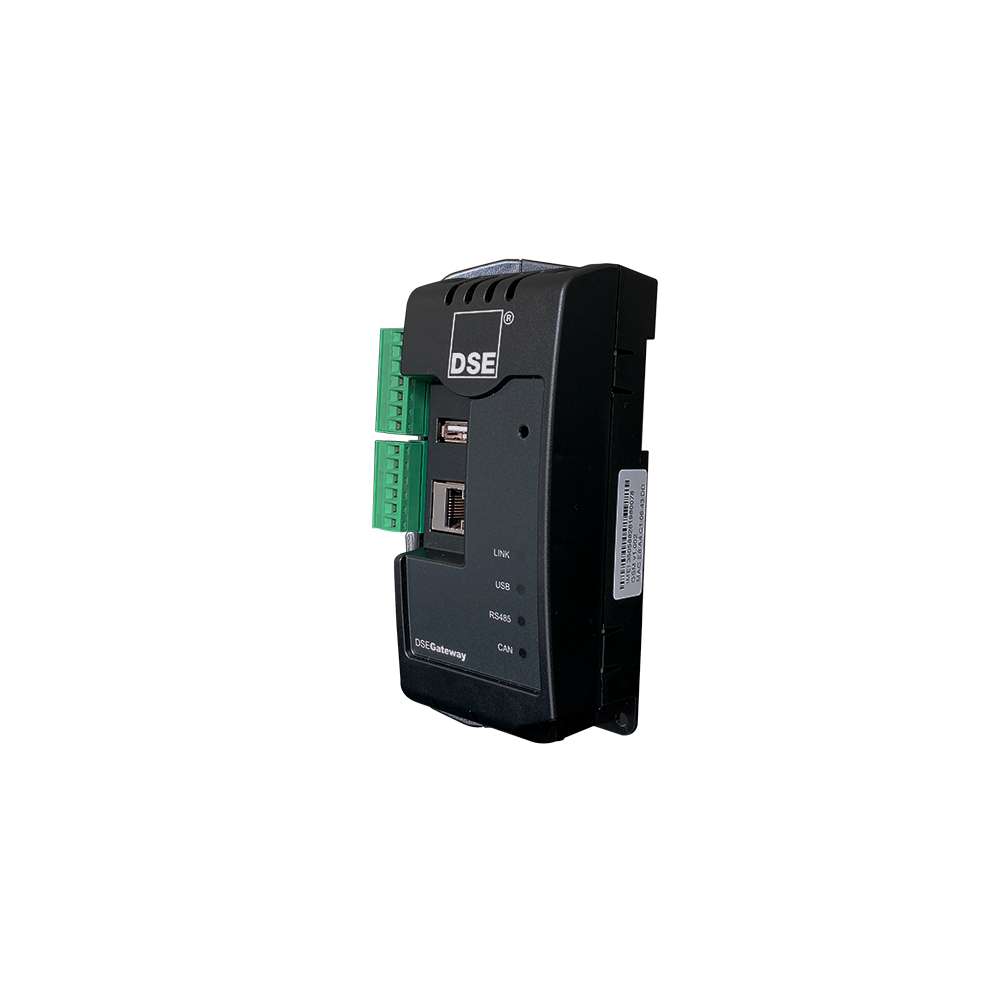

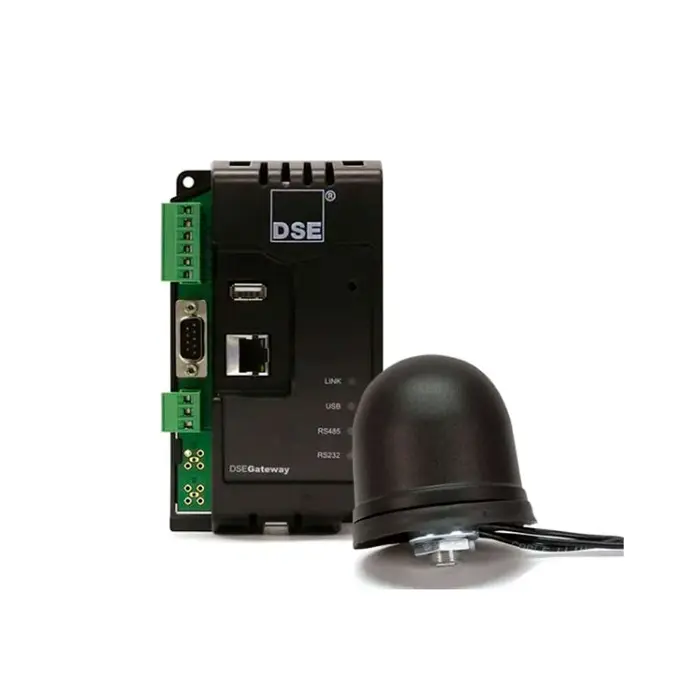

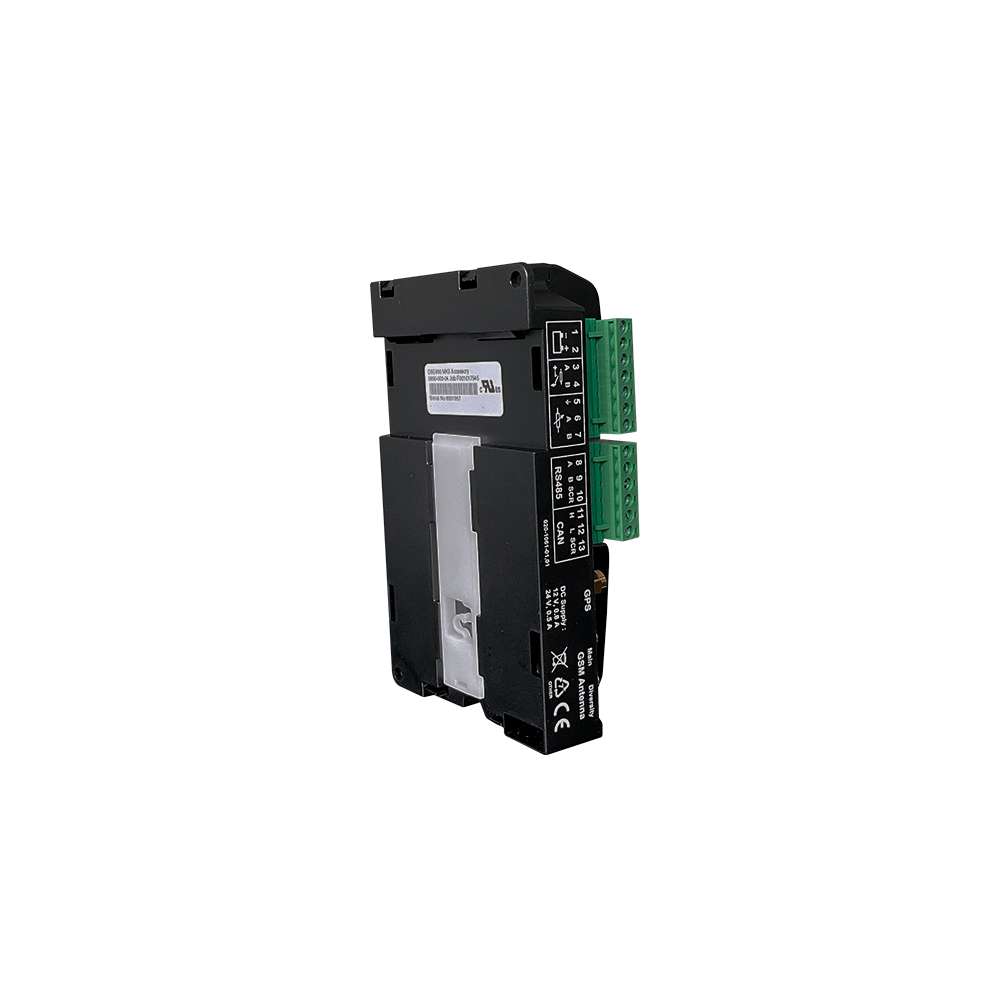

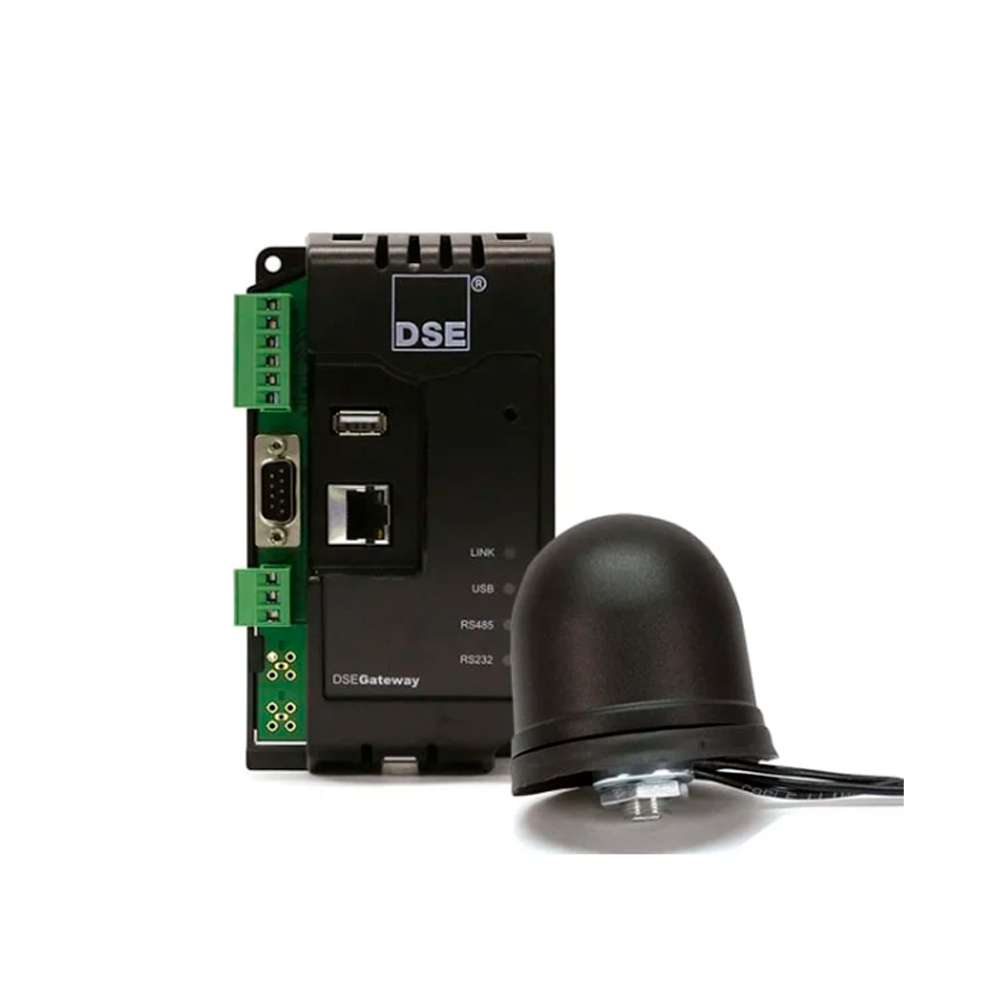

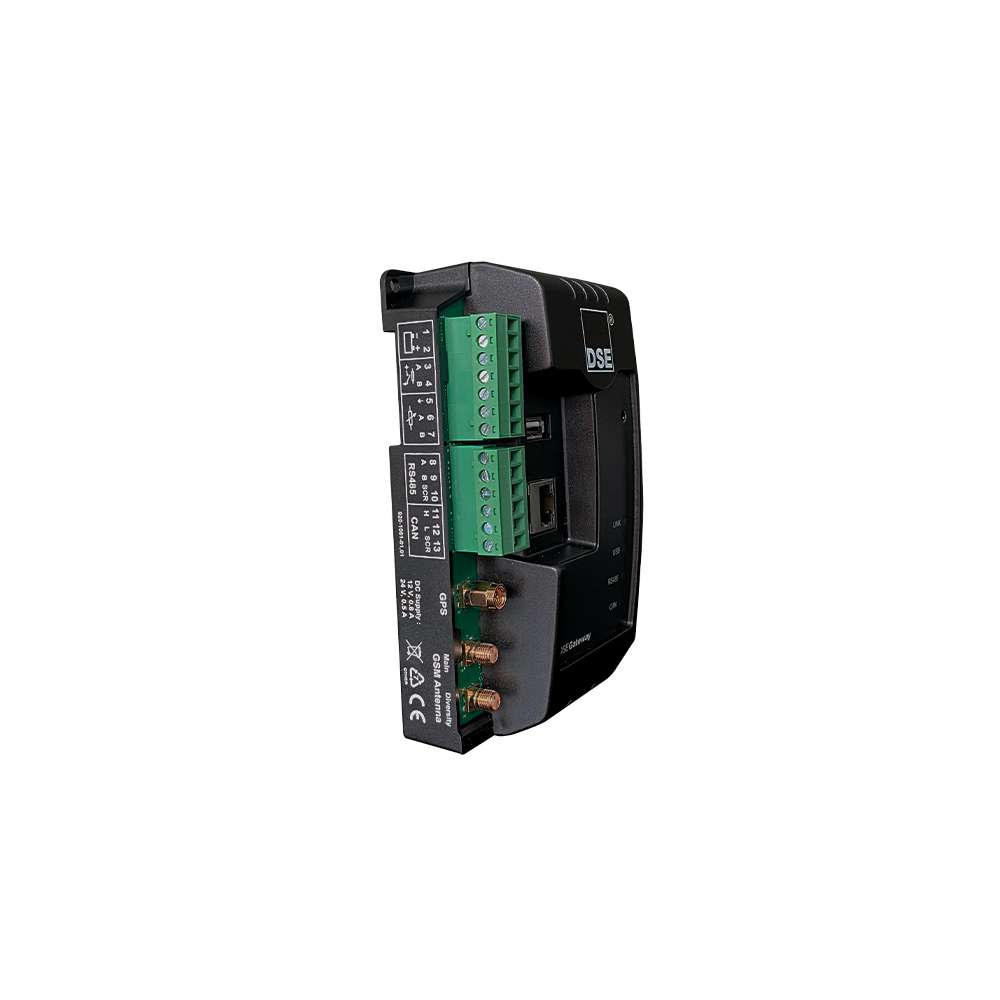

DSE 0890+020-1053 4G Gateway + 4G LTE / GPS Antenna Original KIT

https://powermaster.odoo.com/web/image/product.template/17763/image_1920?unique=d375353

DSE890 MKII 4G Gateway + 4G LTE / GPS Antenna 3m RG-174, 2 x LTE-SMA(M), GPS-SMA(F)

$ 664.59 664.59 USD $ 664.59

$ 664.59

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



VOLTAGE RATING

  8 V to 36 V continuous



PRODUCT VARIANTS

0890-04 - 890 DSEWebnet® / IoT Gateway - 4G GSM/Ethernet


WEIGHT
 0.5 POUNDS
SIZE
3 x 6 x 2 Inches


MAXIMUM OPERATING CURRENT
GSM
755 mA at 12 V / 376 mA at 24 V



4G CONNECTIVITY

  Provides a high-speed connection for data transfer on remote sites.

SUPPORTS 2G & 3G.

Multiple support for flexibility.

DNI RAIL AND CHASSIS MOUNT

Provides flexible mo​unting options.

  • DC Supply - ◖Continuous Voltage Rating : 8 V to 36 V continuous
  • Cranking Dropouts - ◖Able to survive 0 V for 100 mS, providing supply was at least 8 V before dropout and supply recovers to 8 V. This is achieved without the need for internal batteries
  • Maximum Operating Current - ◖GSM : 755 mA at 12 V 376 mA at 24 V ◖GSM & GPS : 755 mA at 12 V 376 mA at 24 V



  • Maximum Stanby Current - ◖GSM : 207 mA at 12 V 113 mA at 24 V ◖GSM & GPS : 207 mA at 12 V 113 mA at 24 V
  • Communication - ◖USB (Single DSE Controller) CAN* (Multiple DSE Controller) RS485 (Multiple DSE Controllers) Ethernet (Multiple DSE Controllers)
  • Mounting - ◖DIN Rail Chassis Mount * Only active for third-party MQTT brokers.



  • The DSE890 MKII is an Ethernet/4G gateway device that enables compatible DSE controllers to be monitored remotely via DSEWebNet® software or third-party MQTT brokers.

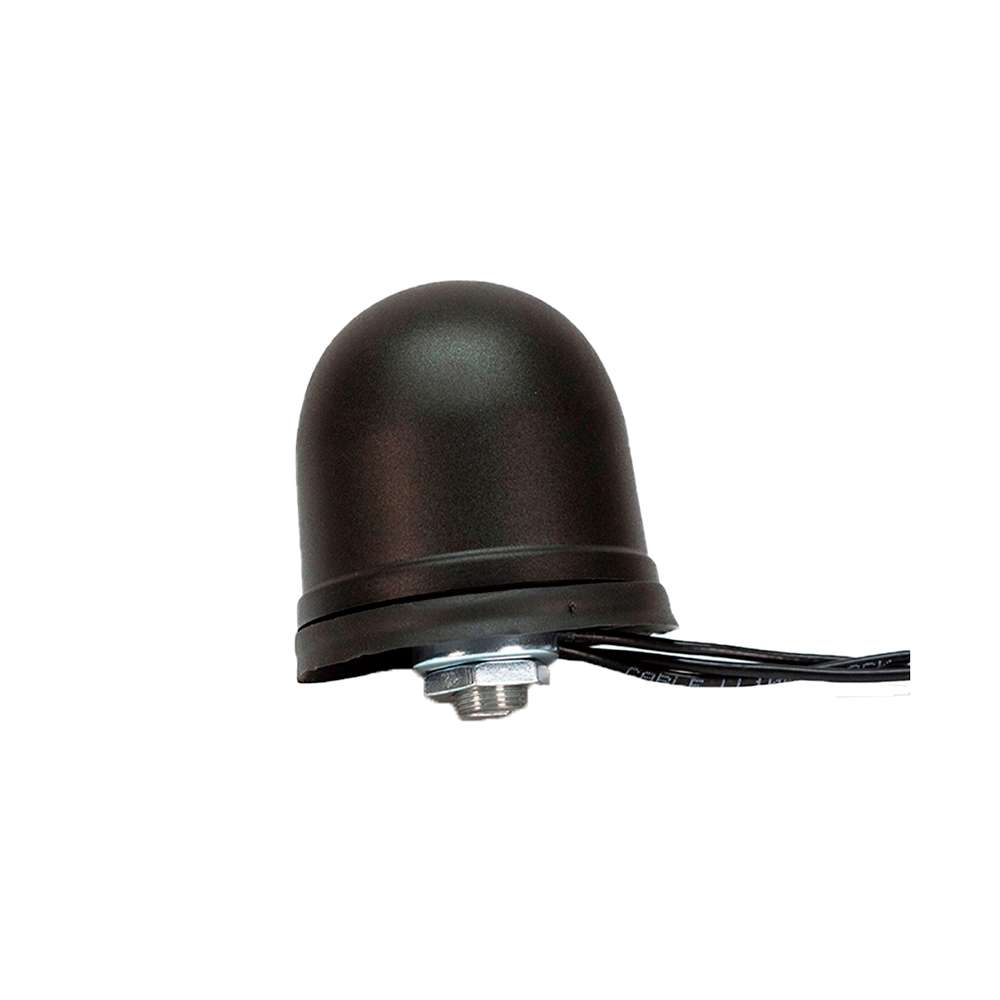

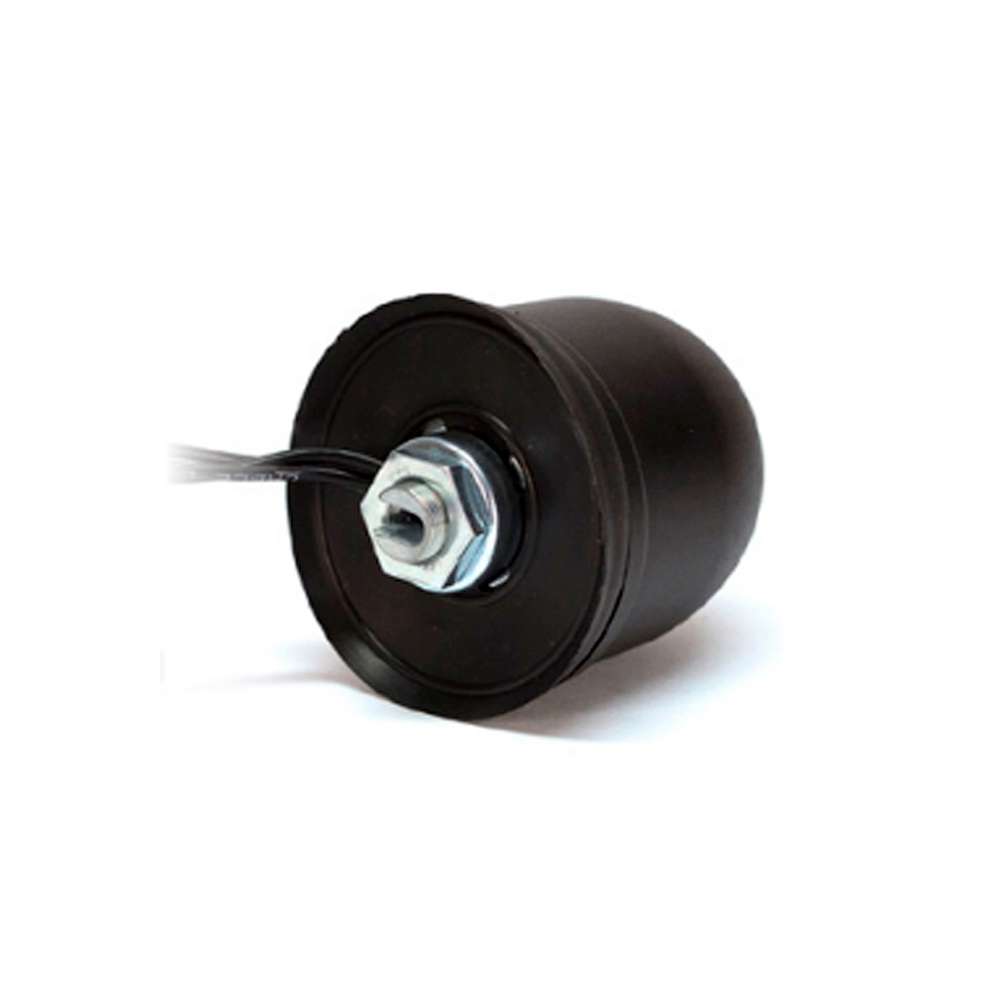

  • REQUIRES Combined 4G LTE (Main & Diversity) and GPS Antenna - 020-1053 if 4G Signal is Needed.
  • Unit also fully compatible with 2G & 3G.
  • The DSE890 MKII gateway communicates with a maximum of five connected DSE controllers, monitoring instrumentation and operating states. When this data changes, data is logged internally and transmitted from the gateway device to the DSEWebNet® or MQTT broker (Amazon Web Services, Google, IBM etc..).


  • DSEWebNet® software is accessed using an Internet browser or the dedicated app. Users are able to perform multiple tasks including: monitoring equipment, clearing alarm conditions, starting/stopping equipment and monitoring fuel levels.













    DC SUPPLY

    CONTINUOUS VOLTAGE RATING

    8 V to 35 V continuous

    CRANKING DROPOUTS

    Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

    MAXIMUM OPERATING CURRENT

    GSM                      700 mA at 12 V

    450 mA at 24 V

    GSM & GPS          700 mA at 12 V

    450 mA at 24 V

    Ethernet                 200 mA at 12 V

    110 mA at 24 V

    Ethernet & GPS     700 mA at 12 V

    450 mA at 24 V

    MAXIMUM STANDBY CURRENT

    GSM                      270 mA at 12 V

    150 mA at 24 V

    GSM & GPS          270 mA at 12 V

    150 mA at 24 V

    Ethernet                150 mA at 12 V

    90 mA at 24 V

    Ethernet & GPS    270 mA at 12 V

    150 mA at 24 V



    COMMUNICATIONS

    USB (Single DSE Controller)

    RS232 (Single DSE Controller)

    RS485 (Multiple DSE Controllers)

    Ethernet (Multiple DSE Controllers)
