  2. DSE 020-150 Combined GPS/GSM with GPS-SMA (F) / GSM-SMA (M) Original

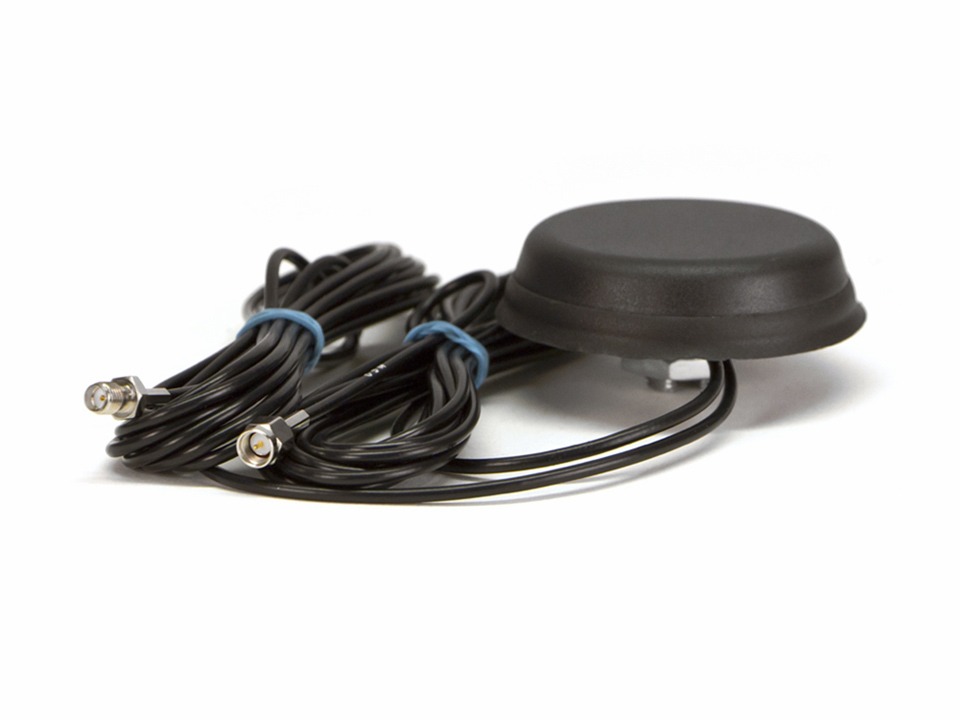

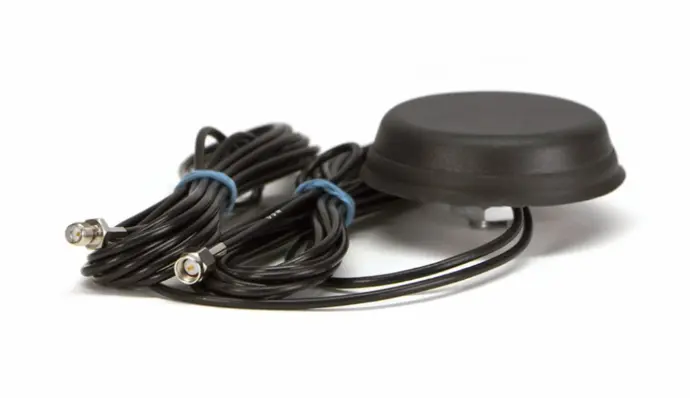

DSE 020-150 Combined GPS/GSM with GPS-SMA (F) / GSM-SMA (M) Original

https://powermaster.odoo.com/web/image/product.template/9838/image_1920?unique=f418f6c

Combined GPS/GSM with GPS-SMA (F) / GSM-SMA (M)

$ 97.59 97.59 USD $ 97.59

$ 97.59

Not Available For Sale

This combination does not exist.

Contact Us
DSE

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

FREQUENCIES

2 AMPS (824 - 894 MHz)

PROTECTION

IP67/IP69K/IK09

WEIGHT

0.5 POUNDS

SIZE

7 x 4 x 2 Inches

OPERATING TEMPERATURE

-40 °C to +85 °C
-40 °F to +185 °F

CELLUAR/WIFI/
BLUETOOTH

Antenna

PROTECTION

IP67/IP69K/IK09

WORK ACROSS

Multiple frequencies

  • Type  - ◖Cellular/Wi-Fi/Bluetooth Antenna
  • Frequencies  - ◖AMPS: (824 - 894 MHz) ◖GSM: (900 MHz) ◖DCS: (1800 MHz) ◖PCS: (1900 MHz) ◖3G: (UMTS 2.1 GHz) ◖Wi-Fi/Bluetooth: (2.4 GHz)
  • Mounting  - ◖Body mounting
  • Impedance  - ◖50 Ω
  • Polarisation  - ◖Linear GAIN 2.2 dB (Average, dependent on size of ground plane)


  • Vswr  - ◖<2.6:1 (VSWR stated with measured with 2.5 m RG-174 cable on a 50cm x 50 cm ground plane)
  • Protection - ◖IP67/IP69K/IK09
  • Operating Temperature - ◖(-40 °C to +85 °C) -40 °F to +185 °F
  • Material - ◖Housing: ABS ◖Base: Zamak ◖Gasket: TPE
  • Colour - ◖Black


DSE 020-150 Dual GSM GPS Antenna  is a compact, high-performance device that combines a GSM antenna and a GPS antenna in a single module. Designed to integrate with DSE controllers and monitoring systems.
